Summary of Contents for arcelik 2489 CNGB

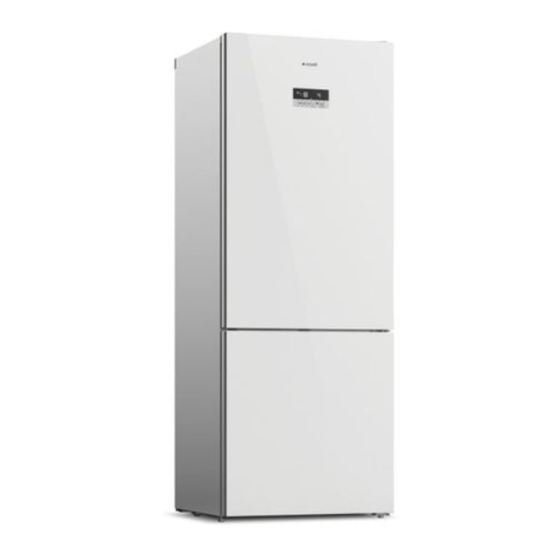

- Page 1 2489 CNGB 2490 CNGB 2488 CNGS A+++...
- Page 2 Please read this user manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. Therefore, read this entire user manual carefully before using the product and keep it as a reference.
-
Page 3: Table Of Contents
CONTENTS 1 Your refrigerator 4 Preparation 2 Important Safety 5 Using your refrigerator 15 Warnings Indicator Panel ......... 15 Intended use ........4 For Effıcıent Lıse ......18 General safety ........4 Dual cooling system: ....... 18 For products with a water dispenser; . 8 Freezing fresh food ...... -
Page 4: Your Refrigerator
Your refrigerator 11. Air grille 1. Fan 12. Adjustable front feet 2. Ampoule 13. Control panel and temperature control 3. Adjustable body shelves 14. Fridge compartment door shelves 4. Wine rack 15. Bottle shelf 5. 0 °C Compartment 16. Egg holders 6. -
Page 5: Important Safety Warnings
Important Safety Warnings Please review the authorized service following information. in order to learn the Failure to observe this required information and information may cause authorized bodies. injuries or material • Consult your authorized damage. Otherwise, all service for all your warranty and reliability questions and problems commitments will... - Page 6 • Do not cover or block • Unplug your cooler/ the ventilation holes on freezer before cleaning or your cooler/freezer with defrosting. any material. • Vapor and vaporized • Electrical devices must cleaning materials be repaired by only should never be used in authorised persons.
- Page 7 • This product is not • Never plug the cooler/ intended to be used by freezer into the wall persons with physical, outlet during installation. sensory or mental Otherwise, risk of death disorders or unlearned or serious injury may or inexperienced people arise.
- Page 8 • Avoid causing damage • Never place containers on power cable when filled with water on top transporting the cooler/ of the cooler/freezer; in freezer. Bending cable the event of spillages, may cause fire. Never this may cause electric place heavy objects on shock or fire.
-
Page 9: For Products With A Water Dispenser
• Cooler/freezer may • Children must be move if adjustable legs supervised to prevent are not properly secured them from tampering on the floor. Properly with the product. securing adjustable legs Compliance with WEEE Directive and Disposing of on the floor can prevent the Waste Product: the cooler/freezer to move. -
Page 10: Hc Warning
Do not forget... • Do not install your refrigerator Any recycled substance is an under direct sunlight or near heat indispensable matter for nature and emitting appliances such as ovens, our national asset wealth. dishwashers or radiators. Keep your refrigerator at least 30cm away from If you want to contribute to the heat emitting sources and at least re-evaluation of the packaging... -
Page 11: Recommendations For The Fresh Food Compartment
Recommendations for the fresh food compartment *optional Do not allow the food to touch the temperature sensor in fresh food compartment. To allow the fresh food compartment keep its ideal storage temperature, sensor must not be hindered by food. Do not place hot foods in the product. -
Page 12: Installation
Installation In case the information which are given in the user manual are not taken into account, manufacturer will not assume any liability for this. Points to be paid attention to when the relocation of the cooler/freezer 1. Your cooler/freezer should be unplugged.Before transportation of your cooler/freezer, it should be emptied and cleaned. -
Page 13: Disposing Of The Packaging
Placing and Installation • Extension cables and multi plugs must not be used for connection. If the entrance door of the room A damaged power cable must be where the cooler/freezer will be replaced by a qualified electrician. installed is not wide enough for the cooler/freezer to pass through, then Product must not be operated before call the authorized service to have... -
Page 14: Changing The Illumination Lamp
Installing the lower Adjusting the legs ventilation cover If your refrigerator is unbalanced; You can install the lower ventilation You can balance your refrigerator cover as illustrated in the figure. by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite... -
Page 15: Preparation
Preparation • Your cooler/freezer should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight. • The ambient temperature of the room where you install your cooler/freezer should at least be 10°C. -
Page 16: Using Your Refrigerator
Using your refrigerator Indicator Panel 1- Fast Freeze Function then once with short intervals since the Fast Freeze indicator will remain electronic circuit protection system will lit when the Fast Freeze function be activated. is enabled. To cancel this function This function is not recalled when press Fast Freeze button again. - Page 17 8- Quick Fridge Indicator 4- Freezer Compartment This icon flashes in an animated style Temperature Setting Indicator when the Quick Fridge function is Indicates the temperature set for the active. Freezer Compartment. 9- Lock Function 5- Fridge Set Function Press Freezer Set and Fridge Set This function allows you to make buttons simultaneously for 3 sec.
- Page 18 13- Ionizer Indicator Light Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria. 14- Humidity Indicator Indicator light lights up continuously. This light indicates that the food kept in the refrigerator is preserved for a long time under ideal humidity.
-
Page 19: For Effıcıent Lıse
For Effıcıent Lıse • Foodstuff must be packaged in an airtight manner to prevent them from Maximum frozen food storage volume drying even if they are going to be is achieved without using the drawers kept for a short time. and the upper shelf cover provided • Materials to be used for in the freezer compartment. -
Page 20: Recommendations For Preservation Of Frozen Food
Freezer Fridge Compartment Compartment Remarks Setting Setting -18°C 4°C This is the normal recommended setting. -20, -22 or These settings are recommended when the 4°C -24°C ambient temperature exceeds 30°C. Use when you wish to freeze your food in a short time. -
Page 21: Deep-Freeze Information
Deep-freeze information Food must be frozen as rapidly as possible when they are put in the freezer in order to keep them in good quality. It is possible to preserve the food for a long time only at -18°C or lower temperatures. -
Page 22: Hygiene - Ion
Hygiene - Ion Icematic and ice storage container Hygiene+: The photocatalyst filter in the air *optional channel of refrigerator helps to clean Using the Icematic the air inside. Also this filter reduces Fill the Icematic with water and place bad smells. it into its seat. -
Page 23: Chiller Compartment
Chiller compartment Odour filter * OPTIONAL Chiller compartments enable the Odour filter in the air duct of the fridge foods to be frozen become ready compartment prevents the build-up of for freezing. You can also use these unpleasant odours in the refrigerator. compartments to store your food at a temperature a few degrees below the fridge compartment. -
Page 24: Maintenance And Cleaning
Maintenance and cleaning Protection of plastic Never use gasoline, benzene or surfaces similar substances for cleaning purposes. Do not put the liquid oils or oil- We recommend that you unplug the cooked meals in your cooler/freezer appliance before cleaning. in unsealed containers as they damage the plastic surfaces of your Never use any sharp abrasive cooler/freezer. -
Page 25: Door Glasses
Door Glasses Li (Lithium), Na (Sodium), K CRemove the protective foil on the (Potassium) Rb (Rubidium), Cs glasses. (Cesium) and artificial and radioactive CThere is a coating on the surface of Fr (Fan-sium) metals are called the glasses. This coating minimizes ALKALI METALS. -
Page 26: Troubleshooting
Troubleshooting Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The cooler/freezer does not operate. - Page 27 • New product may be wider than the previous one. Larger cooler/freezers operate for a longer period of time. • The room temperature may be high. >>>It is normal that the product operates for longer periods in hot ambient. • The cooler/freezer might be plugged in recently or might be loaded with food. >>>When the cooler/freezer is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.
- Page 28 • The fridge temperature is adjusted to a very high value. >>>Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature. • Doors are opened frequently or left ajar for a long time.
- Page 29 • No regular cleaning is performed. >>>Clean the inside of the cooler/freezer regularly with a sponge, lukewarm water or carbonate dissolved in water. • Some containers or package materials may cause the smell. >>>Use a different container or different brand packaging material. • Food is put into the cooler/freezer in uncovered containers.
