- Page 1 2472 CE 2372 CFI...
- Page 2 Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.
-
Page 3: Table Of Contents
CONTENTS 1 Refrigerator 4 Preparation 2 Important Safety 5 Using your refrigerator 17 Warnings Indicator Panel ......... 17 Intended use ........4 Door Open Warning ......22 General safety ........4 Dual cooling system: ....... 22 For products with a water dispenser; . 8 Freezing fresh food ...... -
Page 4: Refrigerator

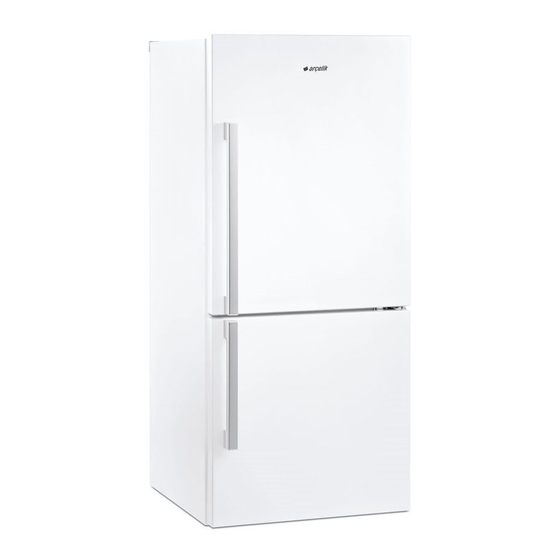

Refrigerator 1. Egg holder 8. Drawer 2. Fridge compartment shelf 9. Crisper 3. Sliding and Rotary storage containers 10. Adjustable glass shelves 4. Bottle shelf 11. Bottle holder 5. Freezer compartment drawers 12. Illumination lens 6. Ice container 13. Fan 7. -
Page 5: Important Safety Warnings
Important Safety Warnings Please review the authorized service following information. in order to learn the Failure to observe this required information and information may cause authorized bodies. injuries or material • Consult your authorized damage. Otherwise, all service for all your warranty and reliability questions and problems commitments will... - Page 6 • Unplug your refrigerator • Do not cover or block before cleaning or the ventilation holes on defrosting. your refrigerator with any • Vapor and vaporized material. cleaning materials • Electrical devices must should never be used in be repaired by only cleaning and defrosting authorised persons.
- Page 7 • Never plug the • This product is not refrigerator into the wall intended to be used by outlet during installation. persons with physical, Otherwise, risk of death sensory or mental or serious injury may disorders or unlearned arise. or inexperienced people •...
- Page 8 • Avoid causing damage the event of spillages, on power cable when this may cause electric transporting the shock or fire. refrigerator. Bending • Do not overload the cable may cause fire. refrigerator with food. Never place heavy If overloaded, the food objects on power cable.
-
Page 9: For Products With A Water Dispenser
• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move. • When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped. -
Page 10: Child Safety
seek a professional Package information Packaging materials of the product support.Use drinking are manufactured from recyclable water only. materials in accordance with our • Use only potable water. National Environment Regulations. Do Child safety not dispose of the packaging materials •... -
Page 11: Things To Be Done For Energy Saving
Things to be done for energy Recommendations for the saving fresh food compartment • Do not leave the doors of your *optional refrigerator open for a long time. • Do not put hot food or drinks in your Do not allow the food to touch the refrigerator. -
Page 12: Installation
Installation In case the information which are 3. Connect the plug of the given in the user manual are not refrigerator to the wall socket. When taken into account, manufacturer will the fridge door is opened, fridge not assume any liability for this. internal lamp will turn on. -
Page 13: Adjusting The Legs
Disposing of the packaging 3. There must be appropriate air ventilation around your refrigerator in The packing materials may be order to achieve an efficient operation. dangerous for children. Keep the If the refrigerator is to be placed in a packing materials out of the reach recess in the wall, there must be at of children or dispose of them by... -
Page 14: Water Connection
Water connection Connecting the water hose to the refrigerator Depending on the model of the refrigerator, you can connect it either to 1.Slip the union (b) onto the water a demijohn or water mains. hose (a). First you must connect the water hose 2.Push the water hose downwards to the refrigerator. -
Page 15: Connecting Of The Water Hose To The Cold Water Mains Line
Connecting of the water hose to the cold water mains line (in some models) If you will use the refrigerator by connecting it to the cold water mains line, you must install a standard 1/2” valve connector to the cold water installation of your home. -
Page 16: Water Filter
Water filter (in some models) Your refrigerator may be equipped with an external or internal filter depending on its model. To fit the water filter, WARNING: Water filter must be hold follow the instructions below referring upright as shown in the figure. It is to the figures supplied: critical to connect the water inlet and Mounting the external filter... -
Page 17: Preparation
Preparation Your refrigerator should be installed at least 300 mm away from heat sources such as hobs, ovens, central heater and stoves and at least 50 mm away from electrical ovens and should not be located under direct sunlight. The ambient temperature of the room where you install your refrigerator should at least be 10°C. -
Page 18: Using Your Refrigerator
Using your refrigerator Indicator Panel Indicator panels may vary depending on your product's model. Indicator panels may vary depending on your product’s model. Indicator panel aids in using your refrigerator with its audio and visual functions. 1. Freezer Compartment Temperature Indicator 2. - Page 19 1. Freezer Compartment 5. Economy Mode Indicator Temperature Indicator Indicates that the refrigerator is running It indicates the temperature set for in energy-efficient mode. Freezer compartment. 6. Ioniser Indicator 2. Error Status Indicator Indicator light lights up continuously. If your refrigerator does not cool This light indicates that your adequately or if there is a sensor refrigerator is protected against the...
- Page 20 * OPTIONAL 1. Fridge compartment setting button 9. Quick fridge function indicator 2. Freezer compartment setting / Icematic 10. Quick fridge function button on-off button 11. Fridge compartment temperature setting 3. Error status indicator indicator 4. Key lock indicator 12. Quick freeze function button 5.
- Page 21 1. Fridge Compartment Setting 4. Key Lock Indicator Button Use this function if you do not This function allows you to make want your refrigerator temperature the fridge compartment temperature setting changed. Press Fridge setting. Press this button to set the compartment setting button and temperature of the fridge compartment Freezer compartment setting button...
- Page 22 13. Quick Freeze Function 8. Economy Mode Indicator Quick Freeze indicator turns on when Indicates that the refrigerator is running the Quick Freeze function is active. To in energy-efficient mode. Freezer cancel this function press Quick Freeze Compartment temperature button again. Quick Freeze indicator This indicator will be active if the will turn off and return to its normal function is set to -18 or the energy...
-
Page 23: Door Open Warning
Door Open Warning • Materials to be used for packagings must be resistant to (This feature may vary depending cold and humidity and they must on the door of the product and may be airtight. The packaging material not exist in some models.) of the food must be at a sufficient An audio warning signal will be given thickness and durability. -
Page 24: Recommendations For Preservation Of Frozen Food
Freezer Fridge Compartment Compartment Remarks Setting Setting -18°C 4°C This is the normal recommended setting. -20, -22 or These settings are recommended when the 4°C -24°C ambient temperature exceeds 30°C. Use when you wish to freeze your food in a short time. -
Page 25: Deep-Freeze Information
Deep-freeze information Food must be frozen as rapidly as possible when they are put in the freezer in order to keep them in good quality. It is possible to preserve the food for a long time only at -18°C or lower temperatures. -
Page 26: Water Dispenser
Water dispenser Filling in the water tank of water dispenser (OPTIONAL) Open the cap of the water tank as Water dispenser is a very useful feature illustrated in the figure. Fill in with pure to obtain chilled water without opening and clean drinking water. -
Page 27: Water Tray
Cleaning the water tank Important: Remove the water tank,and detach the Water tank and components of water top cover mechanism from the water dispenser are not dishwasher-proof. tank. Clean the water tank with warm Water tray clean water, reinstall the top cover. When installing the water tank, make (OPTIONAL) sure that hooks it fits securely into the... -
Page 28: Egg Section
Egg section Rotary storage container You can place the egg section in any (in some models) of the door shelves. If it is going to be Sliding body shelf can be moved to left placed in the body, the lower shelves or right in order to allow you place the are recommended due them being tall bottles, jars or boxes to the lower... -
Page 29: Movable Body Shelf
If more than 10 kg will be loaded, then Movable Body shelf: it should be used as a fixed shelf like *optional others. In this case, if it is required to Manually movable body shelf is an adjust the shelf height, first empty the option enabling the usage of interior food stuff, adjust it as per your height shelf volume of the refrigerator in a... -
Page 30: Icematic And Ice Storage Container
Icematic and ice storage Ice Machine container (in some models) Auto Ice machine system allows you *optional to obtain ice from the refrigerator Using the Icematic easily. After the water system pipe Fill the Icematic with water and place connection will be done, the ice can it into its seat. -
Page 31: Description And Cleaning Of Odor Filter
Description and cleaning of odor filter *optional Odor filter prevents unpleasant odor build-up in your refrigerator. Pull the cover into which the odor filter is installed downwards from the front section and remove as illustrated. Leave the filter under sunlight for one day. -
Page 32: Maintenance And Cleaning
Maintenance and cleaning Never use cleaning agents or water Never use gasoline, benzene or that contain chlorine to clean the similar substances for cleaning outer surfaces and chromium coated purposes. parts of the product. Chlorine causes We recommend that you unplug the corrosion on such metal surfaces. -
Page 33: Troubleshooting
Troubleshooting Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The refrigerator does not operate. - Page 34 • New product may be wider than the previous one. Larger refrigerators operate for a longer period of time. • The room temperature may be high. >>>It is normal that the product operates for longer periods in hot ambient. • The refrigerator might be plugged in recently or might be loaded with food. >>>When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.
- Page 35 • Vibrations or noise. • The floor is not level or stable. >>> If the refrigerator rocks when moved slowly, balance it by adjusting its feet. Also make sure that the floor is strong enough to carry the refrigerator, and level. •...
- Page 36 57 3381 0000/AF...
