1.1 UNPACKING

• Remove all packaging material.
• Remove separate accessory box.
• Remove the generator from carton.

1.1.1 ACCESSORY BOX

Check all contents. If any parts are missing or damaged locate an
authorized dealer at 1-888-436-3722.
Contents Include:
• 1 – Owner's Manual
• 1 - Quart Oil SAE 30
• 2 - Never-Flat Wheels
• 1 - 12 volt Adapter Plug Charger*
• 1 - Hardware Bag (containing the following):
2 - Rubber Feet
2 - 5/16" Flat Washers
4 - 5/16" Carriage Bolts
2 - 1/2" Axle Bolts
2 - 1/2" Flat Washers
* Electric start units only.

1.2 ASSEMBLY

The generator requires some assembly prior to using it. If problems
arise when assembling the generator, please call the Generator
Helpline at 1-888-436-3722.

1.2.1 ASSEMBLING THE ACCESSORY KIT

The wheels are designed into the unit to greatly improve the portability
of the generator.
The wheels are not intended for over-the-road use.
1. Refer to Figure 1 and install Wheels as follows:
• Slide the 1/2" Axle Bolt through the 1/2" Washer, the Wheel and
Wheel bracket on frame.
• Install 1/2" Locking Flange Nuts onto 1/2" Flange Bolt.
2. Refer to Figure 1 and install Frame Foot, Foot Support and Rubber
Feet as shown.
• Slide Rubber Foot stud through the Foot Support and Frame
Foot; Install 5/16" Locking Flange Nuts Slide 5/16" Bolt through
5/16" Flat Washer and then through holes in Frame Rail.
• Slide Frame Foot onto 5/16" Bolts; Install 5/16" Locking Flange
Nuts.
3. Refer to Figure 2 and install Handles as shown.
• Remove top Curved Head Bolts and Cap Nuts (Cap Nuts will
be re-used).
• Slide Handle Assembly over Frame Tube, aligning 2 holes.
• Slide 5/16" Carriage Bolts through; Install 5/16" Cap Nuts.
4
Section 1 – General Information
Portable Generator System
• 1 - Left Handle Assembly
• 1 - Right Handle Assembly
• 1 - Frame Foot
• 1 - Foot Support
2 - 5/16" Bolts
4 - 5/16" Locking Flange Nuts
2 - 5/16" Locking Cap Nuts
2 - 1/2" Locking Flange Nuts
NOTE:

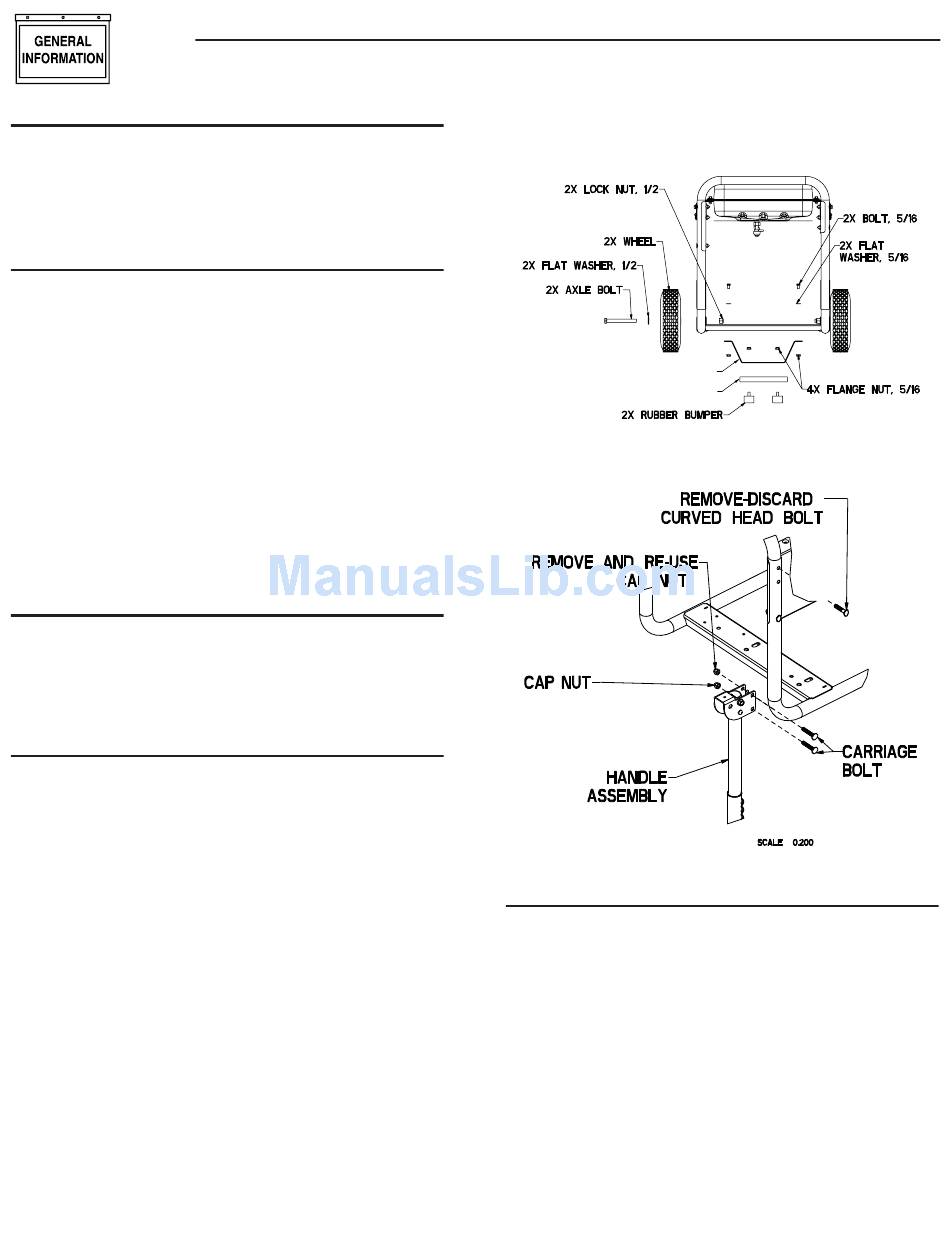

Figure 1 – Wheel Assembly
FOOT SUPPORT
Figure 2 – Install Handle Kit

1.2.2 STARTER CONNECTION (ELECTRIC START ONLY)

The unit has been deliberately shipped with the starter cable
disconnected.
To connect starter:
1. Locate starter cable (a hang tag is attached as shown in Figure
3).
2. Pull vinyl boot back onto starter cable.
3. Remove nut and washer from starter post.
4. Put starter cable onto post and re-install washer and nut.
FOOT
