Hearth and Home Technologies Crescent II Door Installation Instructions

Leave this manual with party responsible
for use and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
fl ammable materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fi xed glass panel. Do
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
The door is attached to the appliance with j-hooks.
Door Installation:
To install the door on the fi replace hold the door about 1/8 inch higher than
the unit and center over the fi replace. Slowly lower the door until all four
j-hooks are engaged.
Door Removal:
To remove the door, raise the door up about 1/8 inch to disengage the j-hooks
and pull the door toward you.
Interchangeable Decorative Panels (Essence Doors):
The decorative panel at the bottom of the door is interchangeable with many
different options. Contact your dealer or visit www.fi replaces.com for inter-
changeable panel options.
To change decorative panel:
• Remove the two 3/8 inch nuts on the back of door (see Figure 2).
• Remove the backing plate from the bolts.
• Slide the backing plate into the decorative panel.
• Place the new panel onto the bolts and secure with nuts.
Replacement Parts:
Mesh ............................................................................... 2083-145
Essence Doors Only -
Backing Plate: Pewter, Bronze ...................................... 2083-160
Polished Brass ................................. 2083-160PB
Brushed Nickel ................................. 2083-160BN
Crescent II Door
- Installation Instructions -
Hearth & Home Technologies • Crescent II Door • 2083-904 Rev. C • 5/11

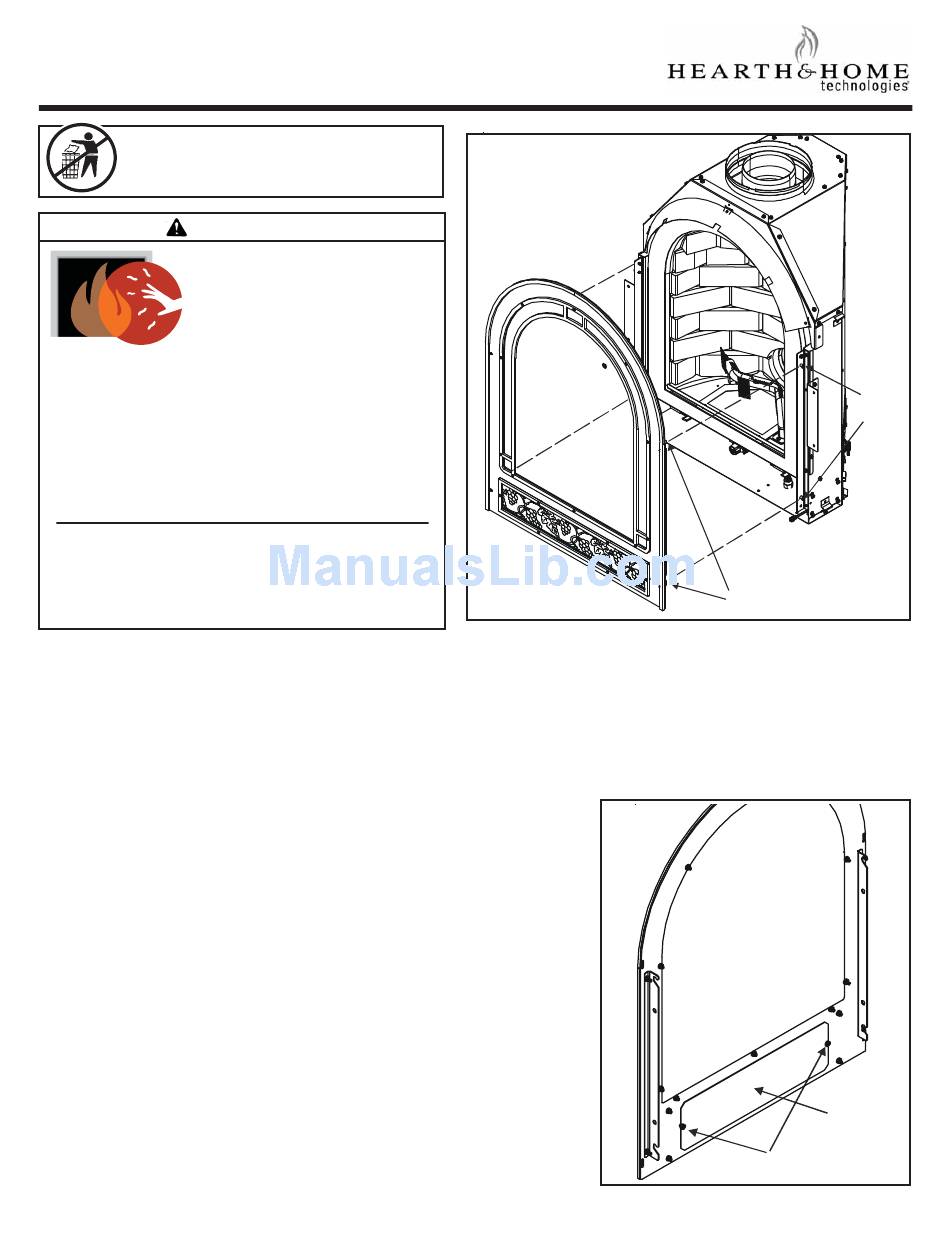

Figure 1. Door Shown: Reserve
Figure 2. Door shown: Essence
J-HOOK
BOLT
J-HOOK
BACKING
PLATE
NUTS
