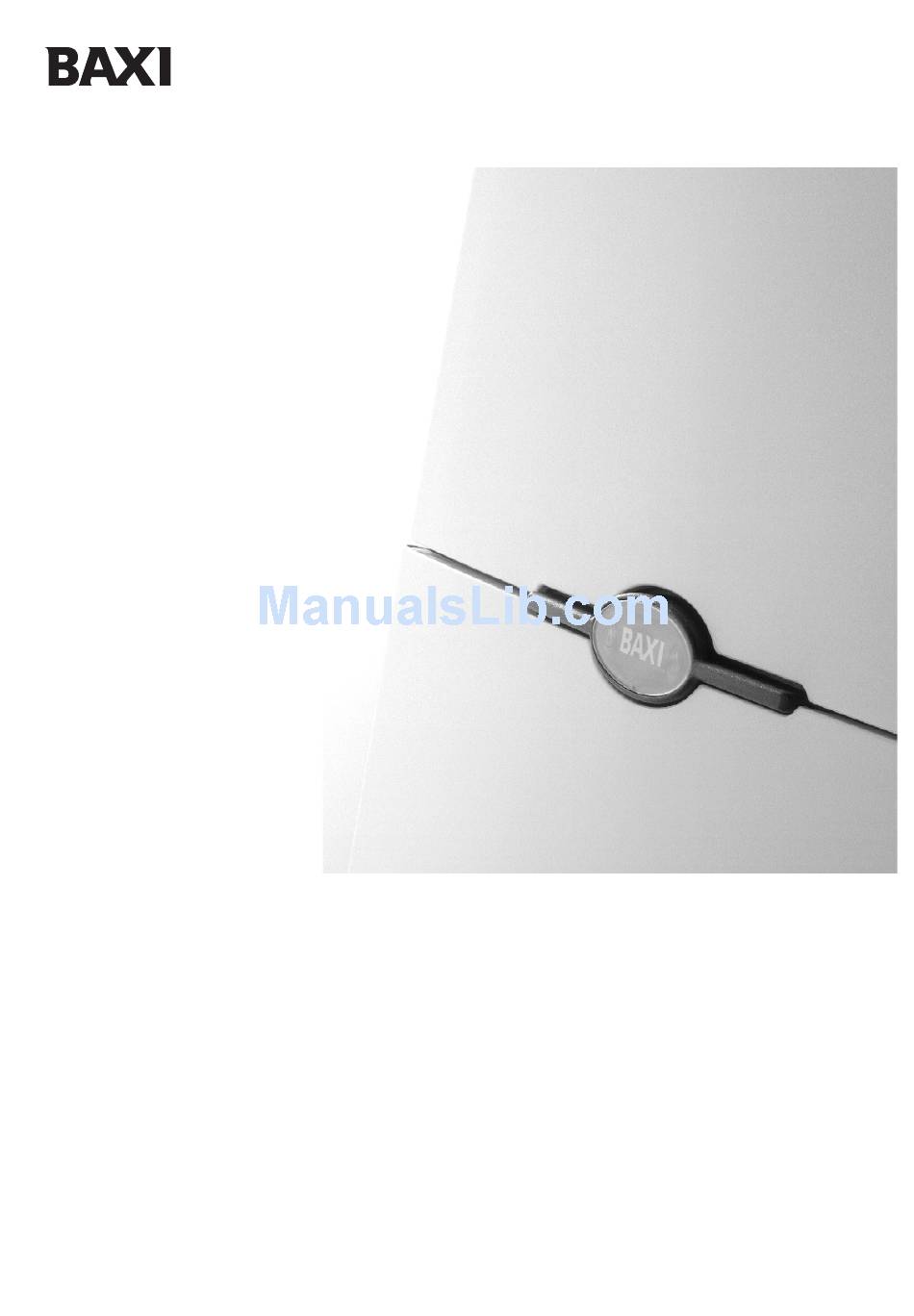

- Page 1 User’s Operating Instructions Baxi Combi 130 HE Gas Fired Wall Mounted Condensing Combination Boiler Please keep these instructions safe. Should you move house, please hand them over to the next occupier.
-
Page 2: Natural Gas
Product/Production certified by: mean continued success. Notified Body 0086. Ref: 86-BL-647 We hope you get a satisfactory service from Baxi. If not, please let us know. For GB/IE only. Baxi is a BS-EN ISO 9001 Accredited Company... -
Page 3: Operating The Boiler
1.0 Operating the Boiler Introduction 1. Your Baxi Combi 130 HE is a gas fired, room sealed, powered flue condensing combination boiler, providing central heating for your home and mains fed domestic hot water. It is fully automatic and does not have a pilot light. Frost and pump protection are an integral part of the appliance. - Page 4 1.0 Operating the Boiler Temperature Control Central Heating: The boiler will automatically achieve the optimum flow temperature for maximum comfort and efficiency. 1. However, in the case of the elderly, infirm or very young, a lower radiator surface temperature may be desirable. If so, the central heating flow temperature can be adjusted between 45°...
-
Page 5: Care Of The Boiler
Installer during the guarantee Fault period after which spare parts may be obtained through approved Baxi stockists if required. 2. Quote the appliance name, model number and where possible the part number when ordering spares. A short parts list is included in the Installation and Servicing Instructions. - Page 6 2.0 Care of the Boiler Guarantee 1. Your Baxi Combi 130 HE is designed and produced to meet all the relevant Standards. 2. Baxi provide a 12 month guarantee on the boiler. The guarantee operates from the date installation is completed for the customer who is the original user.
- Page 7 3.0 Clearances 490mm 5mm Min 5mm Min Clearances around the Boiler (Figs. 8 & 9) 1. The minimum clear spaces needed around the 200mm boiler measured from the casing are as follows: 200mm Bottom 200mm Both sides - Front 500mm (For Servicing) (In Operation) 2.
- Page 8 4.0 Check List, Emergency Check List 1. If a fault develops, or is suspected, a Competent Person (see Definition of competence page 9) as soon as possible. 2. Go through the following check list before you make contact. Is the electricity supply on ? Is the boiler set for both Central Heating and Domestic Hot Water ? (Showing On) Is the red “Flame Failure”...
-
Page 9: This Appliance Must Be Earthed
5.0 Legislation Safe Installation IMPORTANT - Installation, Commissioning, Service & Repair 1. The appliance is suitable only for installation in This appliance must be installed in accordance with the manufacturer’s GB and IE and should be installed in accordance instructions and the regulations in force. Read the instructions fully before with the rules in force. - Page 10 6.0 Notes...
- Page 11 Baxi manufacture a comprehensive range of products for the domestic heating market. Gas Central Heating Boilers (Wall, Floor and Fireside models). Independent Gas Fires. Renewal Firefronts. Gas Wall Heaters. Solid Fuel Fires. If you require information on any of these products,...
- Page 12 Label B A X I P O T T E R T O N A Trading Division of Baxi Heating UK Ltd Brownedge Road Bamber Bridge Preston Lancashire PR5 6SN After Sales Service 08706 096 096 Technical Enquiries 08706 049 049 Website www.baxi.co.uk...
