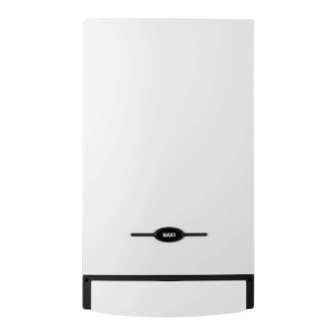

Gas fired wall mounted condensing combination boiler

Advertisement

User's Operating Instructions
Baxi Combi 105 HE
Gas Fired Wall Mounted
Condensing Combination Boiler
Please keep these instructions safe.
Should you move house, please hand
© Baxi Heating UK Limited 2005
them over to the next occupier.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Combi 105 HE and is the answer not in the manual?

Questions and answers

Summary of Contents for Baxi Combi 105 HE

  • Page 1 User’s Operating Instructions Baxi Combi 105 HE Gas Fired Wall Mounted Condensing Combination Boiler Please keep these instructions safe. Should you move house, please hand © Baxi Heating UK Limited 2005 them over to the next occupier.
  • Page 2 the nation’s favourite PLUMBING & HEATING SUPPLIES FREE SHIPPING SECURE PAYMENTS on all orders over £100 to mainland UK shop online with confidence FINANCE AVAILABLE PRICE MATCH spread the cost with low interest rates always get the best deals available we have H U G E R E D U C T I O N S...
  • Page 3 Service Interval Record at the back is completed at each service visit. © Baxi Heating UK Limited 2005 All rights reserved. No part of this publication The boiler meets the requirements of Statutory Instrument “ The...
  • Page 4 Legislation IMPORTANT - Installation, Commissioning, Service & Repair Baxi declare that no substances harmful to health are contained in the appliance or used during appliance This appliance must be installed in accordance with the manufacturer’s instructions and manufacture. the regulations in force. Read the instructions fully before installing or using the appliance.
  • Page 5 Electricity Supply 1. THIS APPLIANCE MUST BE EARTHED. 2. A standard 230V ~ 50Hz supply is required. The appliance must be protected by a 3 amp fuse. Never Hang Flammable Items Over The Appliance © Baxi Heating UK Limited 2005...
  • Page 6 2.0 Introduction Introduction 1. Your Baxi Combi 105 HE is a gas fired, room sealed, powered flue condensing combination boiler, providing central heating for your home and mains fed domestic hot water to taps and shower. It is fully automatic and does not have a pilot light. Boiler frost protection and pump protection are integral features of the appliance.
  • Page 7 Position (i) or On/Off/Reset Position (ii). Selector Switch Reset Reset OFF Position Position (i) (Central Heating or Hot Water) Fig. 6 Fig. 7 Reset Position (ii) Fig. 8 (Hot Water) © Baxi Heating UK Limited 2005...
  • Page 8 Fig. 11 Safety Thermostats 1. Your Baxi Combi 105 HE is fitted with additional safety devices, which shut down the boiler in the event of the system, the boiler or the flue overheating. The...
  • Page 9 1. With the selector switch in either Position (i) or Position (ii) (Figs. 13 & 14) the pump will automatically Fig. 13 operate for 1 minute in every 24 hours to prevent sticking. Reset Fig. 14 © Baxi Heating UK Limited 2005...
  • Page 10 2. If the system temperature falls below 5°C, then the OFF Position boiler will fire until the water temperature has been raised. 3. Further frost protection can be incorporated by using a frost thermostat to protect the whole system. © Baxi Heating UK Limited 2005...
  • Page 11 Is the time clock (if fitted) calling for central heating ? i) Is the room thermostat (if fitted) set high enough ? In Operation Fig. 21 j) Are the radiator valves open ? © Baxi Heating UK Limited 2005...
  • Page 12 2. In the unlikely event of a breakdown our Contact your installer Baxi Heating UK Limited trained heating experts will quickly get your heating and hot water working again. If your boiler is out of its free 12 month warranty period, heateam can provide a competitive fixed price repair rate including parts, labour and VAT.
  • Page 13 Baxi Please complete the boxes below Heating UK Limited providing a free warranty service within 12 months of installation of your boiler. If your installer is unable to Serial Number rectify your boiler fault, by contacting one of our friendly advisors we can arrange an engineer if required.
