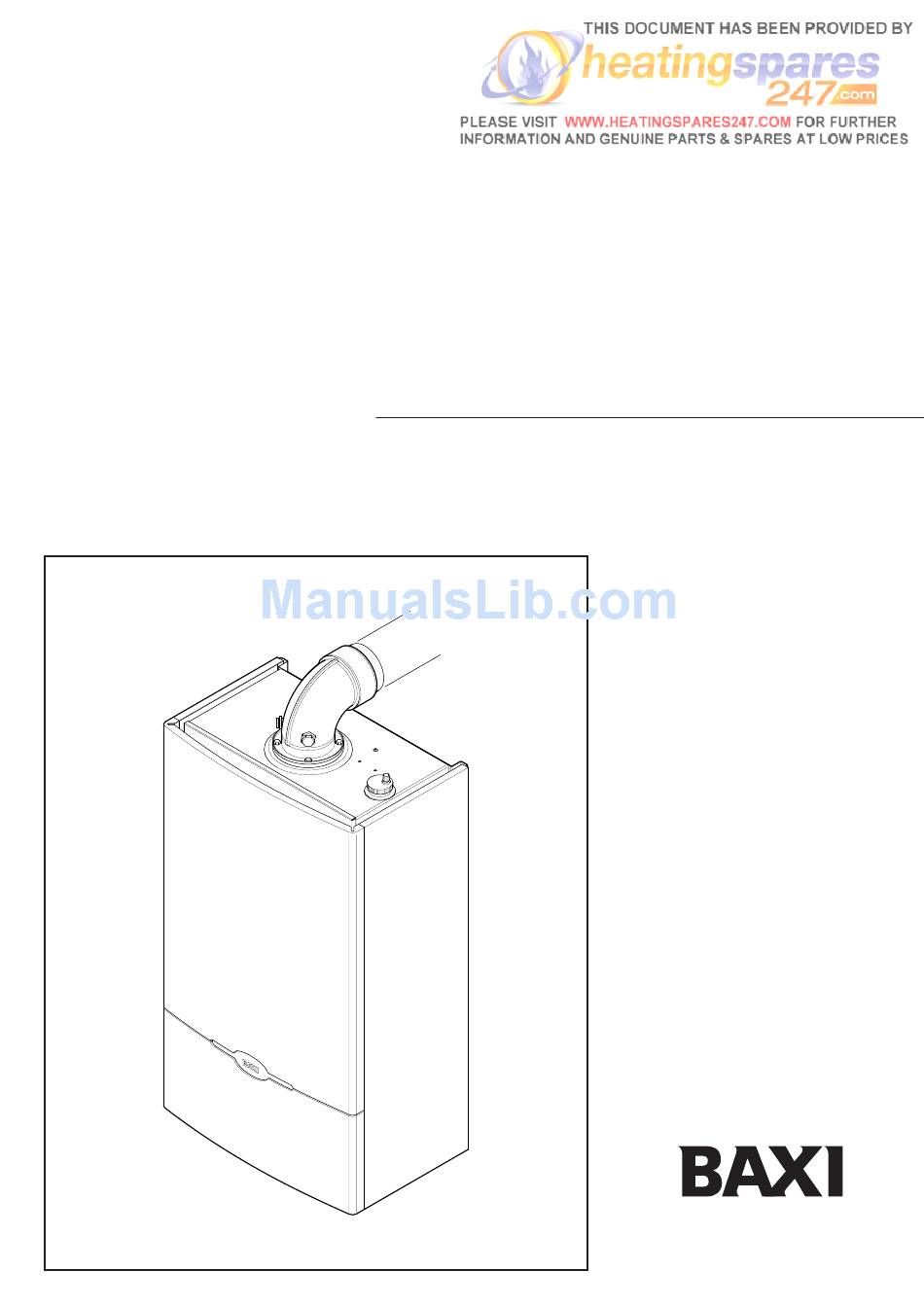

- Page 1 Please keep these instructions safe. Should you move house, please hand them over to the next occupier. Baxi Bahama 100 Gas Fired Wall Mounted Combination Boiler User’s Operating Instructions...
- Page 2 Notified Body 0086. success. Product/Production certified by: Notified Body 0086. We hope you get a satisfactory service from Baxi. If not, please let us know. For GB/IE only. Baxi is a BS-EN ISO 9001 Accredited Company...
-
Page 3: This Appliance Must Be Earthed
4. To isolate the water system, close the three valves fully by permission of Baxi UK Limited could invalidate turning clockwise. the appliance warranty and infringe the G (Installation and Use) R... -
Page 4: Operating The Boiler
2.0 Operating the Boiler Introduction 1. Your Baxi Bahama 100 is a gas fired, room sealed, powered flue combination boiler, providing central heating for your home and mains fed domestic hot water to taps and shower. It is fully automatic and does not have a pilot light. Frost and pump protection is a integral part of the appliance. - Page 5 The left hand symbol is the orange “Burner ON” indicator. Safety Thermostat 1. Your Baxi Bahama 100 is fitted with an additional safety device, which shuts down the Fig. 8 boiler in the event of the system or the boiler overheating.
- Page 6 2.0 Operating the Boiler Pressure Gauge Central Heating System Pressure 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. The normal operating pressure is the range Fig. 10 between 1 and 2·5 (Fig. 10). Normal Pressure 3.
- Page 7 3.0 Clearances and Check List 490mm 5mm Min 5mm Min 50mm both sides Clearances around the Boiler recommended for ease of (Figs. 5 & 6) installation and service 200mm 1. The minimum clear spaces needed around 100mm both sides will the boiler measured from the casing are as be necessary when the optional security screws...
- Page 8 A short parts list is included in the Installation and Servicing Instructions. Guarantee 1. Your Baxi Bahama 100 is designed and produced to meet all the relevant Standards. 2. Baxi UK Limited provide a 12 month guarantee on the boiler. The guarantee operates from the date installation is completed for the customer who is the original user.
- Page 9 5.0 Notes...
- Page 10 5.0 Notes...
- Page 11 Baxi UK Limited manufacture a comprehensive range of products for the domestic heating market. Gas Central Heating Boilers (Wall, Floor and Fireside models). Independent Gas Fires. Renewal Firefronts. Gas Wall Heaters. Solid Fuel Fires. If you require information on any of these products,...
- Page 12 Comp N 245527 - Iss 3 - 6/00 The Baxi Helplines For General Enquiries +44 (0)8706 060 780 For After Sales Service +44 (0)8706 096 096 For Technical Enquiries +44 (0)8706 049 049 Baxi UK Limited Brownedge Road Bamber Bridge Preston...
