Summary of Contents for Pyle PLMCA10

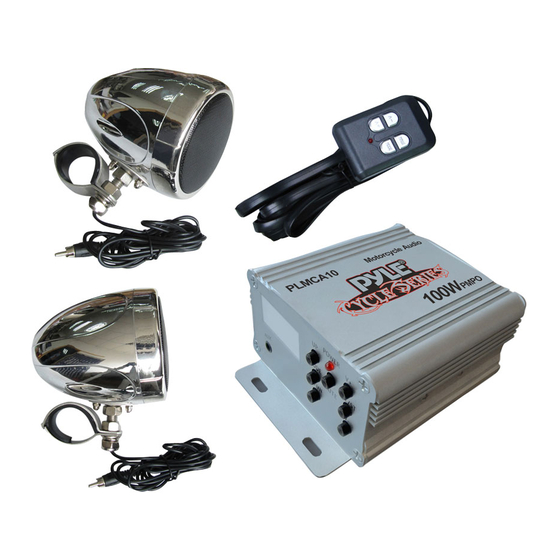

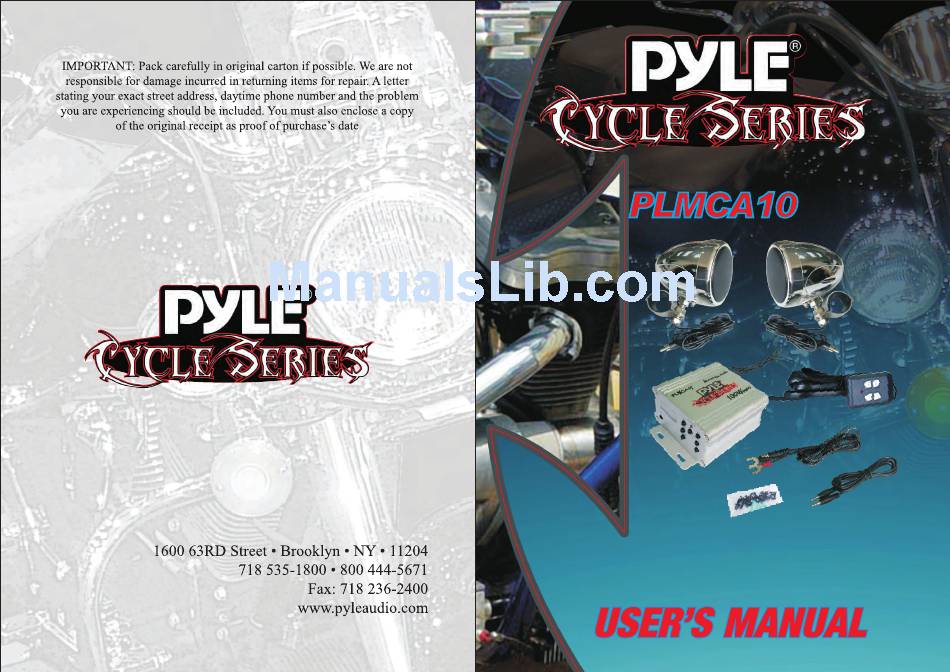

- Page 1 Motorcycle Mount Amplified 50 Watt x 2 Stereo Sound System W/Dual Handlebar Mount Speakers/FM Radio/Remote Control...
- Page 2 POWER CABLE( WITH NOISE FILTER)-------------------1PC AUDIO CABLE -------------------------------------------------1PC SCREW KIT -----------------------------------------------------1PC USER’S MANUAL--------------------------------------------1PC REMOTE CONTROL UNIT (OPTIONAL)-------------------1PC SPECIFICATION RMS POWER: 25W×2@4 Ohm 10%THD 50W×2@2 Ohm 10%THD FREQUENCY RESPONSE:20Hz-20KHz S/N:>50dB CHANNEL BALANCE:<2dB FM FREQUENCY RANGE:87.5-108.0MHz FM SENSITIVITY:10μV @S/N 30dB Model: PLMCA10...
- Page 3 User's Manual Motorcycle and Boat A udio Stereo S ystem with FM Auto Scan Radio LCD SCREEN on the Main Unit Features ● 50W×2 Detachable Amplifier with a Pair of 3′ Weatherproof Loudspeakers ● FM Radio/AUX/Clock Modes ● Built in FM Radio with Electric Tuning ●...
-
Page 4: Connection Diagram
User's Manual AUX Mode CONNECTION DIAGRAM A)Press the button MODE when in the FM radio Mode less than 1s.Clock time and the AUX words will display on the CD、WALKMAN LCD. MD、MP3 B ) A d j u s t t h e v o l u m e / t r e b l e / b a s s a s s t e p 3 ) , VOL/TREBLE/BASS adjustments of the FM Radio Mode Audio cable and Tuning on page 5. - Page 5 Connect a Remote Control Unit to the REMOTE jack on the the FM stereo mode to FM mono mode. Use the same way rear panel(if needed, just for PLMCA10). to change back to the FM stereo mode with ST words Fix the FM antenna to a proper place of good receiving.
