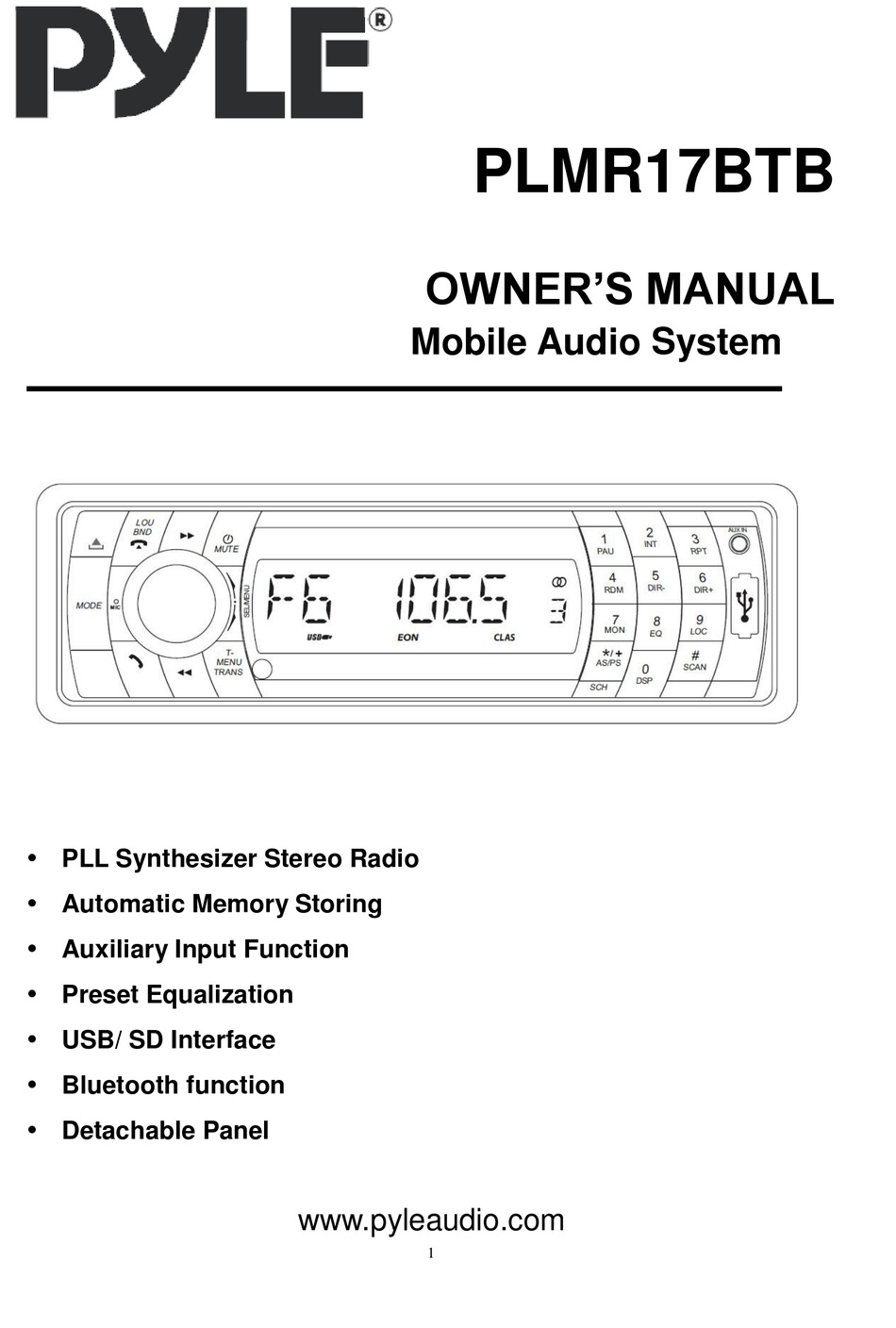

- Page 1 PLMR17BTB OWNER’S MANUAL Mobile Audio System PLL Synthesizer Stereo Radio Automatic Memory Storing Auxiliary Input Function Preset Equalization USB/ SD Interface Bluetooth function Detachable Panel www.pyleaudio.com...
-
Page 2: Table Of Contents
CONTENTS Installation ........... 3 SD operation ........11 Take out screw before installation ..3 Bluetooth operation…………………….11 Remote control ......... 14 DIN Front-Mount (Method A) ....3 Specification ........15 Installing the unit ....... 3 Trouble shooting ....... 16 Removing the unit ......4 DIN Rear-Mount (Method B) .... -
Page 3: Installation
INSTALLATION Notes: DIN FRONT-MOUNT (Method A) Installation Opening Choose the mounting location where the unit will not interfere with the This unit can be installed in any normal driving function of the driver. dashboard having an opening as shown ... -
Page 4: Removing The Unit
INSTALLATION 6. Mount the sleeve by inserting the terminal of the mounting bolt to the sleeve into opening back of the unit and the other long dashboard and bend open the tabs threading terminal to the dashboard. located around the sleeve with a Hex Nut Spring Washer screwdriver. -
Page 5: Din Rear-Mount (Method B)
INSTALLATION DIN REAR-MOUNT (Method B) If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle. -
Page 6: Using The Detachable Front Panel
USING THE DETACHABLE FRONT PANEL Precautions when handling REMOVING THE FRONT PANEL 1. Do not drop the front panel. 1. Press the release button ( ) on the 2. Do not put pressure on the display or front panel and pull off the front panel. control buttons when removing or installing the front panel. -
Page 7: Wiring Connection
WIRING CONNECTION ISO CONNECTION... -
Page 8: Operation
OPERATION LOCATION OF KEYS (release button) 16. SCAN/# (hang up)/LOU/BND 17. 8 EQ 3. VOL / SEL/ENT (Audio knob) 18. 0 DSP (SEEK UP) 19. 7 MON /MUTE 20. */+/ AS/PS/SCH 6. LCD 21. IR 7. 1 PAU 22. T-MENU/TRANS 8. -
Page 9: Switching On/Off The Unit
OPERATION TURN ON/OFF THE UNIT Press it and hold again to cancel this Press button (5) to turn on the unit. function. When the unit is on. Press and hold it for 2 seconds to turn the unit off. MUTING THE SOUND SOUND ADJUSTMENT Press MUTE button (5) to mute the sound output. -
Page 10: Selecting Station
OPERATION following order: will reduce the receiving sensitivity when →FM1→ FM2→ FM3 →AM1→AM2 you search station. That means you can receive the station that sound is good. It will ignores the station that sound is not good. In LOC OFF mode it will increase the ... -
Page 11: Playing All Tracks In Random
OPERATION repeat the same file. Press it again to support every MP3 player. repeat all the files. When connecting an MP3 player and there has normal battery in the player PLAYING ALL FILES IN RANDOM Press RDM button (8) to play all files in (non rechargeable battery),... - Page 12 OPERATION Answering / rejecting an incoming the display. Press and hold key the call LCD will become BLANK. In this moment When there is a phone is coming in. press key will redial the last phone Press key to answer the call. number.
- Page 13 OPERATION music player of your mobile phone and playing a song. The sound will come out from the speaker of the unit. Press PAU key of the front panel of the unit to pause/play the song. Press button (23) button select next/previous song.
-
Page 14: Remote Control
REMOTE CONTROL HANDSET(OPTIONAL) FUNCTION KEY & CONTROL 1. --POWER Power ON/OFF Button 2. MODE Press to change the source. 3. TUNE/SKIP Radio mode: seek/turn down station. MP3 mode: skip to the previous file or fast reverse. Letter 8 for MP3/WMA search 4. -
Page 15: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 97 (D) x 50 (H) Tone Controls Bass (at 100 Hz) : ±10 dB Treble (at 10 kHz) : ±10 dB Maximum Output Power : 4x60 watts Current Drain : 15 Ampere (max.) -
Page 16: Trouble Shooting
TROUBLE SHOOTING Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. Symptom Cause Solution The car ignition switch is power supply No power. not on. connected to the car accessory circuits, but the engine is not moving, switch the ignition key...
