Design LED 108IP
Elation Professional™
6122 S. Eastern Ave.
Los Angeles, Ca 90040
www.elationlighting.com
Rev. 03/24/2008 - visage

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Design LED 108IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elation Design LED 108IP

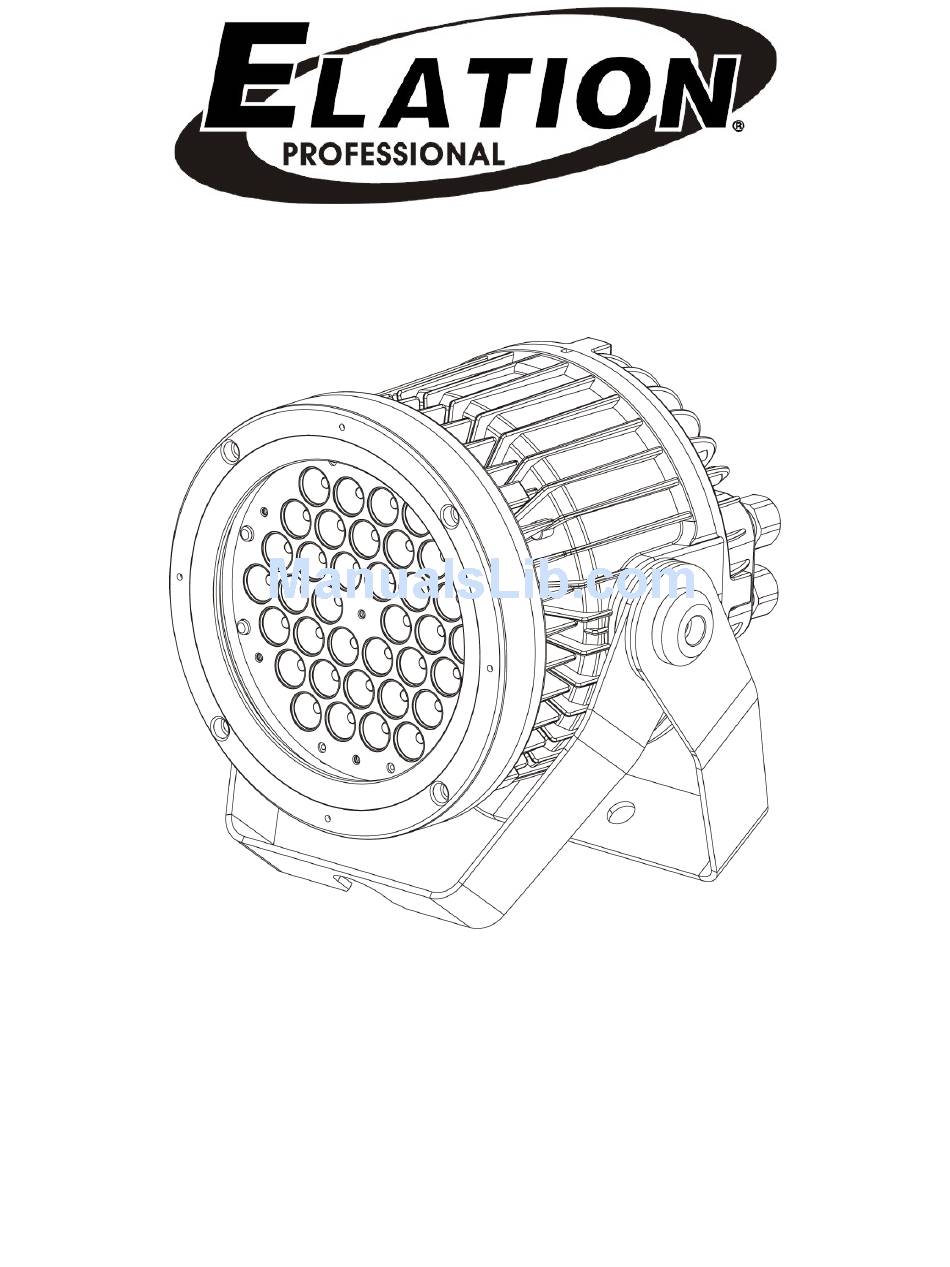

  • Page 1 Design LED 108IP Elation Professional™ 6122 S. Eastern Ave. Los Angeles, Ca 90040 www.elationlighting.com Rev. 03/24/2008 - visage...
  • Page 2 DESIGN LED 108IP™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 3: Table Of Contents

    4-Channel Mode…..…………………………………………………………..… 23 c. 6-Channel Mode…..……………………………………………..……………… 24 11. Lens Replacement……… ……………………………………………………………… 26 12. Cleaning and Maintenance……………………………………………………………… 27 13. Warranty…………………………………………………………………………………... 28 14. Photometric Data………………………………………………………………………… 30 15. Dimensional Drawings………………………………………………….……………….. 31 16. Circuit Schematic………...………………………………………………………………. 32 17. Technical Specifications…………………………………………...………….………… 33 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 4: General Information

    INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The Design LED 108IP™ has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit.
  • Page 5: Warranty Registration

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The Design LED 108IP™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.
  • Page 6: Safety Instructions

    4. For safe operation, follow the Installation guide described in chapter six of this manual. Operating the Design LED 108IP™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury.
  • Page 7 14. Please be aware that damages caused by modifications to the device are not subject to warranty. Important Notice: Damages resulting from the disregard of safety and general user instructions found in this user manual are not subject to any warranty claims. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 8: Features

    IP65 rated Connectors for power and DMX • Power Switching Electronic Power Supply 100v~240v • Flicker-free operation for television and film • Compact design: fits in 12” box truss • 0%~100% Dimming (two dimming options; linear & standard) ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 9: General Guidelines

    Most damages are the result of improper operation. Please use the original packaging to transport the fixture in for service. For your own safety, please read this user manual carefully before installing the device. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 10: Fixture Overview

    DESIGN LED 108IP™ 5. FIXTURE OVERVIEW ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 11 108IP™. Please do not daisy-chain power for more than 16 fixtures. To maintain the integrity of the IP rating, only use proper Elation IP rated power cables. 4. DMX Out Lead – This lead is used to send an incoming DMX signal to the next fixture in the DMX chain.
  • Page 12 DESIGN LED 108IP™ cable that converts from standard Edison 3-prong to the IP rated twist lock connector. When jumping from fixture to fixture be sure to only use Elation IP rated power connectors to maintain the IP rating. 11. DMX In Lead – This lead is the main DMX input lead. When the unit is the first in a...
  • Page 13: Mounting And Installation

    Improper installation can result in bodily injury. CAUTION! Be sure a qualified electrician performs all electrical connections. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 14: Mounting Positions

    See the image below. Clamp Mounting The Design LED 108IP™ provides a unique mounting bracket assembly that allows the unit to stand on a flat surface or to be hung on truss via a clamp in any safe position (see the illustration above).
  • Page 15: Securing

    See illustrations below. Securing the Design LED 108IP™ Always be sure to secure your fixture with a safety cable when suspending the unit from truss or other means. The fixture provides a built-in rigging point for a safety cable as illustrated above.
  • Page 16: Understanding Dmx

    1 to that fixture no matter where it is located in the DMX chain. The Design LED 108IP™ can be controlled via DMX-512 protocol. The Design LED 108IP™ is a fixture that can operate in 3, 4, or 6 DMX channels (see page 22 for the different DMX traits). The DMX address is set electronically using the controls on the LED menu.
  • Page 17: Dmx Connections

    “First” Power Cable – A special power “First” cable is included but may be purchased separately from Elation that is used to provide power to your fixture. This cable comes with the IP rated twist lock connector on one end and a standard Edison 3-prong, grounded prong on the other end.
  • Page 18: 3-Pin To 5-Pin Conversion

    That means changing the settings of one channel will only affect the selected fixture. In the case of the Design LED 108IP™, which is up to a six channel fixture (default may also be set to three or four channels), you should set the starting DMX address of the first unit to ©Elation Professional, Los Angeles Ca.
  • Page 19 1, the second unit to 4 (3 + 1), the third unit to 7 (3 + 4), and so on. Note: During start-up the Design LED 108IP ™ will automatically detect whether a DMX data signal is being received or not. If a DMX data signal is being received, the display will show "A.XXX"...
  • Page 20: Display Led Indicators

    DESIGN LED 108IP™ 8. DISPLAY LED INDICATORS. The Design LED 108IP ™ has two LED indicators on the display. These indicators are designed to give a quick visual indication of the fixtures’ status. The illustration below details the functionality of the LED indicators.
  • Page 21: Display Menu

    Adjust strobe rate of program 2 SPED Adjust program 3 speed CHS3 FADE Adjust program 3 fade time STRB Adjust strobe rate of program 3 CHS4 SPED Adjust program 4 speed FADE Adjust program 4 fade time ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 22 1) If the fixture does not receive a DMX signal the menu display will flash repeatedly. 2) SPED: Adjust the hold time for each scene in built-in chase programs. 3) FADE: Adjust the fade time between each scene in the built-in programs. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 23: Dmx Traits

    DMX channel’s functions and their values (3-Channel Mode): Channel 1 - Red: 0-255 Red (0-Black, 255 - 100% Red) Channel 2 - Green: 0-255 Green (0-Black, 255 - 100% Green) Channel 3 - Blue: 0-255 Blue (0-Black, 255 - 100% Blue) ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 24: 4-Channel Mode

    This channel has two functions depending on the operating mode. When running the built-in programs this channel will control the program speed. 0-255 Dimming (0%-100%) ~ Normal Operation 0-255 Speed (min to max) ~ When running built-in programs on channel 4 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 25: 6-Channel Mode

    6-Channel Mode: The charts below and on the next page detail the DMX channel layout for 6-channel assignment. DMX channel’s functions and their values (6-Channel Mode): Channel 1 - Red: 0-255 Red (0-Black, 255-100% Red) ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 26 0-255 Dimming (0%-100%) ~ Normal Operation 0-255 Speed (min to max) ~ When running built-in programs on channel 4 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 27: Lens Replacement

    DESIGN LED 108IP™ 11. LENS REPLACEMENT The Design LED 108IP comes with a removable front cover that allows lens assembly to be changed out to achieve different beam angles. Lens cover is held in place by two ¼ turn locking fasteners. To remove the cover; 1) Turn the locking fasteners in a counter-clockwise direction.
  • Page 28: Cleaning And Maintenance

    There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local dealer. ©Elation Professional, Los Angeles Ca.
  • Page 29: Warranty

    ® defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or replacement ®...
  • Page 30 The consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
  • Page 31: Photometric Data

    DESIGN LED 108IP™ PHOTOMETRIC DATA ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 32: Dimensional Drawings

    DESIGN LED 108IP™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 33: Circuit Schematic

    DESIGN LED 108IP™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 34: Technical Specifications

    100,000 Hours Rated Life Dimensions: (232 x 220 x 260)mm 9.13” x 8.66” 10.24” Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 35 DESIGN LED 108IP™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 36 Elation Professional 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-3322 / 323-832-9142 fax www.ElationLighting.com / Info@ElationLighitng.com Rev. 03/24/2008 - visage...
