Yealink CPE80 Quick Start Manual

Expansion microphone

Hide thumbs Also See for CPE80:

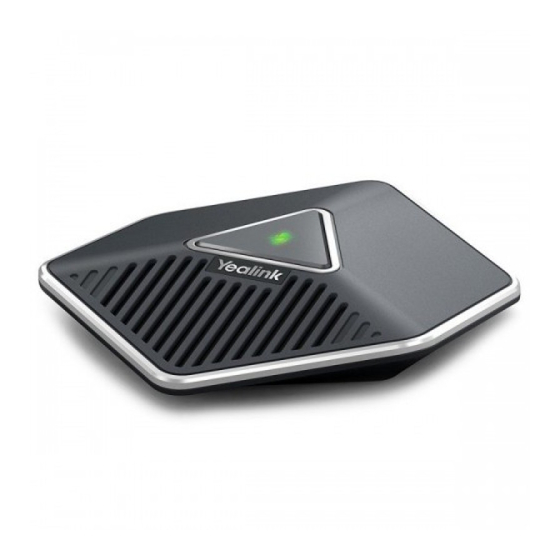

Expansion Microphone CPE80

Quick Start Guide

The expansion microphone features 10-feet (3-meters) voice pickup range, and 1.8m connection cable that connects

to CP860 IP conference phone. Up to two expansion microphones can be connected to an IP conference phone.

With the addition of expansion microphone, the CP860 is the ideal conference phone for mediumto large size

conference rooms that need extended coverage at the far ends of a conference table.

Packaging Contents

The following items are included in your package. If you find anything missing, contact your system administrator.

Expansion Microphone

Quick Start Guide

Connect the expansion microphone, as shown below:
