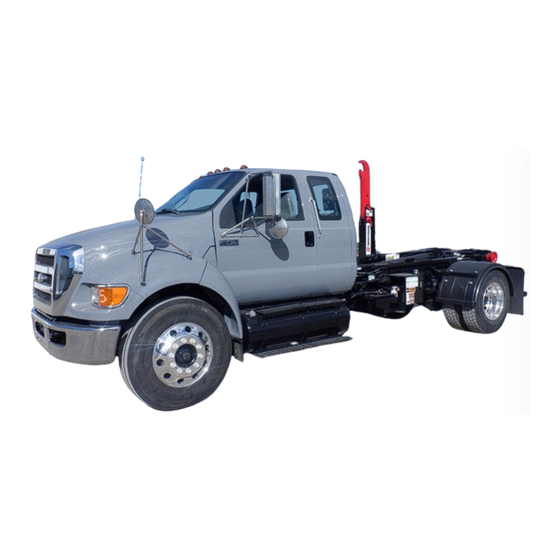

Page 1 2015 F-650/750 Owner’s Manual fordowner.com ford.ca December 2013 First Printing Owner’s Manual F-650/F-750 Litho in U.S.A. FC4J 19A321 BA...
Page 2: Table Of Contents
Table of Contents Introduction Vehicle Inspection Guide Child Safety Child seat positioning ........25 Booster seats .
Page 3 Table of Contents Windows and Mirrors Power windows ........58 Exterior mirrors .
Page 4 Table of Contents Transmission Transmission operation ....... . .126 Brakes Brakes .
Page 5 Table of Contents Fuses Changing a fuse ........187 Fuse specification chart .
Page 6: Table Of Contents
Table of Contents Vehicle Care Cleaning products........234 Cleaning the exterior .
Page 8: Introduction
Introduction ABOUT THIS MANUAL Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.
Page 9 Introduction SYMBOL GLOSSARY WARNING: You risk death or serious injury to yourself and others if you do not follow the instruction highlighted by the warning symbol. These are some of the symbols you may see on your vehicle. Symbol Description Symbol Description Symbol Description Safety alert...
Page 10 In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may...
Page 11 See www.dtsc.ca.gov/hazardouswaste/perchlorate for more information. FORD CREDIT (U.S. ONLY) Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.
Page 12 Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, see the terms and conditions of the Ford Warranty.
Page 13 Introduction WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
Page 14: Vehicle Inspection Guide
Vehicle Inspection Guide VEHICLE INSPECTION INFORMATION To make sure your vehicle is ready to operate, conduct a pre-trip inspection at the beginning of each work period. Follow the steps listed in this section to verify a proper vehicle inspection procedure. WARNING: Exercise great caution when working on a vehicle equipped with an automatic fan clutch.
Page 15 Vehicle Inspection Guide Engine compartment (with engine off) Engine oil Use the dipstick to verify the oil level is in the proper operating range. See Engine oil check in the Maintenance chapter. Engine coolant Look through the plastic reservoir or the clear sight glass on the reservoir (depending upon vehicle equipment) and verify the coolant level is within the proper operating range.
Page 16 Vehicle Inspection Guide Engine starting (with parking brake applied) Safety and Before entering the cab, verify that the vehicle is emergency equipped with spare electrical fuses (if used), equipment three red reflective triangles, a properly charged and rated fire extinguisher and wheel chocks. Walk around the vehicle and verify all steps and grab handles, inside and out (as well as behind), are tight and clean.
Page 17 Vehicle Inspection Guide Engine starting (with parking brake applied) Steering linkage Inspect for excessive free play in the steering linkages. The steering wheel should have less free play than 2 inches (5 centimeters) of free play at its rim. Full power Pump the brake pedal several times with the hydraulic brake ignition in the off or run position.
Page 18 Vehicle Inspection Guide Front of vehicle Lights Verify: • All exterior lights illuminate and are clean • Headlights function on high and low beam • Reflectors are clean, unbroken and of proper color (red on rear, amber elsewhere) • Running lights are clean and unbroken. Steering gear Inspect for any: •...
Page 19 Vehicle Inspection Guide Front brakes Hoses Inspect for cracked, worn or frayed hoses. Verify all couplings are secure. Brake chambers Verify: • There are no cracks or dents • They are securely mounted. Slack adjusters Inspect for broken, loose or missing parts. Note: The angle between the push rod and adjuster arm should be approximately 90 degrees when the brakes are applied.
Page 20 Vehicle Inspection Guide Diesel Exhaust Fluid (DEF) area DEF tanks Verify: • Tanks and caps are secure • There is no damage to the tanks. Leaks Inspect for leaks from the tanks. Underbody Driveshaft Verify: • The driveshaft is not bent or cracked •...
Page 21 Vehicle Inspection Guide Rear of vehicle Lights and Verify: • All exterior lights illuminate and are clean reflectors • Reflectors are clean, unbroken and of proper color (red on rear, amber elsewhere) • Running lights are clean and unbroken. Note: Inspect rear running lights separately from signal, flasher and brake lights.
Page 22 Vehicle Inspection Guide Rear suspension Torsion arm and Verify torsion arm is not cracked, broken or shock absorbers missing. Inspect the shock absorber for cracks or leaks. There should be no missing or broken mounting bolts or worn bushings. Rear brakes •...
Page 23 Vehicle Inspection Guide Trailer If you are pulling a trailer, perform an inspection of the trailer similar to that of the tractor. The inspection should follow trailer manufacturer recommendations and should include at a minimum: general condition, landing gear, doors, sides, lights, reflectors, suspension, brakes, tires, wheels, cargo placement, stability and tie-downs.
Page 24: Child Safety
NHTSA and other safety organizations, or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consulting your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in your vehicle.
Page 25 Child Safety Recommendations for Safety Restraints for Children Recommended Child size, height, weight, or age restraint type Infants Children weighing 40 lb (18 kg) or less Use a child safety (generally age four or younger). seat (sometimes toddlers called an infant carrier, convertible seat, or toddler seat).
Page 26: Child Seat Positioning
Child Safety Child Seats Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers or children weighing 40 pounds (18 kilograms) or less (generally age four or younger). CHILD SEAT POSITIONING WARNING: Airbags can kill or injure a child in a child seat. Never place a rear-facing child seat in front of an active airbag.
Page 27 Child Safety WARNING: Never use pillows, books, or towels to boost a child. They can slide around and increase the likelihood of injury or death in a crash. WARNING: Always restrain an unoccupied child seat or booster seat. These objects may become projectiles in a crash or sudden stop, which may increase the risk of serious injury.
Page 28: Booster Seats
Child Safety Note: The child seat must rest tightly against the vehicle seat upon which it is installed. It may be necessary to lift or remove the head restraint. See the Seats chapter for information on head restraints. BOOSTER SEATS WARNING: Never place, or allow a child to place, the shoulder belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk...
Page 29 Child Safety Types of Booster Seats • Backless booster seats If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child’s head (as measured at the tops of the ears) above the top of the seat.
Page 30 Child Safety Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder.
Page 31: Installing Child Safety Seats
Child Safety INSTALLING CHILD SAFETY SEATS Using Automatic Locking Mode Combination Lap and Shoulder Belts (Front Passenger and Rear Outboard Seating Positions) WARNING: Children 12 and under should be properly restrained in the rear seat whenever possible. WARNING: Depending on where you secure a child restraint, and depending on the child restraint design, you may block access to certain safety belt buckle assemblies and/or LATCH lower anchors, rendering those features potentially unusable.
Page 32 Child Safety 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions.
Page 33 Child Safety 5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out. • Allow the belt to retract to remove slack. The belt will click as it retracts to indicate it is in the automatic locking mode.
Page 34 There should be no more than one inch (two and a half centimeters) of movement for proper installation. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed.
Page 35 Child Safety 1. Position the child safety seat in the center front seat. 2. Slide the tongue up the webbing. 3. While holding both shoulder and lap portions next to the tongue, route the tongue and webbing through the child seat according to the child seat manufacturer’s instructions.
Page 36 Child Safety 4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.
Page 37 Child Safety Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a Child Passenger Safety Technician.
Page 38 Child Safety The tether strap anchors in your vehicle are in the following positions (shown from top view): • Regular Cab • Crew Cab Attach the tether strap only to the appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.
Page 39 If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases. If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use. Tether Strap Attachment (Rear SuperCab Only) There are three loops of webbing just above the back of the rear seat (along the bottom edge of the rear window) in the SuperCab.
Page 40 Child Safety Many tether straps cannot be tightened if the tether strap is hooked to the loop directly behind the child seat. To provide a tight tether strap: 1. Route the tether strap through the loop directly behind the child seat.
Page 41: Child Safety Locks
Child Safety CHILD SAFETY LOCKS (IF EQUIPPED) When these locks are set, the rear doors cannot be opened from the inside. The childproof locks are located on the rear edge of each rear door and must be set separately for each door.
Page 42: Safety Belts
Safety Belts PRINCIPLES OF OPERATION WARNING: Always drive and ride with your seat back upright and the lap belt snug and low across the hips. WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained. WARNING: Never let a passenger hold a child on his or her lap while your vehicle is moving.
Page 43: Fastening The Safety Belts
Safety Belts WARNING: Front and rear seat occupants, including pregnant women, should wear safety belts for optimum protection in an accident. The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front and rear seat passenger outboard safety belts have vehicle sensitive emergency locking retractors and automatic locking retractors.
Page 44 Safety Belts Using the Safety Belt with Cinch Tongue (Front and Rear Center Seat) The cinch tongue slides up and down the belt webbing when the belt is stowed or while putting safety belts on. When the lap and shoulder safety belt is buckled, the cinch tongue allows the lap portion to be shortened, but pinches the webbing to keep the lap portion from getting longer.
Page 45 Safety Belts Using Safety Belts During Pregnancy WARNING: Always ride and drive with your seatback upright and the safety belt properly fastened. The lap portion of the safety belt should fit snug and be positioned low across the hips. The shoulder portion of the safety belt should be positioned across the chest.
Page 46 Safety Belts Automatic Locking Mode In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt or the optional front or rear center safety belt.
Page 47 Safety Belts WARNING: Failure to replace the safety belt assembly under the above conditions could result in severe personal injuries in the event of a crash. Energy Management Feature • This vehicle has a safety belt system with an energy management feature at the front outboard seating positions to help further reduce the risk of injury in the event of a head-on crash.
Page 48: Safety Belt Height Adjustment
Safety Belts Shorten and fasten the belt when not in use. SAFETY BELT HEIGHT ADJUSTMENT WARNING: Position the safety belt height adjusters so that the belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the safety belt and increase the risk of injury in a crash.
Page 49: Safety Belt-Minder
Safety Belts If... Then... The driver’s safety belt is buckled The safety belt warning light and while the indicator light is illuminated warning chime turn off. and the warning chime is sounding... The driver’s safety belt is buckled The safety belt warning light and before the ignition switch is turned to indicator chime remain off.
Page 50 Safety Belts Deactivating and Activating the Belt-Minder® Feature WARNING: While the design allows you to deactivate your Belt-Minder®, this system is designed to improve your chances of being safely belted and surviving an accident. We recommend you leave the Belt-Minder® system activated for yourself and others who may use the vehicle.
Page 51: Child Restraint And Safety Belt Maintenance
Read the child restraint manufacturer’s instructions for additional inspection and maintenance information specific to the child restraint. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a crash be replaced.
Page 52: Keys And Remote Control
Keys and Remote Control KEYS The key operates all locks on your vehicle. In case of loss, replacement keys are available from an authorized dealer. You should always carry a second key with you in a safe place in case you require it in an emergency.
Page 53: Locks
Locks LOCKING AND UNLOCKING You can use the power door lock switch to lock and unlock the vehicle. Power Door Locks (If Equipped) The power door lock switches are on the driver and front passenger door panels. A. Unlock B. Lock I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013...
Page 54: Steering Wheel Controls
Steering Wheel ADJUSTING THE STEERING WHEEL WARNING: Do not adjust the steering wheel when your vehicle is moving. 1. Pull and hold the steering wheel release lever. 2. Adjust the steering wheel to the desired position then release the lever. VOICE CONTROL (IF EQUIPPED) A.
Page 55: Wipers And Washers
Wipers and Washers WINDSHIELD WIPERS Note: Fully defrost the windshield before switching on the windshield wipers. Note: Make sure you switch off the windshield wipers before entering a car wash. Note: Clean the windshield and wiper blades if they begin to leave streaks or smears.
Page 56: Lighting
Lighting LIGHTING CONTROL • Rotate the headlamp control clockwise to the first position to turn on the parking lamps. • Rotate clockwise to the second position to turn on the headlamps and parking lamps. High Beams • Push the lever toward the instrument panel to activate.
Page 57: Instrument Lighting Dimmer
Lighting INSTRUMENT LIGHTING DIMMER Use to adjust the brightness of the instrument panel and all applicable lit components in your vehicle during headlamp and parking lamp operation. • Tap the top or bottom of the control to brighten or dim all interior lit components incrementally, or •...
Page 58: Turn Signal Control
Lighting DIRECTION INDICATORS • Push down to switch on the left turn signal. • Push up to switch on the right turn signal. If your vehicle is a tractor, the turn signals may not shut off when a turn is completed. This is normal. See an authorized dealer if there are any questions about your vehicle’s options.
Page 59: Windows And Mirrors
Windows and Mirrors POWER WINDOWS (IF EQUIPPED) WARNING: Do not leave children unattended in your vehicle and do not let them play with the power windows. They may seriously injure themselves. WARNING: When closing the power windows, you should verify they are free of obstructions and make sure that children and pets are not in the proximity of the window openings.
Page 60: Exterior Mirrors
Windows and Mirrors Bounce-Back (One-Touch Up or Down Windows Only) The window stops automatically while closing and reverse some distance if there is an obstacle in the way. Overriding the Bounce-Back Feature WARNING: When you override the bounce-back feature the window will not reverse if it detects an obstacle.
Page 61 Windows and Mirrors Adjust the auxiliary convex mirrors. Convex mirrors are a ball-stud design for precise adjustment to maximize viewing area. Power Exterior Mirrors (If Equipped) WARNING: Do not adjust the mirror while the vehicle is in motion. A. Left-hand mirror B.
Page 62 Windows and Mirrors Foldaway Exterior Mirrors Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position. Power-Folding Mirrors (If Equipped) Note: Using the mirrors 10 or more times within one minute, or repeated folding and unfolding of the mirrors while holding the control down during full travel, may disable the system to protect motors from overheating.
Page 63 Windows and Mirrors Telescoping Mirrors (If Equipped) This feature allows the mirror to extend approximately 3 inches (75 millimeters). It is especially useful when towing a trailer. You can manually push or pull the mirrors in to the desired position. PowerScope®...
Page 64: Instrument Cluster
Instrument Cluster GAUGES - DIESEL ENGINE Cluster shown in standard measure. Metric similar. A. Engine oil pressure gauge B. Engine coolant temperature gauge C. Diesel exhaust fluid (DEF) gauge D. Fuel gauge E. Speedometer F. Information display. See the Information Displays chapter for more information.
Page 65 Instrument Cluster Engine Coolant Temperature Gauge Indicates engine coolant temperature. At normal operating temperature, the level indicator is in the normal range. If the engine coolant temperature exceeds the normal range, stop the vehicle as soon as safely possible, switch off the engine and let the engine cool. WARNING: Never remove the coolant reservoir cap while the engine is running or hot.
Page 66 Instrument Cluster GAUGES - GASOLINE ENGINE Cluster shown in standard measure. Metric similar. A. Engine oil pressure gauge B. Engine coolant temperature gauge C. Transmission fluid temperature gauge D. Fuel gauge E. Speedometer F. Information display. See the Information Displays chapter for more information.
Page 67 Instrument Cluster Engine Coolant Temperature Gauge Indicates engine coolant temperature. At normal operating temperature, the level indicator is in the normal range. If the engine coolant temperature exceeds the normal range, stop the vehicle as soon as safely possible, switch off the engine and let the engine cool. WARNING: Never remove the coolant reservoir cap while the engine is running or hot.
Page 68: Warning Lamps And Indicators
Instrument Cluster Gauge Package (If Equipped) Your vehicle may be equipped with an optional gauge package that has one of the following configurations: 1. Transmission temperature gauge: Displays the transmission temperature at the transmission sump. 2. Hourmeter: Displays the hours of engine run time.
Page 69 Instrument Cluster WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may occur. It takes you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.
Page 70 Instrument Cluster Diesel Exhaust Fluid (diesel engine only) It illuminates when the diesel exhaust fluid level falls below 0.5 gallons (1.9L) in the 5- gallon (19.0L) tank or one gallon (3.8L) in the 9-gallon (34.0L) tank. Refill the tank or, at a minimum, add at least one gallon (3.8L) to the 5- gallon (19.0L) tank or two gallons (7.6L) to the 9- gallon (34.0L) tank.
Page 71 Instrument Cluster High Beam It illuminates when you turn on the headlamp high beam. Low Fuel Level (gasoline engine only) It illuminates when the fuel level is low or near empty. Refuel as soon as possible. Parking Brake Warning It momentarily illuminates when you turn the ignition to the on position (with the engine off).
Page 72 Instrument Cluster Stop Engine (diesel engine only) This red lamp illuminates when you need to stop the engine (as soon as it is safely possible). If the lamp begins flashing, automatic engine shutdown may take place in as little as 20 seconds.
Page 73: Audible Warnings And Indicators
Instrument Cluster Water in Fuel (diesel engine only) It illuminates when the fuel filter/water separator has a significant quantity of water in it. If the light illuminates when the engine is running, stop the vehicle as soon as safely possible, shut off the engine, then drain the fuel filter and water separator.
Page 74: Information Displays
Information Displays GENERAL INFORMATION WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
Page 75 Information Displays • TRIP A/B: Registers the distance of individual journeys. Press and release the INFO button until the A or B trip appears in the display (this represents the trip mode). Press the RESET button to reset. See System check and vehicle feature customization later in this section to switch the display from metric to English.
Page 76: Information Messages
Information Displays SETUP LANGUAGE = Press the English / Spanish / French (Press ENGLISH / RESET button. and hold to set.) SPANISH / FRENCH INFORMATION MESSAGES Note: Depending on the options equipped with your vehicle, not all of the messages display or are available. Certain messages appear abbreviated or shortened depending upon which cluster type you have.
Page 77: Climate Control
Climate Control MANUAL CLIMATE SYSTEM MAX A/C A. Defrost: Distributes air through the windshield defroster vents and demister vents. This setting can also be used to defog and clear the windshield of a thin covering of ice. B. Heated mirrors: Turns the heated mirrors on and off. See Heated mirrors later in this chapter for more information.
Page 78 Climate Control D. A/C: Press to turn air conditioning on or off. Air conditioning cools the vehicle using outside air. To improve air conditioning when starting your vehicle, drive with the windows slightly open for two to three minutes. E. Recirculated air: Press to switch between outside air and recirculated air.
Page 79 Climate Control Recommended settings for cooling: • Adjust the air distribution control to the A/C position. If your vehicle is stationary for extended periods during extreme high ambient temperatures: • Select the MAX A/C position. Gas engines: If your vehicle is stationary for long periods of time in high ambient temperature conditions, your climate control system may automatically switch from fresh air mode to recirculation mode.
Page 80: Seats
Seats SITTING IN THE CORRECT POSITION WARNING: Do not recline the seat back as this can cause the occupant to slide under the seat’s safety belt, resulting in severe personal injury in the event of a crash. WARNING: Do not place objects higher than the seat backs to reduce the risk of injury in a crash or during heavy braking or when stopping suddenly.
Page 81: Head Restraints
Seats HEAD RESTRAINTS WARNING: To minimize the risk of neck injury in the event of a crash, you and the passenger occupants should not sit in or operate the vehicle, until the head restraint is placed in its proper position. Never adjust the head restraint while the vehicle is in motion. WARNING: The adjustable head restraint is a safety device.
Page 82 Seats Adjusting the Head Restraint Raising the Head Restraint Pull up on the head restraint. Lowering the Head Restraint 1. Press and hold button C. 2. Push down on the head restraint. Removing the Head Restraint 1. Press and hold buttons C and D. 2.
Page 83 Seats Removing the Head Restraint 1. Press and hold buttons C. 2. Pull up the head restraint. Installing the Head Restraint Align the steel stems into the guide sleeves and push the head restraint down until it locks. Tilting Head Restraints (If Equipped) The front head restraints tilt for extra comfort.
Page 84: Manual Seats
Seats MANUAL SEATS Moving the Seats Backward and Forward Recline Adjustment (Type 1) (Type 2) I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 85 Seats Tilting the Seat Back Forward (Two-Passenger Bench Seat) Lift the handle to unlock and release the seatback forward. Manual Lumbar (If Equipped) The lumbar support control is located on the outboard side of the seat. Turn the control to adjust your support.
Page 86: Power Seats
Seats POWER SEATS WARNING: Never adjust the driver’s seat when your vehicle is moving. WARNING: To reduce the risk of excess slack in the belt system, always adjust the seat height before fastening the seat belt. Non Air-Ride Seat The control is located on the outboard side of the seat cushion. •...
Page 87 Seats Air-Ride Seat (Type 1) A. Recline: Lift the handle to adjust the angle of the seatback. B. Power lumbar: • Press the top of the forward control to inflate the lower lumbar support. • Press the bottom of the forward control to deflate the lower lumbar support.
Page 88: Rear Seats
Seats (Type 2) A. Recline: Rotate the handle to adjust the angle of the seatback. B. Lumbar: • Press the lever up to inflate the lumbar. • Press the lever down to deflate the lumbar. C. Seat height adjust • Press the lever up to raise the seat height. •...
Page 89 Seats Returning the Seat to the Seating Position WARNING: Make sure that cargo or any objects are not trapped underneath the seat cushion before returning the seat cushion to its original position, and that the seat cushion locks into place. Failure to do so may prevent the seat from operating properly in the event of a crash, which could increase the risk of serious injury.
Page 90: Heated Seats
Seats (Type 2) HEATED SEATS (IF EQUIPPED) WARNING: Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion, or other physical conditions, must exercise care when using the seat heater. The seat heater may cause burns even at low temperatures, especially if used for long periods of time.
Page 91 Seats FRONT SEAT ARMREST (IF EQUIPPED) To release the armrest and gain access to the cupholders and seat back storage bin, press the button on the right-hand side of the seat and pull the seat back down. Pull up on the tab to open the storage bin.
Page 92: Auxiliary Power Points
Auxiliary Power Points AUXILIARY POWER POINTS WARNING: Do not plug optional electrical accessories into the cigarette lighter socket (if equipped). Improper use of the lighter can cause damage not covered by your warranty, and can result in fire or serious injury. Note: If you use the power points when the engine is not running, the battery may discharge and there may not be sufficient battery power to start your engine.
Page 93: Starting And Stopping The Engine
Starting and Stopping the Engine GENERAL INFORMATION WARNING: Extended idling at high engine speeds can produce very high temperatures in the engine and exhaust system, creating the risk of fire or other damage. WARNING: Do not park, idle, or drive your vehicle on dry grass or other dry ground cover.
Page 94: Ignition Switch
Starting and Stopping the Engine IGNITION SWITCH Note: When you switch the ignition off and leave your vehicle, do not leave your key in the ignition. This could discharge your vehicle battery. A. Accessory: Allows the electrical accessories, such as the radio, to operate while the engine is not running.
Page 95 Starting and Stopping the Engine 1. Fully press the brake pedal. 2. Turn the key to start the engine. The engine may continue cranking for up to 15 seconds or until your vehicle starts. Note: If the engine does not start on the first try, wait for a short period and try again.
Page 96 Starting and Stopping the Engine STARTING A DIESEL ENGINE WARNING: Operation of a diesel engine near flammable vapors in the air may cause the engine speed to increase uncontrollably and over speed. If this situation occurs, mechanical damage, fire, explosion, personal injury or death could result. Turning off the ignition key does not slow or stop the engine due to uncontrollable fueling of the engine through flammable vapors being drawn into the engine air inlet.
Page 97 Starting and Stopping the Engine Note: Do not increase engine speed until the oil pressure gauge indicates normal pressure. The oil pressure gauge should indicate this within 15 seconds after starting. Note: Idle the engine for three to five minutes before operating with a full load.
Page 98 Starting and Stopping the Engine Regeneration Unlike a normal filter that requires periodic replacement, the DPF can regenerate, or clean itself, to maintain operating efficiency. The regeneration process takes place automatically. A small increase in engine or turbo sound level is normal during filter regeneration. However, some driving conditions mean that you may need to support the regeneration process: •...
Page 99 1. Bring your vehicle to a complete stop on level ground and safely off the road with the exhaust system away from people, flammable materials, vapors or structures. Ford recommends that you perform a walk-around before beginning a parked regeneration.
Page 100 Starting and Stopping the Engine 3. Do not press the accelerator pedal, service brake pedal, or clutch pedal (manual transmission). 4. The parking brake must remain set. On average, depending on filter level and other factors, the process takes 20–30 minutes to complete. The DPF lamp turns off when the process is complete.
Page 101: Engine Block Heater
Starting and Stopping the Engine The inlet holes in the side of the assembly are functional. These holes allow outside air to enter into the outlet assembly. Keep the holes clear of mud and other foreign material to maintain proper functionality of the system.
Page 102 Starting and Stopping the Engine Note: The heater is most effective when outdoor temperatures are below 0°F (-18°C). The heater acts as a starting aid by warming the engine coolant. This allows the climate control system to respond quickly. The equipment includes a heater element (installed in the engine block) and a wire harness.
Page 103 Starting and Stopping the Engine Using the Engine Block Heater Make sure the receptacle terminals are clean and dry before use. To clean them, use a dry cloth. The heater uses 0.4 to 1.0 kilowatt-hours of energy per hour of use. The system does not have a thermostat.
Page 104: Fuel And Refueling
Fuel and Refueling SAFETY PRECAUTIONS WARNING: Do not overfill the fuel tank. The pressure in an overfilled tank may cause leakage and lead to fuel spray and fire. WARNING: The fuel system may be under pressure. If you hear a hissing sound near the fuel filler inlet, do not refuel until the sound stops.
Page 105: Fuel Quality
Fuel and Refueling • Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes, remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury.
Page 106 Fuel and Refueling Diesel Engine WARNING: Using low sulfur (16-500 ppm) or high sulfur (greater than 500 ppm) diesel fuel in a diesel engine designed to use only Ultra Low Sulfur Diesel fuel causes certain emission components to malfunction which may also cause the Service Engine Soon light to illuminate indicating an emissions-related concern.
Page 107: Running Out Of Fuel
Fuel and Refueling Biodiesel fuel is a product converted from renewable fuel sources, including vegetable oil, animal fat and cooking oil. You should not use raw, refined, and recycled vegetable/plant oils, greases, and animal fats. Biodiesel fuel blends must meet requirements of ASTM D7467 standard specification.
Page 108: Refueling
Fuel and Refueling If you have run out of fuel: • If your vehicle is equipped with dual fuel tanks, adding four–five gallons (15–19 liters) of fuel is enough to restart the engine. If your vehicle is out of fuel and on a steep grade, more than four–five gallons (15–19 liters) may be required.
Page 109 Note: If you must replace the fuel filler cap, replace it with a fuel filler cap designed for your vehicle. The customer warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Ford, Motorcraft or other certified fuel filler cap is not used.
Page 110: Fuel Consumption
Fuel and Refueling FUEL CONSUMPTION Filling the Tank The advertised capacity is the indicated capacity and the empty reserve combined. Indicated capacity is the difference in the amount of fuel in a full tank and a tank when the fuel gauge indicates empty. Empty reserve is the amount of fuel in the tank after the fuel gauge indicates empty.
Page 111: Diesel Exhaust Fluid (Def)
Fuel and Refueling Keep a record for at least one month and record the type of driving (city or highway). This provides an accurate estimate of your vehicle’s fuel economy under current driving conditions. Additionally, keeping records during summer and winter shows how temperature impacts fuel economy.
Page 112 Fuel and Refueling Continued driving without refilling results in the following actions as required by the U.S. Environmental Protection Agency (EPA): Low DEF Level Warning Indications and Vehicle Consequences Indicator DEF Tank Level Consequence Remedy Lamps Above initial warning threshold None.
Page 113 Fuel and Refueling Low DEF Level Warning Indications and Vehicle Consequences for Emergency Vehicles Indicator DEF Tank Level Consequence Remedy Lamps Above initial warning threshold None. None. None. (Over 25% full). Below initial warning None. DEF solid Add 1 gallon threshold (25% full).
Page 114 Amber engine hours after detecting from 25% to Replace DEF incorrect DEF solid 40% at rate of with quality. 1% each Ford-approved minute. Final vehicle • 25% torque consequence three reduction hours after detecting • 5 mph Amber engine incorrect DEF...
Page 115 10 hours after Amber engine None. detecting incorrect solid DEF quality. Replace DEF Final vehicle with consequence Ford-approved 20 hours after DEF. detecting incorrect Amber engine DEF quality and None. engine intentionally solid shut down (key off), in extended idle for one hour or fuel tank refilled.
Page 116 Fuel and Refueling SCR Faults and Vehicle Consequences Indicator Condition Consequence Remedy Lamps No faults. None. None. None. Amber engine Initial warning when solid None. detecting fault. (and/or MIL is solid) Amber engine Initial warning one solid 25% torque hour after detecting reduction.
Page 117 Fuel and Refueling SCR Faults and Vehicle Consequences for Emergency Vehicle Indicator Condition Consequence Remedy Lamps No faults. None. None. None. Amber engine Initial warning when None. detecting fault. solid Initial warning Amber engine 10 hours after None. solid detecting fault. Correct and Final vehicle clear fault...
Page 118 Use the following web address to find the nearest location to buy DEF: http://www.afdc.energy.gov/afdc/locator/def. Use Motorcraft DEF or equivalent meeting Ford specification WSS-M2C130-A or ISO 22241. Use only DEF certified by the American Petroleum Institute.
Page 119 Fuel and Refueling To fill the DEF tank, see an authorized dealer or do the following (before filling the DEF tank in cold climates, see Filling the DEF tank in cold climates later in this section): DEF Bottle Fill with Spout The following procedure applies to Motorcraft DEF or similar DEF bottles.
Page 120 Fuel and Refueling 5. Once the spout is full with DEF (no more large air pockets), return the container to the vertical position slightly below the DEF filler port and let any DEF drain out of the spout. DO NOT try to continue to add DEF to the tank by shaking or repositioning the container to induce flow.
Page 121 Fuel and Refueling Contaminated DEF SCR systems are sensitive to contamination of the DEF. USE ONLY CERTIFIED DIESEL EXHAUST FLUID. If the system becomes contaminated and you continue to drive your vehicle with contaminated DEF, the following warnings result: Reducing Agent and Vehicle Consequence Condition Indicator Lamps Consequence...
Page 122 Fuel and Refueling • DEF freezes below 12°F (-11°C). Your vehicle is equipped with an automatic pre-heating system which allows the DEF system to operate below 12°F (-11°C). • Do not store the DEF bottle in your vehicle. If it leaks, it could cause damage to interior components or release an ammonia odor inside your vehicle.
Page 123: Transmission
Transmission MANUAL TRANSMISSION OPERATION (IF EQUIPPED) You can see the manual transmission shift patterns on either the shift lever knob or the sun visor. Study this information carefully before you drive your vehicle even though you may be familiar with similar units. Do not attempt to drive your vehicle without knowing the exact shift pattern of the transmission.
Page 124 Transmission more quickly. If you force the gearshift lever into position, this action defeats the purpose of the synchronizer by causing gear clash. Shifting with a Non-Synchronized Transmission See Clutch brake and Double clutch procedures in the Clutch section of this chapter. Clutch Do not ride or slip the clutch as this causes unnecessary heat and wear.
Page 125 Transmission If the transmission is equipped with a ceramic clutch, you must start your vehicle moving in first gear and engage the clutch before pressing the accelerator at idle. In addition, do not try to slip the clutch by raising engine RPM and riding or feathering the clutch pedal since this causes erratic engagement that can cause engine stalling and potential serious damage to driveline components.
Page 126 Transmission Eaton FS-5205A 5–speed This transmission is equipped with five forward gears and one reverse; 2–5 are synchronized gears. The shift pattern is on the gearshift knob. Do not shift the transmission into reverse while your vehicle is moving as this could damage the transmission.
Page 127: Transmission Operation
Transmission Spicer ES56-7B and ES066-7B 7-speed These transmissions are equipped with seven forward gears and one reverse; 2–7 are synchronized gears. The shift pattern is on the gearshift knob. Do not shift the transmission into first gear or reverse while your vehicle is moving as this could damage the transmission.
Page 128 Transmission Brake-shift Interlock Vehicles equipped with a gasoline engine have a brake-shift interlock feature that prevents you from moving the gearshift lever from position P when the ignition is in the on position and the brake pedal is not pressed. If you cannot move the gearshift lever out of position P with the ignition in the on position and the brake pedal pressed, it is possible that a fuse has blown or your vehicle’s brake lamps are not operating properly.
Page 129 Transmission If the fuse is not blown and the brake lamps are working properly, the following procedure allows you to move the gearshift lever from position 1. Apply the parking brake, and turn the engine off. 2. Remove the lower finish panel below the steering column.
Page 130 Transmission P R N D 4 Position P This position locks the transmission and prevents the rear wheels from turning. To put your vehicle in gear: 1. Start the engine. 2. Press the brake pedal. 3. Move the gearshift lever into the desired gear. To put your vehicle in position P: 1.
Page 131 Transmission Position 1 • Provides maximum engine braking. • Allows upshifts by moving gearshift lever. • The transmission does not downshift into position 1 at high speeds; it downshifts to a lower gear and then shifts into position 1 when your vehicle reaches slower speeds.
Page 132 Transmission Allison 2500 WARNING: To avoid sudden, unexpected vehicle movement and possible personal injury or death: 1. Bring the vehicle to a complete stop. 2. Shift the transmission into position N. 3. Apply the parking brake and make sure it is holding properly. 4.
Page 133 Transmission Allison 3000 Series Push-Button Shifter To shift to Reverse or Drive: 1. Press the brake pedal. 2. Press R or D on the shifter. 3. Release the brake pedal. To select a higher range when in Drive, press the up arrow button. To select a lower range when in Drive, press the down arrow button.
Page 134 Transmission the gear teeth. This may damage the PTO unit and the transmission PTO drive gear teeth, resulting in further damage to the transmission and PTO. PTO Operation with Vehicle Stationary WARNING: When the PTO is operated with the vehicle stationary, the transmission must be placed in position N with the parking brake set.
Page 135 Transmission To engage the PTO unit, stop your vehicle, place the transmission in position N. Press the clutch, and allow the gears to stop rotating, and then engage the PTO unit. You can also select the PTO with the transmission in gear as long as the clutch is pressed. When operating the PTO with your vehicle stationary, first set the parking brake (chock the wheels if your vehicle is on a hill or another uneven surface).
Page 136 Transmission You can lock and unlock the differential when your vehicle is moving at a constant speed of less than 25 mph (40 km/h) and while the wheels are not slipping. Do not lock the differential when your vehicle is traveling down steep grades and traction is minimal.
Page 137 Transmission We do not recommend, or approve, performing axle conversions. However, we understand that, on occasion, others install aftermarket add-on axles on the truck chassis that allow operator control for weight transfer from other axles (such as air lift axles). TWO-SPEED REAR AXLE (IF EQUIPPED) WARNING: Never shift a two-speed axle when descending a steep grade as this may cause loss of vehicle control and result in...
Page 138 Transmission To shift the axle from LOW to HIGH with your vehicle stopped, place the transmission in position N, then press the lower part of the switch. To shift the axle from LOW to HIGH with your vehicle moving, accelerate to approximately 35 mph (56 km/h), press the lower part of the switch while the transmission is in position N, then release and apply the accelerator.
Page 139: Brakes
Brakes GENERAL INFORMATION All standard equipment brakes self-adjusting. Automatic adjustment, when required, occurs whenever you apply and release the brakes during forward or reverse operation. Note: Occasional brake noise is normal. If a metal-to-metal, continuous grinding or continuous squeal sound is present, this may indicate worn brake linings.
Page 140 Brakes Anti-lock Brake System (ABS) This system helps you maintain steering control during emergency stops by keeping the brakes from locking. The ABS lamp momentarily illuminates when you switch on the ignition. If the light does not illuminate during start-up, if it remains on or flashes, the ABS may not be working and requires servicing.
Page 141 Brakes WARNING: Do not drive or continue to drive if the low air pressure buzzer is sounding or the brake warning light is lit. These warnings indicate that air pressure is not to normal operating level. Continued use of the vehicle could result in loss of braking ability. WARNING: Avoid repeated light application of the brake pedal.
Page 142 Brakes A qualified service technician should perform air brake inspection and adjustment or repairs keeping to the instructions in the service manual. Cam Brakes - Automatic Slack Adjusters WARNING: Do not manually adjust the automatic slack adjusters to correct excessive push rod stroke as it may result in reduced brake effectiveness and a vehicle crash.
Page 143: Hints On Driving With Anti-Lock Brakes
Brakes HINTS ON DRIVING WITH ANTI-LOCK BRAKES When the system is operating, the brake pedal pulses and may travel further. Maintain pressure on the brake pedal. You may also hear a noise from the system. This is normal. The ABS does not eliminate the dangers inherent when: •...
Page 144 Brakes A switch on the instrument panel, in combination with the accelerator and clutch pedal, allows the operator to make maximum use of the exhaust brake in the following conditions: • Off-highway driving • Mountain driving • Heavy traffic • High-speed highway driving. To switch the brake on, push the switch up.
Page 145 Brakes • A decrease in road speed when applying the exhaust brake during a descent, except when your vehicle is carrying a heavy load or the grade is extremely steep. In these instances, you may need to apply the service brakes occasionally. TRAILER BRAKES Trailer Brake Hand Control (If Equipped) WARNING: The hand control should never be used to apply the...
Page 146 Brakes The parking brake controls the spring brakes on the tractor. When you pull the knob out, it causes the trailer supply valve to pop out, applying both the tractor and trailer parking brakes. You can indepdently release the trailer brakes by pushing only the trailer air supply valve in.
Page 147 Brakes Normal Driving Position Push in both knobs to supply air to both trailer and tractor spring brakes, releasing all brakes. System Park With both knobs pushed in (normal driving position), the parking brakes for both the tractor and trailer can be applied by pulling the parking brake knob (B) out, exhausting air from the tractor spring brakes, simultaneously causing the trailer air supply valve to pop out, applying the trailer brakes.
Page 148 Brakes Trailer Charge If both knobs are out, and you want to recharge the trailer while leaving the tractor spring brakes applied, the trailer air supply (A) can be pushed in to recharge the trailer air supply line. You can also use this mode to park a combination vehicle with tractor spring brakes.
Page 149 Brakes Actuation of Trailer Park (Emergency) or Tractor Bobtail Position To actuate the trailer brakes only, pull out the trailer air supply knob (A). This applies the trailer brakes whether the trailer uses emergency or spring brakes. You can also use this mode when the tractor or truck with trailer is used during bobtail operation.
Page 150 Brakes Push the palm release lever (A) on the parking brake handle (B) and push down as far as possible to release the brake. Driving with the parking brake on causes the brakes to wear out quickly and reduces fuel economy. We recommend you not use the parking brake to stop a moving vehicle.
Page 151 Brakes Note: Read and understand the following steps and perform them whenever you prepare to drive the vehicle. Note: The parking brake does not disengage unless sufficient system air pressure is available. If your vehicle is equipped with a dash-mounted push button (Allison 3000 Series) or steering column-mounted (Allison 2200 and 2500) gear selector: 1.
Page 152 Brakes Releasing Spring Manually WARNING: Do not attempt to disassemble the parking brake chamber under any circumstances. The high spring load may cause serious injury. WARNING: Block the wheels to help prevent the vehicle from moving. WARNING: Unexpected and possibly sudden vehicle movement may occur if these precautions are not taken.
Page 153 Brakes Air Brakes WARNING: Do not use the gearshift selector in place of the parking brake; unexpected and possible sudden vehicle movement may occur if these precautions are not taken. Always set the parking brake fully AND make sure the gearshift selector is in position R for vehicles equipped with manual transmission or position N (except Allison 2200 transmission) or P (Allison 2200 transmission) for vehicles with automatic transmission.
Page 154 Brakes the system with air from an outside source, releasing the spring-actuated parking brakes. Your vehicle is now ready to tow in an emergency. You can only use an outside air source if the protected system is in operating condition. If you cannot restore air pressure in the protected air system, you must release the spring-actuated brakes manually.
Page 155 Brakes 4. Turn the release stud ⁄ -turn to engage the stud tangs with the slot in the pressure plate. Keep the stud engaged and install the nut on the release stud. 5. Tighten the nut until the spring is fully caged and brakes released. Do not loosen or remove the release stud and nut unless you completely assemble and securely clamp the brake chamber.
Page 156: Traction Control
Traction Control PRINCIPLES OF OPERATION The traction control system helps avoid drive wheel spin and loss of traction. If your vehicle begins to slide, the system applies the rear brakes to individual wheels and, when needed, reduces engine power at the same time.
Page 157 Traction Control System Indicator Light Note: If the traction control light does not flash during a traction control event or stays illuminated, the system is not functioning properly. Take your vehicle to an authorized dealer for service. During traction control operation, the traction control light flashes rapidly and the engine does not rev-up when you press further on the accelerator.
Page 158: Cruise Control
Cruise Control PRINCIPLES OF OPERATION Cruise control lets you maintain a set speed without keeping your foot on the accelerator pedal. USING CRUISE CONTROL WARNING: Do not use cruise control in heavy traffic, on winding roads or when the road surface is slippery. This could result in loss of vehicle control, serious injury or death.
Page 159 Cruise Control Changing the Set Speed There are a few ways to change the set speed: • Press and hold SET ACCEL to increase or COAST to decrease the set speed. Release the button when you reach the desired speed. •...
Page 160: Driving Aids
Driving Aids OPERATING YOUR VEHICLE General Information • Start the vehicle moving by using the highest gear speed in the transmission that lets the engine easily start the load without slipping the clutch. • Accelerate smoothly and evenly. Rapid acceleration increases fuel consumption without increasing engine performance.
Page 161 Driving Aids If you install an electrical back up alarm, connect it to the backup lamp circuit. Parking WARNING: When parking your vehicle, do not leave the transmission in gear; if the key is in the on position and the vehicle rolls, the engine could start.
Page 162: Steering
Driving Aids • At temperatures of –4°F (–20°C) or below, it is recommended that you use a crankcase-mounted coolant heater to improve cold engine starting. • If operating in arctic temperatures of –20°F (–29°C) or lower, consult your truck dealer for information about special cold weather equipment and precautions.
Page 163: Air Suspension
Driving Aids If the steering wanders or pulls, check for: • Underinflated tire(s) on any wheel(s) • Uneven vehicle loading • High crown in center of road • High crosswinds • Wheels out of alignment • Loose or worn suspension components. AIR SUSPENSION (IF EQUIPPED) Note: Do not operate your vehicle without air in the suspension springs.
Page 164 Driving Aids Connecting and Disconnecting a Trailer with Air Suspension and Air Suspension Dump Switch When connecting to a trailer: • Press the lower portion of the switch to exhaust air from the air suspension system. • Press the upper portion of the switch, and then raise the landing gear after making the connection to the trailer.
Page 165: Upfitter Controls
Switch access location is in a connector located in the engine compartment. You can find more detailed information at https://www.fleet.ford.com/truck/bbas/. I n f o r ma t i o n P r o v i d e d b y :...
Page 166: Load Carrying
WARNING: Exceeding any vehicle weight rating limitation could result in serious damage to the vehicle and/or personal injury. Every vehicle manufactured by Ford Motor Company is supplied with information on the Safety Compliance Certification Label, located on either the B-pillar or the driver’s door edge, listing the maximum loading for the vehicle (GVWR), and its axle systems (GAWR) at the tire to ground interface.
Page 167: Vehicle Loading
Load Carrying Unloaded or Lightly Loaded Vehicles WARNING: When operating empty or lightly loaded, sudden or hard braking may induce wheel lockup with loss of vehicle control and the possibility of accident and serious injury, especially on wet or slippery road surfaces. The braking system has been designed to safely stop your vehicle when fully loaded to its GVWR.
Page 168: Towing
Towing TOWING A TRAILER WARNING: Do not exceed the GVWR or the GAWR specified on the certification label. WARNING: Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of the vehicle and could result in engine damage, transmission damage, structural damage, loss of vehicle control, vehicle rollover and personal injury.
Page 169 Towing RECOMMENDED TOWING WEIGHTS Vehicles with diesel engine Model Maximum Maximum GVWR - lb (kg) GCWR F-650 Pro-Loader (Kick-Up 20500–26000 Frame) (9299–11792) F-650 Pro-Loader (Straight 20940–29000 Frame)/F-650 Straight Frame (9498–13154) F-750 25999–37000 (11793–16783) Specific GCWR and maximum trailer weight applicable your vehicle is dependent on many variables including transmission capability.
Page 170 Towing Safety Chains Note: Do not attach safety chains to the bumper. Always connect the trailer’s safety chains to the frame or hook retainers of your vehicle hitch. To connect the trailer’s safety chains, cross the chains under the trailer tongue and allow enough slack for turning tight corners.
Page 171 Towing • Place the gearshift lever in position P (if equipped) or neutral to aid in engine and transmission cooling and air conditioning efficiency during hot weather while stopped in traffic. • Turn off the speed control. The speed control may turn off automatically when you are towing on long, steep grades.
Page 172: Wrecker Towing
Towing 4. Make sure the coupler release lever is in the locked position. 5. Charge the trailer brake system. Set the trailer brakes, with either the hand valve or tractor protection valve. Pull against the trailer for an extra check of proper hook-up. Do not pull hard enough to damage or strain the equipment.
Page 173 Towing Towing the Vehicle with the Front Wheels Suspended Note: To avoid transmission damage, do not tow your vehicle even a short distance without suspending rear wheels or removing the axle shafts or driveshaft. Note: When towing a vehicle equipped with a tandem axle from the front, raise the forward rear axle so it can clear the road surface and secure it to the frame with chains or U-bolts, allowing only the rear rear axle to contact the road surface.
Page 174 Towing A. Side gear B. Differential (plain) case half C. Shift collar in the locked position D. Actuator assembly and shift fork E. Axle shaft F. Interference between the shift collar and housing G. Shift collar in the unlocked position H.
Page 175 Towing Installing the Axle Shafts 1. Remove the covers from the wheel ends. 2. Shift the differential lock to the unlocked (disengaged) position. 3. Install the axle shafts. • Place the gaskets on the wheel hub studs. • Push the right-hand axle shaft and gasket into the wheel end and housing until the shaft stops against the differential shift collar.
Page 176: Driving Hints
Driving Hints BREAKING-IN You need to break in new tires for approximately 300 miles (480 kilometers). During this time, your vehicle may exhibit some unique driving characteristics. Avoid driving too fast during the first 1000 miles (1600 kilometers). Vary your speed frequently and change up through the gears early.
Page 177 Driving Hints DRIVING THROUGH WATER If driving through deep or standing water is unavoidable, proceed very slowly especially if you do not know the depth. Never drive through water that is higher than the bottom of the hubs. Traction or brake capability may be limited and your vehicle may stall.
Page 178: Roadside Emergencies
ROADSIDE ASSISTANCE Vehicles Sold in the U.S.: Getting Roadside Assistance To fully assist you should you have a vehicle concern, Ford Motor Company offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty and is not applicable to vehicles sold in Canada.
Page 179: Hazard Flasher Control
Canadian Roadside coverage and benefits may differ from the U.S. coverage. Please see your warranty information or visit our website at www.ford.ca for information on Canadian services and benefits. Canadian customers who need to obtain roadside information, call 1-800-665-2006 or visit our website at www.ford.ca.
Page 180 Roadside Emergencies Do not attempt to push-start your automatic transmission vehicle. Automatic transmissions do not have push-start capability. Attempting to push-start a vehicle with an automatic transmission may cause transmission damage. Six-speed TorqShift transmissions have an adaptive shift strategy. When you disconnect the battery or install a new battery, the automatic transmission must relearn its shift strategy.
Page 181 Roadside Emergencies 1. Connect the positive (+) jumper cable to the positive (+) terminal of the discharged battery. 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery. 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery.
Page 182 Roadside Emergencies 1. Remove the jumper cable from the ground metal surface. 2. Remove the jumper cable on the negative (-) terminal of the booster vehicle’s battery. 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4.
Page 183: Customer Assistance
• the name of the authorized dealer and city where located • the vehicle’s current odometer reading. In some states, you must directly notify Ford in writing before pursuing remedies under your state’s warranty laws. Ford is also allowed a final repair attempt in some states.
Page 184 Customer Assistance • Recalls • Ford Extended Service Plans • Ford Genuine Accessories. In Canada: Mailing address Customer Relationship Centre Ford Motor Company of Canada, Limited P.O. Box 2000 Oakville, Ontario L6J 5E4 Telephone 800-565-3673 (FORD) Online www.ford.ca IN CALIFORNIA (U.S. ONLY) California Civil Code Section 1793.2(d) requires that, if a manufacturer...
Page 185: Getting Assistance Outside The U.s And Canada
ONLY) For vehicles delivered to authorized Canadian dealers. In those cases where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 186 In the United States, using leaded fuel may also result in difficulty importing your vehicle back into the U.S. Ford dealerships outside of the U.S. and Canada may be unable to support the F–650/750 due to the specialized training and servicing requirements of these vehicles.
Page 187: Reporting Safety Defects (U.s. Only)
However, NHTSA cannot become involved in individual problems between you, your dealer, or Ford Motor Company. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1–888–327–4236 (TTY: 1–800–424–9153);...
Page 188: Fuses
Fuses CHANGING A FUSE Fuses WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. If electrical components in your vehicle are not working, a fuse may have blown.
Page 189: Fuse Specification Chart
Fuses FUSE SPECIFICATION CHART Power Distribution Box WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. The power distribution box has high-current fuses that protect your vehicle’s main electrical systems from overloads.
Page 190 Fuses Fuse/Relay Fuse Amp Protected Circuits Location Rating Windshield washer relay, Washer pump motor Brake warning switch (hydraulic brake vehicles only) Upfitter switches (AUX 1 and AUX 3) Brake pressure switches, ABS event relay DEF (Urea) line heaters (diesel engine only) Ignition switch, Starter cutoff Air tank moisture removal valve Electric trailer brake...
Page 191 Fuses Fuse/Relay Fuse Amp Protected Circuits Location Rating Ignition switch, Passenger compartment fuse box fuses 19, 29 and 30 Power point Power door lock switches Main light switch, Multi-function switch Passenger compartment fuse box fuses 1, 2, 3, 4, 12, 13, 14 and 15 Fuel heater (diesel engine only) Fuel pump module (gasoline engine only) Power window...
Page 192 Fuses Fuse/Relay Fuse Amp Protected Circuits Location Rating — Auxiliary stop lamp relay — Fuel heater/Fuel transfer pump relay (diesel engine only) — Fuel pump module (gasoline engine only) — Body builder relay, parking lamps relay — Blower motor relay —...
Page 193 Fuses Passenger Compartment Fuse Panel The fuse box is located behind the passenger airbag cover. You can access it through the glove box. Fuse/Relay Fuse Amp Protected Circuits Location Rating Horn Flasher relay Power point Data Link Connector (DLC), Engine diagnostic connector, Parking brake warning Run relay —...
Page 194 Fuses Fuse/Relay Fuse Amp Protected Circuits Location Rating High beams, Indicator — Not used Dimmer switch, Interior lighting Engine control (diesel engine only) Starting system DRL resistor Air horn, Air suspension dump, Two-speed axle, Driver-controlled locking differential Flasher relay Hydraulic brakes relay, Fuel heater relay (diesel engine only), Air dryer Blower motor relay coil Right-hand low beam headlight...
Page 195 Fuses Relay Center The relay center is located along the passenger side A-pillar on the right side of the footwell. Relay Relay Description Location Spring applied hydraulic release warning chime module or PCM power VPWR 2, 3 and 4 A/C compressor clutch Power windows Flasher (standard/LED) Upfitter relay 1...
Page 196 Fuses Relay Relay Description Location Shift interlock/EPRNDL display Selective Catalyst Reduction (SCR) system (NOx) (diesel engine only) Door unlock ABS warning indicator DRL #2 Park lights Spare Trailer Tow Relays (If Equipped) TRAILER TRAILER MARKER LAMP USED USED TRAILER TRAILER STOP TAIL TURN...
Page 197: Fuses And Relays
Fuses Fuse/Relay Fuse Amp Protected Circuits Location Rating 30A* Trailer tow turn/stop lamps (combined) Trailer tow turn lamps (separate) — Not used — Trailer tow ABS relay (non electric trailer brake vehicles only) — Trailer tow marker lamp relay — Trailer tow stop lamp relay —...
Page 198: Maintenance
Maintenance GENERAL INFORMATION WARNING: Making modifications to various parts, components and systems of the vehicle, such as brake and steering systems, can adversely affect the quality, reliability and operation of your vehicle and could result in property damage, personal injury or death. Such modifications must be avoided.
Page 199 Maintenance Quality service parts are available through an authorized dealer. If dealer parts are not used, make sure the replacement parts are of equivalent quality. WARNING: The use of inferior parts can adversely affect the quality and reliability of your vehicle which, in turn, can result in property damage, personal injury or death.
Page 200 Maintenance Climate Control System Have the air conditioning system checked each spring. The refrigerant charge, cleanliness of the condenser-evaporator cores and belt condition are essential to system performance. When the air conditioning system is being used daily, remove the fresh air filter (if equipped) once each season and check for things such as dirt and lint.
Page 201 Maintenance Special applications may warrant a setting based on experience with the type of tire operating loads and conditions. Radial tires are more sensitive to toe-in setting than bias ply tires. Fine tuning school bus alignment to line-haul truck standards does not drastically improve tire tread life.
Page 202 Maintenance WARNING: 1. Always wear a respirator approved by the National Institute of Occupational Studies of Health (NIOSH) or Mine Safety and Appliance (MSA) during all brake service procedures. Wear the respirator from removal of the wheels through assembly. 2. Never use compressed air or dry brushing to clean brake parts or assemblies.
Page 203 Maintenance Inspection and adjustment: Establish a regular schedule for periodic cleaning, lubrication and adjustment inspection based on vehicle use. Exact maintenance intervals are difficult to predetermine due to vehicle applications and operating conditions. If you are uncertain of the proper schedule for your vehicle, contact an authorized dealer.
Page 204 Maintenance Desiccant air dryer: Inspect for moisture in the air system by opening reservoirs, draincocks or valves and checking for presence of water. The presence of small amounts of water due to condensation is normal and is not an indication that the dryer is not functioning properly. Replace or rebuild the desiccant cartridge when you determine that the desiccant is contaminated and does not have adequate water absorption capacity.
Page 205 Maintenance provided by the service manual. Hydraulic brake systems are power-assisted. There is a great reduction in braking capabilities without engine assist. • Proper fluid level. The level should be at the bottom edge of the ring on each reservoir fill port. Do not fill the master cylinder to the top of the reservoir.
Page 206 Maintenance • Checking that the pitman arm (steering arm at steering gear) mounting is tight and locked. Check system for leaks or hose chafing. Repair immediately, if necessary. • Maintaining proper steering gear and power steering pump lubricant levels. • Checking steering column joint bolts and steering linkage, particularly for body-to-chassis clearance.
Page 207 Maintenance Perform a complete inspection of the air induction system annually. In areas where road salt is used, disassemble the joints of each aluminum component and inspect for salt build-up and presence of chlorine that can cause aluminum particles to flake off and enter the engine combustion chambers.
Page 208 Maintenance Periodically check: • Condition of spring leaves for evidence of fatigue, bending or breakage. • Condition of suspension mounting brackets and bushings. • Torque rod mounting fasteners for tightness. • For proper suspension alignment. Maintain proper alignment at all times.
Page 209: Opening And Closing The Hood
Maintenance OPENING AND CLOSING THE HOOD WARNING: The parking brake must be fully set before opening the hood or possible personal injury may occur. WARNING: To reduce the risk of the possibility of personal injury, never stand beneath the hood when it is being raised or lowered.
Page 210 Maintenance 2. Pull the bottom of each latch away from the fender. 3. Tilt the hood forward until stopped by the retaining cables. To lower the hood: 1. Push the hood rearward at the top center of the hood above the grille until closed.
Page 211: Engine Oil Dipstick
Maintenance ENGINE OIL DIPSTICK Diesel Engine See your engine operator’s manual for information on the engine oil dipstick. Gasoline Engine A. MIN B. MAX ENGINE OIL CHECK Diesel Engine See your engine operator’s manual for information on checking and adding engine oil as well as engine oil specifications, capacities and required maintenance.
Page 212: Engine Coolant Check
1. Check the engine oil level. 2. If the engine oil level is not within the normal range, add engine oil that meets Ford specifications. See Capacities and Specifications for more information. Remove the engine oil filler cap and use a funnel to pour the engine oil into the opening.
Page 213 Note: For best results, coolant concentration should be tested with a refractometer such as Rotunda tool 300-ROB75240 available from an authorized dealer. Ford does not recommend the use of hydrometers or coolant test strips for measuring coolant concentrations. Note: Automotive fluids are not interchangeable; do not use engine coolant, antifreeze or windshield washer fluid outside of its specified function and vehicle location.
Page 214 Recycled Engine Coolant Ford Motor Company does not recommend the use of recycled engine coolant since a Ford-approved recycling process is not yet available. Dispose of used engine coolant in an appropriate manner. Follow your community’s regulations and standards for recycling and disposing of...
Page 215 Maintenance Severe Climates If you drive in extremely cold climates: • It may be necessary to have an authorized dealer increase the coolant concentration above 50%. • A coolant concentration of 60% provides improved freeze point protection. Engine coolant concentrations above 60% decrease the overheat protection characteristics of the engine coolant and may cause engine damage.
Page 216: Automatic Transmission Fluid Check
Maintenance When Fail-Safe Mode Turns On WARNING: Never remove the coolant reservoir cap while the engine is running or hot. Note: Driving your vehicle without repairing the engine problem increases the chance of engine damage. Take your vehicle to an authorized dealer as soon as possible.
Page 217 Maintenance 6. Install the dipstick making sure to seat it fully in the filler tube. 7. Remove the dipstick and inspect the fluid level. The fluid should be in the designated area for normal operating temperature or ambient temperature. If you must add transmission fluid, see your Allison Automatic Transmission Operator’s Manual for the correct fluid type.
Page 218 Maintenance Low Fluid Level Do not drive your vehicle if there is no indication of fluid on the dipstick and the ambient temperature is above 50°F (10°C). Correct Fluid Level Check the fluid at normal operating temperature, 196°F-216°F (91°C-102°C), on a level surface. The fluid reaches normal operating temperature after approximately 20 miles (30 kilometers) of driving.
Page 219 Maintenance If an overfill occurs, excess fluid should be removed by a qualified technician. Note: An overfill condition of transmission fluid may cause shift or engagement concerns or possible damage. Do not use supplemental transmission fluid additives, treatments or cleaning agents. The use of these materials may affect transmission operation and result in damage to internal transmission components.
Page 220 Maintenance DRIVESHAFT Check the universal joints for any evidence of wear or looseness at the regular lubrication interval. Stop your vehicle immediately, should driveshaft vibrations occur, to avoid possible hazardous consequences or damage to other components. REAR AXLE FLUID Your rear axle may have an optional synthetic lubricant that allows the use of extended service intervals.
Page 221: Brake Fluid Check
Maintenance SPRING U-BOLT CHECKS Check U-bolt nuts and re-torque every 36000 miles (60000 kilometers) after initial 1000-mile (1600 kilometer) re-torque. Clean and lubricate the U-bolt and nut threads and seats to make sure they are in peak condition when re-torqued. U-bolt Nut Torque Suspension ft-lb...
Page 222 Clutch Fluid WARNING: Carefully read cautionary information on product label. For MEDICAL EMERGENCY INFORMATION, contact a physician or Poison Control Center immediately; on Ford-Motorcraft® products call: 1-800-959-3673 (FORD). Failure to follow these instructions may result in personal injury. Use only a DOT 3 brake fluid designed to meet manufacturer specifications.
Page 223: Power Steering Fluid Check
Maintenance 1. Set the parking brake, shift into first gear and turn the engine off. 2. Open the hood. 3. Clean the reservoir cap before removal to prevent dirt and water from entering the reservoir. 4. Remove cap and rubber diaphragm from reservoir.
Page 224 Maintenance Note: If adding fluid is necessary, use only the appropriate fluid. See the Capacities and Specifications chapter. A low fluid level may indicate a leak in the power steering system. Inspect the power steering system and repair the leak or see an authorized dealer or a qualified technician for service.
Page 225: Fuel Filter
Add fluid to fill the reservoir if the level is low. Only use a washer fluid that meets Ford specifications. See Technical specifications in the Capacities and Specifications chapter. State or local regulations on volatile organic compounds may restrict the use of methanol, a common windshield washer antifreeze additive.
Page 226 Maintenance WARNING: Batteries normally produce explosive gases which can cause personal injury. Therefore, do not allow flames, sparks or lighted substances to come near the battery. When working near the battery, always shield your face and protect your eyes. Always provide proper ventilation.
Page 227 Maintenance Your vehicle is equipped with two or three maintenance-free batteries mounted in a covered tray located on the left frame rail. The covered battery tray, depending upon application, may also have one or two steps attached. Covered battery tray shown (battery tray with steps similar).
Page 228: Checking The Wiper Blades
Maintenance 4. Allow the engine to idle for at least one minute. 5. Turn on the air conditioning and allow the engine to idle for at least one minute. 6. Release the parking brake. With your foot on the brake pedal and with the air conditioning on, put the transmission in position P (automatic transmission) or neutral (manual transmission) and allow the engine to idle for at least one minute.
Page 229: Changing The Wiper Blades
Maintenance CHANGING THE WIPER BLADES 1. To remove the wiper blade, pull the wiper arm away from your vehicle. Pry open the lock cover (A) with your thumb to release the blade. 2. Press the retaining clip to disengage the wiper blade, and then pull the wiper blade down (C) toward the windshield to remove it from the arm.
Page 230 Maintenance Note: Failure to use the correct air filter element may result in severe engine damage. The customer warranty may be void for any damage to the engine if the correct air filter element is not used. See the Scheduled Maintenance chapter for the appropriate intervals for changing the air filter element.
Page 231 Maintenance 5. Release the three clamps that secure the cover to the air filter housing. Push the air filter cover toward the center of your vehicle, and up slightly, to release 6. Remove the air filter element from the air filter housing. 7.
Page 232: Adjusting The Headlamps
Maintenance ADJUSTING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident, an authorized dealer should check the alignment of your headlamps. CHANGING A BULB Lamp Assembly Condensation Exterior lamps have vents to accommodate normal changes in pressure.
Page 233 Maintenance 3. Remove the four screws and the retaining bracket from the headlamp bulb. 4. Pull the headlamp bulb out of the housing. Disconnect the electrical connector, and then remove the headlamp bulb. 5. Reverse the procedure to install the new bulb. Replacing Front Parking, Turn Signal and Side Marker Lamp Bulbs To remove the parking lamp and turn signal bulbs: 1.
Page 234: Bulb Specification Chart
Maintenance Replacing Brake, Tail, Rear Turn Signal, Reverse, and License Plate Lamp Bulbs 1. Remove the four screws and the lamp lens from the lamp assembly. 2. Carefully pull the bulb straight out of the socket. 3. Reverse the procedure to install the new bulb.
Page 235: Vehicle Care
Vehicle Care GENERAL INFORMATION Your Ford or Lincoln authorized dealer has many quality products available to clean your vehicle and protect its finishes. CLEANING PRODUCTS For best results, use the following products or products of equivalent quality: Motorcraft Bug and Tar Remover (ZC-42)
Page 236 Vehicle Care • Always use a clean sponge or car wash mitt with plenty of water for best results. • Dry your vehicle with a chamois or soft, terry cloth towel in order to eliminate water spotting. • It is especially important to wash your vehicle regularly during the winter months, as dirt and road salt are difficult to remove and cause damage to the vehicle.
Page 237: Waxing
Vehicle Care suspension components may emit squeak or popping noises while operating your vehicle if particles, such as dirt, rocks, or other debris, are present in the components. Cleaning Plastic Exterior Parts Use only approved products to clean plastic parts. •...
Page 238: Cleaning The Engine
Vehicle Care CLEANING THE ENGINE Note: To prevent damage to the engine control module, never spray-wash it directly. Never spray any connector. Engines are more efficient when they are clean because grease and dirt build-up keep the engine warmer than normal. When washing: •...
Page 239: Cleaning The Interior
Vehicle Care CLEANING THE INTERIOR WARNING: Do not use cleaning solvents, bleach or dye on the vehicle’s safety belts, as these actions may weaken the belt webbing. WARNING: On vehicles equipped with seat-mounted airbags, do not use chemical solvents or strong detergents. Such products could contaminate the side airbag system and affect performance of the side airbag in a collision.
Page 240: Cleaning Leather Seats
Vehicle Care • Be certain to wash or wipe your hands clean if you have been in contact with certain products such as insect repellent and suntan lotion in order to avoid possible damage to the interior painted surfaces. • Do not use household or glass cleaners as these may damage the finish of the instrument panel, interior trim and cluster lens.
Page 241: Vehicle Storage
Vehicle Care A clearcoat paint finish coats aluminum wheels and wheel covers. In order to maintain their condition: • Clean weekly with Motorcraft Wheel and Tire Cleaner. Use a sponge to remove heavy deposits of dirt and brake dust accumulation. Rinse thoroughly with a strong stream of water when you have completed the cleaning process.
Page 242 Vehicle Care Body • Wash your vehicle thoroughly to remove dirt, grease, oil, tar or mud from exterior surfaces, rear-wheel housing and the underside of the front fenders. • Periodically wash vehicles stored in exposed locations. • Touch-up raw or primed metal to prevent rust. •...
Page 243 Vehicle Care Tires • Maintain recommended air pressure. Miscellaneous • Make sure to cover all linkages, cables, levers and pins under your vehicle with grease to prevent rust. • Move vehicles at least 25 feet (8 meters) every 15 days to lubricate working parts and prevent corrosion.
Page 244: Wheels And Tires
Wheels and Tires TIRES Tire Inflation Information WARNING: Always maintain your tires in good condition. Frequently check and maintain correct inflation pressures as specified by tire manufacturers. Inspect periodically for abnormal wear patterns and repair/replace cut or broken tire casings. Always use experienced, trained personnel with proper equipment and correct procedures to mount or remove tires and wheels.
Page 245 Wheels and Tires WARNING (Continued) • Do not change from aluminum wheels to steel wheels or vice-versa without changing the mounting hardware where required or, in some cases with flange nut mounting systems, changing the hub and stud assembly. Mixing components could cause wheel or fastener failures and result in property damage, personal injury, or death.
Page 246 Wheels and Tires Stay out of the trajectory (1) as indicated in the illustration. WARNING: Do not mount tube type tires on tubeless wheels or tubeless tires on tube type wheels. To do so could result in tire or wheel failure and cause property damage, personal injury or death. Preserving proper inflation pressure is a very important maintenance practice to make sure safe vehicle operation and long life for the tires.
Page 247 Wheels and Tires Checking Tire Pressure Always check inflation pressure when tires are cold. Never bleed air from hot tires to relieve normal pressure build-up. Normal increase in pressure due to service conditions is 10–15 psi (69–103 kPa), which is allowable in truck tires.
Page 248 Wheels and Tires Proper tire inflation, toe-in adjustment, loads, and road speeds are important factors governing tire mileage, steering ease and maneuverability. Tire Loading WARNING: Loading tires beyond their rated capacity decreases tire life requiring more frequent replacement of tires. Overloading creates an unsafe condition that may result in sudden air loss from a tire failure resulting in an accident that could cause property damage, personal injury or death.
Page 249 Wheels and Tires Rotation may not advisable: • Front (Steering) Axle: Remove tires when tread wears down to four–thirty seconds inch (3 millimeters) or less. Retread or rotate worn tires to drive position. We do not recommend using retreaded tires on steering axles. •...
Page 250 Wheels and Tires Irregular Wear: If irregular wear is present, check the axle alignment, tire pressure, wheel balancing, shock and suspension component condition, and wheel bearing end play. This condition not only shortens tire life, but also adversely affects the handling of your vehicle, which is dangerous.
Page 251 Wheels and Tires Oil-lubricated Front Wheel Bearings During normal vehicle duty cycle, the lubricant and air inside the hub/wheel cavity expands and, if not vented, causes pressure build-up that could cause accelerated seal wear. You can use two venting methods to prevent pressure build-up: •...
Page 252 Wheels and Tires Disc Wheel with Flange Nuts (Hub-piloted). Front wheel mounting of flange nut system. A. Flange nut B. Wheel(s) C. Brake drum D. Wheel stud (22 millimeter) E. Wheel hub 2. Position the outer rear tire and wheel in place over the studs and push it back as far as possible.
Page 253 Wheels and Tires Note for aluminum wheels: Clean each wheel locator pad on the hub from all dirt, rust and foreign material prior to re-installing rear aluminum hub-piloted wheels. Apply a light coat of chassis grease, never-seize or disc brake corrosion control grease, only to the wheel locator pad.
Page 254: Wheel Lug Nut Torque
Wheels and Tires Note: Make sure the tire valve stem clears the brake caliper when installing the tire and rim assembly on disc-brake equipped axles. The use of a tire manufacturer’s stem forming tool is the only acceptable method of obtaining clearance when necessary. Proper Torque It is important to tighten and maintain wheel and rim mounting nuts to the proper torque.
Page 255: Capacities And Specifications
Capacities and Specifications ENGINE SPECIFICATIONS (GASOLINE ENGINE ONLY) Engine 6.8L V10 engine Cubic inches Required fuel Minimum 87 octane Firing order 1-6-5-10-2-7-3-8-4-9 Spark plug gap 0.039–0.043 inch (1.0–1.1 mm) Ignition system Coil on plug Compression ratio 9.2:1 Engine Drivebelt Routing 6.8L V10 engine with air conditioning 6.8L V10 engine - without air...
Page 256: Lubricant Specifications
Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 257 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 258 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 259 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 260 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 261 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 262 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 263 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 264 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 265 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 266 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 267 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 268 Capacities and Specifications I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 269: Refill Capacities
5W-20 Motor Oil 1,2,3 or equivalent Your engine has been designed to use engine oil that meets Ford specification. It is also acceptable to use an engine oil of recommended viscosity grade that displays the API Certification Mark for gasoline engines.
Page 270 Capacities and Specifications Description Capacity - Pints (Liters) 6–speed manual 19.5 (9.2) 7–speed manual 22.0 (10.4) Total fluid capacity (dry transmission and torque converter). Rear Axle Eaton-Spicer Capacity - Weight Capacity - lb Axle Code Description Pints (kg) (Liters) S135–S 13500 (6123) Single reduction 24.5 (11.6)
Page 271 Capacities and Specifications Meritor Axle Model Capacity - Pints (Liters) RS-17–140 28.6 (13.5) RS-17–144 32.0 (15.0) RS-17–145 33.6 (15.9) RS-17–220 30.7 (14.5) RS-17–224 29.0 (13.0) RS-19–144 32.0 (15.0) RS-19–145 33.2 (15.7) RS-19–220 30.0 (14.0) RS-19–223 29.0 (13.0) RS-21–145 32.3 (15.3) RS-21–160 39.0 (18.0) RS-21–230...
Page 272 Only qualified personnel should service the air conditioning refrigerant system. Item Capacity Ford part Ford part name number / Ford specification Air conditioning 2.38 lb (1.08 kg) Mortorcraft YN-19 (US) / refrigerant R-134a...
Page 273: Part Numbers
Scheduled Maintenance chapter for the appropriate intervals for changing the spark plugs. Note: Replace the spark plugs with ones that meet Ford material and design specifications for your vehicle, such as Motorcraft or equivalent replacement parts. The customer warranty may be void for any damage to the engine if such spark plugs are not used.
Page 274: Vehicle Certification Label
Capacities and Specifications VEHICLE CERTIFICATION LABEL The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label is on either the door hinge pillar, the door latch post, or the edge of the door near the door latch, next to the driver’s seating position.
Page 275 Capacities and Specifications TRANSMISSION CODE DESIGNATION You can find a transmission code on the Safety Compliance Certification Label. The following table tells you which transmission each code represents. Description Code Six-speed TorqShift automatic (6R140) I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 276: Audio System
Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Note: Do not insert CDs with homemade paper (adhesive) labels into the CD player as the label may peel and cause the CD to become jammed.
Page 277 Audio System MP3 Track and Folder Structure Audio systems capable of recognizing and playing MP3 individual tracks and folder structures work as follows: • There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. •...
Page 278: Am/Fm Stereo
Audio System AM/FM AUDIO WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
Page 279: Am/Fm/Cd With Sync
Audio System E. Memory presets: Store your favorite radio stations. To store a radio station, tune to the station, then press and hold a preset button until sound returns. F. AM/FM: Press this button to select a frequency band and access media through the auxiliary input jack.
Page 280 Audio System D. Phone: Press this button to access the phone features of the SYNC® system. See the SYNC® chapter for more information. E. MENU: Press this button to access different audio system features. • If your vehicle is equipped with satellite radio, you can access different menus by pressing OK.
Page 281: Auxiliary Input Jack
Audio System J. Folder: Press this button to access the next folder on an MP3 disc. K. Folder: Press this button to access the previous folder on an MP3 disc. L. FF: Press this button to manually fast forward in a CD track or MP3 file.
Page 282 Audio System WARNING: Store the portable music player in a secure location, such as the center console or the glove box, when your vehicle is moving. Hard objects may become projectiles in a crash or sudden stop, which may increase the risk of serious injury. The audio extension cable must be long enough to allow the portable music player to be safely stored while your vehicle is moving.
Page 283: Usb Port
Audio System USB PORT (IF EQUIPPED) WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
Page 284 Note: Sirius reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Page 285 Audio System Satellite Radio Electronic Serial Number (ESN) You need your ESN to activate, modify or track your satellite radio account. When in satellite radio mode, you can view this number by pressing SIRIUS and memory preset 1 at the same time. To access your ESN, press the bottom left corner of the touchscreen, then SIRIUS >...
Page 286 Audio System Radio display Condition Possible action Call SIRIUS Your satellite service is Call Sirius at 1–888–539–7474 no longer available. 1–888–539–7474 to resolve subscription issues. None Found. Check All the channels in the Use the channel guide Channel Guide. selected category are to turn off the Lock or either skipped or Skip function on that...
Page 287: Sync
SYNC® SYNC is an in-vehicle communications system that works with your Bluetooth-enabled cellular phone and portable media player. This allows you to: • Make and receive calls. • Access and play music from your portable music player. • Use 911 Assist, Vehicle Health Report and SYNC Services (Traffic, Directions &...
Page 288 SYNC® Monday-Saturday, 8:30am-9:00pm EST. Sunday, 10:30am-7:30pm EST. In the United States, call: 1–800–392–3673. In Canada, call: 1–800–565–3673. Times are subject to change due to holidays. SYNC Owner Account Why do I need a SYNC owner account? • Required to activate Vehicle Health Report and to view the reports online.
Page 289 Master Reset to erase all stored information. System data cannot be accessed without special equipment and access to the vehicle’s SYNC module. Ford Motor Company and Ford of Canada do not access the system data for any purpose other than as described...
Page 290 SYNC® Initiating a Voice Session Push the voice icon; a tone sounds and Listening appears in the display. Say any of the following: Say: If you want to: “Phone” Make calls. “USB” Access the device connected to your USB port. “Bluetooth Audio”...
Page 291 SYNC® Adjusting the Interaction Level Push the voice icon; when prompted, say “Voice settings”, then any of the following: When you say: The system: “Interaction mode standard” Provides more detailed interaction and guidance. “Interaction mode advanced” Provides less audible interaction and more tone prompts.
Page 292 SYNC® • Speak naturally, without long pauses between words. • At any time you can interrupt the system while it is speaking by pressing the voice icon. USING SYNC WITH YOUR PHONE Hands-free calling is one of the main features of SYNC. While the system supports a variety of features, many are dependent on your cellular phone’s functionality.
Page 293 SYNC® Depending on your phone’s capability and your market, the system may prompt you with questions such as setting the current phone as the primary phone (the phone SYNC automatically tries to connect with first upon vehicle start-up), downloading your phone book, etc. Pairing Subsequent Phones Note: To scroll through the menus, press the up and down arrows on your audio system.
Page 294 SYNC® “PHONE” “Call <name> at home” “Call <name> at work” OR “Call <name> in office” “Dial” “Phone book <name>” “Phone book <name> at work” OR “Phone book <name> at office” “Call history incoming” “Connections” “Go to privacy” “Hold” These commands do not require you to say “Phone” first. These commands are not available until phone information is completely downloaded using Bluetooth.
Page 295 SYNC® “DIAL” “411” (four-one-one), “911” (nine-one-one) “700 (seven hundred)” (seven hundred) “800 (eight hundred)” (eight hundred) “900 (nine hundred)” (nine hundred) “#” (pound) “<number> 0–9” “Asterisk” (*) “Clear” (deletes all entered digits) “Delete” (deletes one digit) “Plus” “Star” Note: To exit dial mode, press and hold the phone button or press MENU to go to the PHONE menu.
Page 296 SYNC® 2. When Active Call Menu is selected, press OK. 3. Scroll to cycle through the following options: When you select: You can: Mute the call. Mute Call? Switch a call from an active hands-free Privacy environment to your cellular phone for a more private conversation.
Page 297 SYNC® When you select: You can: Access your call history log. Call History 1. Press OK to select, then scroll through your call history options (incoming, outgoing or missed). 2. Press OK when the desired selection appears in the display. 3.
Page 298 SYNC® When you select: You can: Phonebook Allows you to access your downloaded phonebook. 1. Press OK to confirm and enter. If your phonebook has fewer than 255 listings, they appear alphabetically in flat file mode. If there are more, they are organized into alphabetical categories.
Page 299 SYNC® Text Messaging Note: This is a phone-dependent feature. SYNC allows you to receive, send, download and delete text messages. The system can also read incoming text messages to you so that you do not have to take your eyes off the road. Receiving a Text Message Note: This is a phone-dependent feature.
Page 300 6. Press OK when the contact appears and press OK again to confirm when the system asks if you would like to send the message. Each text message is sent with the following signature: “This message was sent from my <Ford or Lincoln>”. Pre-defined text message options Can’t talk right now...
Page 301 SYNC® Pre-defined text message options Too funny Can’t wait to see you I’m stuck in traffic Accessing Your Phone Settings These are phone-dependent features. Your phone settings allow you to access and adjust features such as your ring tone, text message notification, modify your phone book and also set up automatic download.
Page 302 SYNC® When you select: You can: Modify Phonebook Modify the contents of your phone book (such as add, delete, download). Press OK to select and scroll between: Add Contacts: Press OK to add more contacts from your phone book. Push the desired contact(s) on your phone.
Page 303 SYNC® System Settings System Settings provide access to your Bluetooth Devices and Advanced menu features. Use the arrow buttons to scroll through the menu options. The Bluetooth Devices menu allows you to add, connect, delete and set a phone as primary as well as turn your Bluetooth feature on and off. The Advanced menu allows you to access and set prompts, languages, defaults, perform a master reset, install an application and view system information.
Page 304 SYNC® If you select: You can: Set Bluetooth On/Off Turn the Bluetooth feature on and off. Press OK and scroll to toggle between On and Off. When the desired selection is chosen, press OK. Note: Turning Bluetooth off disconnects all Bluetooth devices and deactivates all Bluetooth features.
Page 305 SYNC® Advanced Menu Options This menu allows you to access settings such as prompts, languages, defaults, perform a master reset, install an application and view system information. 1. Press the phone button to enter the Phone Menu. 2. Scroll until System Settings appears and press OK. 3.
Page 306 SYNC® If you select: You can: Master Reset Completely erase all information stored on SYNC (phonebook, call history, text messages and paired devices) and return to the factory default settings. Press OK to select. The display indicates when complete and SYNC takes you back to the Advanced menu.
Page 307 For more information, see SYNC Services Terms and Conditions at www.SYNCMyRide.com. If you do not want Ford or its service providers to collect the vehicle travel information or other information identified in the Terms and Conditions, do not activate or use the service.
Page 308 SYNC® Connecting to SYNC Services Using the Phone Menu 1. Press the phone button to enter the Phone Menu. 2. Scroll until Services appears in the display. 3. Press OK to confirm and enter the Services menu. The display indicates the system is connecting. 4.
Page 309: Assist
SYNC® Disconnecting from SYNC Services 1. Press and hold the phone button on the steering wheel. 2. Say “Good-bye” from the SYNC Services main menu. SYNC Services quick tips Personalizing You can personalize your Services feature to provide quicker access to your most used or favorite information.
Page 310 SYNC® WARNING: Do not wait for 911 Assist to make an emergency call if you can do it yourself. Dial emergency services immediately to avoid delayed response time which could increase the risk of serious injury or death after a crash. If you do not hear 911 Assist within five seconds of the crash, the system or phone may be damaged or non-functional.
Page 311 SYNC® Off selections include: Off with reminder and Off without reminder. Off with reminder provides a display and voice reminder at phone connection at vehicle start. Off without reminder provides a display reminder only without a voice reminder at phone connection. To make sure that 911 Assist works properly: •...
Page 312: Vehicle Health Report
SYNC® • The phone(s) paired and connected to the system was thrown from the vehicle. 911 Assist Privacy Notice Once 911 Assist is set on, it may disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or activation of the fuel pump shut-off.
Page 313 Vehicle Health Report Privacy Notice When you run a Vehicle Health Report, Ford Motor Company may collect your cellular phone number (to process your report request) and I n f o r ma t i o n P r o v i d e d b y :...
Page 314 Certain versions or updates to Vehicle Health Report may also collect additional vehicle information. Ford may use the vehicle information it collects for any purpose. If you do not want to disclose your cellular phone number or vehicle information, do not run the feature or set up your Vehicle Health Report profile at www.SYNCMyRide.com.
Page 315 SYNC® 4. Then scroll to Mobile Apps and press OK to access a list of available applications. 5. Scroll through the list of available applications and press OK to select a particular app. 6. Once an app is running through SYNC, you can access an app’s menu by pressing the MENU button to first access the SYNC menu.
Page 316 SYNC® To connect using the system menu: 1. Plug the device into the vehicle’s USB port. 2. Press AUX and then MENU to enter the Media Menu. 3. Scroll until Select Source appears and press OK. 4. Scroll to select USB and press OK. 5.
Page 317 SYNC® “USB” “Play genre <name>” “Play next folder” “Play next track” “Play playlist <name>” “Play previous folder” “Play previous track” “Play song <name>” “Play track <name>” “Refine album <name>” “Refine artist <name>” “Refine song <name>” “Refine track <name>” “Repeat off” “Repeat on”...
Page 318 SYNC® Voice command guide “Autoplay” Turn on to listen to music which has already been randomly indexed during the indexing process. Turn off and the system does not begin to play any of your music until all media has all been indexed.
Page 319 SYNC® Press the voice icon and when prompted say “Bluetooth Audio” and then any of the following: “BLUETOOTH AUDIO” “(Phone) (Media) (Bluetooth) Connections” “Pause” “Play” “Play next track” “Play previous track” Media Menu Features The media menu allows you to select your media source, how to play your music (by artist, genre, shuffle, repeat, etc.), and also to add, connect or delete devices.
Page 320 SYNC® When you select: You can: Select Source SYNC USB: Press OK to access music plugged into your USB port. You can also plug in devices to charge them (if supported by your device). Once connected, the system indexes any readable media files. (The time required to complete this depends on the size of the media content being indexed.) If Autoplay is on, you can access media files...
Page 321 SYNC® When you select: You can: Choose to shuffle or repeat your music and Media Settings select your Autoplay settings. Once these selections are turned on, they remain on until turned off. Press SEEK to play the previous or next track. Note: Some digital media players require both USB and line in ports to stream data and music separately.
Page 322 SYNC® 2. Press AUX and then MENU to enter the Media Menu. 3. Scroll to select the Play Menu and press OK. If there are no media files to access, the display indicates there is no media. If there are media files, you have the following options to scroll through and select from: When you select: You can:...
Page 323 SYNC® When you select: You can: Playlists Access your playlists (from formats such as ASX, .M3U, .WPL, .MTP.). The system lists your playlists alphabetically in flat file mode. If there are more than 255, they are organized into alphabetical categories. Press OK to select.
Page 324 SYNC® System Settings System settings provide access to your Bluetooth Devices and Advanced menu features. The Bluetooth Devices menu allows you to add, connect and delete a device as turn the Bluetooth feature on and off. Your Advanced menu allows you to access and set prompts, languages, defaults and perform a master reset.
Page 325 SYNC® When you select: You can: Delete All Devices Delete all previously paired devices. Press OK to select. Return Exit the current menu. This is a speed-dependent feature Advanced Menu Options This menu allows you to access settings such as prompts, language, performing a master reset as well as returning to factory defaults.
Page 326 SYNC® When you select: You can: Master Reset Completely erase all information stored on SYNC (all phonebook, call history, text messages and all paired devices) and return to the factory default settings. Application Download new software applications (if available) and then load the desired applications through your USB port.
Page 327 SYNC® Phone issues Issue Possible Possible solution(s) cause(s) • This is a • Go to the website to review SYNC is not able to download my phone-dependent your phone’s compatibility. • Try turning off the device, phonebook. feature, OR • Possible phone resetting the device or removing malfunction.
Page 328 SYNC® Phone issues Issue Possible Possible solution(s) cause(s) • This is a • Go to the website to review Text messaging is not working on phone-dependent your phone’s compatibility. • Try turning off the device, SYNC. feature, OR • Possible phone resetting the device or removing malfunction.
Page 329 SYNC® USB and media issues Issue Possible Possible solution(s) cause(s) • Your music files • Make sure that all song details SYNC does not recognize music may not contain are populated. • Some devices require you to that is on my the proper artist, device.
Page 330 SYNC® Vehicle Health Report and SYNC Services (Traffic, Directions and Information) issues Issue Possible Possible solution(s) cause(s) • This could be • Update your mobile number I am unable to submit a report. due to your in your account on the website. •...
Page 331 SYNC® Voice command issues Issue Possible Possible solution(s) cause(s) • You may be • Review the media voice SYNC does not understand the using the wrong commands at the beginning of name of a song or voice commands, the media section. •...
Page 332 SYNC® AppLink issues Issue Possible Possible solution(s) cause(s) • Your device • Check the website for SYNC does not find any mobile may not support compatible devices and apps that are on the AppLink applications. • Make sure your device is my phone.
Page 333: Appendices
SYNC® End User License Agreement (EULA) • You have acquired a device (“DEVICE”) that includes software licensed by Ford Motor Company and its affiliates (“FORD MOTOR COMPANY”) from an affiliate of Microsoft Corporation (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online”...
Page 334 Neither FORD MOTOR COMPANY nor its suppliers shall be liable for any damages arising out of errors in the speech recognition process.
Page 335 SOFTWARE after the date you obtain your initial copy of the SOFTWARE (“Supplemental Components”). If FORD MOTOR COMPANY or third party software and services suppliers provide or make available to you Supplemental Components and no other EULA terms are provided along with the Supplemental Components, then the terms of this EULA shall apply.
Page 336 DEVICE. UPGRADES AND RECOVERY MEDIA: If the SOFTWARE is provided by FORD MOTOR COMPANY separate from the DEVICE on media such as a ROM chip, CD ROM disk(s) or via web download or other means, and is labeled “For Upgrade Purposes Only” or For Recovery Purposes...
Page 337 For additional information, see http://www.microsoft.com/exporting/. TRADEMARKS: This EULA does not grant you any rights in connection with any trademarks or service marks of FORD MOTOR COMPANY, MS, Microsoft Corporation, third party software or service providers, their affiliates or suppliers.
Page 338 End user notice Microsoft® Windows® Mobile for Automotive Important Safety Information This system Ford SYNC™ contains software that is licensed to Manufacturer FORD MOTOR COMPANY by an affiliate of Microsoft Corporation pursuant to a license agreement. Any removal, reproduction, reverse engineering or other unauthorized use of the software from this system in violation of the license agreement is strictly prohibited and may subject you to legal action.
Page 339 Appendices General operation Voice Command Control Functions within the Windows Automotive-based system may be accomplished using only voice commands. Using voice commands while driving allows you to operate the system without removing your hands from the wheel. Prolonged Views of Screen Do not access any function requiring a prolonged view of the screen while you are driving.
Page 340 Appendices Let Your Judgment Prevail Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and existing traffic regulations. Any such feature is not a substitute for your personal judgment. Any route suggestions made by this system should never replace any local traffic regulations or your personal judgment or knowledge of safe driving practices.
Page 341: Scheduled Maintenance
Ford Motor Company has recommended maintenance intervals for various parts and component systems based upon engineering testing. Ford Motor Company relies upon this testing to determine the most appropriate mileage for replacement of oils and fluids to protect your vehicle at the lowest overall cost to you and recommends against maintenance schedules that deviate from the scheduled maintenance information.
Page 342 Scheduled Maintenance Additives and Chemicals This owner’s manual and the Ford Workshop Manual list the recommended additives and chemicals for your vehicle. We do not recommend using chemicals or additives not approved by us as part of your vehicle’s normal maintenance. Please consult your warranty information.
Page 343 Scheduled Maintenance Daily Owner Checks U.S. Department Service brakes and parking brake. of Transportation, Steering mechanism. Federal Highway Lighting devices and reflectors. Administration Tires. Requirements Horn. (Make sure the Windshield wipers. entire system is Rear vision mirrors. functioning Wheels and rims. properly.) Emergency equipment.
Page 344 Scheduled Maintenance Every Oil Change Clutch Lubricate the clutch release cross shaft and all linkages. Check the clutch fluid level. Drain the accumulated water or sediment from Fuel System the fuel tank(s). Lubricate the steering shaft(s), U-joints and Steering System splines if equipped with grease fittings.
Page 345 Scheduled Maintenance Observation Maintenance Operation Insufficient power shown in loaded Inspect the automatic slack practice stop. adjuster function. Subpar vehicle handling qualities. Check the operation of the brakes, clutch and steering. Excessive noise from under the Inspect your vehicle for missing, cab or engine compartment.
Page 346 Scheduled Maintenance Observation Maintenance Operation Cleaning the wiper blades with a Replace wiper blades. clean cloth and mild detergent and washing with a cleaner does not restore a clean wipe. Noisy or difficult to operate. Lubricate body lock cylinders. Headlamp beams in wrong position Check headlamp alignment.
Page 347 Scheduled Maintenance Vehicles equipped with a diesel engine cannot use diesel fuel blended with waste oil if equipped with a catalytic converter-muffler. Waste lube oil blending in fuel plugs the catalytic converter-muffler, resulting in a significant loss of engine power. Noise Emissions Warranty, Prohibited Tampering Acts and Maintenance On January 1, 1978, Federal regulations became effective governing the...
Page 348 To further help minimize noise emissions degradation throughout the life of your vehicle, Ford Motor Company recommends that you operate this vehicle in the manner described within this owner’s manual.
Page 349 Important Engine Information decal. Perform the following services at scheduled intervals because they essential to the life and performance of your vehicle. Ford recommends that you perform maintenance on all designated items to achieve best vehicle operation.
Page 350 Scheduled Maintenance However, inspect the brakes more frequently when subjecting them to heavy use or adverse operating conditions such as: • Frequent brake applications while fully loaded. • Operation on hilly or mountainous terrain. • Frequent operation on dirt, gravel or mud. Some aftermarket brake linings also require more frequent inspections.
Page 351 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 352 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 353 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 354 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 355 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 356 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 357 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 358 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 359 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 360 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 361 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 362 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 363 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 364 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 365 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 366 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 367 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 368 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 369 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 370 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 371 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 372 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 373 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 374 Scheduled Maintenance I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 375 Scheduled Maintenance Maintenance Record Retention and Service Log I n f o r ma t i o n P r o v i d e d b y : 2015 F-650/750 (f67) Owners Guide gf (ownloose), 1st Printing, December 2013 Canadian_French (fr_can)
Page 376 Scheduled Maintenance EALER ALIDATION EALER ALIDATION º RÉP EURES º RÉP EURES ILOMÉTRAGE ILOMÉTRAGE EALER ALIDATION EALER ALIDATION º RÉP EURES º RÉP EURES ILOMÉTRAGE ILOMÉTRAGE EALER ALIDATION EALER ALIDATION º RÉP EURES º RÉP EURES ILOMÉTRAGE ILOMÉTRAGE EALER ALIDATION EALER ALIDATION º...
Page 377 Scheduled Maintenance EALER ALIDATION EALER ALIDATION º RÉP EURES º RÉP EURES ILOMÉTRAGE ILOMÉTRAGE EALER ALIDATION EALER ALIDATION º RÉP EURES º RÉP EURES ILOMÉTRAGE ILOMÉTRAGE EALER ALIDATION EALER ALIDATION º RÉP EURES º RÉP EURES ILOMÉTRAGE ILOMÉTRAGE EALER ALIDATION EALER ALIDATION º...
Page 378 Scheduled Maintenance EALER ALIDATION EALER ALIDATION º RÉP EURES º RÉP EURES ILOMÉTRAGE ILOMÉTRAGE EALER ALIDATION EALER ALIDATION º RÉP EURES º RÉP EURES ILOMÉTRAGE ILOMÉTRAGE EALER ALIDATION EALER ALIDATION º RÉP EURES º RÉP EURES ILOMÉTRAGE ILOMÉTRAGE EALER ALIDATION EALER ALIDATION º...
Page 379 Index 911 Assist™ ......308 Auxiliary input jack (Line in) ..280 Auxiliary powerpoint ....91 Axle ......134, 200, 219 lubricant specifications ..255 ABS (see Brakes) .....139 refill capacities ......268 Accessing call history/phone book during active call .....294 Accessing your media menu features ........318 Battery ........224 acid, treating emergencies ..224 Accessing your phone menu...
Page 380 Index in front seat ......33 in rear seat ........33 Daytime running lamps (see LATCH ........36 Lamps) .........56 Child safety seats - booster Defrost .........76 seats ..........28 Diesel exhaust fluid (DEF) ..110 Cleaning your vehicle ....234 engine compartment ....237 Diesel Particulate Filter exterior ........234 (DPF) ..........96 instrument panel ....238...
Page 381 Index Engine oil turning on and off ....55 checking and adding ....210 Head restraints ......80 dipstick ........210 Heating ........76 filter, specifications ....272 refill capacities ......268 Hood ..........208 specifications ......255 Exhaust fumes ......94 Ignition .........93, 254 Information displays ....73 Fail safe cooling ......214 Instrument panel cleaning ........238 Fan, Engine Cooling ....211...
Page 382: Pairing Your Phone For The First Time
Index Lights, warning and indicator ..67 Playing music (by artist, album, genre, playlist, tracks, Load limits .........166 similar) ........320 Locks Power distribution box (see childproof ........40 Fuses) ........188 doors ..........52 Power door locks ......52 Lubricant specifications ...255 Power mirrors ......60 Lumbar support, seats ....84 Powerpoint ........91 Power steering ....161, 205...
Page 383 Index Safety information ....287 Safety restraints ..42–44, 46–47 Tail lamps Belt-Minder® ......47 bulb replacement ....231 extension assembly ....46 for adults .......42–44, 46 Temperature control (see for children ......25, 30 Climate control) ......76 safety belt maintenance ...50 seat belt maintenance ....50 Text messaging ......298 warning light and chime ..47 Text messaging (sending,...
Page 384 Index Warning lights (see Lights) ..67 Vehicle health report ....311 Washer fluid ......224 Vehicle Identification Number (VIN) ........272, 274 Water, Driving through .....176 Vehicle loading ......166 Wheels ........249 Ventilating your vehicle .....94 Windows power .........58 Voice commands in media mode ..........315 Windshield washer fluid and wipers ..........54 Voice commands in phone...

This manual is also suitable for:

F-750 2015

Ford F-650 2015 Owner's Manual

Table of Contents

Introduction

Vehicle Inspection Guide

Child Safety

Safety Belts

Keys and Remote Control

Locks

Steering Wheel Controls

Wipers and Washers

Lighting

Windows and Mirrors

Instrument Cluster

Information Displays

Climate Control

Seats

Auxiliary Power Points

Starting and Stopping the Engine

Fuel and Refueling

Transmission

Brakes

Traction Control

Cruise Control

Driving Aids

Load Carrying

Towing

Driving Hints

Roadside Emergencies

Customer Assistance

Fuses

Maintenance

Vehicle Care

Wheels and Tires

Capacities and Specifications

Audio System

Sync

Appendices

Scheduled Maintenance

Quick Links

Related Manuals for Ford F-650 2015

Summary of Contents for Ford F-650 2015

This manual is also suitable for:

Table of Contents
