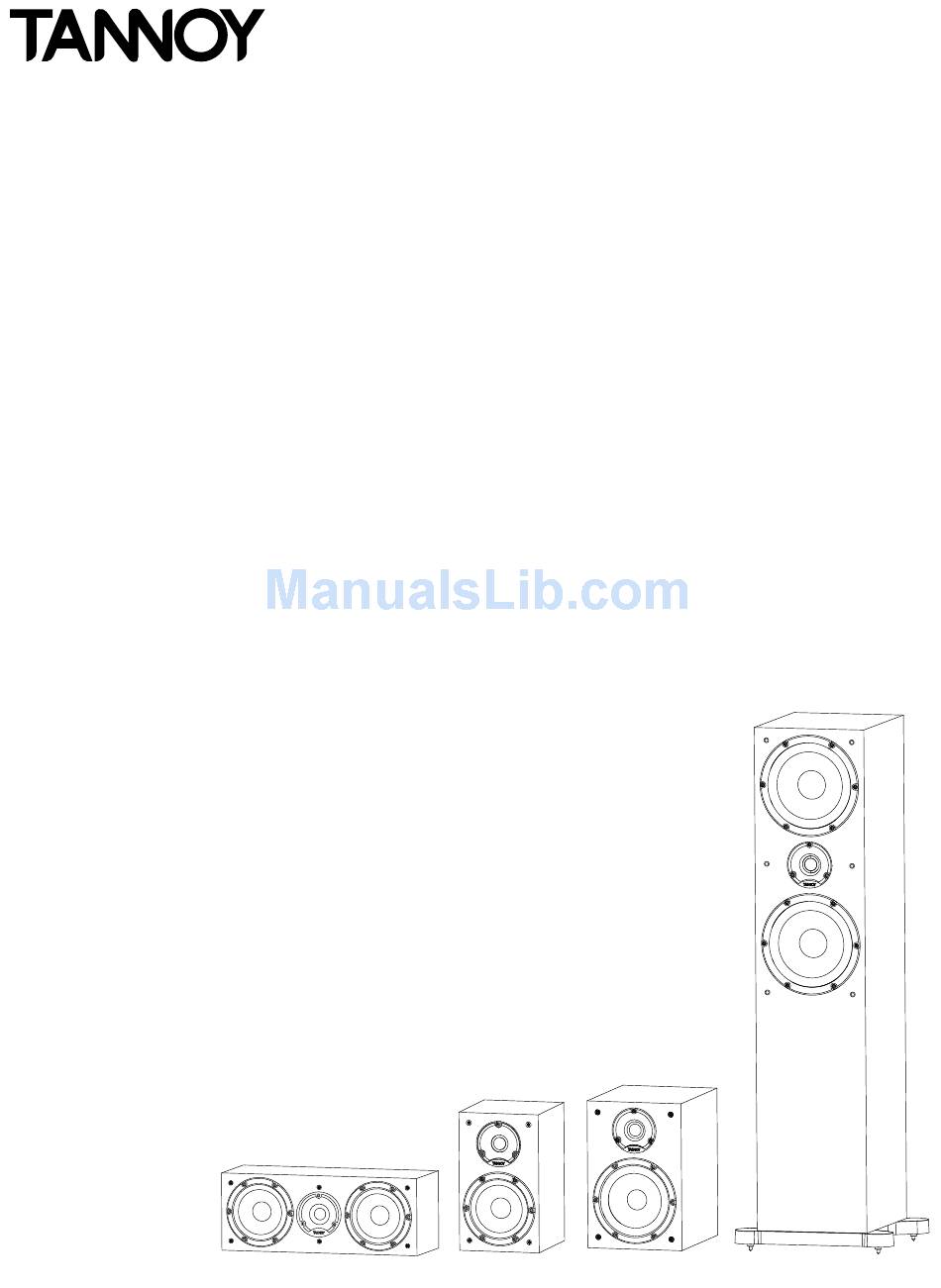

- Page 1 Mercury 7 O WNE R’ S MA N U A L...
-
Page 2: Table Of Contents
No maintenance of the Mercury 7 loudspeaker is necessary. As part of the MUSIC Group, Tannoy is committed to providing the highest quality products, service and user experience for our customers. One element of this commitment is our after sales support which now incorporates our extended Limited Warranty. -
Page 3: Introduction
24hrs use. Once they have been further run-in over a longer period, there will be clear enhancement of the stereo imaging, mid-band quality and bass performance characteristics. We are confident that you will continue to enjoy your new Tannoy Mercury 7 loudspeakers for many years to come. AMPLIFIER CHOICE Consult the product specification as this clearly shows the acceptable power range for amplifier matching to your speakers. -
Page 4: Fitting Of Accessories
Positioning and Fine-Tuning. The Mercury 7.1 may also be wall mounted with a suitable bracket, using two inserts on the rear of the loudspeaker, with standard 60mm spacing. The thread in the inserts is M5. It is the responsibility of the customer to ensure the chosen bracket is used within its load rating, and the bracket is securely mounted to the wall with suitable hardware. -
Page 5: Connection 7.1, 7.2 & 7C
- (minus) or coloured black. At the loudspeaker end connect the cables labelled Left LF+ and Left LF- to the left hand loudspeaker LF terminals, ensuring that you note the polarity markings on the cable sheathing. MERCURY 7 MANUAL_05... -
Page 6: Positioning And Fine-Tuning
(See fig. 5) POSITIONING AND FINE-TUNING To get best results from your new Tannoy Mercury 7 loudspeakers it is worthwhile spending a little time finding the optimum setup configuration. Begin by angling the speakers towards your chosen listening position, usually this is on the centre line of the room, so that when seated you can just see the inner side panel of each speaker. -
Page 7: Warning, Strong Magnetic Fields
FRONT SPEAKERS The ultra-wide dynamic range and power handling capability of Mercury 7 loudspeakers will provide a stunning home cinema experience. The speakers should be positioned on either side of the TV or projection screen and then placed in line with the screen surface. -
Page 8: Technical Specification
(11.5 x 7.6 x 10.5”) (37.6 x 12.4 x 12.1”) Net weight 2.7 kg (5.9 lbs) 5.0 kg (11.0 lbs) 15.0 kg (33.1 lbs) Finish Light Oak Light Oak Light Oak Walnut Walnut Walnut Black Oak Black Oak Black Oak 08_ MERCURY 7 MANUAL... -
Page 9: Technical Specification
Volume 6.2 l (0.22 cu. ft.) Dimensions (H x W x D) 160.0 x 420.0 x 167.3 mm (incl. plinth) (6.3 x 16.5 x 6.6”) Net weight 4.4 kg (9.7 lbs) Finish Light Oak Walnut Black Oak MERCURY 7 MANUAL_09... -
Page 10: Set Up Diagrams
SET-UP DIAGRAMS Fig.1 7.4 Plinth Assembly Fig. 2 Connection 7.1, 7.2 and 7C TO RIGHT SPEAKER POWER AMPLIFIER Fig.3 Connection 7.4, Single Wire Mode TO RIGHT SPEAKER POWER AMPLIFIER LINKS IN PLACE 010_ MERCURY 7 MANUAL... - Page 11 SET-UP DIAGRAMS Fig.4 Connection 7.4 Bi-Wire Mode TO RIGHT SPEAKER POWER AMPLIFIER LINKS REMOVED Fig.5 Connection 7.4 Bi-Amp Mode TO RIGHT SPEAKER HIGH FREQUENCY POWER AMPLIFIER LOW FREQUENCY POWER AMPLIFIER LINKS REMOVED SPEAKER TO RIGHT MERCURY 7 MANUAL_011...
-
Page 12: Set Up Diagrams
SET-UP DIAGRAMS Fig.6 Recommended Positioning - Stereo Pair Fig.7 Recommended Positioning - Home Cinema 012_ MERCURY 7 MANUAL... -
Page 13: Notes
NOTES MERCURY 7 MANUAL_013... -
Page 14: Notes
NOTES 014_ MERCURY 7 MANUAL... - Page 15 MERCURY 7 MANUAL_015...
- Page 16 Tannoy Limited - product designed in the United Kingdom. Tannoy adopts a policy of continuous improvement and product specification is subject to change. All other trademarks remain the property of their respective owners. tannoy.com...
