- Page 1 TS300 SERVICE MANUAL...
- Page 2 Technical Manual Contents • Introduction – The Technical Manual explained Page 2 • Technical Specs – Specifications relating to this particular item. Page 3 • Instructions – For faultfinding, assembly & disassembly. Page 5 • Circuit Diagrams – PCB Layouts Page 7 •...
- Page 3 Technical Manual Explained This Manual is designed to help you and your customers. In this manual you will find all information you will need regarding service to your Tannoy loudspeaker including technical specs, instructions for assembly, disassembly & faultfinding, spares drawings & parts lists as well as a detailed explanation of how to go about returning parts under warranty.

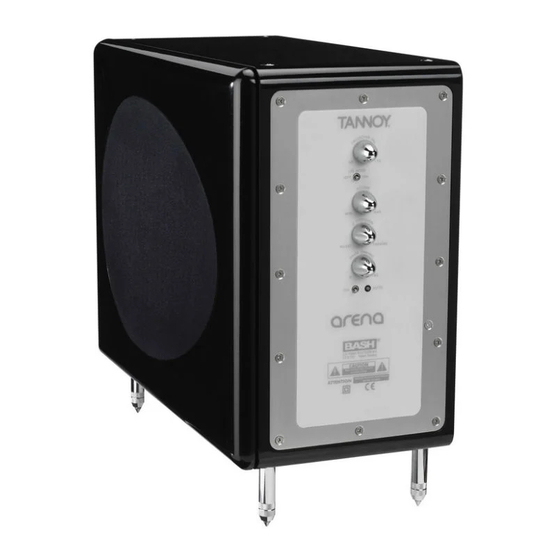

- Page 4 ARENA HIGHLINE TS300 SUBWOOFER TECHNICAL SPECIFICATIONS Performance Output Power 300W RMS Low Frequency Response 29Hz (-6DB) Limit For Usable Output 16Hz Input 2 x Line level phono (RCA) Input Filter (-6DB) 2nd order low pass, 50Hz - 150Hz Auto Mute...
- Page 5 ARENA HIGHLINE TS500 SUBWOOFER TECHNICAL SPECIFICATIONS Performance Output Power 500W RMS Low Frequency Response (- 26Hz 6DB) Limit For Usable Output 15Hz Input 2 x Line level phono (RCA) Input Filter (-6DB) 2nd order low pass, 50Hz - 150Hz Auto Mute After approximately 12 minutes absence of input signal Additional Features Phase control, crossover defeat switch for LFE operation, soft...
-
Page 6: Fault Finding
Fault Finding Tannoy loudspeakers are designed and manufactured to be reliable. When a fault occurs in a hi-fi system the effect is always heard through the loudspeakers although they may not be the source of the fault. It is important to trace the cause of the problem as accurately as possible. - Page 7 If not please contact your Tannoy dealer or contact Tannoy direct: enquires@tannoy.com...
- Page 8 Page 7...
- Page 12 Page 12...
- Page 13 Page 13...
- Page 14 Method: 1. You - Fill in the complete product failure details on to the attached Field Failure Report template, including product serial number, and then fax or e-mail to Tannoy Service Department. Fax: +44 (0) 1236 428230 or E-mail: service@tannoy.com 2.
- Page 15 Customer Complaint / Fault Report Internal Use Only: Warranty Decision: Source Area: Report No: Customer Section: Product Description: Part Number: Date: Customer / Distributor: 20-Digit Product Barcode Number (MANDATORY): Detailed description of problem/ fault (MANDATORY): Insert pictures below: Please be aware that we cannot accept field-failure reports that do not have mandatory sections completed.
- Page 16 FOR GUIDANCE Diagnosis of low frequency driver failures resulting from misuse:- SYMPTOM PROBABLE CAUSE Charred voice coil Under powered amplifier clipping; Excessive peak amplifier power; DC at amp output (amp failure) Under powered amplifier clipping; Excessive peak amplifier power; Excessive low frequency equalisation applied F u s e d , b r o k e n o r b l a c k e n e d l e a d o u t w i r e s Excessive peak amplifier power;...
- Page 17 - Quote you a Returns Authorization Number and send you an Export Returns Authorization Form, by fax or e-mail. 3. Y - Fill in all the relevant details in the form and send it to Tannoy, before arranging shipment. 4. W –...
-
Page 18: Warranty Policy
If you suspect a problem with your loudspeakers then in the first instance discuss it with your Tannoy Dealer. The Dealer has the expertise and experience to help you troubleshoot the system and assess the situation. - Page 19 NOTES Page 19...
- Page 20 NOTES Page 20...
