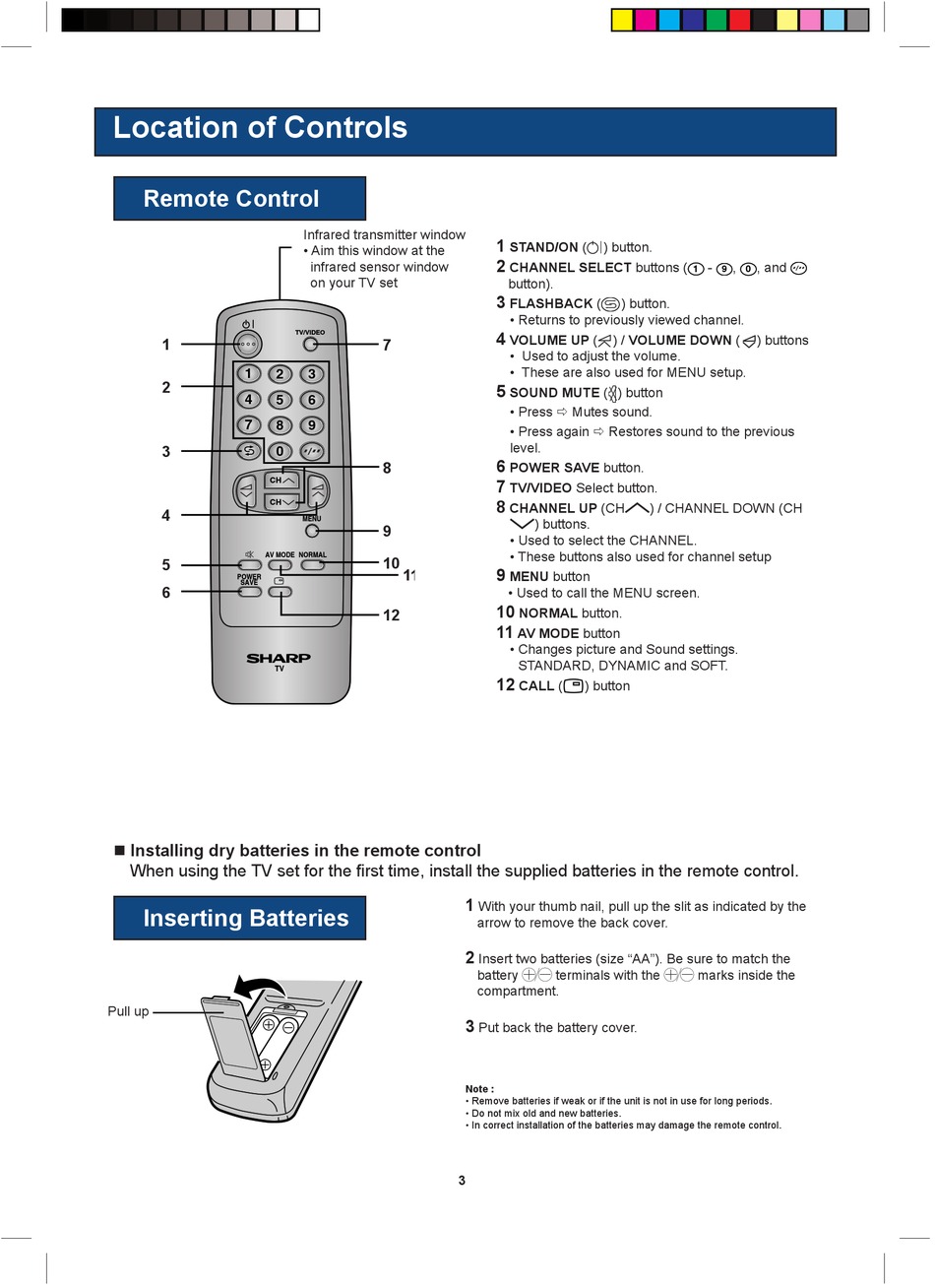

Location of Controls

Remote Control
1
1 2
2
4
5
7 8
3
0
CH
CH
4
AV MODE
5
POWER
SAVE
6
TV
n Installing dry batteries in the remote control
When using the TV set for the rst time, install the supplied batteries in the remote control.
Inserting Batteries
Pull up
Infrared transmitter window
• Aim this window at the
infrared sensor window
on your TV set
TV/VIDEO
7
3
6
9
8
MENU
9
NORMAL
10
11
12
1
2
3
Note :
• Remove batteries if weak or if the unit is not in use for long periods.
• Do not mix old and new batteries.
• In correct installation of the batteries may damage the remote control.
3
1
STAND/ON ( ) button.
2
CHANNEL SELECT buttons (
button).
3
FLASHBACK ( ) button.
• Returns to previously viewed channel.
4
VOLUME UP ( ) / VOLUME DOWN (
• Used to adjust the volume.
• These are also used for MENU setup.
5
SOUND MUTE ( ) button
• Press ð Mutes sound.
• Press again ð Restores sound to the previous
level.
6
POWER SAVE button.
7
TV/VIDEO Select button.
8
CHANNEL UP (CH ) / CHANNEL DOWN (CH
) buttons.
• Used to select the CHANNEL.
• These buttons also used for channel setup
9
MENU button
• Used to call the MENU screen.
10
NORMAL button.
11
AV MODE button
• Changes picture and Sound settings.
STANDARD, DYNAMIC and SOFT.
12
CALL ( ) button
With your thumb nail, pull up the slit as indicated by the
arrow to remove the back cover.
Insert two batteries (size "AA"). Be sure to match the
battery terminals with the
compartment.
Put back the battery cover.
- , , and
1 9 0
) buttons
marks inside the
