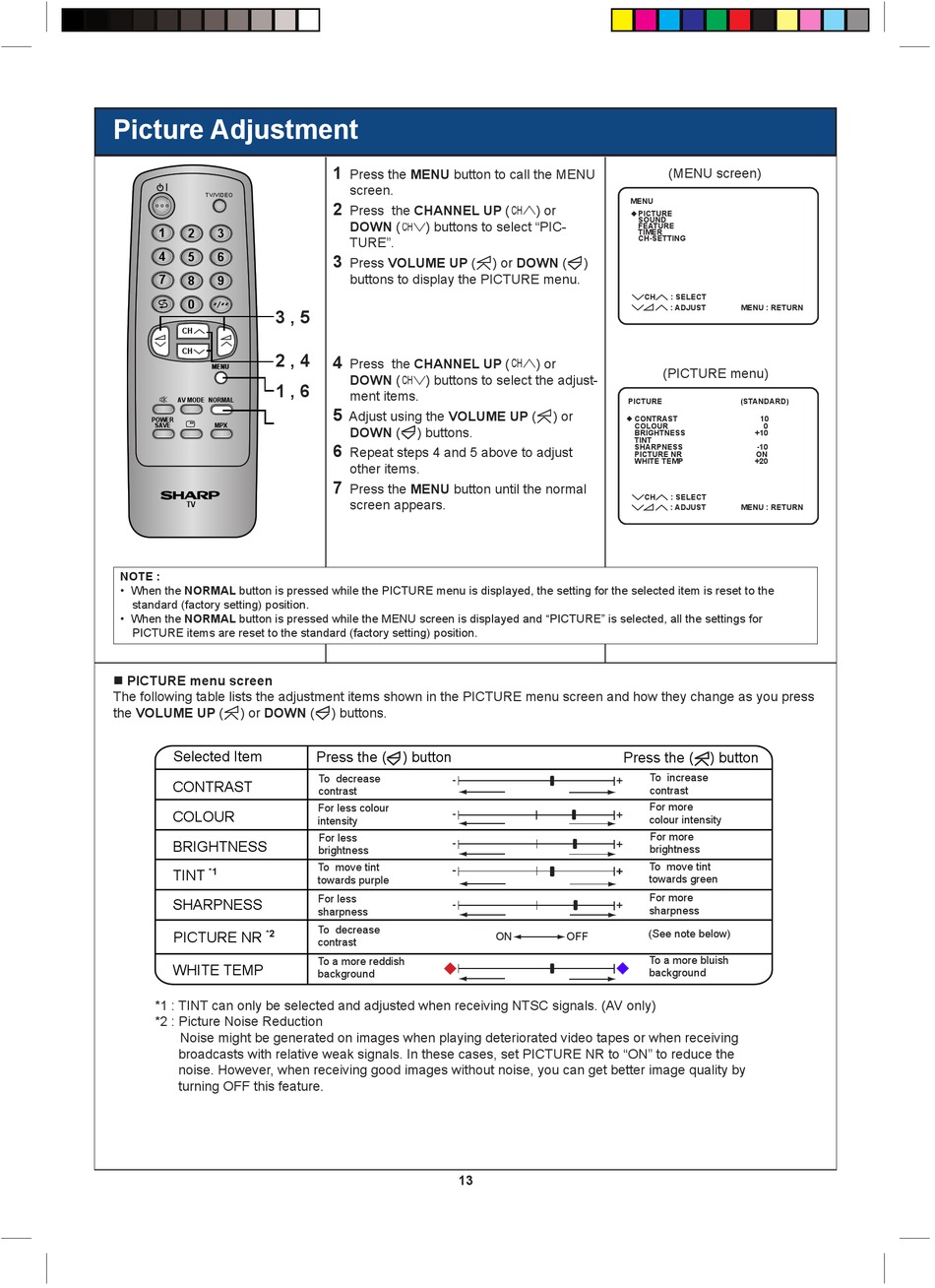

Picture Adjustment

TV/VIDEO
1
2 3
4
5 6
7
8 9
0
3 , 5
CH CH
CH CH
2 , 4
MENU MENU
1 , 6
AV MODE NORMAL
POWER
SAVE MPX
TV
NOTE :
• When the NORMAL button is pressed while the PICTURE menu is displayed, the setting for the selected item is reset to the
standard (factory setting) position.
• When the NORMAL button is pressed while the MENU screen is displayed and "PICTURE" is selected, all the settings for
PICTURE items are reset to the standard (factory setting) position.
n PICTURE menu screen
The following table lists the adjustment items shown in the PICTURE menu screen and how they change as you press
the VOLUME UP ( ) or DOWN (
Selected Item
CONTRAST
COLOUR
BRIGHTNESS
TINT *1
SHARPNESS
PICTURE NR *2
WHITE TEMP
*1 : TINT can only be selected and adjusted when receiving NTSC signals. (AV only)
*2 : Picture Noise Reduction
Noise might be generated on images when playing deteriorated video tapes or when receiving
broadcasts with relative weak signals. In these cases, set PICTURE NR to "ON" to reduce the
noise. However, when receiving good images without noise, you can get better image quality by
turning OFF this feature.
1
Press the MENU button to call the MENU
screen.
2
Press the CHANNEL UP (
DOWN ( ) buttons to select "PIC-
CH
TURE".
3
Press VOLUME UP (
buttons to display the PICTURE menu.
4
Press the CHANNEL UP (
DOWN ( ) buttons to select the adjust-
CH
ment items.
5
Adjust using the VOLUME UP (
DOWN ( ) buttons.
6
Repeat steps 4 and 5 above to adjust
other items.
7
Press the MENU button until the normal
screen appears.
) buttons.
Press the ( ) button
To decrease
-
contrast
For less colour
-
intensity
For less
-
brightness
To move tint
- - -
towards purple
For less
-
sharpness
To decrease
contrast
To a more reddish
background
13
(MENU screen)
MENU
CH ) or
SOUND
FEATURE
TIMER
CH-SETTING
) or DOWN ( )
CH
CH ) or
(PICTURE menu)
) or
CONTRAST
COLOUR
BRIGHTNESS
TINT
SHARPNESS
PICTURE NR
WHITE TEMP
CH
Press the (
To increase
+
contrast
For more
+
colour intensity
For more
+
brightness
To move tint
+ + +
towards green
For more
+
sharpness
(See note below)
ON OFF
To a more bluish
background
: SELECT
: ADJUST MENU : RETURN
(STANDARD)
10
0
+10
-10
ON
+20
: SELECT
: ADJUST MENU : RETURN
) button
