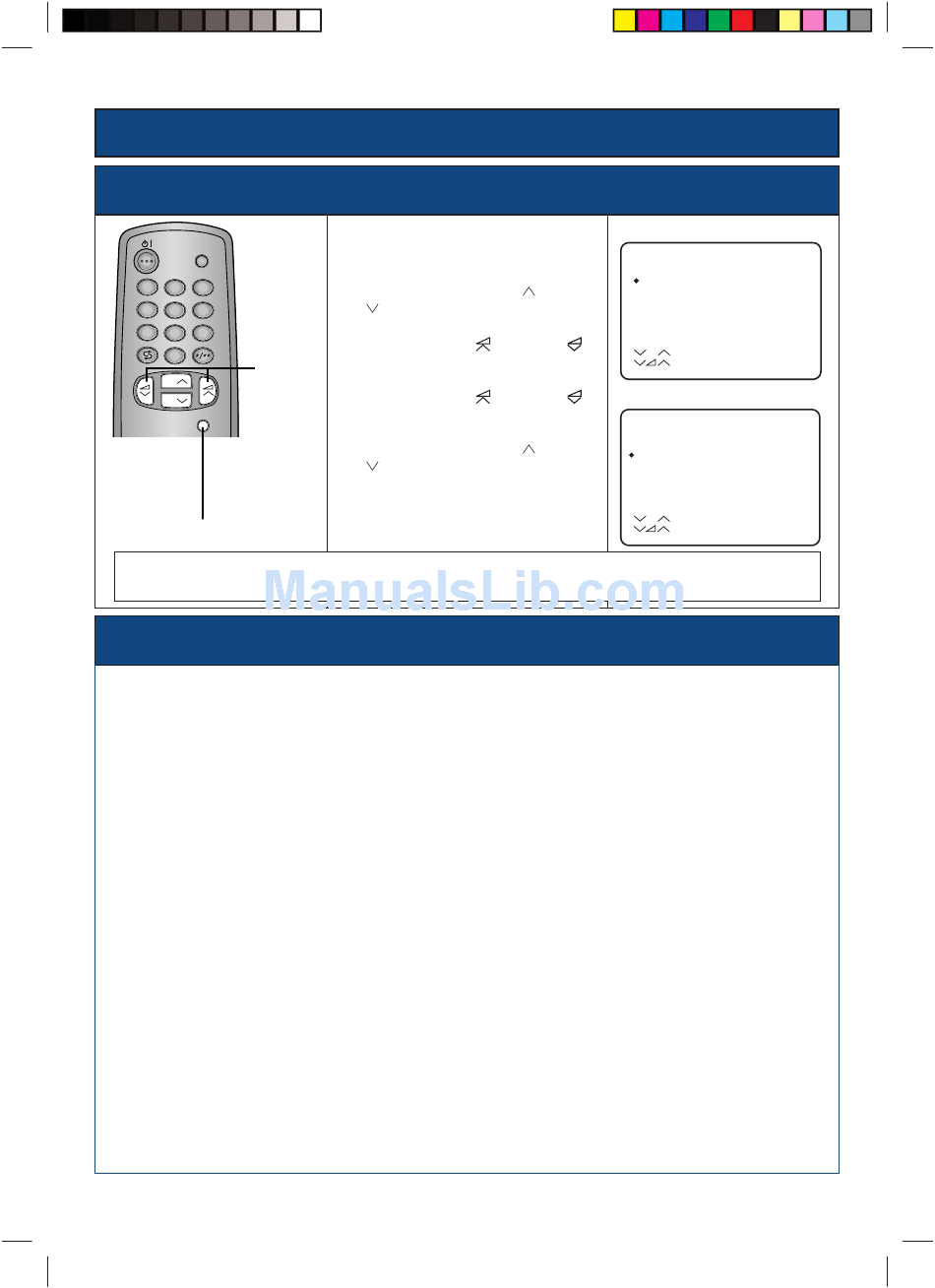

VM (Velocity Modulation) :

This function emphasizes the picture outline.
TV/VIDEO
1 2 3
4
5 6
7 8 9
0
3 , 5
CH CH
CH CH
MENU
AV MODE NORMAL
POWER
MPX
SAVE
1 , 6
TV
NOTE :
• If a picture is received with noise, ensure that the VM is set to "OFF".

Tuning TV set to VCR

SHARP VCR's have their output set to channel 37 which is 590.25mhz. (the output frequency can vary but will be close
to 590 mhz). To tune into the video recorder output connect as shown in manual on page 23 (Examples of connections
2) . Remove the aerial plug from the TV set and plug it into the Antenna in socket on the VCR. Connect the RF cable
supplied with the VCR from the RF out socket on the VCR to the aerial socket on the TV set.
1 Turn on the VCR (most VCR's have a test output to assist in tuning the set in, see VCR manual for instructions). If
there is no test signal play a pre-recorded tape.
2 See page 8 for instructions on manual tuning. Press and hold the PRESET button for more than 2 seconds. Press
the PRESET button to go to the manual mode.
3 Select a channel that you want the VCR to playback on, for best results use 0, by pressing the CHANNEL UP
or DOWN BUTTON.
4 Press the VOLUME UP button if the frequency display is less than 590 mhz or the VOLUME DOWN button if
the frequency display is greater than 591 mhz. When tuning, the band indicator turns red. The tuning may stop,
(the band indicator turns green) on a off air broadcast, so press the VOLUME UP or DOWN button until the
frequency display indicates approximately 590mhz. the tuning will stop automatically when it detects the signal
from the VCR.
5 Once the set is tuned in, press the PRESET button to return to normal mode. Turn off the test mode on the VCR. To
watch a video select channel 0 or the channel selected in step 3. Press play on the video.
NOTE :
For a simple method of connecting the VCR to the TV set use the AV1 terminals (Examples of connections 2) other
equipment can be connected to the AV2 terminals, see page 23 for details. For a Stereo VCR, 3 leads are required,
1 video lead RCA to RCA and 2 audio leads RCA to RCA. For a Mono VCR, 2 leads are required, 1 video lead
RCA to RCA and 1 audio lead RCA to RCA (RCA refers to the type of plug required to connect a Sharp VCR to
this set. See your video manual for other brands). To watch a video, select AV1 by pressing the TV/VIDEO button.
Press play on the VCR.
1
Press the MENU button to call the MENU
screen.
2
Press the CHANNEL UP (
( ) buttons to select "FEATURE".
CH
3
Press VOLUME UP ( ) or DOWN (
buttons to select the FEATURE menu.
4
Press VOLUME UP ( ) or DOWN (
buttons to select "VM".
5
Press the CHANNEL UP (
( ) buttons to select "ON".
CH
6
Press the MENU button until the normal
screen appears.
17
(MENU screen)
MENU
SOUND
FEATURE
TIMER
CH ) or DOWN
CH-SETTING
)
CH : SELECT
: ADJUST
) (FEATURE menu)
FEATURE
BLUE BACK
CH ) or DOWN
AUTO SELECT
VM
CH : SELECT
: ADJUST
MENU : RETURN
ON..
OFF
ON
MENU : RETURN
