Page 1: Installation Guide

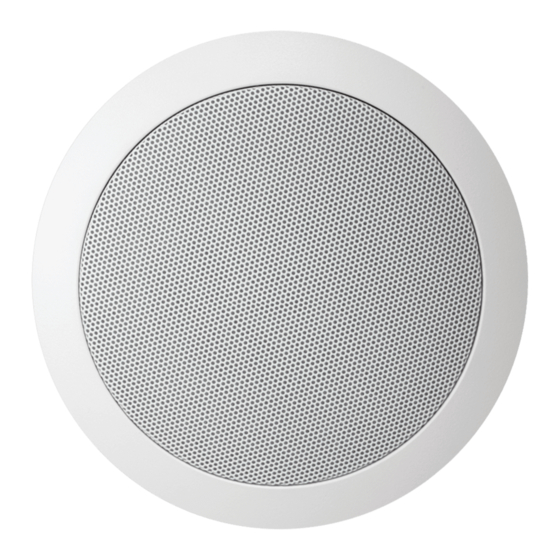

Ceiling Speaker CS75 AUDAC PROFESSIONAL AUDIO EQUIPMENT Ceiling Speaker CS75 Installation Guide... -
Page 2: Installation Procedure
Installation Procedure 1) Cut a hole in the ceiling on the desired mounting location of the loudspeaker with a diameter of 167 mm. The included cutout template can be used for marking. 2) Provide the loudspeaker connection cable through the mounting hole. 3) Take the loudspeaker, and remove the front grill. - Page 3 5) Connect the loudspeaker connection cable with the power tap connection block. On this connection block, several connections can be made for different power taps. Depending of the desired power, connections can be made for 8 Ohm low impedance application, or 24 Watt / 12 Watt / 6 Watt for 100 Volt applications.
