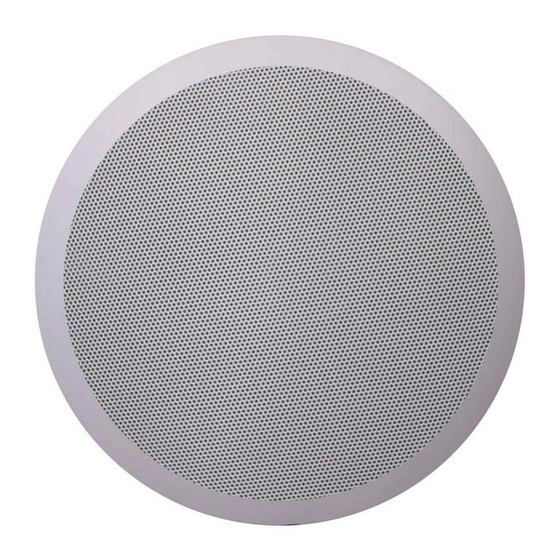

- Page 1 Ceiling Speaker CS85 AUDAC PROFESSIONAL AUDIO EQUIPMENT Built-in Ceiling or Wall Speaker CS85 User Manual & Installation Guide...
- Page 2 A U D A C P R O F E S S I O N A L A U D I O E Q U I P M E N T User Manual & Installation Guide AUDAC http://www.audac.be info@audac.be...
- Page 3 Warning • Use only the correct amplifier output voltage and impedance, exceeding these limits could cause fire or other failures. • Avoid explosions: do not use the speaker around gasoline, thinner or other combustibles. • Only install the speaker in locations that can structurally support the weight of the speaker. Not doing this may result in the speaker falling down.
-
Page 4: Installation
Installation • Make a hole with a diameter of 240mm. This is very easy when you use the carton that is inside of the box . • Take the grille from the speaker and put the speaker in the hole. •... -
Page 5: Specifications
Specifications Nominal Power 40 Watt SPL (1W/1m) 94 dB SPL (40W/1m) 101.8 dB Impedance 8 Ohm Line transformer impedance 1600 Ohm/6W 3300 Ohm/3W 6600 Ohm/1.5W Frequency Response 40-20000 Hz Dimensions (Diameter x Depth) 275x90 mm Cut-out Diameter 240 mm Weight 1.4 Kg Mounting 4 Screws with clamp...
