SECTION 5—OPERATING INSTRUCTIONS
Humidifier
Bottle Adapter
FIGURE 5.2
5. Attach the humidifier bottle adapter to the humidifier
bottle by turning the wing nut on the humidifier bottle
counterclockwise until it is securely fastened. See Detail
"A" in FIGURE 5.3.
6. Place the humidifier bottle/adapter assembly in the
humidifier compartment on the concentrator. See Detail
"B" in FIGURE 5.3.
7. Attach oxygen tubing from the humidifier bottle/adapter
assembly to oxygen outlet connector on the concentrator.
See Detail "B" in FIGURE 5.3.
8. Attach the cannula/patient supply tubing to the
humidifier bottle outlet. See Detail "B" in FIGURE 5.3.
9. After assembly, ensure that oxygen is flowing through the
cannula.
Perfecto Series
™
2
Humidifer Bottle Adapter
16
Insert Flat Head
Screwdriver
Here

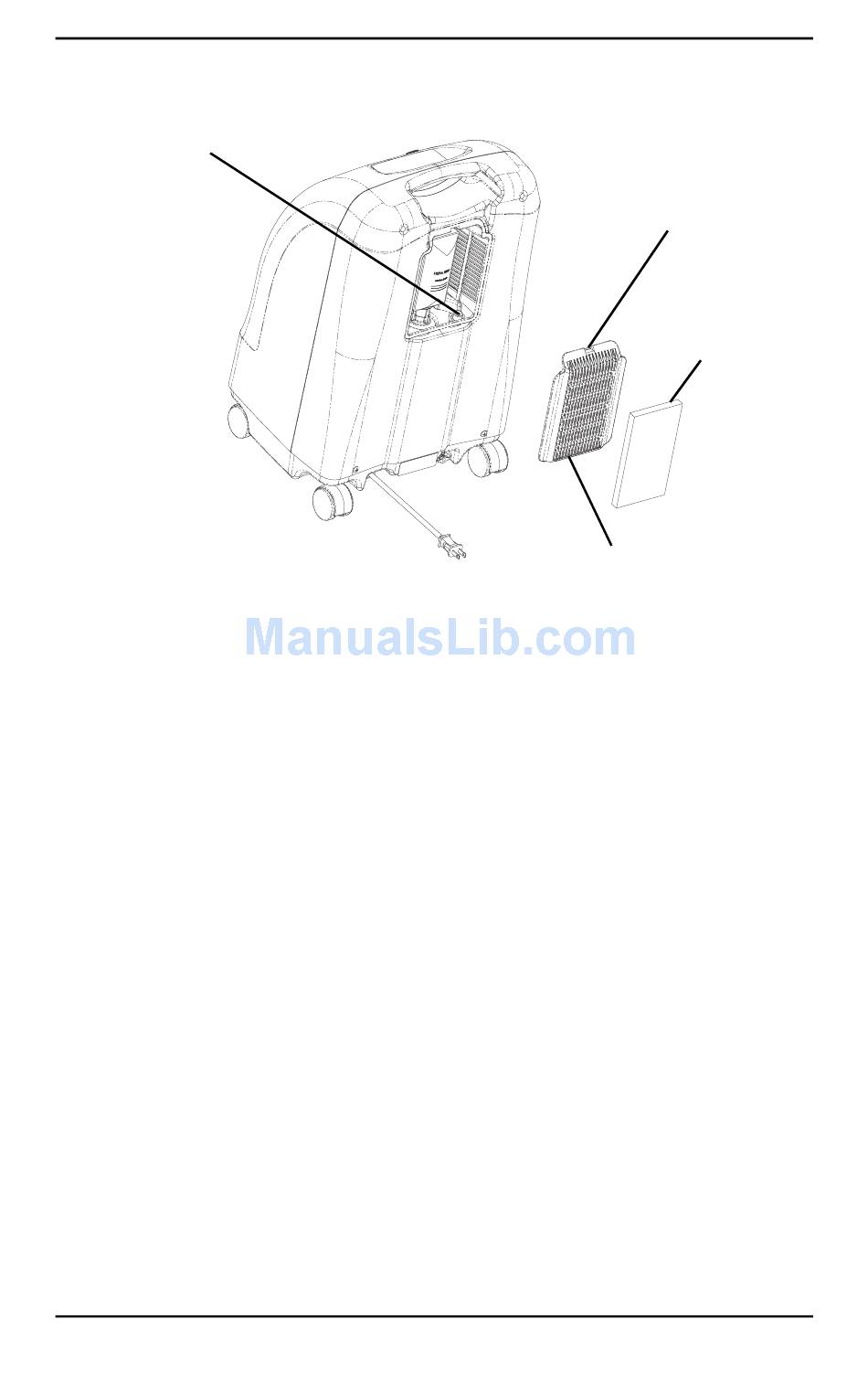

Cabinet Filter
