Summary of Contents for Sinclair ASH-09AK PT

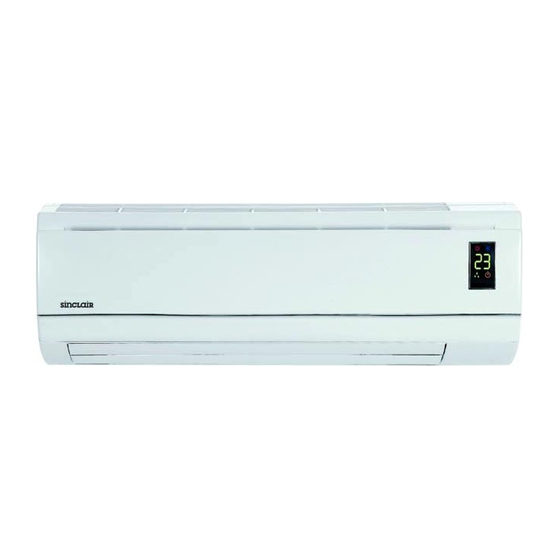

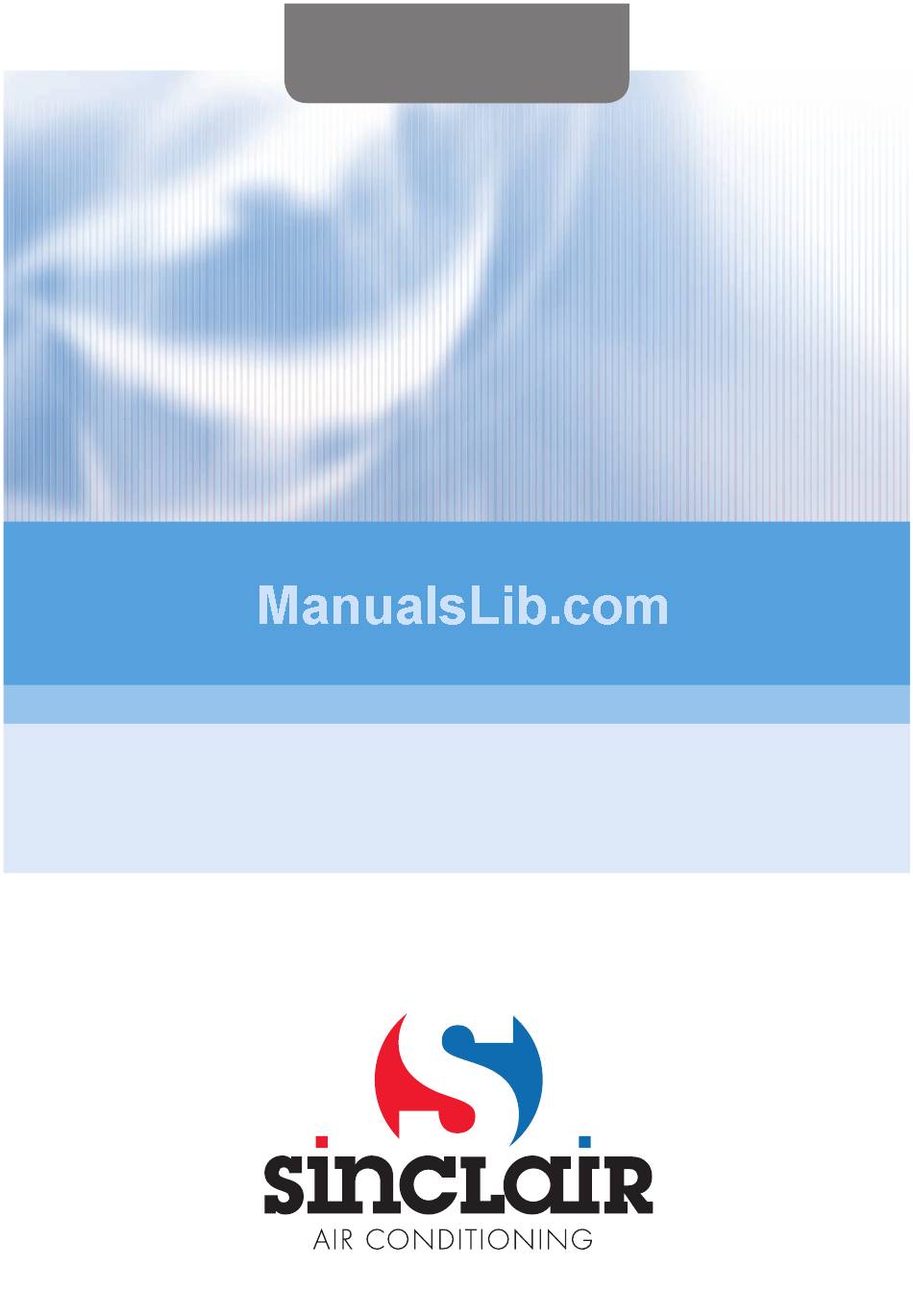

- Page 1 USER'S MANUAL KING SERIE ASH-09AK PT, ASH-13AK, ASH-18AK, ASH-24AK PT...
-
Page 2: Operation And Maintenance
CONTENTS Operation and maintenance ．．． ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１ Notices for operation ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．３ Notices for use ．．． ■ ．．．．．．．．．．．．．．．．．．．４ Names and functions of each part ■ ．．．．．．．．．．．．．．．．．．．．．５ Operation of wireless remote control ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１０ Emergency operation ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１１ Clean and care ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１３ Troubleshooting Installation service ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１６... - Page 3 Thank you for choosing SINCLAIR air conditioner. For correct operation, please read this owner's manual carefully before operating the unit and keeps it carefully for consultation.
- Page 4 CONTENTS Operation and maintenance ．．． ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１ Notices for operation ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．３ Notices for operation ■ ．．．．．．．．．．．．．．．．．．．４ Names and functions of each part ．．． ■ ．．．．．．．．．．．．．．．．．．．．．５ Operation of wireless remote control ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１０ Emergency operation ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１１ Clean and care ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１３ Troubleshooting Installation service ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１６...
-
Page 5: Notices For Operation
Notices for operation Please read the following carefully before operating Be sure to pull out ★ When the voltage ★ Never splice the is very high, the the power plug as power cord or use components would be easily the air conditioner not in use an extended cord. -
Page 6: Notices For Use
Notices for use ★ ★ Please don't cut off or damage the To adjust the airflow direction power cords and control cords. appropriately. At operating,the louvers of air conditioner could be adjusted If they are damaged, please ask the qualified by pressing the SWING button on wireless personnel to change them. - Page 7 The climate type of this unit is according to the nameplate. Plasma Technology PLASMA TEC Only for models ASH-09AK PT and ASH-24AK PT Plasma Air Purification Technology PLASMA TEC produces a natural bio-climate rich in active oxygen molecules, known as ions. It creates optimal quantity of positive and negative oxygen ions. Such an ion-enriched environment is notably cleaner and fresher.
-
Page 8: Names And Functions Of Each Part
Names and functions of each part Indoor unit Air in ⑵ ⑴ ⑶ Air out ⑹ ⑷ ⑸ Manual switch ⑴ ⑼ Front panel ⑵ Filter ⑶ ⑷ Guide louver ⑸ Receiving window ⑹ Bind tape Outdoor unit Connection wire ⑺... -
Page 9: Operation Of Wireless Remote Control
遥控器各按键的名称及作用 Operation of wireless remote control Names and functions of wireless remote control Note: Be sure that there are no obstructions between receiver and remote controoler; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. -
Page 10: Light Button
Operation of wireless remote control Names and functions of wireless remote control This wireless remote control is universal, and it could be used for many units, some buttons of this control which are not available to this unit will not be described below. + button Presetting temperature can be increased. - Page 11 Operation of wireless remote control Names and functions of wireless remote control This wireless remote control is universal, and it could be used for many units, some buttons of this control which are not available to this unit will not be described below. TIMER ON TIMER ON BUTTON Timer On setting: Signal “ON”...
- Page 12 Operation of wireless remote control Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered on, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly.
- Page 13 Operation of wireless remote control ★ About lock Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller is locked, the icon will be displayed on it, in which case, press any button, the mark will flicker for three times.
-
Page 14: Emergency Operation
Emergency Operation Emergency Operation When the wireless remote control is lost or damaged, please use the manual switch, at this time, it is running in Auto Run mode that will not change the temperature setting value and fan speed. The manual switch can be operated as follow: At operation: When the unit stopped running, ●... -
Page 15: Clean And Care
Clean and care CAUTION Turn power off and pull out the power plug before cleaning air conditioner. Or it may ● ● cause electric shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it ●... - Page 16 Clean and care ① Take down the air filter At the slot of surface panel to open an angle, pull the air filter downward and take it out. Cleaning ② To clean the dust adhering to the filters, you can either use a vacuum cleaner, or wash them with warm water (the water with the neutral detergent should below 45 ℃).
-
Page 17: Troubleshooting
Troubleshooting Warning Do not repair the air conditioner at your discretion. Incorrect repair may cause electric shock or fire, so please contact Authorized Service Center for professional repair. Following checks prior to contact may save your time and costs. Troubleshooting Phenomenon Air conditioner does not run upon immediately To protect the air conditioner upon... - Page 18 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? ● The unit can not run Dose power plug come loose from the socket? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? ● (Tested by professionals) Break off Is the Timer correctly used?
- Page 19 Troubleshooting Troubleshooting Phenomenon In HEAT mode, when the temperature of ● Indoor unit cannot deliver air indoor heat exchanger is very low, that will stop deliver air in order to prevent cool air. (Within 3min) In HEAT mode, when the outdoor temperature ●...
- Page 20 Installation service- Notices for installation Important Notices 1. The unit installation work must be done by qualified personnel according to the local rules and this manual. 2. If the air conditioner has not plug, directly connect it into the fixed circuit, a breaker should be installed in the fixed circuit.
-
Page 21: Notices For Installation
Notices for installation Safety Requirements For Electric Appliances 1. The power supply should be used the rated voltage and AC exclusive circuit, the power cable diameter should be satisfied. Don't drag the power cable emphatically. It should be reliably earthed, and it should be connected to the special earth device, the installation work should be operated by the professional. -
Page 22: Installation Dimension Diagram
Installation dimension diagram Installation dimension diagram Space to the ceiling Above 15cm Above 15cm Above Space to the wall Space to the wall cm cm Above Above Air outlet side Space to the floor Space to the obstruction Air inlet side 30cm Above 50cm... -
Page 23: Install Indoor Unit
Install indoor unit Install the rear panel 1.Always mount the rear panel horizontally. As the water drainage pipe at the left, when adjusting the rear panel, this side should not be too high; the right side should be slightly high. 2. -
Page 24: Install The Indoor Unit
Install indoor unit NOTE: When connecting the electric wire if the wire length is not enough, please contact with the authorized service shop to buy a exclusive electric wire that is long enough and the joint on the wire are not allowed. The electric wiring must be correctly connected, wrong connection may cause spare ●... -
Page 25: Install Outdoor Unit
Install outdoor unit Electric Wiring 1. Disassemble handle of right side plate or front side plate of outdoor unit. 2. Take off wire clamp, connect and fix power connect cord to terminal of line bank. Wiring should fit that of indoor unit. 3. - Page 26 Install outdoor unit Leak hunting ● Indoor unit check point Use soap water or leak hunting meter to check whether the joints is leak. Indoor unit check point Fig.6 Outdoor condensation drainage (Heat pump type only) When the unit is heating, the condensing water and defrosting water can be drained out reliably through the drain hose.
-
Page 27: Check After Installation And Test Operation
Check after installation and test operation Check after installation Items to be checked Possible malfunction The unit may drop, shake or emit noise. Has it been fixed firmly? It may cause insufficient cooling(heating) Have you done the refrigerant leakage test? capacity. -
Page 28: Environmental Information
ENVIRONMENTAL INFORMATION This unit contains fluorinated gases with greenhouse effect covered by the Kyoto Protocol. Maintenance and disposal must be carried out by qualified persons only. Refrigerant gas R410A, GWP = 1730 EXTRA REFRIGERANT CHARGE Pursuant to Regulation EC 842/2006 on certain fluorinated greenhouse gases, in case of extra refrigerant charge, it is compulsory to: Fill in the label accompanying the unit inserting the factory quantity of refrigerant charge (see the technical label), the extra refrigerant charge and the total charge.
