USER'S MANUAL

ZOOM SERIES indoor

ASH-09AIZ, ASH-13AIZ,

ASH-18AIZ, ASH-24AIZ

Table of Contents

Need help?

Do you have a question about the ZOOM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sinclair ZOOM Series

Page 1 USER'S MANUAL ZOOM SERIES indoor ASH-09AIZ, ASH-13AIZ, ASH-18AIZ, ASH-24AIZ...
Page 2 “Original instructions” ...
Page 3: Table Of Contents
Content Operation Notices Precautions......................1 Parts Name......................6 ScreenOperation Guide Buttons on remote controller ................. 8 Introduction for icons on display screen ..............Introduction for buttons on remote controller ............9 Function introduction for combination buttons............12 Operation guide ....................13 Replacement of batteries in remote controller .............13 Emergency operation ..................
Page 4 Explanation of Symbols Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury.
Page 5 Precautions WARNING Operation and Maintenance This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 6: Precautions
Precautions WARNING Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner. Do not extend fingers or objects into air inlet or air outlet.
Page 7 Precautions WARNING Attachment Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Must follow the electric safety regulations when installing the unit. According to the local safety regulations, use qualified power supply circuit and circuit break. Do install the circuit break.
Page 8 Precautions WARNING Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
Page 9 Precautions WARNING For the air conditioner with plug, the plug should be reachable after finishing installation. For the air conditioner without plug, an circuit break must be installed in the line. If you need to relocate the air conditioner to another place, only the qualified person can perform the work.
Page 10: Parts Name

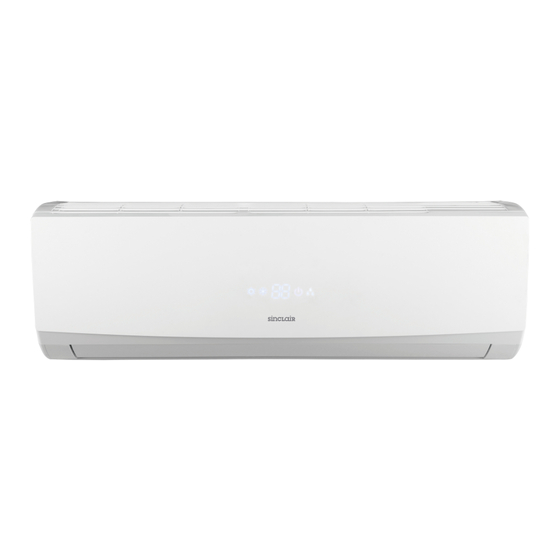

Parts Name Indoor Unit air inlet panel aux.button horizontal louver air outlet (Display content or position may be different from above graphics, please refer to actual products) remote control NOTICE: Actual product may be different from above graphics, please refer to actual products.
Page 11 Parts Name Display For some model: For some model: temp. cooling power receiver indicator indicator indicator window heating indicator display cooling indicator receiver power heating temp. drying window indicator display indicator indicator indicator drying indicator For some model: display temp. indicator Power LED color indicator: Green-status-ON.
Page 12: Buttons On Remote Controller
Buttons on remote controller ON/OFF button - button + button MODE button • • H O U R ONOFF FAN button SWING button I FEEL button button SLEEP button TEMP button TIMER-ON button CLOCK button TIMER-OFF button TURBO button LIGHT button X-FAN button Introduction for icons on display screen X-fan...
Page 13: Introduction For Buttons On Remote Controller
Introduction for buttons on remote controller Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
Page 14 Introduction for buttons on remote controller FAN button This button is used for setting Fan Speed in the sequence that goes from AUTO, , to , then back to Auto. Auto High speed Low speed Medium speed SWING button Press this button to set up &down swing angle, which circularly changes as below: This remote controller is universal.
Page 15 Introduction for buttons on remote controller TEMP button Press this button can see indoor set temperature, indoor ambient temperature or outdoor ambient temperature on indoor unit’s display. Temperature is set circularly by remote controller as below: no display ● When selecting " "...
Page 16: Function Introduction For Combination Buttons
Introduction for buttons on remote controller TURBO button Press this button to activate / deactivate the Turbo function which enables the unitto reach the preset temperature in the shortest time. In COOL mode, the unit will blow strong cooling air at super high fan speed. In HEAT mode, the unit will blow strong heating air at super high fan speed.
Page 17 Function introduction for combination buttons Combination of "TEMP" and "CLOCK" buttons: About Energy-saving Function Press "TEMP" and "CLOCK" simultaneously in COOL mode to start energy-saving function. Nixie tube on the remote controller displays "SE". Repeat the operation to quit the function. Combination of "TEMP"...
Page 18: Operation Guide
Operation guide After putting through the power, press "ON/OFF" button on remote controller to turn on the air conditioner. Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN, HEAT. Press "+" or "-" button to set your required temperature. (Temperature can’t be adjusted under auto mode).
Page 19: Emergency Operation
Emergency operation If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below: air conditioner. When the air conditioner is turned on, it will operate under auto mode.
Page 20 Clean and Maintenance Open panel Pull out the panel to a certain ● Use dust catcher or water to angle as shown in the ﬁg. clean the ﬁlter. ● When the ﬁlter is very dirty, use the water (below 45℃ ) to clean it, and then put it in a shady and cool place to dry.
Page 21 Clean and Maintenance NOTICE: Checking before use-season 1. Check whether air inlets are blocked. 2. Check whether air switch,plug and socket are in good condition. 3. Check whether ﬁlter is clean. 4. Check whether drainage pipe is damaged. NOTICE: Checking after use-season 1.
Page 22: Malfunction Analysis
Malfunction analysis General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still can’t be eliminated, please contact local dealer or qualiﬁed professionals. Phenomenon Check items Solution ● Whether it's interfered severely ● Pull out the plug. Reinsert (such as static electricity, stable the plug after about 3min, and voltage)?
Page 23 Malfunction analysis Phenomenon Check items Solution ● Power failure? ● Wait until power recovery. ● Is plug loose? ● Reinsert the plug. ● Air switch trips off or fuse is ● Ask professional to replace burnt out? air switch or fuse. Air condit- ●...
Page 24 Malfunction analysis Phenomenon Check items Solution ● Whether there’s odour source, ● Eliminate the odour source. Odours are such as furniture and cigarette, emitted ● Clean the ﬁlter. etc. Air conditio- ● Whether there’s interference, ● Disconnect power, put back ner operates such as thunder, wireless power, and then turn on the...
Page 25 Malfunction analysis Error Code ● When air conditioner status is abnormal, temperature indicator on indoor unit will blink to display corresponding error code. Please refer to below list for identiﬁc- ation of error code. Error code Troubleshooting It can be eliminated after restarting the unit. If not, please It can be eliminated after restarting the unit.
Page 26: Installation Dimension Diagram
Installation dimension diagram Space to the wall At least 15cm At least 15cm Space to the wall...
Page 27: Tools For Installation
Tools for installation 1 Level meter 2 Screw driver 3 Impact drill 4 Drill head 5 Pipe expander 6 Torque wrench 7 Open-end wrench 8 Pipe cutter 9 Leakage detector 10 Vacuum pump 11 Pressure meter 12 Universal meter 13 Inner hexagon spanner 14 Measuring tape Note: ●...
Page 28: Requirements For Electric Connection
Requirements for electric connection Safety precaution 1. Must follow the electric safety regulations when installing the unit. 2. According to the local safety regulations, use qualiﬁed power supply circuit and air switch. 3. Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction.
Page 29: Installation Of Indoor Unit
Installation of indoor unit Step one: choosing installation location rm it with the client. Step two: install wall-mounting frame 1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the plastic expansion particles in the holes. 3.
Page 30 Installation of indoor unit Indoor outdoor Note: ● Pay attention to dust prevention and take relevant safety measures when opening the hole. Φ55/ 5-10 Φ70 ● The plastic expansion particles are not provided and should be bought locally. Step four: outlet pipe 1.
Page 31 Installation of indoor unit Hex nut diameter Tightening torque (N . m) open-end wrench Φ 6 15~20 Φ 9.52 30~40 union nut Φ 12 45~55 pipe Φ 16 60~65 torque wrench Φ 19 70~75 indoor pipe 4. Wrap the indoor pipe and joint of con- nection pipe with insulating pipe, and then wrap it with tape.
Page 32 Installation of indoor unit 2. Make the power connection wire go cable-cross through the cable-cross hole at the back hole of indoor unit and then pull it out from the front side. power connection wire 3. Remove the wire clip; connect the power connection wire to the wiring terminal according to the color;...
Page 33 Installation of indoor unit Step eight: bind up pipe 1. Bind up the connection pipe, power drain hose connection pipe band cord and drain hose with the band. indoor and outdoor power cord indoor unit pipe indoor power cord liquid pipe 3.
Page 34: Check After Installation
Check after installation ● Check according to the following requirement after ﬁnishing installation. Items to be checked Possible malfunction Has the unit been installed ﬁrmly? The unit may drop, shake or emit noise. Have you done the refrigerant leakage It may cause insufﬁcient cooling test? (heating) capacity.
Page 35: Configuration Of Connection Pipe
Configuration of connection pipe 1. Standard length of connection pipe ● 5m, 7.5m, 8m. 2. Min. length of connection pipe is 3m. 3. Max. length of connection pipe and max. high difference. Max length Max length Cooling Max height Cooling Max height of connec- of connec-...
Page 36 Configuration of connection pipe Additional refrigerant charging amount for R22, R407C, R410A and R134a Diameter of connection pipe Outdoor unit throttle Liquid pipe(mm) Gas pipe(mm) Cooling only(g/m) Cooling and heating(g/m) Φ6 Φ9.52 or Φ12 Φ6 or Φ9.52 Φ16 or Φ19 Φ12 Φ19 or Φ22.2 Φ16...
Page 37: Pipe Expanding Method
Pipe expanding method Note: Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps: A: Cut the pipe E: Expand the port ● Conﬁrm the pipe length according to ● Expand the port with expander. the distance of indoor unit and hard outdoor unit.
Page 38 Electric schematic diagram...
Page 40 Service Manual ● Instruction Symbol Symbol Color Symbol Symbol Color Symbol Name White Green Jumper cap Yellow Brown COMP Compressor Blue Grounding wire YEGN Yellow/Green Black Violet Orange Note: Jumper cap is used to determine fan speed and the swing angle of horizontal lover for this model. ●...
Page 41 Service Manual ● Outdoor Unit ASH-18AIZ 6310000008301 ASH-24AIZ 63631000007501 These circuit diagrams are subject to change without notice, please refer to the one supplied with the unit. Technical Information...
Page 42 Rating label...
Page 44 Energy label...
Page 45 The value GWP: 2088 GWP = Global Warming Potential In case of quality problem or other please contact your local supplier or authorized service center. Emergency number: 112 PRODUCER SINCLAIR CORPORATION Ltd. 1-4 Argyll St. London W1F 7LD Great Britain www.sinclair-world.com This product was manufactured in China (Made in China).
