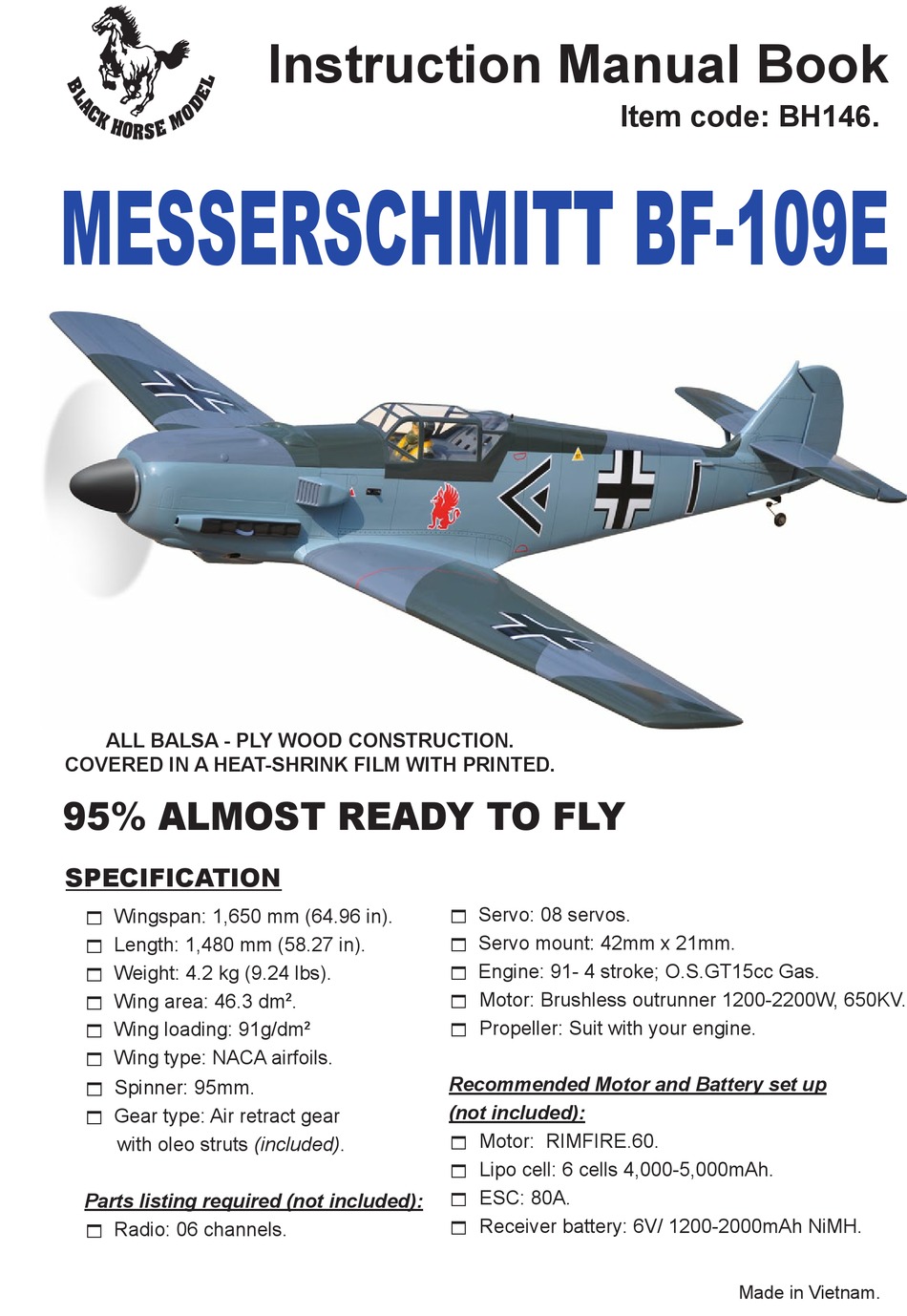

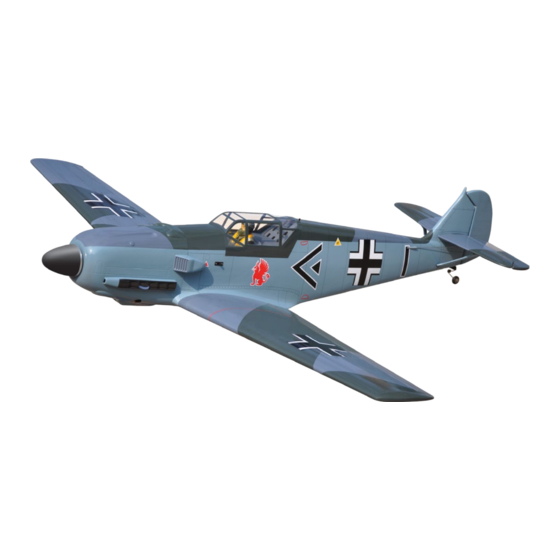

MESSERSCHMITT BF-109E
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
95% ALMOST READY TO FLY
SPECIFICATION
 Wingspan: 1,650 mm (64.96 in).
 Length: 1,480 mm (58.27 in).
 Weight: 4.2 kg (9.24 lbs).
 Wing area: 46.3 dm
 Wing loading: 91g/dm
 Wing type: NACA airfoils.
 Spinner: 95mm.
 Gear type: Air retract gear
with oleo struts (included).
Parts listing required (not included):
 Radio: 06 channels.
Instruction Manual Book
.
2
2
Item code: BH146.
 Servo: 08 servos.
 Servo mount: 42mm x 21mm.
 Engine: 91- 4 stroke; O.S.GT15cc Gas.
 Motor: Brushless outrunner 1200-2200W, 650KV.
 Propeller: Suit with your engine.
Recommended Motor and Battery set up
(not included):
 Motor: RIMFIRE.60.
 Lipo cell: 6 cells 4,000-5,000mAh.
 ESC: 80A.
 Receiver battery: 6V/ 1200-2000mAh NiMH.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MESSERSCHMITT BF-109E BH146 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model MESSERSCHMITT BF-109E BH146

Summary of Contents for Black Horse Model MESSERSCHMITT BF-109E BH146

  • Page 1 Instruction Manual Book Item code: BH146. MESSERSCHMITT BF-109E ALL BALSA - PLY WOOD CONSTRUCTION. COVERED IN A HEAT-SHRINK FILM WITH PRINTED. 95% ALMOST READY TO FLY SPECIFICATION  Servo: 08 servos.  Wingspan: 1,650 mm (64.96 in).  Servo mount: 42mm x 21mm. ...

  • Page 2: Parts Listing

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly MESSERSCHMITT BF 109E before starting assembly of your . Use the parts listing below to identify all parts. WARNING Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual Caution: This model is not a toy! This model is highly pre-fabricated and can be built in If you are a beginner to this type of powered model, a very short time. However, the work which you have to please ask an experienced model flyer for help and carry out is important and must be done carefully.

  • Page 4: Installing The Ailerons

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual REPLACEMENT SMALL PARTS 3x15mm 5x35mm 3x6mm 3x4mm 3x12mm 3 x 12mm 4x30mm 4x30mm 4x70mm 1. Door mounting wheel. 2. Retract main gear. 3. Wheels. 3x12mm 4. Plastic parts for bottom wing. 5. Plastic - engine mount. 4x30mm 6.

  • Page 5: Installing The Aileron Servos

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual 2. INSTALLING THE AILERON SERVOS Electric wire  1) Install the rubber grommets and brass eyelets on to the aileron servos. 2) Using a modeling knife, remove the  covering from over the pre-cut servo arm exit hole on the aileron servo tray / hatch.

  • Page 6: Installing The Aileron Linkages

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual 3) Repeat the procedure to install the  control horn on the opposite aileron. 4. INSTALLING THE AILERON LINKAGES Installing the aileron linkages as pictures below. lock nut Snap keeper. 100mm Using pliers, carefully make a 90 degree bend down at the mark made.
  • Page 7 MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual 3x6mm 3 x 15mm Secure Secure Repeat the procedure to install the opposite gear. IV. PLASTIC PART OF BOTTOM WING Install and secure the wheel. Collar Secure 5x35mm Bottom side A/B Epoxy glue 3x4mm Secure Push in...

  • Page 8: Installing The Engine Mount

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual Repeat the procedure to install the opposite wing half. Bottom side OPTION 2: ENGINE MOUNT V. INSTALLING THE ENGINE MOUNT See pictures below: 4x30mm There are two options: 1. Electric motor 2. Engine mount. OPTION 1: ELECTRIC MOTOR See pictures below: VI.

  • Page 9: Installing The Fuselage Servos

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual degree angle (using a cigarette lighter). This tube will be vent tube to the fueling valve. When the stopper assembly is installed in the tank, the top of the vent tube should rest just below the top sur- face of the tank.

  • Page 10: Installing The Throttle Pushrod

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual IX. COWLING Cowl area cutout for engine head. Fuel tank Cowl area cutout for muffler 2. INSTALLING THE THROTTLE PUSHROD  1) Slide the fiberglass cowl over the engine and Install one adjustable metal connector through the third line up the back edge of the cowl with the marks you hole out from the center of one servo arm, enlarge the made on the fuselage.

  • Page 11: Installing Horizontal Stabilizer

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual 3x10mm Secure Check to mark sure the wing and stabilizer are paralell. If they are not, lightly sand the opening in the fuselage for the stabilizer until the stabilizer is paralell to the wing, but don’t glue anything yet. X.

  • Page 12: Elevator Control Horn Installation

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual 1. ELEVATOR CONTROL HORN INSTALLATION Elevator control horn install as same as the way of aileron control horn. Please see pictures below. C/A glue. control horn Bottom side. Top side 2. ELEVATOR PUSHROD INSTALLATION 1.

  • Page 13: Horizontal Stabilizer Struts

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual 3. HORIZONTAL STABILIZER STRUTS Please see pictures below. 150mm Push in 3x12mm Top side Secure Repeat the procedure to install the other horizontal stabilizer struts. Bottom side 1. RUDDER CONTROL HORN INSTALLATION Rudder control horn install as same as method of elevator control horn.

  • Page 14: Mounting The Tail Wheel Bracket

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual  2) Mark the locations of the two mounting screws. Remove the tail wheel bracket and drill 2mm pilot holes at the locations marked. Rudder control horn Mark M2 Lock nut Snap keeper Rudder pushrod Rudder servo Drill a hole...
  • Page 15 MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual...

  • Page 16: Installing The Switch, Receiver And Battery

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual Valve control 3 way conector Connector Valve one way Air tank Tie wrap Air line sets XIV. INSTALLING THE SWITCH, RECEIVER AND BATTERY Air supply Air tank  1) Cut out the switch hole using a modeling knife. Use a 2mm drill bit and drill out the two mounting holes through the fuselage side.

  • Page 17: Wing Attachment

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual XVI. INSTALLING COCKPIT XV. WING ATTACHMENT FUSELAGE Locate the aluminium wing dihedral brace. Aluminium tube. 19mm. 550 mm *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits properly.

  • Page 18: Installing The Spinner

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual Lift the model. If the tail drops when you lift, the model XVII. INSTALLING THE SPINNER is “tail heavy” and you must add weigh* to the nose. If the nose drops, it is “nose heavy” and you must add Install the spinner backplate, propeller and spinner weight* to the tail to balance.

  • Page 19: Pre-Flight Check

    MESSERSCHMITT BF-109E Item code: BH146. Instruction Manual 12mm 12mm Aileron control 25mm Flap control 12mm 12mm Elevator control 25mm 25mm Rudder control PRE-FLIGHT CHECK  1) Completely charge your transmitter and receiver batteries before your first day of flying.  2) Check every bolt and every glue joint in your plane to ensure that everything is tight and well bonded.
  • Page 20 I/C FLINGT WARNINGS Always operate in open areas, away adjust the engine from ALWAYS from factories, hospitals, schools, NEVER fly near power lines, behind the propeller, and do not buildings and houses etc. NEVER aerials or other dangerous areas allow any part of your body to be in fly your aircraft close to people or including airports, motorways etc.
