Electric Bicycle Operating Instructions
The seller is obliged under the law to attach the Operating Instructions for electric bicycle LEADER FOX to each product.
E- FERRARA
E- INDUKTORA
LOTUS
URBY
MODE 450U
K16
K16
K16
K16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-Ferrara K16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Leader Fox E-Ferrara K16

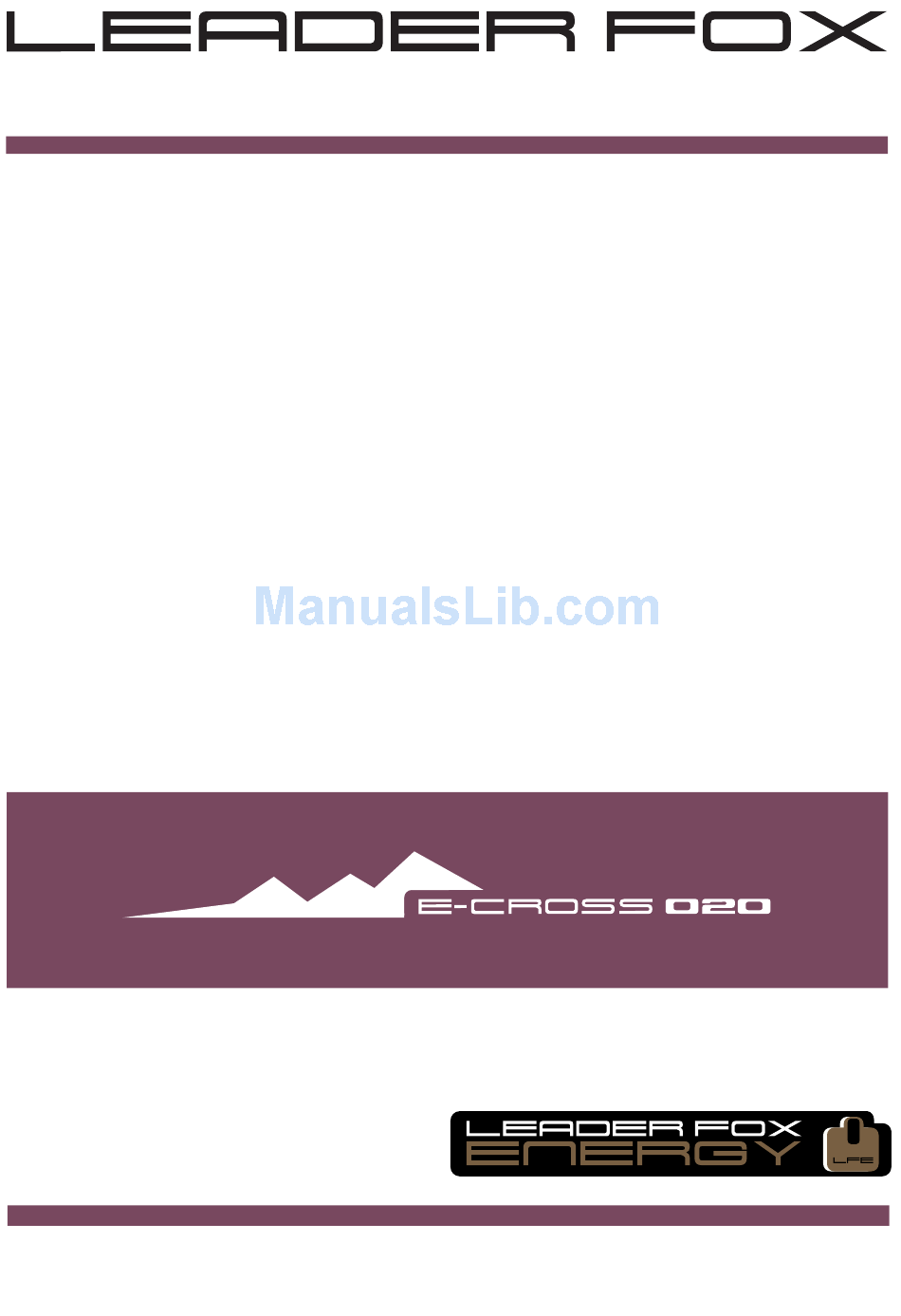

  • Page 1 Electric Bicycle Operating Instructions The seller is obliged under the law to attach the Operating Instructions for electric bicycle LEADER FOX to each product. E- FERRARA E- INDUKTORA LOTUS URBY MODE 450U...
  • Page 2: Pedal Sensor

    Factors influencing the electric bicycle range: 1.Rolling resistance of the tyres. LEADER FOX e-bikes are fitted with Czech tyres with low rolling resistance and increased resistance to puncture. It is also important that the tyres are inflated properly. Therefore, if the tyres of your electric bicycle are underinflated, the range will decrease.
  • Page 3: Charging Socket

    Battery Battery charging and maintenance: Charge the battery in a dry environment to avoid short-circuit damage. Charge the battery to at least 60 % of the capacity once every 3 months even when the bicycle is not used. Do not cover the battery or the charger. Do not leave the battery constantly connected to the power source.
  • Page 4: Maximum Range

    Safety recommendations: Battery DO NOT throw battery into fire. DO NOT use the battery with other devices. DO NOT dismantle or modify the battery. DO NOT connect positive and negative poles of the battery with a metal object. DO NOT immerse the battery in water. Charger DO NOT dismantle or modify the charger.
  • Page 5 Controller 1 Summary 1.1 Product name Super-thin LCD display 5-cell waterproof connector 1.2 Product type: APT12LCD03U/LCD03U 1.3 Supplier Tianjin APT Development Co., Ltd. 1.4 Function description Voltage: 24 V, 36 V Pedal assist system level (PAS) 0-6 (max. 9), 0 is without the use of PAS UART communication protocol Error code indicator Intelligent battery status indicator...
  • Page 6: Lcd Display Description

    Operating temperature: -18-60 °C. Storage temperature: -30 - 70 °C. Relative humidity: 90 %, non-condensing. battery indicator 1.5 Display icon remaining capacity display >80% 80% > 65% 65% > 50% 50% > 30% 30% > 10% 10% > 2 LCD Display Description 2.1 All images on LCD display are shown in the picture: 2.2 WALKING mode 2.2 Display of PAS level...
  • Page 7: Function Description

    3 Function Description Button : Switching the e-bike on/off. Button : Press this button to increase the PAS level. Button : Press and hold the button for 1.5 second to switch on/off the headlight (and the backlight) and the LCD display backlight. Button : press this button to decrease the PAS level.
  • Page 8: Error Code Meaning

    5 Error Code Meaning If a failure of the e-bike occurs, the LCD03U display will show the letter “E” (E means an error) at the spot where a PAS level is normally displayed. 6 Installation Instructions Please pay attention to the screws' torque, any damage caused by excessive torque shall not be covered by the warranty (see the figure: the standard torque is 0.50 Nm, the maximum torque is 0.70 Nm).
  • Page 9 9 Change of electric bicycle inner tube Before you start changing an electric bicycle in ner tube, switch off the drive unit / battery and disconnect the motor lead-in cable connector (1). After the connector has been disconnected by pulling it slightly, remove the rubber covers (2) from the wheel nuts.
  • Page 10 Controlling the electric drive using a rotary The manual accelerator controls the electric drive, independently of the pedal support. The accelerator is mounted on the left side of the handlebar and it is connected to the free control unit connector of yellow colour. A bicycle with a rotary accelerator can only be used off public roads.
  • Page 11 Czech brand of electric bicyclesDevelopment DISPLAY MULTIPURPOSE CONTROLLER BATTERY PEDAL SENSOR MOTOR...
  • Page 12 Czech brand of electric bicyclesDevelopment Please enjoy many pleasant and safe kilometres on your new electric bike. Your Leader Fox Team Czech brand of electric bicycles Development, design and manufacturing BOHEMIA BIKE OKRUŽNÍ 697 370 04 ČESKÉ BUDĚJOVICE. Tel: 388 314 885...
