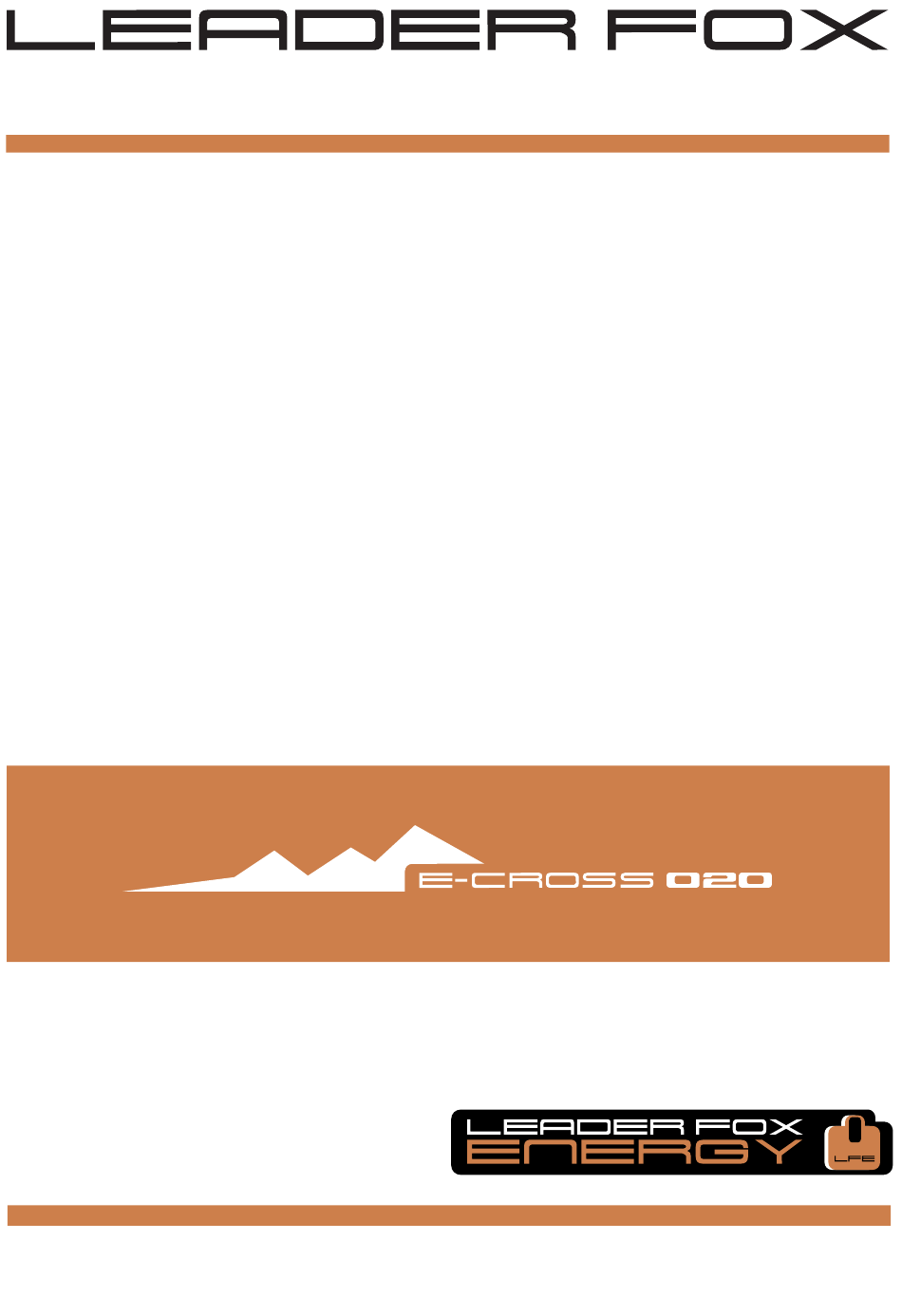

- Page 1 E-FERRARA E-INDUKTORA TIFTON E-CITYZOOM FORENZA...
- Page 2 Factors influencing the electric bicycle range: 1.Rolling resistance of the tyres. LEADER FOX e-bikes are fitted with Czech tyres with low rolling resistance and increased resistance to puncture. It is also important that the tyres are inflated properly. Therefore, if the tyres of your electric bicycle are underinflated, the range will decrease.
- Page 3 Battery Battery charging and maintenance: Charge the battery in a dry environment to avoid short-circuit damage. Charge the battery to at least 60 % of the capacity once every 3 months even when the bicycle is not used. Do not cover the battery or the charger. Do not leave the battery constantly connected to the power source.
-
Page 4: Maximum Range
Safety recommendations: Battery DO NOT throw battery into fire. DO NOT use the battery with other devices. DO NOT dismantle or modify the battery. DO NOT connect positive and negative poles of the battery with a metal object. DO NOT immerse the battery in water. Charger DO NOT dismantle or modify the charger. - Page 5 Controller 1 Product Name 1.1 Middle Install Intelligent LCD Display 1.2 Model: APT13LCD450U 2 Supplier 2.1 Tianjin APT Development Co., Ltd. 2.2 E-Mail: vzhao@aptdevelop.conn apt@aptdevelop.com 3 Electrical Parameters 24V/36V battery supply Rated operating current: 10 mA Maximum operating current: 30 mA Off-state leakage current <...
- Page 6 5 Features Serial communications Speed display: AVG SPEED (average speed), MAX SPEED (maximum speed), SPEED (instantaneous speed). Kilometres/miles: Can be set as per customer preferences. Intelligent battery status indicator: Reliable battery status indicator that does not fluctuate with switching the motor on and off. BMS system support (battery control system): The BMS indicator, battery charge percentage, it displays the mileage indicator (it needs access to the BMS information system support) Charging indicator: Current battery power indication...
-
Page 7: Lcd Display Description
6 LCD Display Description See the figure of LCD display below: Speed mode Lighting Power indicator PAS level Speed display Undetermined Error code Battery status Brake indicator BMS indicator Mileage mode Mileage information 7 Function Description Power switch Down Switching on/off Press and hold the power button for 1.5 second to switch the display on/off. - Page 8 PAS operation 7.3 Speed mode switch and Mileage mode switch Press the POWER button briefly to change the speed mode and the mileage mode as follows: Speed-> AVG Speed->MAX Speed->Trip->ODO-> Time (Speed -> Average speed -> Maximum speed -> Distance a day -> Total distance -> Travelling time. Average speed Maximum speed Speed and distance travelled...
-
Page 9: Deleting Data
7.5 6 km/h walk Press and hold the DOWN button for 2 seconds to switch to the walk mode, release the button to switch the mode off. 7.6 Deleting data Press and hold the UP and DOWN buttons simultaneously for 1 second to delete some temporary data such as AVG Speed / MAX Speed / Trip / Time (Average speed/Maximum speed/Distance a day/Travelling time). - Page 10 Backlight Kilometres/miles Wheel diameter Time until Brightness Setting Password Setting 8.1 Kilometres/miles: Select the S7 symbol on the speed display, press the UP/DOWN buttons to switch between km/h and MPH symbols (km/h/mile/h) 8.2 Backlight brightness: Select the bL1 symbol on the speed display, press the UP/DOWN buttons to set the 1~5 symbol for the respective backlight brightness.
- Page 11 8.5 Voltage setting: Set the bUO symbol on the speed display, press the UP/DOWN buttons to switch between 24V/36V/UbE symbols; UbE is user-defined voltage; this parameter can be set via a computer. 8.6 Password/speed limit setting: Select the PSd symbol on the speed display, a password must be entered;...
-
Page 12: Error Code Meaning
The maximum speed is limited by the motor and the controller. It will probably be not possible to reach the defined value. 9 Error Code Meaning The 450U meter will display error messages if a failure of the e-bike occurs; the LCD display will show the icon and an error code will be displayed on the speed display;... -
Page 13: Installation Instructions
10 Installation Instructions Please pay attention to the screws' torque, any damage caused by excessive torque shall not be covered by the warranty (see the figure: the maximum torque is 0.50 Nm). 11 Output Wiring Connection Red conductor: Positive pole (24 V/36 V) Blue conductor: Supply cable to the controller Black conductor:... - Page 14 12 PAS Level Instructions The PAS levels can be customized. The highest level is 9. The table below shows the PAS levels used most often: Level 3 Level 5 Level 9 No PAS assist 13 Certification CE/IP65 (waterproof)/ROHS Directive Room 609, Hi-tech Building H, No. 6 Huatian Road, 11 Huayuan Industrial Area, Tianjin 300384, na E-Mail: apt@aptdevelop.com 14 Change of electric bicycle inner tube...
- Page 15 If you do not understand any of the points in this instructions manual, please contact the seller for explanation. Please read the whole manual, it is not too long. Do not lend the e-bike to persons not briefed in its use and operation. Any claims/complaints based on improper operation will not be admitted.
- Page 16 Please enjoy many pleasant and safe kilometres on your new electric bike. Your Leader Fox Team Czech brand of electric bicycles Development, design and manufacturing BOHEMIA BIKE OKRUŽNÍ 697 370 04 ČESKÉ BUDĚJOVICE. Tel: 388 314 885 E-mail: info@leaderfox.cz...
