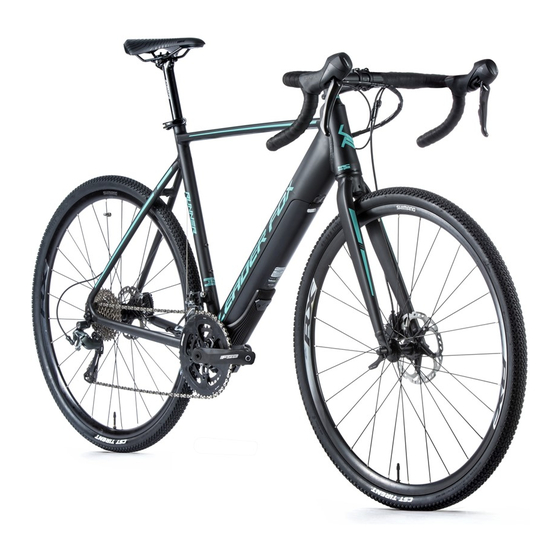

- Page 1 Electric Bicycle Operating Instructions Under the law, the dealer is obliged to attach the LEADER FOX Electric Bicycle Operating Instructions to every product E – BIKE POWER RIDE Runner Waco Rover...
- Page 3 Introduction Dear users, Please read carefully all the information regarding your E-LF product to ensure optimal functioning of your e-bike. The following text containing a comprehensive description will provide you with information on all aspects and details (including installation, setting up and general use of the display) regarding the use of our display.
- Page 4 Factors influencing the electric bicycle range 1. Rolling resistance of the tyres. Leader Fox e-bikes are fittet with tyres with low rolling resistance and increased resistance to puncture. It is also important that the tyres are inflated properly. Therefor, if the tyres of your electric bicycle are underinflated, the range will decrease.
- Page 5 Electric set Fazua Evation 1.0 drivepack The system uses monitoring of torque, monitoring of speed of the pedal assist system and monitoring of real speed of wheels. The system uses a dual protection feedback for measuring the speed signal to ensure safety and reliabilityof the system.
- Page 6 Dimensions of the power unit:...
- Page 7 1 – Bottom bracket ratchet 2 – USB cover 3 – USB port 4 – Battery cover 5.1 – Release button (not on this Fazua model) 5.2 – Locking lever 6 – Lock 7 – Key Bottom bracket:...
- Page 8 Article number 01-2018-002-01 Assistance Torque, max. 60 Nm Q Factor, min. 135 mm (w/o crank arms) Operating temperature -20 + 60 °C Storage temperature -20 + 60 °C Degree of protection IP 54 Chainline 49, 52 mm Weight , approx. 1.3 kg Locking/unlocking the drivepack within your eBike Once a Drivepack is mounted in the eBike, it can be locked in so that the Drivepack cannot be removed.
-
Page 9: Safety Instruction
Safety instruction Do not open the Drivepack yourself. The Drivepack is free of maintenance. It must only be opened by qualified experts and repaired with original spare parts. Unauthorized opening of a system would lead to its warranty expiration. All components making up the Drivepack and eBike may only be replaced with identical components or specifically approved by your eBike manufacturer. - Page 10 Use only original FAZUA chargers for charging the Battery Pack. FAZUA will not be liable for damage caused by the use of unapproved chargers. Keep the Battery Pack away from heat, fire and water. Risk of explosion. Protect the Battery Pack from mechanical impacts or stress. Risk of damage and emission of fumes, which can irritate the respiratory system.
-
Page 11: Battery And Charger
Battery and Charger Battery charging and maintenance: Charge the battery in a dry enviroment to avoid short-circuit damage. Charge the battery to at least 60% of the capacity once every 3 months even when the bicycle is not used. Do not cover the battery or the charger. Do not leave the battery constantly connected to the power source. - Page 12 Push Drivepack against the frame before you will try to loose the locking lever. Keep the Drivepack by one hand. Open locking lever to the top position for loosing Drivepack from the frame. Locking lever will stay at top position independently. Took Drivepack from the frame by moving forward from bottom bracket.
- Page 14 1 - Battery Pack 2 - On/Off Button 3 - Operation and charge-control indicator 4 - Socket for charge connector 5 - Connector to Drivepack 6 - Fastening lid 8 - Battery slot Article number 01-2018-004 Rated voltage 36 V Rated capacity 7 Ah Energy 252 Wh Operating temperature -20 + 60 °C...
- Page 15 Charging: The battery is the most expensive part of an electric bicycle; therefore, pay increased attention during handling, charging and storage. The battery is sensitive to precise charging. Therefore, it is necessary to charge Li-Ion rechargeable batteries using only a charger supplied by us. Connect the charger to 220- 240 V power outlet.
- Page 16 Controller Remote fX controller – fully integrated control in to the frame...
- Page 17 1 - “Up“ button 2 - Middle button 3 - “Down“ button 4 - Led indication 5 - Brightness sensor 6 - Capacity indication / assist level 7 – State indication Specification Article number 50020003015002000302 Operating temperature -10 + 60°C Storage temperature -20 + 60°C Degree of protection (at assembled state) IP 54 Weight , approx.
- Page 18 Assembly instructions Display assembly Please pay attention to the tightening torque of screws. Damage caused by excessive tightening torque or incorrect assembly / disassembly is not covered by warranty. 1 - Bottom Bracket 2 - Speed Sensor 3 - Magnet position mark 4 - Spoke magnet of the speed sensor...
- Page 19 Control For running the eBike drive system, following requirements must be followed The Battery Pack is sufficiently charged, inserted and turned on by pressing the button on the battery. The system can be operated by a FAZUA Remote fX controller integrated in to the frame. Once the Drivepack is mounted in the eBike, the system can be switched on by simply pressing middle button on controler.
- Page 20 Rain mode The rain mode prevents rain drops from unintentionally adjusting the support level of your eBike. If you have activated the rain mode, use the center button to set the desired support level Activate the rain mode by holding down the center button for 2 seconds. A short blue LED animation appears.
- Page 21 - Bike + rider weight - Battery age Be careful with the operating and storage temperatures of the eBike components. Specially the Battery Pack, it can get damaged through extreme temperatures. Damaged caused by improper treatment is not within the scope of the warranty.
-
Page 22: Maintenance
Maintenance Regular maintenance: - maintain all components of the electric bicycle clean - use only the recommended and tested cleaning materials - regularly lubricate the chain with suitable oils - in winter, clean the electric bicycle after each ride and pay increased attention to removing salt from battery contacts and other connectors - while handling the electric bicycle, make sure the cables of the electric system are not damaged. -
Page 23: Possible Problems And Their Solutions
Possible problems and their solutions In case of system failure perform its diagnostics or contact your dealer. The control display is not on: - always make sure the battery is charged - check whether the battery is inserted correctly, whether the battery switch is on - check the connections of the control unit and the display The motor does not start when the walk assistance button is pressed - check the connection of the motor cable (at the motor and the control unit) - Page 24 Electric set warranty Complaint procedure: Submit any complaints concerning the electric set or the battery to your dealer. When filing a complaint, submit a proof of purchase and a warranty certificate with the registered serial number of the battery and indicate the reason for the complaint and a description of the defect. Wrranty conditions: 24 months for electric bicycle components –...
- Page 25 Warning If you do not understand any of the points in these Operating Instructions, please contact the dealer for explanation. Please read the whole manual! Do not lend the e-bike to persons not briefed in its use and operation. Complaints resulting from improper handling will not be accepted.
- Page 26 Enjoy many pleasant and safe kilometres on your new electric bicycle. Your Leader Fox Team Czech brand of electric bicycles. BOHEMIA BIKE Address Na Pankráci 1724 14000 Praha 4 - Pankrác Development, design and manufacturing Okružní 697 České Budějovice 37001 Phone: 388 314 885 Email: info@leaderfox.cz...
