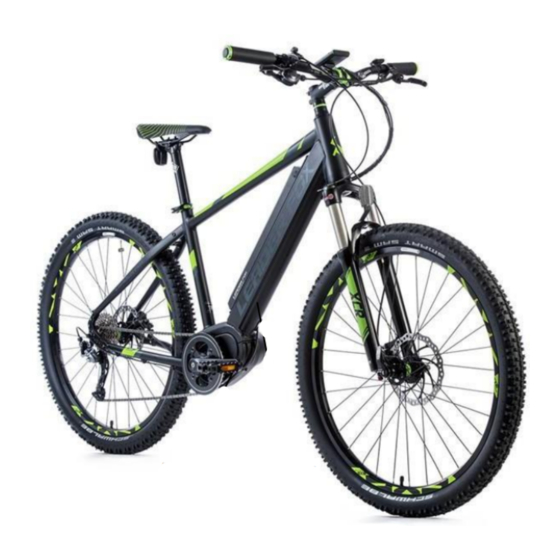

- Page 1 Electric Bicycle Operating Instructions Under the law, the dealer is obliged to attach the LEADER FOX Electric Bicycle Operating Instructions to every product E – BIKE POWER RIDE Altar...
- Page 3 Introduction Dear users, Please read carefully all the information regarding your E-LF product to ensure optimal functioning of your e-bike. The following text containing a comprehensive description will provide you with information on all aspects and details (including installation, setting up and general use of the display) regarding the use of our display.
- Page 4 Factors influencing the electric bicycle range 1. Rolling resistance of the tyres. Leader Fox e-bikes are fittet with tyres with low rolling resistance and increased resistance to puncture. It is also important that the tyres are inflated properly. Therefor, if the tyres of your electric bicycle are underinflated, the range will decrease.
- Page 5 Electric set M500 The system uses monitoring of torque, monitoring of speed of the pedal assist system and monitoring of real speed of wheels. The system uses a dual protection feedback for measuring the speed signal to ensure safety and reliabilityof the system.
- Page 6 Dimensions of the power unit:...
-
Page 7: Safety Instruction
Safety instruction Battery: Do not throw the battery into fire. Do not throw the battery into water. Do not use the battery for other appliances. It has been made specifically for this model. Do not dismantle or modify the battery. Do not connect the positive and negative poles of the battery. - Page 8 Battery Battery charging and maintenance: Charge the battery in a dry enviroment to avoid short-circuit damage. Charge the battery to at least 60% of the capacity once every 3 months even when the bicycle is not used. Do not cover the battery or the charger. Do not leave the battery constantly connected to the power source.
- Page 9 If the charge indicator shows that the battery is discharged, there is still a minimum voltage level in it which protects it against damage but is not enough to power the electric bicycle. Recharge the battery as soon as possible. Never leave the battery fully discharged, it could results in its damage. In the case, that the battery will be turned on more than 30 min and bike will not be used, the battery will be automatically switched off.
-
Page 10: Lcd Display
LCD display Product: Intelligent display DP C240.CAN Supplier: Bafang Electrical parameters: Battery supply 36V Rated operating current 40mA Off leakage current < 1 uA CAN BUS protocol Maxoutput current 100mA Operating temperature – 20 ~ 70 °C Storage temperature – 30 ~ 80 °C USB port 5V 500mA LCD dimensions and materials: Prodcut shell is ABS, transparent window is made withhigh strength Acrylic. - Page 11 LCD Display description: Speed indication: Includes maximum speed, average speed. Unit switch between imperial and metric. Intelligent battery capacity indication. Control and indication for the headlight. 5 levels of backlight brightness setting. Indication for power assistance level with 6 levels: 0/1/2/3/4/5. Indication for trip: To indicate single-trip distance, total distance and remaining distance.
- Page 12 Controller Controller description: POWER DOWN MENU...
- Page 13 Assembly instructions Display assembly: Please pay attention to the tightening torque of screws. Damage caused by excessive tightening torque or incorrect assembly / disassembly is not covered by warranty.
- Page 14 Control Turning on the electrical system of the e-bike Before switch on of the system please check electrical wiring. Switch on power of the electrical system on battery, colored backlighting illuminates. Switch on display with press and short hold (1,5 second) ”ON/OFF” button. Display will automatically turns off if it is not used for a while.
- Page 15 Speed and mileage mode switch Short press POWER button can change the speed and mileage mode Headlight/Backlight On/Off Press and hold UP button for 1 second can turn on/off the headlight and the screen will switch to the corresponding mode. The motor does not work when battery voltage is low.
- Page 16 Parameter setting By double press POWER button (interval less than 0,3 second) can get into setting menus. Press UP/DOWN buttons to change the parameter setting, press POWER button toswitch to next item. Double press POWER button will exit from menu. Display will automatically quit menu when there is no operation for 30 seconds.
- Page 17 Brightness Press UP/DOWN button to change the brightness of the backlight, I is darkness, IIIII is brightness. | | | | Auto Off Press UP/DOWN button to change the auto power off time, from 1 to 9 the number represent time (minutes) to shutdown, default value is 5 minutes.
- Page 18 Scene Press UP/DOWN button to change the scenes, Digital/Analog. Battery Ind Press UP/DOWN button to change the battery indicator Voltage/Percentage/Off (napětí/kapacita v procentech/vypnuto).
- Page 19 Power indicator Press UP/DOWN button to change the scenes, Digital/Analog. RT SPEED 25.5 Km/h Clock Clock setting, press POWER button get into the clock setting menu, press UP/DOWN button to set Year/Month/Day/Hour/Min/Sec. Clock – show / hide...
- Page 20 Start password Press POWER button get into the password setting. If you set Start input ON you will have to set right password every time you turn on the display. Please be careful with your password, if you forget it you will not be able to switch on the bike.
