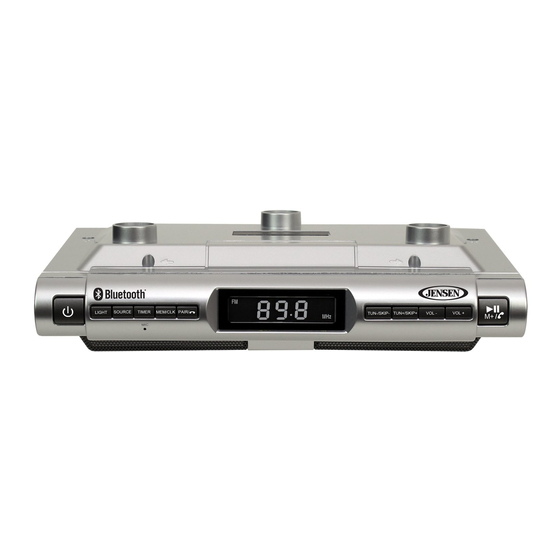

Jensen SMPS-628 User Manual

Under cabinet universal bluetooth music system
Hide thumbs

Advertisement

Table of Contents

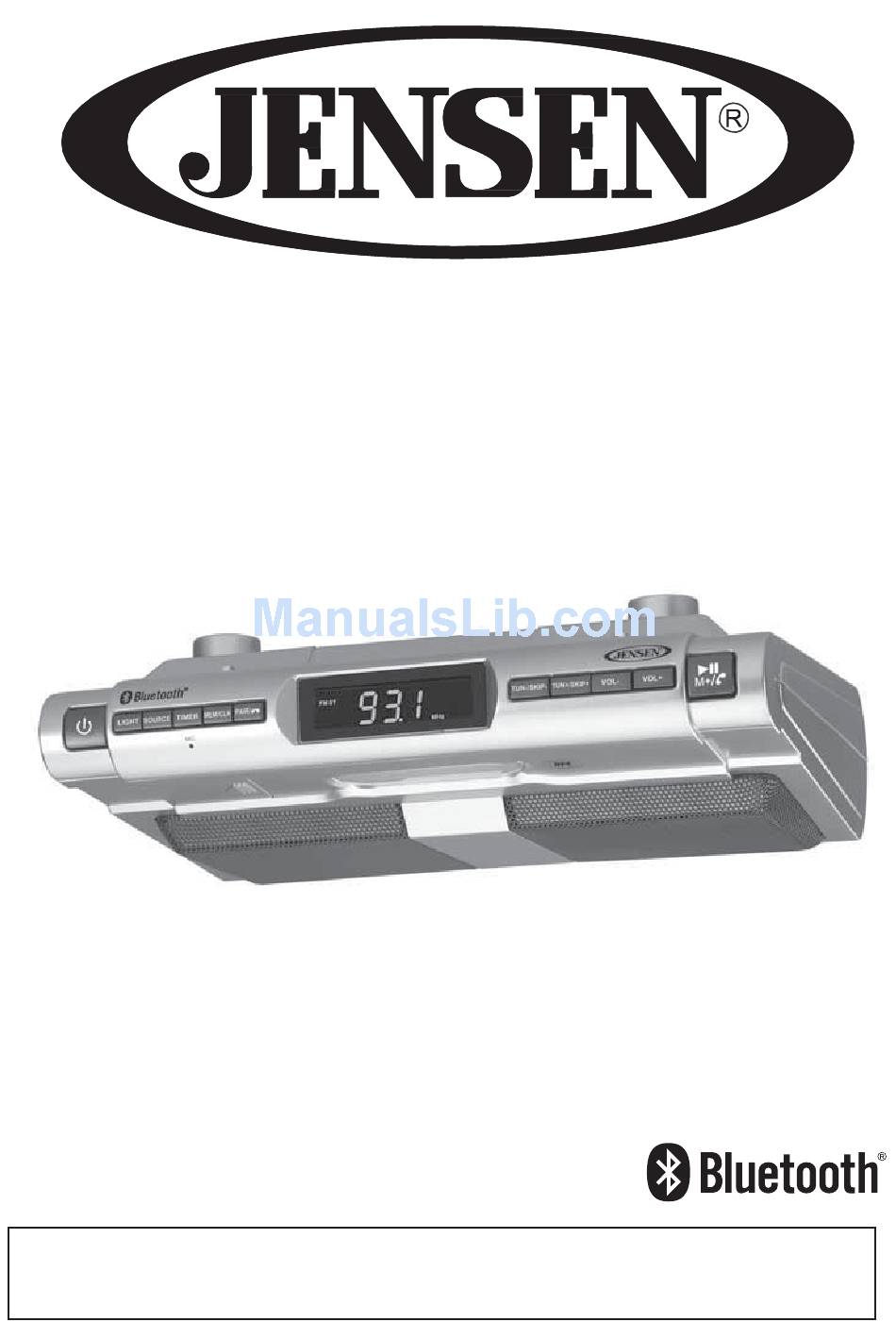

UNDER CABINET UNIVERSAL BLUETOOTH
USER MANUAL
SMPS-628
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING
THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
MUSIC SYSTEM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMPS-628 and is the answer not in the manual?

Questions and answers

Nick
March 10, 2025

How shut timer of permanently

0

Subscribe to Our Youtube Channel

Related Manuals for Jensen SMPS-628

Summary of Contents for Jensen SMPS-628

  • Page 1 UNDER CABINET UNIVERSAL BLUETOOTH MUSIC SYSTEM USER MANUAL SMPS-628 PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

  • Page 2: Compliance With Fcc Regulations

    ON PLACEMENT Do not use the unit in places, which are extremely hot, cold, dusty or humid. Install the SMPS-628 as far as possible from a source of noise. (for example, refrigerator, microwave oven, fluorescent lamp, etc.) Do not restrict the airflow of the unit by placing it in a place with poor ventilation, by covering it with a cloth or by placing it on a carpet.

  • Page 3: Dear Jensen® Customer

    The serial number of this product is found on its back cover. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number : SMPS-628 Serial Number:...

  • Page 4: Preparation For Use

    PREPARATION FOR USE Installing the unit under a cabinet 1. Make the position of the 3 holes by using the supplied template. Use a drill to make the holes. 2. When the cabinet door overhangs the shelf and obstructs the unit, you can adjust the unit/shelf height.
  • Page 5 STANDBY BUTTON FM INDICATOR LIGHT BUTTON LINE-IN INDICATOR PM INDICATOR SOURCE BUTTON TIMER BUTTON TIMER INDICATOR MEM / CLK BUTTON MEMORY INDICATOR PAIR / BUTTON LINE IN JACK DC IN JACK TUNE - / SKIP - BUTTON LED LAMP TUNE +/ SKIP + BUTTON BATTERY COMPARTMENT VOL - BUTTON SPEAKER (L)

  • Page 6: Power Source

    POWER SOURCE The SMPS-628 operates using the supplied AC Adapter (Operate at 120V ~ 60Hz) AC ADAPTOR OPERATION NOTE: Only use the supplied adapter 1. Plug the AC adaptor into normal AC power outlet socket. 2. Insert the DC plug of the AC adaptor cord into the DC IN JACK (#18) at the back of the unit.

  • Page 7: Clock Setting

    2. Press the TUN+ / SKIP+ BUTTON (#8) or TUN- / SKIP- BUTTON (#7) to adjust the timer in increments / decrements of 1 minute. 3. After the set time is reached, the SMPS-628 alarm will sound. 4. When the alarm sounds, press the...

  • Page 8: Listening To The Radio

    TUN+ / SKIP+ BUTTON (#8) or TUN- / SKIP- BUTTON (#7) to check the tuned frequency. Setting the Radio Station Presets The SMPS-628 allows you to store up to 20 stations for easy recall at any time. 1. Press the STANDBY BUTTON (#1) to turn on the SMPS-628.
  • Page 9 BUTTON (#11) on the SMPS-628 to play or pause the Bluetooth device playback. 2. Adjust both the VOL + / VOL – BUTTONS (#10/#9) on the SMPS-628 and on your Bluetooth device until you reach a comfortable listening level. Notes: 1.) Your Bluetooth enabled device will not play music through the speaker, even if...
  • Page 10 NFC touch point if you are not sure where it is. 3. If the SMPS-628 is in Standby mode, it will turn on and enter Bluetooth mode automatically and pair with your smartphone. If the SMPS-628 is in Radio or LINE-IN mode, it will switch to Bluetooth mode and pair with your smartphone.

  • Page 11: Line-In Operation

    Note : • If you connect the SMPS-628 to the Line-Out Jack of your external device, you only need to adjust the VOLUME CONTROL of the SMPS-628. If you connect to the Headphone Jack of your external device, you may need to adjust both the volume controls of your external device and the SMPS-628 to obtain the desirable listening level.

  • Page 12: Specifications

    SPECIFICATIONS Power Adaptor: AC input 120V~ 60Hz 10W DC Output 1.2A Battery Back-up: 2 x DC 1.5V UM-4 type batteries (not included) Bluetooth: Bluetooth Specification version 2.1 Support profile A2DP / HFP Frequency Range: FM 87.5 – 108 MHz Audio Power output: 2W (RMS) x2 Dimensions: 6.6 cm (H) x 23.2 cm (W) x 17.0 cm (D)
  • Page 13 SPECTRA GREEN NOTICE Spectra, environmental social responsibility is a core value of our business. We are dedicated to continuous implementation of responsible initiatives with an aim to conserve maintain environment through responsible recycling. Please visit us at http://www.spectraintl.com/green.htm for more information on Spectra’s green initiatives or to find a recycler in your area.
  • Page 14 90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A. This warranty is not assignable or transferable.
