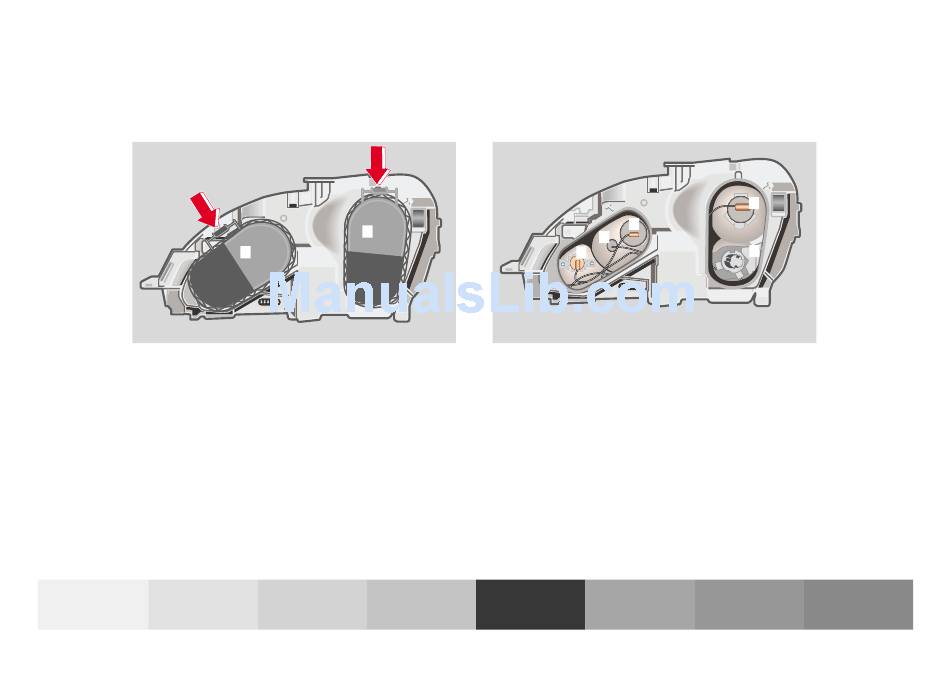

Headlamp assembly

1 Headlamp cover for fog lamp, parking and standing
lamp, and high beam headlamp
2 Headlamp cover for low beam headlamp and turn
signal lamp
Exterior lamps
Instruments
Operation
and controls
2
1
P82.10-0912-26
Instrument
Driving
cluster display
5
4
3
3 Bulb socket for fog lamp
4
Bulb socket for parking and standing lamp
5 Electrical connector for high beam headlamp bulb
6
Electrical connector for low beam Halogen type
headlamp bulb
if applicable: for Xenon type headlamp bulb
7
Bulb socket for turn signal lamp
