Display Data Channel (DDC)

To make installation easier, so long as your system supports the DDC protocol, the
monitor is able to plug-and-play. The DDC is a communication protocol through which
the monitor automatically informs the host system about its capabilities; for example,
supported resolutions and corresponding timing. The monitor supports the DDC2B
standard.

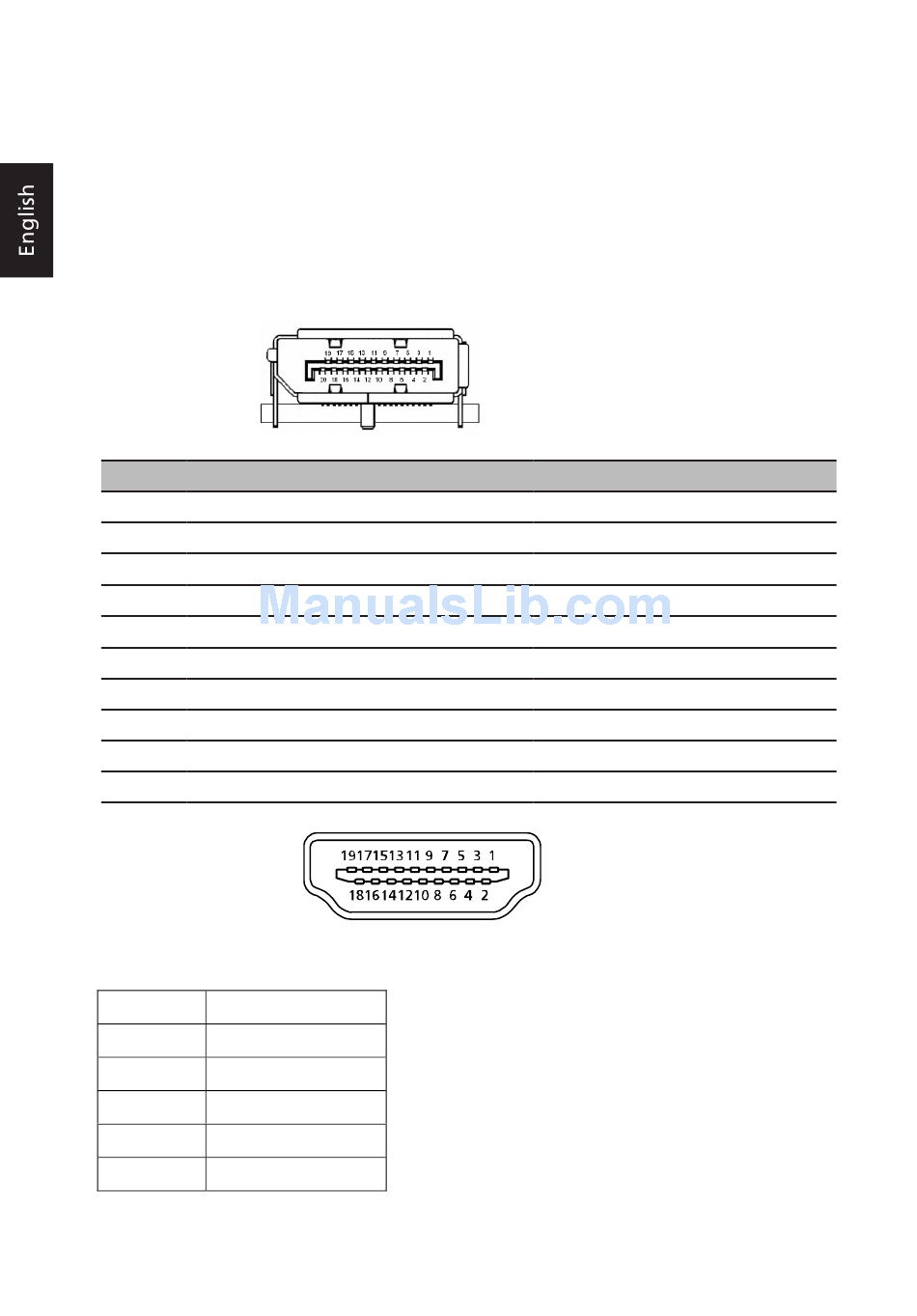

20-pin color display signal cable
PIN No. Description
1
ML_Lane 0+
3
ML_Lane 0-
5
GND
7
ML_Lane 2+
9
ML_Lane 2-
11
GND
13
CONFIG1
15
AUX CH+
17
AUX CH-
19
Return
PIN NO.
DESCRIPTION
7.
9.
18.
19.
5, 11, 17
*Only for MHL models
4
*19-Pin Color Display Signal Cable
MHL+
MHL-
VBUS
CBUS
GND
PIN No.
Description
2
GND
4
ML_Lane 1+
6
ML_Lane 1-
8
GND
10
ML_Lane 3+
12
ML_Lane 3-
14
CONFIG2
16
GND
18
Hot Plug
20
DP_PWR
