  Summary of Contents for Acer XR341CK

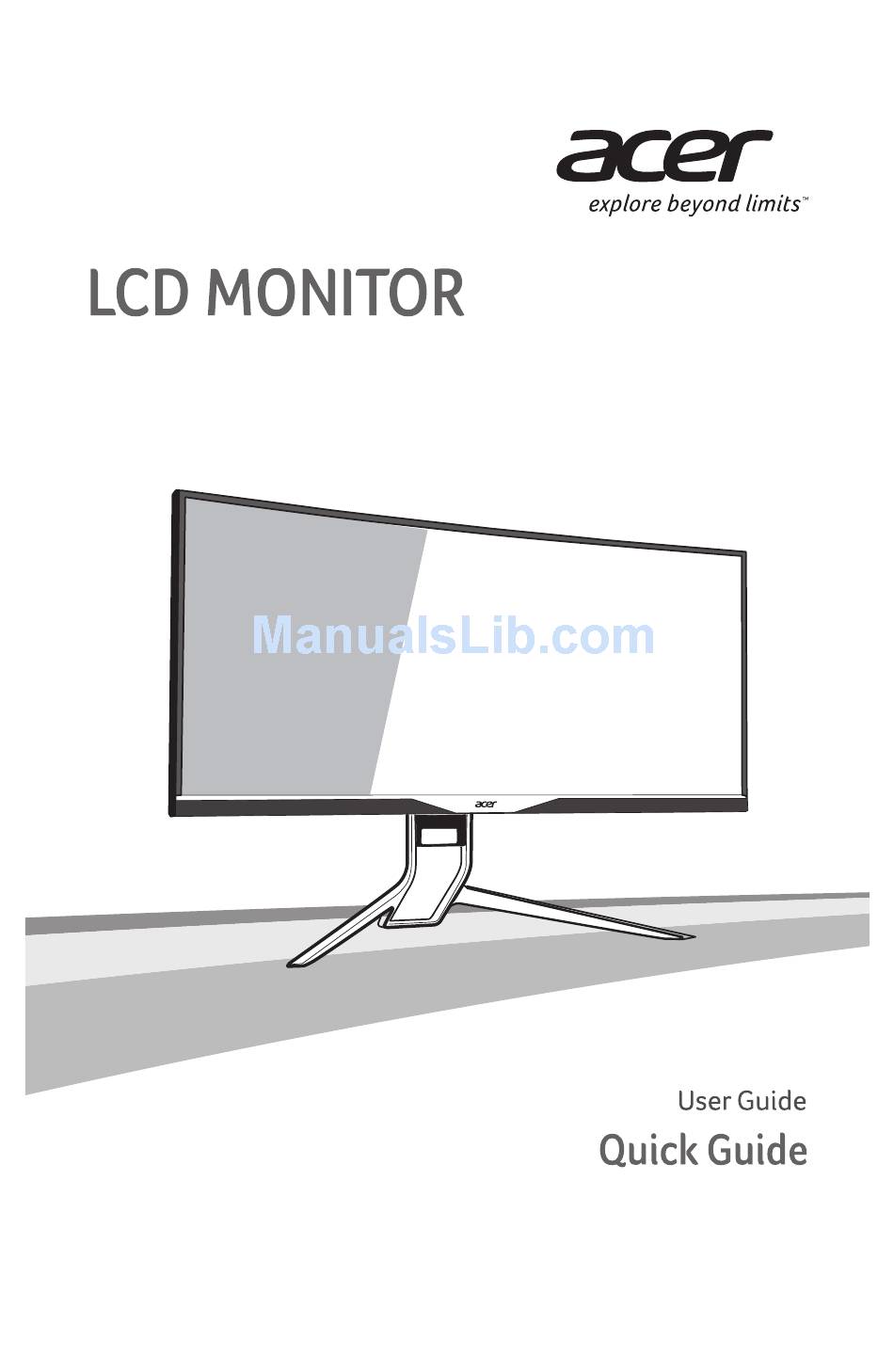

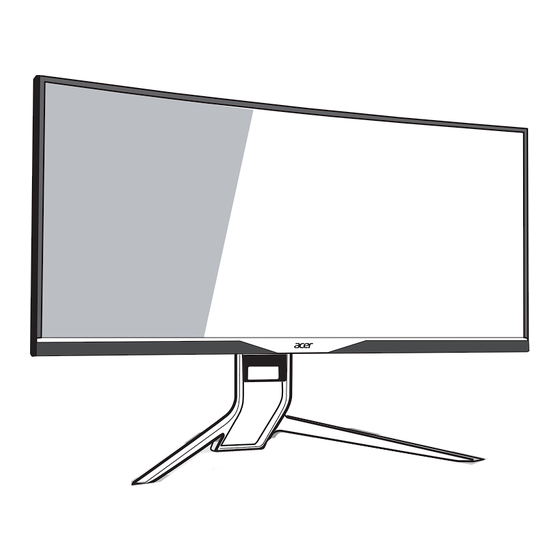

  • Page 1 XR341CK...
  • Page 2: Package Contents

    Acer LCD Monitor Quick Start Guide (QSG) Important safety instructions Please read the following instructions carefully. To clean the LCD monitor screen: • Turn off the LCD monitor and unplug the power cord. • Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
  • Page 3: External Controls

    External controls 1&2 Power button Turns the monitor on/off.Blue indicates power on. Amber indicates standby/ power saving mode. Main page Function key Press to view .Press again to enter next function in the Function Menu. Function Menu When the is active, press this key selected or move to the next function.
  • Page 4: Adjusting The Osd Settings

    Adjusting the OSD settings ------------------------------------------------------------------------------------------------------------- Note: The following content is for general reference only. Actual product specifications may vary. The OSD (onscreen display) can be used to adjust the settings of your LCD monitor. Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality, OSD position and general settings.
  • Page 5: Adjusting The Volume

    Adjusting the volume Open the Volume control and set the Volume using the arrows. When you are done, use to go back one level. Selecting the input Open the Input control and select the Input using the arrows. When you are done, use to go back one level.
  • Page 6 Use the ◄/► keys to adjust the sliding scales. The Picture menu can be used to adjust the Acer eColor, Brightness, Contrast, Black Level, Blue Light, ACM and Super Sharpness. Brightness: Adjust the brightness from 0 to 100. ------------------------------------------------------------------------------------------------------------- Note: Adjusts the balance between light and dark shades.
  • Page 7 Gamma mode allows you to adjust the luminance tone.The default value is 2.2 (standard value for Windows). Color temperature: Default is warm. You can choose Cool, Warm, Bluelight or User. sRGB: Default is off. You can turn sRGB on or off to better color match with peripheral devices, such as printers and digital cameras.
  • Page 8 Setting The Setting menu can be used to select the screen menu language and other important settings, including input and OD level. Press the MENU key to open the OSD. Using the ▲/▼ keys, select Setting from the OSD. Then navigate to the setting you wish to adjust. Use the ◄/► keys to select the setting. Input: Select the source from DP In, HDMI 2.0,HDMI(MHL),or miniDP. OD: Select Off, Normal, or Extreme.
  • Page 9: Product Information

    12. Ambient light: Adjust the lighting effects, color, and style. 13. Wide mode: You can select which screen aspect you are using. The options are Full, Aspect, and 1:1. 14. DDC/CI: Allows the monitor settings to be set through the software on the PC. ----------------------------------------------------------------------------------------------------------- Note: DDC/CI, short for Display Data Channel/Command Interface, which allows monitor controls to be sent via software.
  • Page 10: Regulations And Safety Notices

    Consult the dealer or an experienced radio/television technician for help. CE declaration of conformity Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.
  • Page 11: Specification

    SPECIFICATION Driving system TFT Color LCD Size 34 "W (87cm) Pixel pitch 0.233mm(H) x 0.233mm(V) Brightness 300cd/m (Typical) LCD Panel Contrast 100,000,000:1Max. (ACM) Viewable angle 172° (H) 178° (V) (CR≥10) (Typical) Response time 4ms (GTG,Typical) Panel Type In-Plane Switching Video R, G, B Analog Interface H-Frequency 30K-99KHz( HDMI&MHL)/160K-160KHz (DP)
  • Page 12 Power Button Over drive Input switch Game mode Switch / Buttons Volume Main Menu OSD PIP/ PBP quick shortcut Page Right/Left Acer eColor Management Colour Temp Brightness sRGB mode Contrast 6-axis Saturate Black level 6-axis Hue Blue Light 6-axis color...
  • Page 13: Energy Star

    ENERGY STAR ® Acer’s ENERGY STAR qualified products save you money by reducing energy costs and helps protect the environment without sacrificing features or performance. Acer is proud to offer our customers products with the ENERGY STAR mark. What is ENERGY STAR? Products that are ENERGY STAR qualified use less energy and prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S.
  • Page 15 XR341CK XR341CK xxxxxx; Apr.10,2015...
  • Page 16 XR341CK XR341CK xxxxxx; Apr.10,2015...
  • Page 17 XR341CK XR341CK xxxxxx; Apr.10,2015...
  • Page 18 XR341CK XR341CK xxxxxx; Apr.10,2015...
  • Page 19 XR341CK XR341CK xxxxxx; Apr.10,2015...
  • Page 20 XR341CK XR341CK xxxxxx; Apr.10,2015...
  • Page 21 XR341CK XR341CK xxxxxx; Apr.10,2015...
  • Page 22: Mounting The Monitor

    Mounting the monitor Wall mount BKT ------------------------------------------------------------------------------------------------------------------ Note: • The LCD monitor shall only be used with an approved am (e.g.GS mark). • To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the monitor. •...
