2.7

Connectors

2.7.1

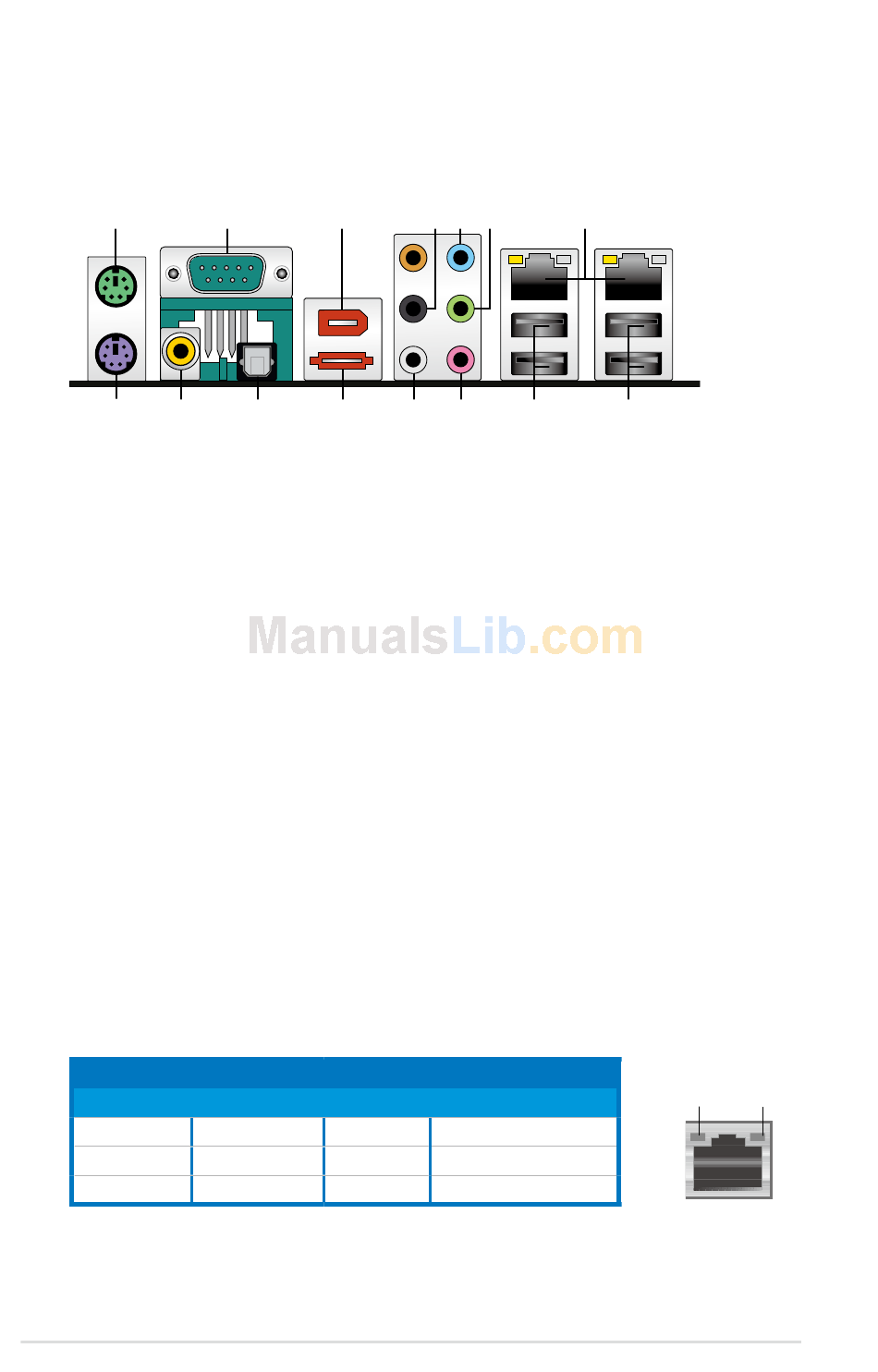

Rear panel connectors

1
15
16
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Serial port. This 9-pin COM1 port is for pointing devices and other serial
devices.
3. IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed
connectivity for audio/video devices, storage peripherals, PCs, or portable
devices.
4. Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.
5. Rear Speaker Out port (black). This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio configuration..
6. Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
7. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel configuration, the function of this port
becomes Front Speaker Out.
8. LAN 1/2 (RJ-45) port. Supported by Marvell
allows Gigabit connection to a Local Area Network (LAN) through a network
hub. Refer to the table below for the LAN port LED indications.

LAN port LED indications

Activity/Link Speed LED
Status
OFF
ORANGE
BLINKING
2-24
2 3
14 13
Description Status
No link OFF
Linked ORANGE
Data activity GREEN
4 5 6 7
12 11 10
Gigabit LAN controller, this port
®
Description
10 Mbps connection
100 Mbps connection
1 Gbps connection
Chapter 2: Hardware information
8
9
ACT/LINK
LED
LAN port
SPEED
LED
