9. USB 2.0 ports 3 and 4. These 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
Connect the ScreenDUO and IR receiver ONLY to USB port 3 and 4, which
supports remote control function. Plugging any other USB devices to these two
ports will turn on the computer.
10. USB 2.0 ports 1 and 2. These 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
11. Microphone port (pink). This port connects a microphone.
12. Side Speaker Out port (gray). This port connects the side speakers in an
8-channel audio configuration.
Refer to the audio configuration table below for the function of the audio ports in
2, 4, 6, or 8-channel configuration.
Audio 2, 4, 6, or 8-channel configuration
Port Headset
2-channel
Light Blue Line In
Lime Line Out
Pink Mic In
Orange –
Black –
Gray –

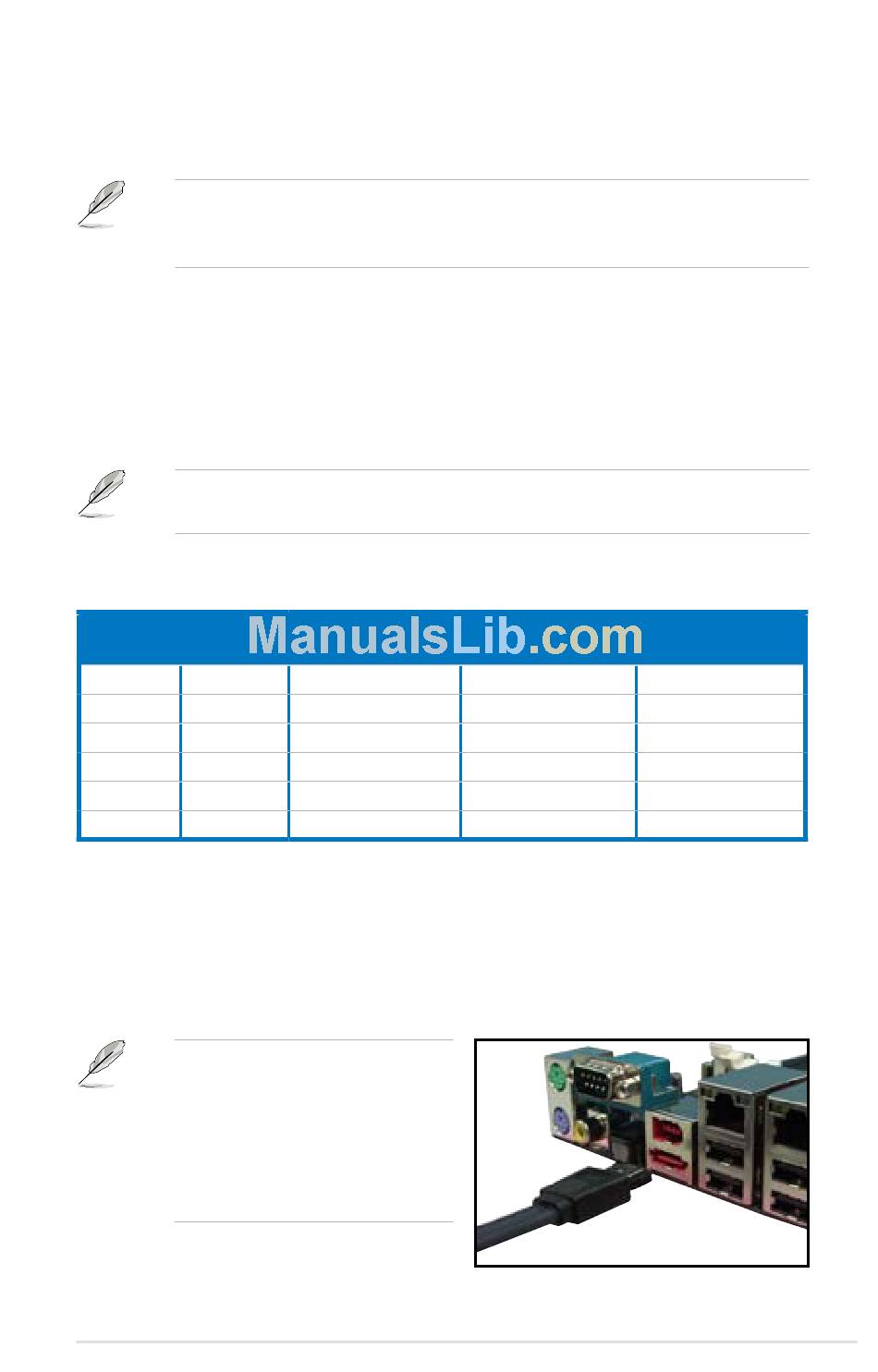

13. External SATA port. This port connects to an external a Serial ATA hard disk
drive. To configure a RAID0, RAID1, or JBOD set, install an external Serial
ATA hard disk drive and an internal Serial hard disk drive connected to the
onboard Serial ATA connector labeled SATA_RAID or SATA_RAID1.
The external SATA port supports
external Serial ATA
3.0 Gb/s devices. Longer
cables support higher power
requirements to deliver signal up
to two meters away, and enables
improved hot-swap function.
ASUS P5B Premium Series
4-channel
Line In
Front Speaker Out
Mic In
–
Rear Speaker Out
–
6-channel
Line In
Front Speaker Out
Mic In
Center/Subwoofer
Rear Speaker Out
–
8-channel
Line In
Front Speaker Out
Mic In
Center/Subwoofer
Rear Speaker Out
Side Speaker Out
2-25
