Summary of Contents for Kramer SID-X2N
-
Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: SID-X2N Step-in Commander P/N: 2900-300303 Rev 2... -
Page 4: Table Of Contents
Kramer Protocol 3000 Syntax 12.2 Kramer Protocol 3000 Commands Figures Figure 1: SID-X2N Step-in Commander Front Panel Figure 2: SID-X2N Step-in Commander Rear Panel Figure 3: Connecting the SID-X2N Step-in Commander Figure 4: Remote Step-In Switch and LED Wiring Figure 5: Remote Select Switch and LED Wiring... -
Page 5: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 6: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer SID-X2N away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 7: Shielded Twisted Pair/Unshielded Twisted Pair
Shielded Twisted Pair/Unshielded Twisted Pair Kramer engineers have developed special twisted pair cables to best match our digital twisted pair products; the Kramer BC-HDKat6a (CAT 6 23 AWG cable), and the Kramer BC-DGKat7a23 (CAT 7a 23 AWG cable). These specially built cables significantly outperform regular CAT 6 and CAT 7a cables. -
Page 8: Overview

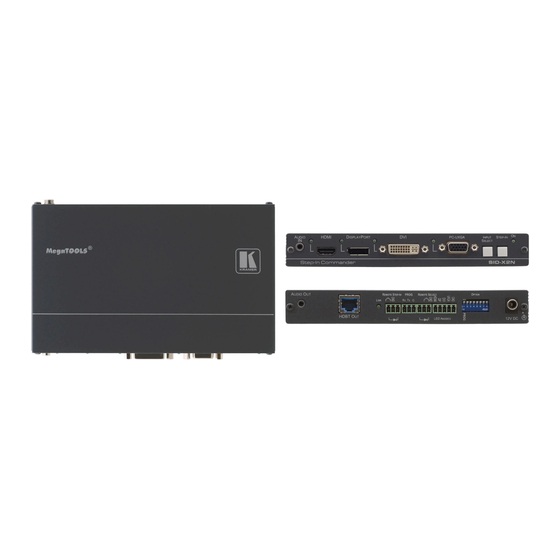

Overview The SID-X2N accepts an HDMI, DisplayPort, DVI and PC graphics video input, as well as an unbalanced stereo audio input (which is embedded into the output signal), and transmits the signal via HDBaseT (Twisted Pair) cable to a compatible receiver (for example, the TP-580Rxr). - Page 9 Support for digital audio formats ® A MegaTOOLS sized enclosure. Two devices can be mounted in a rack using the optional RK-T2B adapter You can control the SID-X2N using the front panel buttons, or remotely via contact closure switches. SID-X2N - Overview...
-
Page 10: Defining The Sid-X2N Step-In Commander
Defining the SID-X2N Step-in Commander Figure 1 defines the front panel of the SID-X2N. Figure 1: SID-X2N Step-in Commander Front Panel Feature Function AUDIO IN 3.5mm Mini Jack Connect to an unbalanced stereo audio source Lights green when the HDMI input is selected... -
Page 11: Figure 2: Sid-X2N Step-In Commander Rear Panel
Figure 2 defines the rear panel of the SID-X2N. Figure 2: SID-X2N Step-in Commander Rear Panel Feature Function AUDIO OUT 3.5mm Mini Jack Connect to an unbalanced, stereo audio acceptor (see Section HDBT OUT RJ-45 Connector Connect to a compatible receiver, for example, the TP-580Rxr... -
Page 12: Connecting The Sid-X2N
Connecting the SID-X2N Switch off the power to all devices before connecting them to your SID-X2N. After connecting your SID-X2N connect the power to other devices. Figure 3: Connecting the SID-X2N Step-in Commander To connect the SID-X2N and the as illustrated in Figure 1. -
Page 13: Connecting The Remote Step-In Switch And Led
LEDs (see Section .3). 8. Connect the power adapter to the SID-X2N and to the mains power. Note: All LED supplies include a current limiting resistor and are designed to work with any standard LED. Connecting the Remote Step-In Switch and LED... -
Page 14: Connecting The Remote Select Switch And Led
You can connect a remote, contact closure, input selection switch to activate an input (momentary contact is sufficient to switch inputs), as well as an indicator LED to the terminal block on the rear panel of the SID-X2N. Figure 5 illustrates the connections from the terminal block to the switch and LED. -
Page 15: Connecting The Remote Input Selection Leds
Connecting the Remote Input Selection LEDs You can connect remote, input selection LEDS to the LED terminal block on the rear panel of the SID-X2N to indicate which is the active input. Figure 6 illustrates the connections from the terminal block to the LEDs. -
Page 16: Principles Of Operation
In last connected mode the SID-X2N selects the input based on which input was connected last. If the signal on this input is subsequently lost for any reason, the input with a live signal with the highest priority is selected automatically. -
Page 17: Audio Signal Control
Audio on Output On/Off On/Off On/Off 3.5mm mini jack On/Off Inserted HDMI/DP/DVI 3.5mm mini jack Not inserted Embedded HDMI/DP/DVI On/Off Inserted/Not inserted HDMI/DP Embedded HDMI/DP Inserted/Not inserted DVI Embedded DVI Inserted/Not inserted 3.5mm mini jack SID-X2N - Principles of Operation... -
Page 18: Operating The Sid-X2N
Locking the EDID (see Section 7.2) Powering up the SID-X2N recalls the last settings (that is, the configuration of the device when it was powered down) from the non-volatile memory. Selecting an Input Manually To select an input, press the INPUT SELECT button repeatedly until the required input is active as indicated by the associated LED. -
Page 19: Configuring And Maintaining The Sid-X2N
For future use Note: DIP-switch 2 must be set to ON to enable DIP-switch 3 to control the DVI audio mode selection. SID-X2N - Configuring and Maintaining the SID-X2N... -
Page 20: Wiring The Twisted Pair Rj-45 Connectors
Brown Pair 1 4 and 5 Pair 2 1 and 2 Pair 3 3 and 6 Warning: Using a TP cable that is incorrectly wired will cause permanent damage to the device SID-X2N - Wiring the Twisted Pair RJ-45 Connectors... -
Page 21: Technical Specifications
DIMENSIONS: mountable WEIGHT: 0.48kg (1.1lbs) approx. INCLUDED Power adapter ACCESSORIES: 19“ Rack adapter RK-T2B, RTBUS-12, RTBUS-22, SID-X1BP Kit OPTIONS: (substitute black top plate for the SID-X1N to blend in with the color of the modular TBUS-10xl) SID-X2N - Technical Specifications... -
Page 22: Default Edid
Default EDID Each input on the SID-X2N is loaded with a factory default EDID. 11.1 HDMI, DisplayPort and DVI Monitor Model name....SID-X2N Manufacturer..... KRM Plug and Play ID..KRM1200 Serial number.... 505-709990100 Manufacture date..2011, ISO week 255 ------------------------- EDID revision.... -
Page 23: Pc-Uxga
Screen size....520 x 320 mm (24.0 in) Power management..Standby, Suspend, Active off/sleep Extension blocs..None ------------------------- DDC/CI....n/a Color characteristics Default color space..sRGB Display gamma.... 2.20 Red chromaticity..Rx 0.674 - Ry 0.319 SID-X2N - Default EDID... - Page 24 CE vendor specific data (VSDB) IEEE registration number. 0x000C03 CEC physical address..1.1.0.0 Maximum TMDS clock..165MHz CE speaker allocation data Channel configuration..2.0 Front left/right..Yes Front LFE....No Front center..... No Rear left/right..No SID-X2N - Default EDID...
- Page 25 Rear center....No Front left/right center.. No Rear left/right center... No Rear LFE....No Raw data 00,FF,FF,FF,FF,FF,FF,00,2E,4D,00,12,01,01,01,01,FF,15,01,03,6E,34,20,78,EE,B3,25,AC,51,30,B4,26, 10,50,54,A5,4B,00,81,80,A9,40,71,4F,01,01,01,01,01,01,01,01,01,01,01,1D,00,72,51,D0,1E,20,6E,28, 55,00,07,44,21,00,00,1E,00,00,00,FF,00,35,30,35,2D,37,30,39,39,39,30,31,30,30,00,00,00,FC,00,53, 49,44,2D,4D,55,4C,54,49,00,00,00,00,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,00,A0, 02,03,1B,F1,48,10,05,84,03,02,07,16,01,23,09,07,07,65,03,0C,00,11,00,83,01,00,00,02,3A,80,18,71, 38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01, 1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21, 00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,46 SID-X2N - Default EDID...
-
Page 26: Protocol 3000
Protocol 3000 The SID-X2N can be operated using serial commands from a PC, remote controller or touch screen using the Kramer Protocol 3000. This section describes: Kramer Protocol 3000 syntax (see Section 12.1) Kramer Protocol 3000 commands (see Section 12.2) - Page 27 CRLF – For device messages; carriage return (ASCII 13) + line-feed (ASCII 10) Command chain separator character When a message string contains more than one command, a pipe ( '|' ) character separates each command. Spaces between parameters or command terms are ignored. SID-X2N - Protocol 3000...
- Page 28 You can directly enter all commands using a terminal with ASCII communications software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial or Ethernet port on the Kramer device. To enter CR press the Enter key. ( LF is also sent but is ignored by command parser).
-
Page 29: Kramer Protocol 3000 Commands
For a full description of the commands, see the Kramer Protocol 3000 document available from http://www.kramerelectronics.com. Note: The SID-X2N can only receive commands from a device, (for example, an HDBT receiver) via the HDBaseT link, and only at 9600bps. Command... - Page 31 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
