Kramer SWT3-31-HU Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

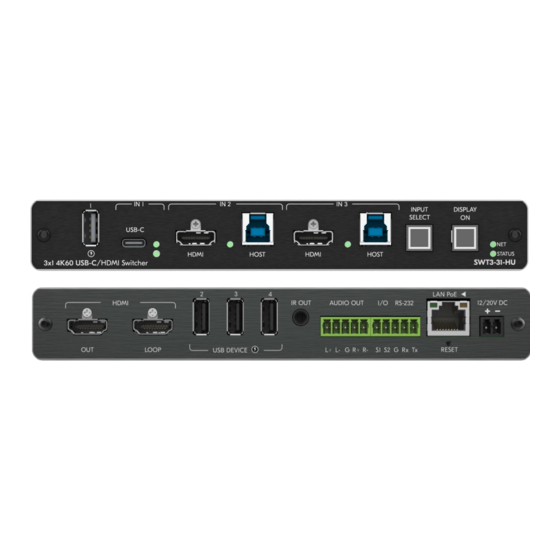

SWT3-31-HU 3x1 4K60 USB-C/HDMI Switcher
1 Bracket set

Step 2: Get to know your SWT3-31-HU

# Feature
1 USB Type A Port
2 USB-C IN 1 Port
3 IN Status LED 1 to 3
(per input port)
4 IN Ports HDMI
(2 and 3)
HOST USB B
5
3.1 Connector
6 INPUT SELECT Button
7 DISPLAY ON Button
8 NET LED
9 STATUS LED
SWT3-31-HU Quick Start
SWT3-31-HU Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/SWT3-31-HU
firmware upgrades are available.
Function
Connect to the USB local devices (for example, a USB PTZ camera).
Connect to a USB-C AV source (that supports DisplayPort Alternate Mode). Charges the
connected source (that supports USB Power Delivery 2.0) up to 60W when the device is
powered via the power adapter. While charging, the charging icon (to the right of the
connector) becomes visible and lights orange.
LED Status Indicates
Lights blue An input is selected and connected with an active AV or AV+USB source.
Flashes blue An input is selected and has no active AV signal.
Lights blue An input is selected and connected with an active USB host only (no AV).
Off An input is not selected and has an active AV signal.
Connect to an HDMI source.
Connect to a USB host (for example, a room PC) to communicate with the USB devices (for
example, a PTZ camera) connected on this device.
Press to select an input.
Press to turn display on/off. You can also configure button functionality via UI.
LED Status
Dark
Lights green
Flashes green for 60s A means to identify the device in a system.
Flashes red/green
Flashes red
LED Status
Dark
lights white
Lights blue
Lights green
SWT3-31-HU for the first time.
to download the latest user manual and check if
1 Power adapter and cord
Indicates
No IP address acquired.
A valid IP address has been acquired.
IP fallback address has been acquired.
IP address access has been blocked by security.
Indicates
Power is off
PSU-powered on (only).
Power is on and a source is connected.
Power is on, and a source and an acceptor are connected.
P/N: 2 9 0 0 - 3 0 1 5 8 6 QS
4 Rubber feet
1 Quick start guide
Rev: 1
