Kramer SWT3-21-H Quick Start Manual

Step 1: Check what's in the box

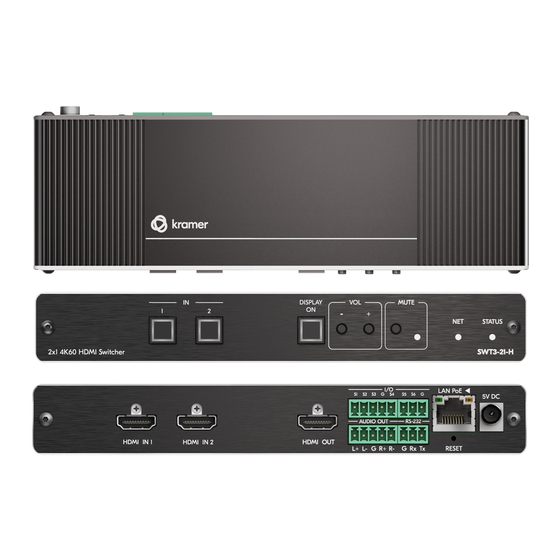

SWT3-21-H / SWT3-41-H HDMI Switcher
1 Power adapter and cord
Step 2: Get to know your SWT3-21-H, SWT-41-H
# Feature
IN Buttons
1
2 DISPLAY ON Button
VOL Push -
Buttons
3 +
MUTE Push Button
4 LED
5 NET LED
6 STATUS LED
7 HDMI IN Connectors
8 HDMI OUT Connector
9 AUDIO OUT 5-pin Terminal Block
Connector
SWT3-21-H, SWT-41-H Quick Start
SWT3-21-H and
This guide helps you install and use your
Go to www.kramerav.com/downloads/SWT3-21-H, SWT-41-H
check if firmware upgrades are available.
Function
Press to select an HDMI input (LED button lights orange). (2 for SWT3-21-H, 4 for
SWT3-41-H).
When referring to
SWT3-21-H.
Press to turn display On (LED button lights orange) or Off.
Press to decrease audio output volume.
Press to increase audio output volume.
Press to MUTE and press again to UNMUTE
Lights red when audio output is muted.
LED Status
Dark
Lights green
Flashes green for 60s
Flashes red/green
LED Status
Dark
lights white
Lights green
Lights blue
Connect to an HDMI source (2 for SWT3-21-H, 4 for SWT3-41-H).
Connect to an HDMI acceptor.
Connect to a balanced stereo audio acceptor.
SWT3-41-H Quick Start Guide
SWT3-21-H, SWT-41-H for the first time.
1 Bracket set
4 Rubber feet
SWT3-41-H in this document, it also applies to
P/N: 2 9 0 1 - 3 0 1 6 0 5 QS
to download the latest user manual and
1 Quick start guide
Indicates
No IP address acquired.
A valid IP address has been acquired.
A means to identify the device in a
system, using command #IDV.
IP fallback address has been acquired.
Indicates
Power is off
PSU-powered on (only).
Note: This is applicable when power
supply is PoE mode.
Power is on and an active source and
acceptor are connected.
Power is on and an active source is
connected.
Rev: 1
