Kramer SWT3-31-HU Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

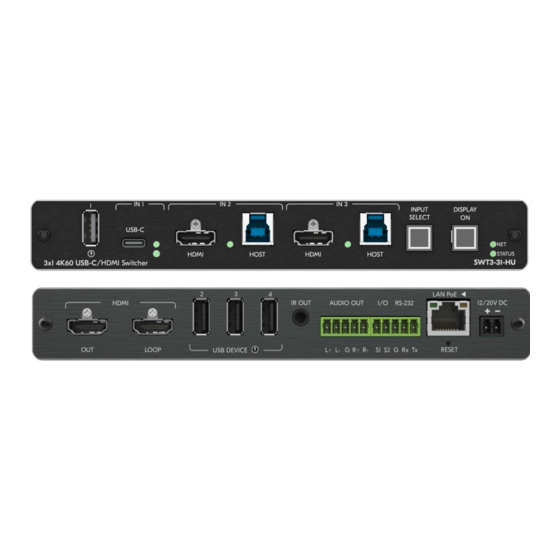

SWT3-31-HU 3x1 4K60 USB-C/HDMI Switcher
1 Bracket set
Step 2: Get to know your SWT3-31-HU
# Feature
1 USB Type A Port
2 USB-C IN 1 Port
3 IN Status LED 1 to 3
(per input port)
4 IN Ports HDMI
(2 and 3)
HOST USB B
5
3.1 Connector
6 INPUT SELECT Button
7 DISPLAY ON Button
8 NET LED
9 STATUS LED
SWT3-31-HU Quick Start
SWT3-31-HU Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/SWT3-31-HU
firmware upgrades are available.
Function
Connect to the USB local devices (for example, a USB PTZ camera).
Connect to USB-C AV sources:
•
that support DisplayPort Alternate Mode, for example, a laptop) to share content.
•
to communicate with the USB devices (for example, a PTZ camera) that are
connected to the device,
•
to connect to the LAN
•
to charge the connected sources (that supports USB Power Delivery 2.0).
While charging, the charging icon (to the right of the connector) becomes visible
and lights orange.
LED Status Indicates
Lights blue An input is selected and connected with an active AV or AV+USB source.
Flashes blue An input is selected and has no active AV signal.
Lights blue An input is selected and connected with an active USB host only (no AV).
Off An input is not selected and has an active AV signal.
Connect to an HDMI source.
Connect to a USB host (for example, a room PC) to communicate with the USB devices (for
example, a PTZ camera) connected on this device.
Press to select an input. Each press toggles to the next input.
Press to turn display On/Off.
Button LED lights on sending Display On message.
Button LED turns off on sending Display Off message.
LED Status
Dark
Lights green
Flashes green for 60s A means to identify the device in a system, using command #IDV.
Flashes red/green
LED Status
Dark
SWT3-31-HU for the first time.
to download the latest user manual and check if
1 Multi signal USB-C cable (1m)
1 Power adapter and cord
Indicates
No IP address acquired.
A valid IP address has been acquired.
IP fallback address has been acquired.
Indicates
Power is off
P/N: 2 9 0 0 - 3 0 1 6 7 7 QS
4 Rubber feet
1 Quick start guide
Rev: 5
