Kramer SWT3-41-U-T Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

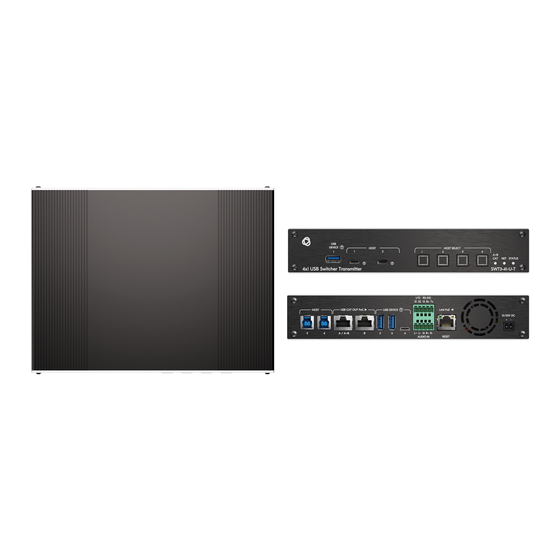

SWT3-41-U-T 4x1 USB Switcher
1 Power adapter and cord
Step 2: Get to know your SWT3-41-U-T
# Feature
1 USB DEVICE USB A 3.2 Ports
2 HOST on USB-C 3.2 ports (1 to
2)
3 HOST SELECT Buttons (1 to 4)
4 A+B CAT LED
5 NET LED
6 STATUS LED
SWT3-41-U-T Quick Start
SWT3-41-U-T Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/SWT3-41-U-T
firmware upgrades are available.
Function
Connect to the USB local peripheral devices (for example, a USB camera, a
soundbar, microphone and so on).
Connect to a USB-C host (for example, a room PC) to communicate with the USB
devices (for example, a PTZ camera) that are connected to the USB device ports
and connect to the LAN.
For Host 1 only: Charges the connected host (that supports USB Power Delivery
2.0) up to 60W when the device is powered via the optional 12V DC power
adapter. While charging, the charging icon (to the right of the connector) becomes
visible and lights orange.
Press to select a host.
LED Status
Lights green
LED Status
Dark
Lights green
Flashes green for 60s
Flashes red/green
LED Status
Dark
lights white
Lights yellow
SWT3-41-U-T
for the first time.
to download the latest user manual and check if
1 Bracket set
4 Rubber feet
Indicates
When dual CAT combined signals are sent over the A+B
port.
When using CAT splitter, make sure the Dual CAT
extension is set to active via SWT3-41-U-T
embedded webpages. Refer to SWT3-41-U-T User
Manual.
Indicates
No IP address acquired.
A valid IP address has been acquired.
A means to identify the device in a system, using
command #IDV.
IP fallback address has been acquired.
Indicates
Power is off
PSU-powered on (only).
This is applicable when power supply is PoE mode.
PoE-powered on.
P/N: 2 9 0 0 - 3 0 1 7 0 7 QS
1 Quick start guide
1 Multi-signal USB-C cable (1m)
Rev: 5
