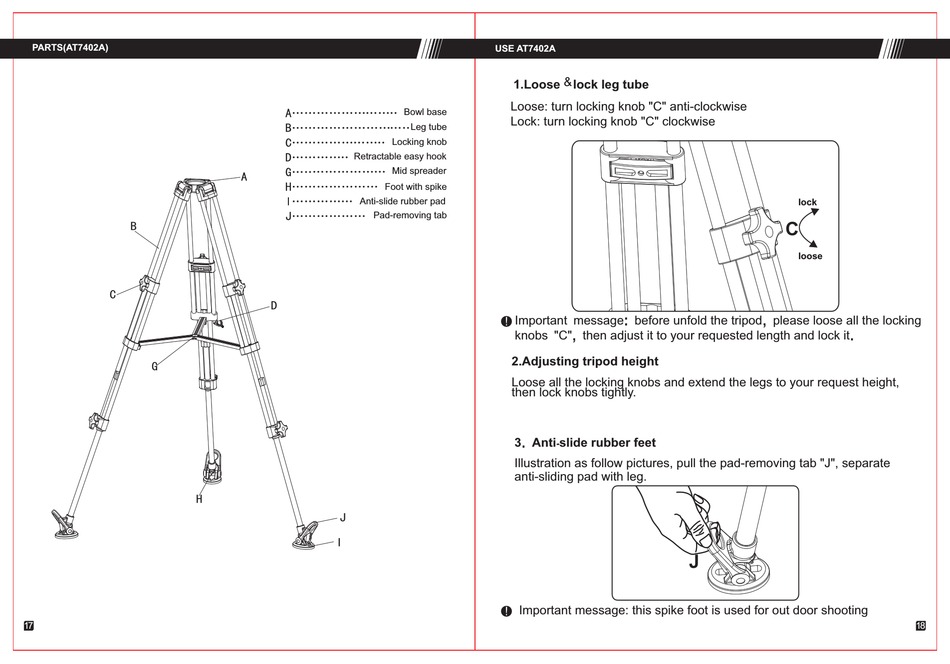

PARTS(AT7402A)

B
C
G
H
17
Bowl base
Leg tube
Locking knob
Retractable easy hook
Mid spreader
A
Foot with spike
Anti slide rubber pad -
Pad-removing tab
D
J
I

USE AT7402A

&

1.Loose lock leg tube

Loose: turn locking knob "C" anti-clockwise
Lock: turn locking knob "C" clockwise
Important message: before unfold the tripod, please loose all the locking
, then adjust it to your requested length and lock it.
knobs "C"

2.Adjusting tripod height

Loose all the locking knobs and extend the legs to your request height,
then lock knobs tightly.
3. Anti slide rubber feet
-
Illustration as follow pictures, pull the pad-removing tab "J", separate
anti-sliding pad with leg.
Important message: this spike foot is used for out door shooting
෭ࣅ
lock
C
loose
J
18
