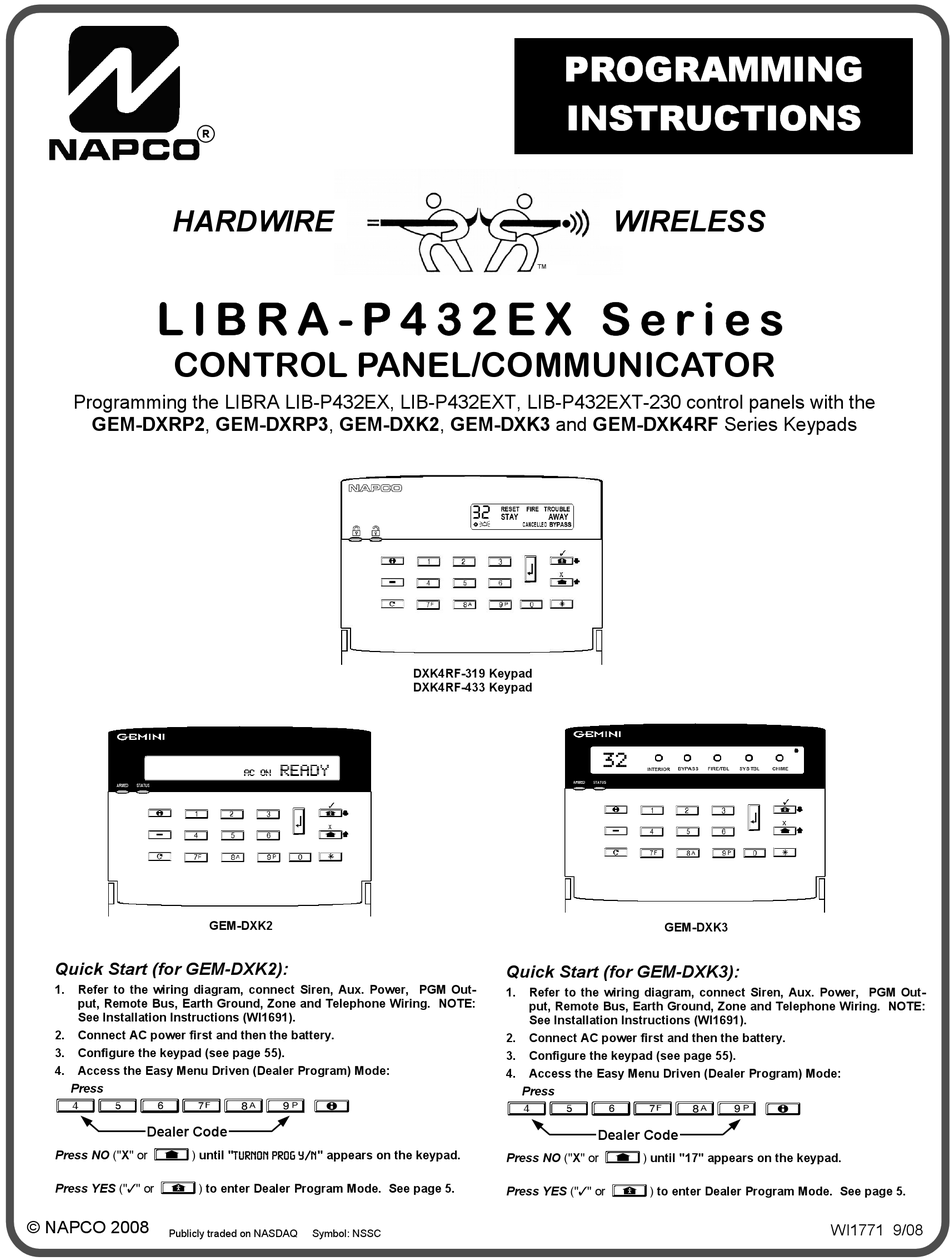

R
HARDWIRE
L I B R A - P 4 3 2 E X S e r i e s
CONTROL PANEL/COMMUNICATOR
Programming the LIBRA LIB-P432EX, LIB-P432EXT, LIB-P432EXT-230 control panels with the
GEM-DXRP2, GEM-DXRP3, GEM-DXK2, GEM-DXK3 and GEM-DXK4RF Series Keypads
Quick Start (for GEM-DXK2):
1.
Refer to the wiring diagram, connect Siren, Aux. Power, PGM Out-
put, Remote Bus, Earth Ground, Zone and Telephone Wiring. NOTE:
See Installation Instructions (WI1691).
2.
Connect AC power first and then the battery.
3.
Configure the keypad (see page 55).
4.
Access the Easy Menu Driven (Dealer Program) Mode:
Press
456789 w
Dealer Code
Press NO ("X" or q) until "TURNON PROG Y/N" appears on the keypad.
Press YES ("r" or p) to enter Dealer Program Mode. See page 5.
© NAPCO 2008
Publicly traded on NASDAQ
GEM-DXK2
Symbol: NSSC
PROGRAMMING
INSTRUCTIONS
™
DXK4RF-319 Keypad
DXK4RF-433 Keypad
Quick Start (for GEM-DXK3):
1.
Refer to the wiring diagram, connect Siren, Aux. Power, PGM Out-
put, Remote Bus, Earth Ground, Zone and Telephone Wiring. NOTE:
See Installation Instructions (WI1691).
2.
Connect AC power first and then the battery.
3.
Configure the keypad (see page 55).
4.
Access the Easy Menu Driven (Dealer Program) Mode:
Press
456789 w
Press NO ("X" or q) until "17" appears on the keypad.
Press YES ("r" or p) to enter Dealer Program Mode. See page 5.
WIRELESS
32
GEM-DXK3
Dealer Code
WI1771 9/08
