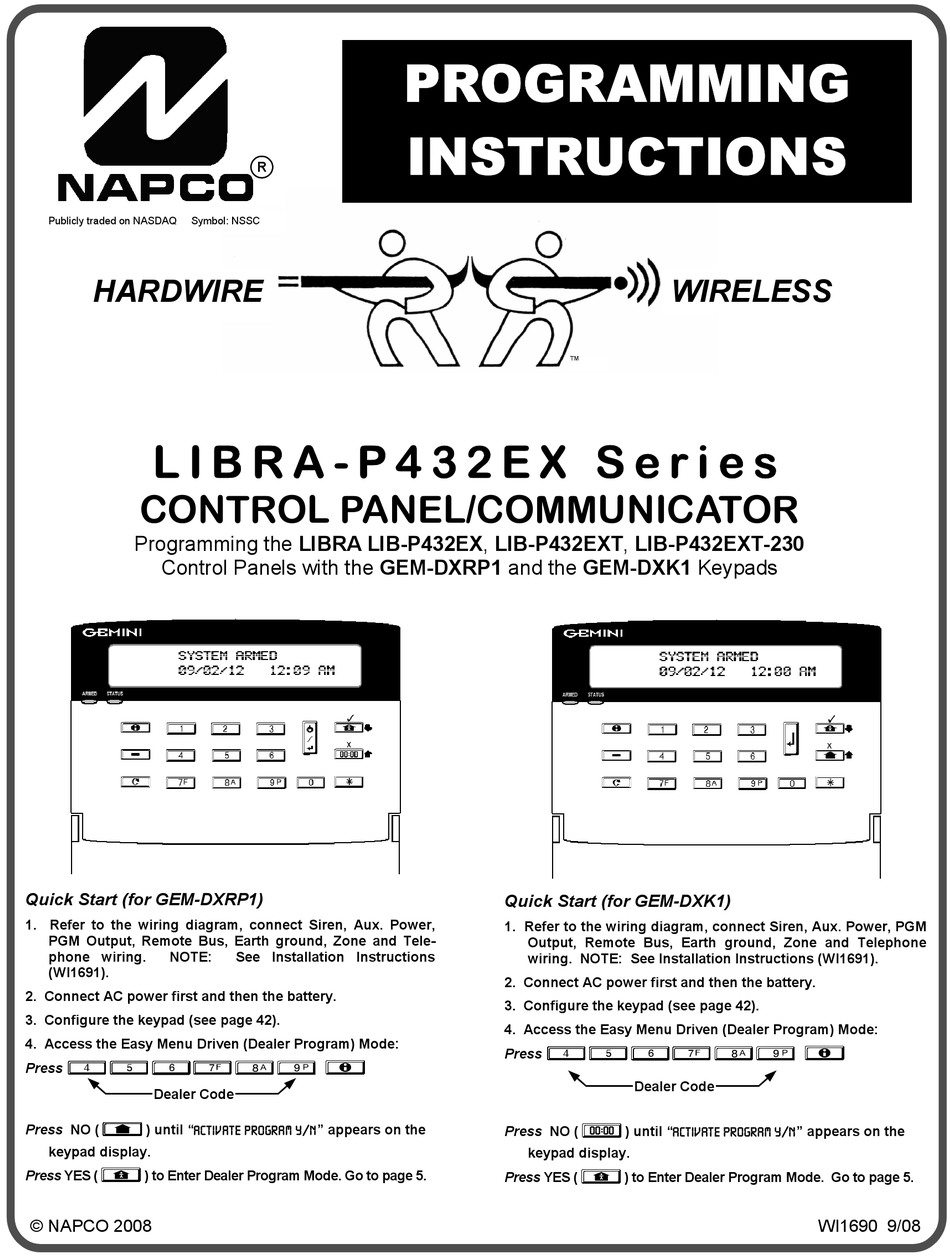

L I B R A - P 4 3 2 E X S e r i e s
CONTROL PANEL/COMMUNICATOR
Programming the LIBRA LIB-P432EX, LIB-P432EXT, LIB-P432EXT-230
Control Panels with the GEM-DXRP1 and the GEM-DXK1 Keypads
Quick Start (for GEM-DXRP1)
1. Refer to the wiring diagram, connect Siren, Aux. Power,
PGM Output, Remote Bus, Earth ground, Zone and Tele-
phone wiring.
NOTE:
(WI1691).
2. Connect AC power first and then the battery.
3. Configure the keypad (see page 42).
4. Access the Easy Menu Driven (Dealer Program) Mode:
Press
456789
Dealer Code
Press NO (q) until "ACTIVATE PROGRAM Y/N" appears on the
keypad display.
Press YES (p) to Enter Dealer Program Mode. Go to page 5.
© NAPCO 2008
PROGRAMMING
INSTRUCTIONS
R
See Installation Instructions
w
WIRELESS
™
Quick Start (for GEM-DXK1)
1. Refer to the wiring diagram, connect Siren, Aux. Power, PGM
Output, Remote Bus, Earth ground, Zone and Telephone
wiring. NOTE: See Installation Instructions (WI1691).
2. Connect AC power first and then the battery.
3. Configure the keypad (see page 42).
4. Access the Easy Menu Driven (Dealer Program) Mode:
Press
456789
Dealer Code
Press NO (z) until "ACTIVATE PROGRAM Y/N" appears on the
keypad display.
Press YES (p) to Enter Dealer Program Mode. Go to page 5.
w
WI1690 9/08

Advertisement
