Summary of Contents for Jura E8

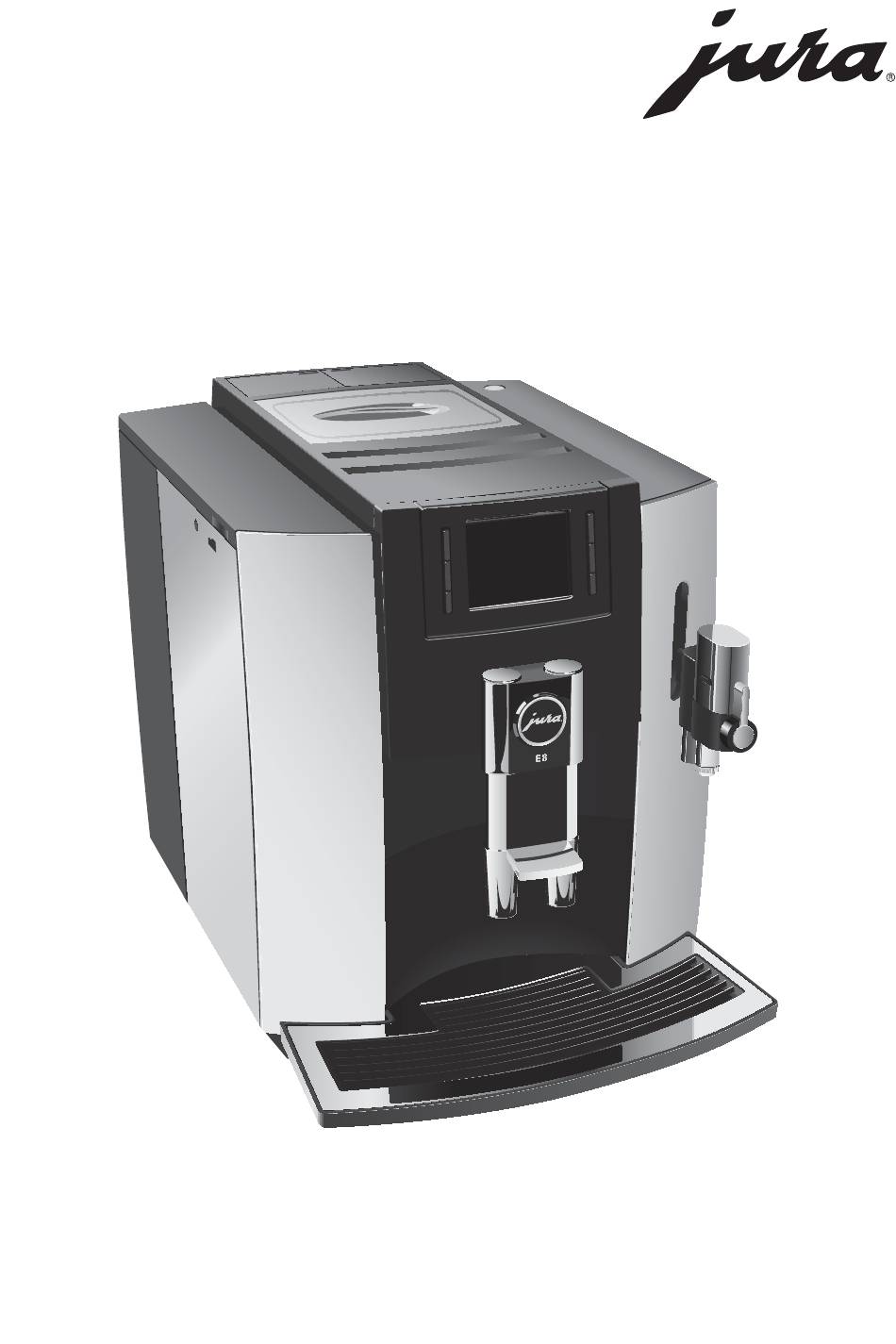

  • Page 1 E8/E80 Instructions for Use...
  • Page 2: Table Of Contents

    Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the bean container ...........................10 Determining the water hardness ......................10 First-time use ..............................11 Connecting milk ............................
  • Page 3 CAUTION draws your attention to potential damage to the machine. Symbols used Prompt to take action. This symbol means that you are being prompted to perform some action. Information and tips to make it even easier to use your E8. ‘Coffee’ Display...
  • Page 4: Control Elements

    Control elements Control elements Filler funnel cover Cover cap for grinder adjustment switch Filler funnel for ground coffee Grinder adjustment switch Bean container with On/Off button Q aroma preservation cover Milk system with Water tank cover professional fine foam frother Water tank Height-adjustable coffee spout Mains cable  (back of the machine)
  • Page 5 Control elements Display Multi-function buttons (button function depends on what is shown in the display) Service socket for JURA Smart Connect (Smart Fine foam frother (used in different Connect is not included in all model variants) model variants) Accessories Container for milk system cleaning...
  • Page 6: Important Information

    For models with a permanently connected mains cable: If the mains cable of this machine is damaged, it must be repaired either directly by JURA or by an authorised JURA service cen- tre. For models with a disconnectable mains cable:...
  • Page 7 Important information which is available directly from JURA or from authorised JURA service centres. Make sure that the E8 and the mains cable are not located close to hot surfaces. Be careful to ensure that the mains cable is not trapped and does not rub against sharp edges.
  • Page 8 Do not immerse the E8, mains cable or con- nections in water. Do not put the E8 or any individual parts in the dishwasher. Before cleaning, switch your E8 off with the On/Off button. Always wipe the E8 with a damp cloth rather than a wet one, and protect it from prolonged exposure to water splash.
  • Page 9 Important information Do not allow children to play with the machine. Keep children under the age of 8 away from the machine, or supervise them constantly. Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely.
  • Page 10: Preparing And Using For The First Time

    Setting up the machine When setting up your E8, please note the following: Place the E8 on a horizontal surface that is not sensitive to water. Choose a spot for your E8 which protects the machine against overheating.
  • Page 11: First-Time Use

    T  Only fill the water tank with fresh, cold water. Precondition: The bean container has been filled. T  Insert the mains plug into a power socket. T  Press the On/Off button Q to switch the E8 on. ‘Sprachauswahl’ E To display more languages, press the ‘ ...
  • Page 12 T  Place a receptacle under the coffee spout. ‘Machine is heating’ ‘Machine is rinsing’, the system is rinsed. The rinse stops automatically. The start screen is displayed. Your E8 is ready for use. E The start screen shows the products you can prepare. Press ‘ > ’...
  • Page 13: Connecting Milk

    T  Connect the other end of the milk pipe to a milk container or immerse it in a milk carton. Connect accessory (with You have the option of connecting your E8 wirelessly to a compat- wireless connection) ible accessory (e.g. the Cool Control Wireless milk cooler). To do this, the receiver of the Cool Control or the JURA Smart Connect must be plugged into the service socket.
  • Page 14: Preparation

    – and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. You can make permanent settings for all products in programming mode (see Chapter 4 ‘Permanent settings in programming mode –...
  • Page 15: Ristretto, Espresso And Coffee

    Coffee preparation starts. The preset amount of water for espresso flows into the glass. Preparation stops automati- cally. Your E8 is once more ready for use. To ensure that the fine foam frother always works properly, you must clean it daily when you have been preparing milk (see Chap- ter 5 ‘Maintenance –...
  • Page 16: Two Ristretti, Two Espressi And Two Coffees

    ‘2 espressi’ appears and the preset amount of water flows into the cups. Preparation stops automatically. Your E8 is once more ready for use. Espresso doppio ‘Doppio’ is Italian for ‘double’. When you prepare an espresso dop- pio, two espressi are dispensed one after the other. The result is an extra full-bodied and aromatic speciality coffee.
  • Page 17: Ground Coffee

    E The desired speciality coffee must be prepared within approx- imately one minute after filling with the ground coffee. Oth- erwise the E8 stops the operation and is once more ready for use. All speciality coffees with ground coffee are always prepared follow- ing the same model.
  • Page 18: Permanently Setting The Amount Of Water For The Cup Size

    ‘Saved’ appears briefly on the display. The set amount of water for one coffee is permanently stored. Your E8 is once more ready for use. E You can alter this setting at any time by repeating the above procedure. E You can also permanently set the amounts for all single prod- ucts in programming mode (see Chapter 4 ‘Permanent set-...
  • Page 19: Hot Water

    The preset amount of water flows into the cup. Preparation stops automatically. T  Close the cover of the grinder adjustment switch. Hot water The E8 allows you to prepare different variants of hot water: ‘Hot water’ ‘Hot water for green tea’.
  • Page 20: Daily Operation

    The rinse stops automatically. Your E8 is ready for use. Daily maintenance To ensure that you get many years of reliable service out of your E8 and to guarantee the optimum coffee quality, the machine requires daily maintenance.
  • Page 21: Regular Maintenance

    Traces of milk and coffee may stick to the top and bottom of the cup grille. If this happens, clean the cup grille. Switching off the When the E8 is switched off, the system is automatically rinsed if a machine speciality coffee has been prepared. If milk has been prepared, you will also be prompted to clean the milk system.
  • Page 22: Permanent Settings In Programming Mode

    T Select your language. ‘Units’ T Select the unit for the amount of water. ‘Switch off after’ T Set the time after which the E8 should switch off automatically. ‘Rinse the milk system’ T Change the setting for the milk system rinsing.
  • Page 23 4 Permanent settings in programming mode Product Coffee strength Amount Temperature Cappuccino, 8 levels Coffee: 25 ml – 240 ml normal, high Flat white Milk: 3 sec. – 120 sec. Latte macchiato 8 levels Coffee: 25 ml – 240 ml normal, high Milk: 3 sec. – 120 sec. Interval: 0 sec. – 60 sec. Espresso macchiato 8 levels Coffee: 15 ml – 80 ml normal, high Milk: 3 sec. – 120 sec.
  • Page 24: Automatic Switch-Off

    T  Press the ‘’ button to exit programming mode. Setting the water The harder the water is, the more frequently the E8 needs to be hardness descaled. It is therefore important to set the water hardness accu- rately. The water hardness was set when the machine was first used. You can change this setting at any time.
  • Page 25: Milk System Rinsing

    4 Permanent settings in programming mode Milk system rinsing In the programme item ‘4/5’ ‘Rinse the milk system’ you can make the following settings: ‘Manual’: You are prompted to perform milk system rinsing 10 minutes after preparation of a speciality coffee with milk. ‘Automatic’: The milk system rinsing is automatically initiated 10 minutes after preparation of a speciality coffee with milk.
  • Page 26: Language

    4 Permanent settings in programming mode Language Example: Proceed as follows to change the language from ‘English’ to ‘Deutsch’. T  Press the ‘ Pc ’ button. T  Press the ‘ > ’ button several times until ‘4/5’ is displayed. T  Press the ‘Choose language’ button. ‘Choose language’...
  • Page 27: Maintenance

    The operation stops automatically. Rinsing the fine foam After each milk preparation, the E8 prompts you to perform a milk frother system rinse. E In programming mode, you can set whether the milk system rinsing is to be prompted 10 minutes after preparation or initi- ated automatically (see Chapter 4 ‘Permanent settings in pro-...
  • Page 28: Cleaning The Fine Foam Frother

    T  Use only original JURA maintenance products. E JURA milk system cleaner is available from specialised dealers. E To clean the milk system, use the container supplied. E This chapter applies to the professional fine foam frother and the fine foam frother.
  • Page 29: Dismantling And Rinsing The Professional Fine Foam Frother

    T  Rinse all the parts under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in a solution of 250 ml cold water and 1 capful of JURA milk system cleaner. Then rinse the parts thoroughly.
  • Page 30: Dismantling And Rinsing The Fine Foam Frother

    T  Rinse all the parts under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in a solution of 250 ml cold water and 1 capful of JURA milk system cleaner. Then rinse the parts thoroughly.
  • Page 31: Inserting/Changing The Filter

    T  Re-fit the fine foam frother on the milk system. Inserting/changing the Your E8 no longer has to be descaled if you are using the CLARIS filter Smart filter cartridge. E Once the filter cartridge stops working (depending on the water hardness setting), the E8 will prompt you to change the filter.
  • Page 32: Cleaning The Machine

    Rinsing of the filter stops automatically. The start screen is displayed. Cleaning the machine After 180 preparations or 80 switch-on rinses, the E8 will prompt you to clean it. If the wrong cleaning agent is used, the machine could be damaged CAUTION and/or traces could be left behind in the water.
  • Page 33: Descaling The Machine

    5 Maintenance Descaling the machine The E8 builds up deposits of limescale over time and automatically prompts you to descale it when necessary. The degree of calcifica- tion depends on the hardness of your water. E If you are using a CLARIS Smart filter cartridge, you will not be prompted to descale.
  • Page 34 5 Maintenance T  Completely dissolve the contents of one blister (3 JURA des- caling tablets) in a receptacle holding 500 ml of lukewarm water. This may take several minutes. T  Pour the solution into the empty water tank and insert it into the machine.
  • Page 35: Cleaning The Bean Container

    T  Remove the water tank. T  If you use a CLARIS Smart filter cartridge, remove this. T  Completely fill the water tank and dissolve 3 JURA descaling tablets in it. T  Leave the water tank with the descaling solution for several hours (e.g.
  • Page 36: Display Messages

    (see Chapter 5 ‘Maintenance – display lights up red. Inserting/changing the filter’). ‘Clean machine’ The E8 is prompting you to T Perform cleaning (see Chapter 5 clean it. ‘Maintenance – Cleaning the machine’). ‘Decalcify machine’ The E8 is prompting you to T Perform descaling (see Chapter 5 descale it.
  • Page 37: Troubleshooting

    Q. Contact customer support in played. your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).
  • Page 38: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your E8. It should be used to protect the system machine during transport. In order to protect the E8 from frost during transport, the system must be emptied.
  • Page 39: Technical Data

    9 Technical data 9 Technical data Voltage 220–240 V ~, 50 Hz Power 1450 W Conformity mark Pump pressure static, max. 15 bar Holding capacity of water tank 1.9 l (without filter) Holding capacity of bean container 280 g Holding capacity of coffee grounds max. 16 portions container Cable length approx.
  • Page 40: Index

    10 Index 10 Index Addresses 44 Descaling Adjusting the product settings 22 Machine 33 Aroma preservation cover Water tank 35 Bean container with aroma preservation Display 5 cover 4 Display messages 36 Automatic switch-off 24 Disposal 38 Double product 16 Drip tray 4 Bean container Bean container with aroma preservation...
  • Page 41 Latte macchiato 14 Instant coffee Milk 16 Ground coffee 17 Milk foam 16 Internet 10 Ristretto 15 Two coffees 16 JURA Two espressi 16 Contact details 44 Two ristretti 16 Internet 10 Two speciality coffees 16 Problems Language 26 Troubleshooting 37...
  • Page 42 10 Index Technical data 39 Tel 44 Transport 38 Troubleshooting 37 Two products 16 Unit for amount of water 25 Use, First-time 11 Warm milk 16 Water hardness Determining the water hardness 10 Setting the water hardness 24 Water tank 4 Descaling 35 Filling 20 Website 10...
  • Page 44: Jura Contact Details / Legal Information

    J73888/E8/en/201805 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com. @ If you need assistance with using your machine, you can find this at www.jura.com/service.
