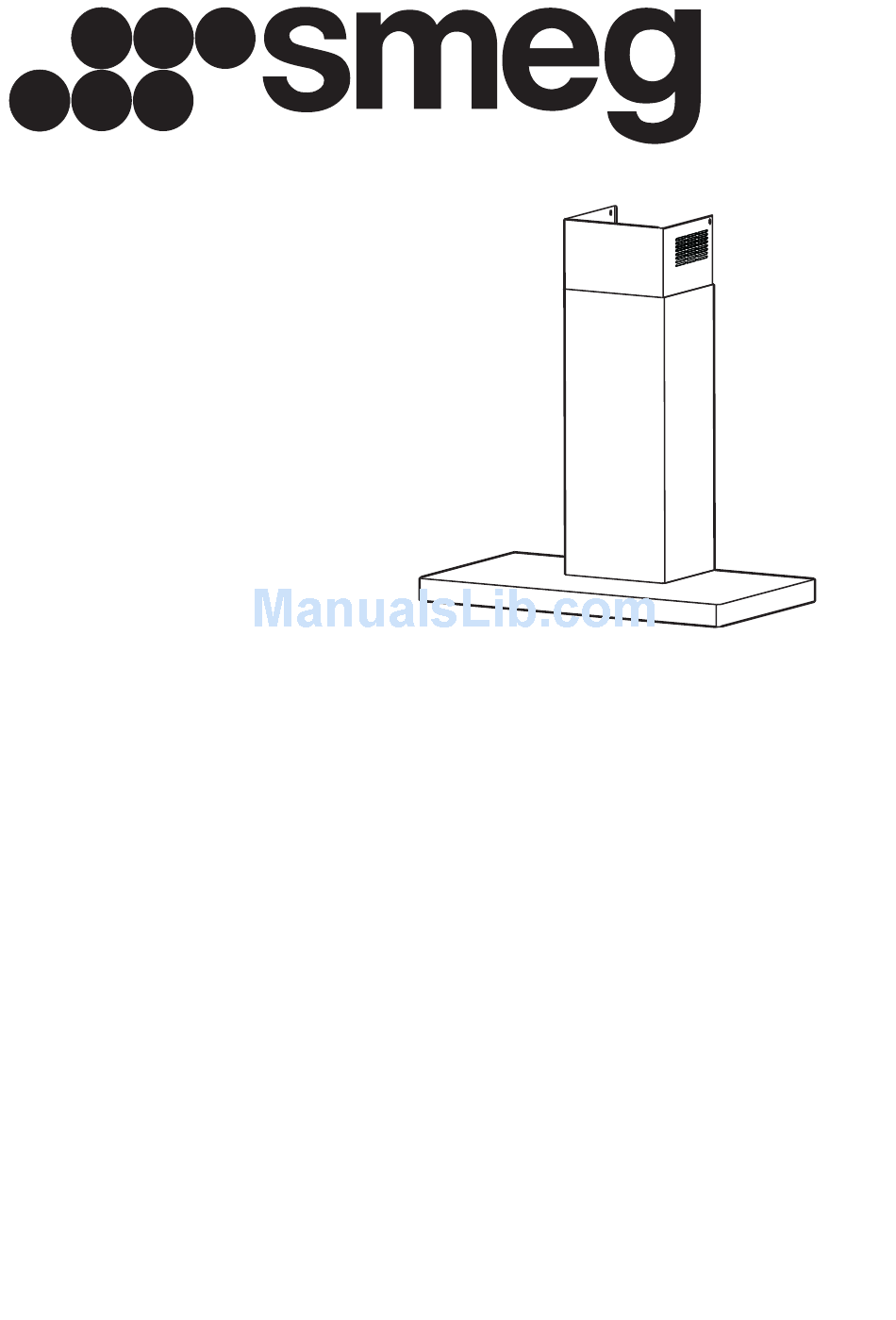

- Page 1 Libretto di Istruzioni Manuel d’Instructions Instructions Manual Gebruiksaanwijzing Bedienungsanleitung Bruksanvisning Manual de instrucciones Manual de Instruções Руководство по эксплуатации Brugsvejledning KSE951X2 - KSE912X2 – KSE912NX2...
-
Page 2: Table Of Contents
INDICE CONSIGLI E SUGGERIMENTI... 4 CARATTERISTICHE... 5 INSTALLAZIONE ... 6 USO... 9 MANUTENZIONE ... 10 SOMMAIRE CONSEILS ET SUGGESTIONS... 12 CARACTERISTIQUES... 13 INSTALLATION... 14 UTILISATION ... 17 ENTRETIEN... 18 INDEX RECOMMENDATIONS AND SUGGESTIONS ... 20 CHARACTERISTICS ... 21 INSTALLATION... 22 USE ... - Page 3 INDICE CONSEJOS Y SUGERENCIAS... 52 CARACTERÍSTICAS ... 53 INSTALACIÓN ... 54 USO... 57 MANTENIMIENTO ... 58 ÍNDICE CONSELHOS E SUGESTÕES... 60 CARACTERÍSTICAS ... 61 INSTALAÇÃO... 62 UTILIZAÇÃO ... 65 MANUTENÇÃO... 66 УКАЗАТЕЛЬ СОВЕТЫ И РЕКОМЕНДАЦИИ ... 68 ХАРАКТЕРИСТИКИ... 69 УСТАНОВКА... 70 ЭКСПЛУАТАЦИЯ...
-
Page 4: Installation
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or im- proper installation. -
Page 5: Characteristics
CHARACTERISTICS Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm Damper ø 150 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Air Outlet Connection Support... - Page 6 INSTALLATION Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 650 mm above the hob. •...
- Page 7 Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten the support screws 12a. • Adjust the screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the...
- Page 8 ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.
- Page 9 Button Function Turns the suction motor on/off. Decreases the working speed. Increases the working speed. Activate intensive speed from any other speed, in- cluding motor off. This speed is set to operate for 10 minutes, after which the system returns to the speed that was set before.
-
Page 10: Maintenance
MAINTENANCE Metal grease filters They can be washed in the dishwasher, and need to be cleaned whenever the FG sign appears on the display or at least once every 2 months use, or more frequently if use is particularly intensive. Resetting the alarm signal •... -
Page 11: Installation
Activated Charcoal Filter (Recirculation Version) It cannot be washed or regenerated, and must be changed when the FC symbol on the display appears, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on. Activating the alarm signal •...
