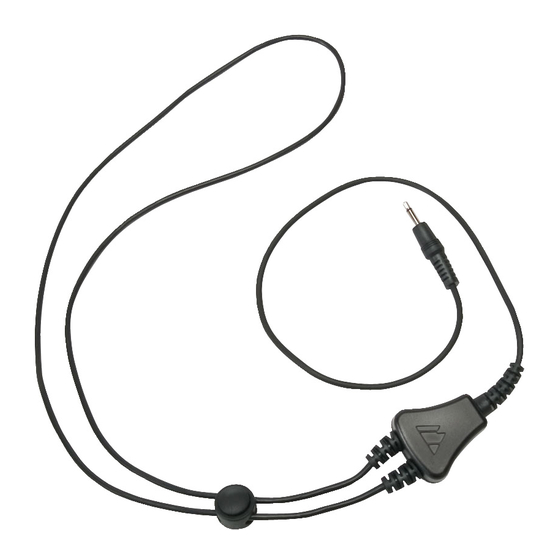

Neckloop Telecoil Coupler
The NKL 001 Neckloop is designed to
magnetically couple the audio output from a
Williams Sound unit into a hearing aid equipped
with a telephone coil. It will also work with any
audio device which has a 8-16 Ohm audio
output through a 3.5mm jack. The neckloop
works only with hearing aids equipped with a
telephone coil (T-Switch).
SAFETY
BREAKAWAY
CORD LOCK
Instructions For Use
MAN 078L
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Williams Sound NKL 001
Summary of Contents for Williams Sound NKL 001
- Page 1 Neckloop Telecoil Coupler Instructions For Use The NKL 001 Neckloop is designed to magnetically couple the audio output from a Williams Sound unit into a hearing aid equipped with a telephone coil. It will also work with any audio device which has a 8-16 Ohm audio output through a 3.5mm jack.
- Page 2 4. Turn the switch on your hearing aid to the “T” position and adjust the volume for comfortable listening. 5. If the sound is weak, increase the volume on the Williams Sound unit, then on your hearing aid. How the Neckloop Works The neckloop is a miniature audio induction loop worn around a user’s neck.
- Page 3 Safety Breakaway Feature Neckloop NKL 001 comes with a integrated safety breakaway device. In the event the neckloop cord becomes entangled with a object in motion, the breakaway device will disconnect the neckloop from the user.
-
Page 4: Specifications
Specifications Color: Black Weight: 1.5 oz Length: 18.5” cord Connector: 3.5 mm mono plug Impedance: 8-16 Ohms Input Power: 500 mW max Magnetic Field Strength: 25 mW input at 1000 Hz produces 1.7 A/m 6” above the center of loop 85µW input produces 0.1 A/m (IEC Standard) Approvals: RoHS, WEEE... -
Page 5: Limited Warranty
Williams Sound products are engineered, designed, and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the Neckloop Telecoil Coupler against defects in materials and workmanship for ONE (1) year. During the first year from the purchase date, we will promptly repair or replace the Neckloop Telecoil Coupler. - Page 6 Pack the system carefully and send it to: Williams Sound Attn: Repair Dept. 10300 Valley View Rd Eden Prairie, MN 55344 USA 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2012 Williams Sound, LLC MAN 078L...
