Vermont Castings 36CFDVNV Installation And Operating Instructions Manual
Direct vent gas fireplace
Hide thumbs
Also See for 36CFDVNV:
- Installation and operating instructions manual (60 pages) ,
- Installation and operating instructions manual (68 pages)
Table of Contents
Advertisement

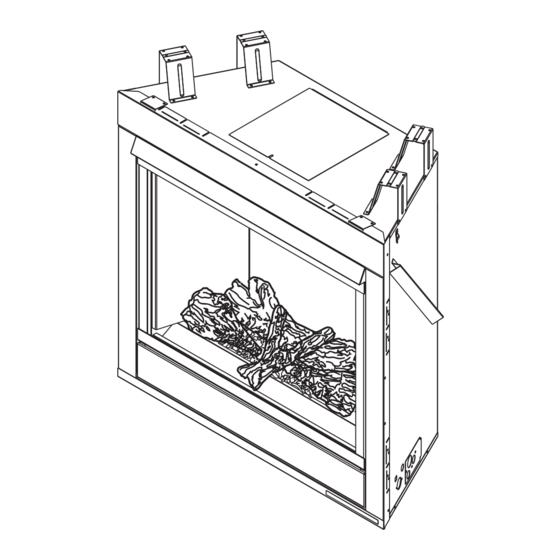

36CFDV Series
Direct Vent Gas Fireplace
Models:
36CFDVNV, 36CFDVPV
36CFDVNI, 36CFDVPI
WARNING: If the information in these
instructions are not followed exactly, a fire or
explosion may result causing property damage,
personal injury or loss of life.
–
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
–
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
–
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
WARNING: Improper installation, adjustment,
alteration, services or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information
consult a qualified installer, service agency or
the gas supplier.
This appliance may be installed in an aftermarket*,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases,
unless a certified kit is used.
* Aftermarket: Completion of sale, not for purpose of
resale, from the manufacturer.
Installation and Operating
Instructions
5832
36CFDV cover
WARNING
AVERTISSEMENT
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future refer-
ence.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitré avant d'y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
20305832 3/14 Rev. 1
