US Robotics 5686E Quick Installation Manual

56K Faxmodem
Quick Installation Guide
Int roducti on
Package Contents
USRobotics 56K Faxmodem USRobotics Installation CD-ROM
" "
" Telephone cable " Power adapter
" Quick Installation Guide

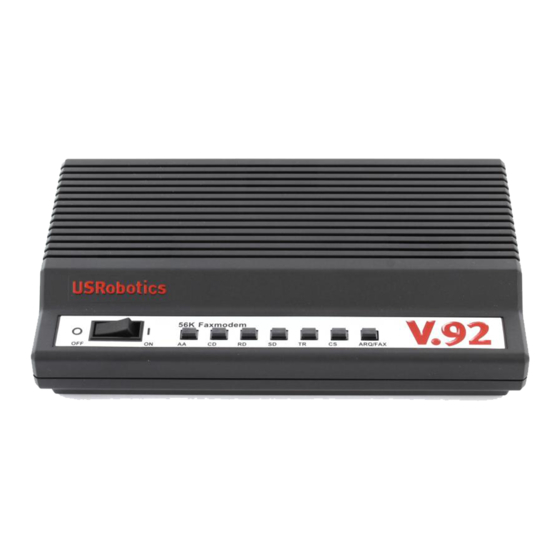

Physical Features
V.92
OFF ON AA CD RD SD TR CS ARQ/FAX
Power switch LEDs
1 2 3 4 5 6 7 8
Line to DIP Serial Port Power
Line to
jack
wall jack telephone switches
Volume dial
LEDs
For more detail on the LEDs, see the User Guide on the USRobotics Installation CD-
ROM.
LED Name State Condition
Auto Answer On Answering a call
AA
Blinking Incoming call
Carrier On Receiving carrier signal from remote modem
CD
Detect
Received Blinking Sending or passing data with remote modem
RD
Data
Send Data On Receiving a DTR signal from computer
SD
Terminal On DTR override is on
TR
Ready
Clear to Send On Modem is on and ready to send data
CS
Error Control On Successfully established an error control con-
ARQ/
nection
FAX
Blinking Transmitting data to remote modem
System Requirements
" , Windows®XP, 2000, Me, 98, 95B " CD-ROM drive
Windows Vista™
or NT 4.0
" 500 MHz Processor or higher " 128 MB RAM
" 56K Compatible analogue telephone line " RS-232 Serial modem cable
Installation
Step One: Prepare for Installation
1. Uninstall all other modems that are installed on your computer. For instructions,
refer to the documentation for your previous modem.
2. Unplug all telephone and power cords connected to your previous modem(s).
3. Shut down your computer and power it off.
4. Locate the serial port on the back of your computer. To find the serial port, look
for a port labeled COM, MODEM, RS-232, , or SERIAL. Do not use the
AUX, GAME, LPT, or PARALLEL ports.
Step Two: Connect the Modem to the Computer
Connect one end of the serial modem cable to modem and the other end to your
computer's serial port.
R24.0662.00
rev 1.4 7/07
Step Three: Connect the Modem to an Analogue Telephone Line
The 56K Faxmodem must be plugged in to an analogue phone line
C a u t i o n :
only. Plugging your 56K Faxmodem in to a digital phone line may
damage the modem.
Most office phones are wired through digital lines. Be sure you
know what type of line you have.
1. Plug one end of the telephone cord into the jack on the modem.
2. Plug the other end into an analogue telephone wall jack.
3. To connect a telephone through the modem, plug the telephone's cord into the
modem's jack.
Step Four: Power Up the Modem
1. Plug the power adapter into the jack on the modem and the other end into an
electrical outlet.
This product is intended to have power supplied by a Listed Direct Plug-in
N o t e :
Power Adapter marked Class 2 and rated 9V AC, 1000 mA.
2. Turn on the modem using the power switch on the front
of the modem. The CS LED should light.
If the CS LED does not light or other LEDs light, make
sure that only DIP switches 3, 5, and 8 are in the on
(down) position.
3. Turn on your computer.
Step Five: Install the Modem Drivers
Windows Vista, XP and 2000
You must be logged in as an administrator in order to properly install the new
modem.
When you turn your computer on, Windows automatically detects the modem and
installs a generic driver. You will need to update it with the USRobotics driver to sup-
port full V.92 features and the additional software tools for your modem.
1. Insert the USRobotics Installation CD-ROM to install the
USRobotics driver.
If the CD doesn't start automatically, start it manually as follows:
A. Windows Vista: Click Windows Start > Computer.
Windows XP: Click Windows Start > My Computer.
Windows 2000: On the desktop, double-click My Computer.
B. Double-click the CD drive.
2. If the Auto Play window appears, click Run autorun.exe. If prompted by User
Account Control, click Continue.
3. If prompted, select your preferred language. If asked to read the license agree-
ment, read the agreement and click Yes.
4. Click Install Modem, and follow the on-screen instructions to install the driver
for the modem. If prompted, click OK.
! Windows Vista: If prompted by Windows Security, click Install.
! Windows XP: If a Software or Hardware Installation warning appears,
Continue Anyway. 1
Windows 2000: If a Digital Signature Not Found window appears,
!
You have successfully completed the installation procedure.
C o n g ra t u l a t i o n s .
Please register your 56K Faxmodem at
www.usr.com/productreg/
Windows Me
You must be logged in as an administrator in order to properly install the new
modem.
When you turn your computer on, Windows automatically detects the modem and
installs a generic driver. You will need to update it with the USRobotics driver to sup-
port full V.92 features and the additional software tools for your modem.
1. Insert the USRobotics Installation CD-ROM to install the
USRobotics driver.
2. If prompted, select your preferred language. If asked to read the
license agreement, read the agreement and click Yes.
3. Click Windows Start > Settings > Control Panel.
4. Double-click System.
5. On the Device Manager tab, double click Modem to expand the entry.
6. Double-click the Sportster V.90 56K Faxmodem.
7. On the Driver tab, click Update Driver.
8. Select Automatic search for a better driver (Recommended) and click Next.
9. Click Finish to complete the installation.
You have successfully completed the installation procedure.
C o n g ra t u l a t i o n s .
Please register your 56K Faxmodem at
www.usr.com/productreg/
Windows 98
1. Turn on your computer. The Found New Hardware Wizard will detect your
modem.
2. Insert the USRobotics Installation CD-ROM to install the
USRobotics driver.
3. In the Found New Hardware Wizard, click Next.
4. Select Search for best driver for your device (Recom-
mended) and click Next.
5. Select CD-ROM drive and click Next.
6. Click Next, then click Finish to complete the installation.
You have successfully completed the installation procedure.
C o n g ra t u l a t i o n s .
Please register your 56K Faxmodem at
www.usr.com/productreg/
OFF
Windows 95B
1. Turn on your computer. The Update Device Driver Wizard or Found New Hard-
ware Wizard will detect your modem.
1 2 3 4 5 6 7 8
ON 2. Insert the USRobotics Installation CD-ROM to install the
USRobotics driver.
3. In the Update Device Driver Wizard or Found New Hardware
Wizard, click Next and follow the on-screen instructions.
If the Update Device Driver Wizard or New Hardware Found
window does not immediately detect the correct modem, per-
form the following steps:
A. Select Driver from disk provided by manufacturer and click OK.
B. Type and click OK, where D is the drive letter assigned to your CD-
D:\
ROM drive.
C. Click OK to continue the installation.
D. If prompted, click Finish to complete the installation.
1 USRobotics has throughly tested this driver in conjunction with the supported hardware and has verified its com-
patibility with Windows Vista, XP and 2000.
You have successfully completed the installation procedure.
C o n g ra t u l a t i o n s .
Please register your 56K Faxmodem at
www.usr.com/productreg/
Windows NT 4.0
You must be logged in as an administrator in order to properly install the new
modem.
When you turn your computer on, Windows automatically detects the modem and
installs a generic driver. You will need to update it with the USRobotics driver to sup-
port full V.92 features and the additional software tools for your modem.
1. Insert the USRobotics Installation CD-ROM to install the
USRobotics driver.
2. If prompted, select your preferred language. If asked to read the
license agreement, read the agreement and click Yes.
3. Click Windows Start > Settings > Control Panel.
4. Double-click Modems.
5. Click Add. When the Install New Modem screen appears, click Next to have
Windows detect a standard modem.
6. Click Change.
7. Click Have Disk. Type and click OK, where D is the drive letter assigned to
D:\
your CD-ROM drive.
8. Select U.S. Robotics 56K FAX EXT and click OK.
9. Click Next.
1
10. Click Finish to complete the installation. When you see the Modems
click
tab, you will see the COM port that is assigned to your modem.
11. Click Close. If the System Settings Change window appears, click Yes to restart
Yes 1
click .
your computer.
You have successfully completed the installation procedure.
C o n g ra t u l a t i o n s .
.
Please register your 56K Faxmodem at
www.usr.com/productreg/
Additional Software Tools (optional)
For your convenience, the USRobotics Installation CD-ROM provides additional
optional software tools that complements your modem, including the following:
Instant Update automatically notifies you of any available updates for your
"
modem's firmware.
" Internet Call Notification enables the V.92 feature "Modem On Hold", which
suspends your Internet connection when the modem detects an inbound tele-
2
phone call. For more information on using Internet Call Notification, see the
User Guide on the USRobotics Installation CD-ROM.
" PhoneTools software lets you send and receive faxes.
To see the additional software tools for your modem, select Software on the USRo-
botics Installation CD-ROM.
Tr oubleshooting
General
This procedure addresses a number of symptoms that you might experience with
your modem:
.
1. Verify that the cables are connected correctly. This includes all cables connecting
the telephone line, the modem, and your computer.
2. Refer to the LED descriptions and then check the LEDs on the modem to make
sure you are receiving power and that are no errors.
3. If possible, test your modem with a different phone cord and/or wall jack. .
4. Make sure you are not using a Null Modem cable or adapter.
5. Make sure the DIP switches on the back of your modem are set correctly. DIP
switches 3, 5, and 8 should be in the on (down) position.
OFF
1 2 3 4 5
ON
.
6. Shut down and restart your computer.
7. If you still have trouble with the modem, follow these steps to determine whether
it was installed correctly:
Windows Vista
1. Click Windows Start > Control Panel.
2. Click Hardware and Sound.
3. Click Phone and Modem Options and then click the Modems tab.
You should see U.S. Robotics 56K FAX EXT PnP and a COM port setting.
If you do not see a description of your modem, repeat the installation proce-
dure.
4. On the Modems tab, select the description of your new modem and click
Properties.
5. Click the Diagnostics tab and then click the Query Modem button.
If you see a series of commands and responses from the modem, the installa-
tion was successful.
If you do not see a description of your modem the installation was not suc-
cessful; repeat the installation procedure.
2 In order to use the "Modem On Hold" feature, you must subscribe to Call Waiting service with your telephone
service provider.
.
Properties
.
6 7 8
