DO
GUIDE

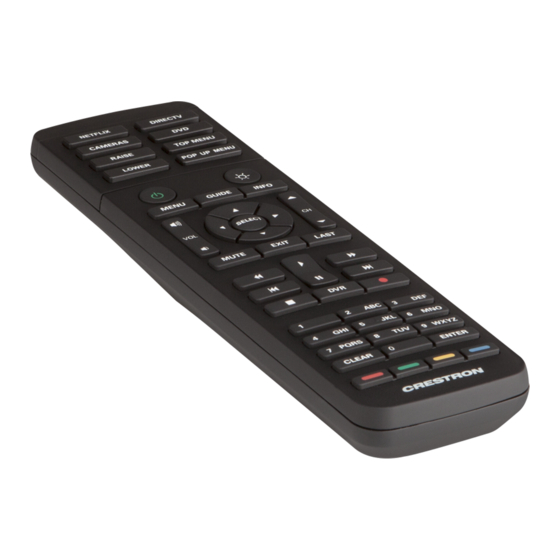

HRI-100/HRI-150
Handheld Remote, 34/50 Button
DO
Change the Buttons and the Cover
The HRI-100 and HRI-150 ship with all of the buttons installed (four on the HRI-100 and eight on
the HRI-150). Both remotes can be used with none of the buttons installed or two of the buttons
installed. The HRI-150 can also be used with four or six buttons installed. Both remotes ship
with alternate button covers.
To change the buttons and the cover, use the following procedure:
1. Gently separate the button cover from the remote.
Separate the button cover here.
DO
Check the Box
QTY PRODUCT
1
Removable HRI-100 Button Cover (2-Button)
1
Removable HRI-100 Button Cover (No Button)
2
AAA Batteries (Set of Two)
1
Keycap Array (4 Sets of 25 Buttons)
1
Removable Button Cover (6-Button)
1
Removable Button Cover (4-Button)
1
Removable Button Cover (2-Button)
1
Removable Button Cover (No Button)
1. These items ship with the HRI-100 only.
2. These items ship with the HRI-150 only.
2. Remove the buttons as desired.
PART NUM.
4520730
1
1
4520731
2041725
4521158
4520696
2
4520697
2
2
4520761
2
4520695
