TECHNICAL MANUAL
Of

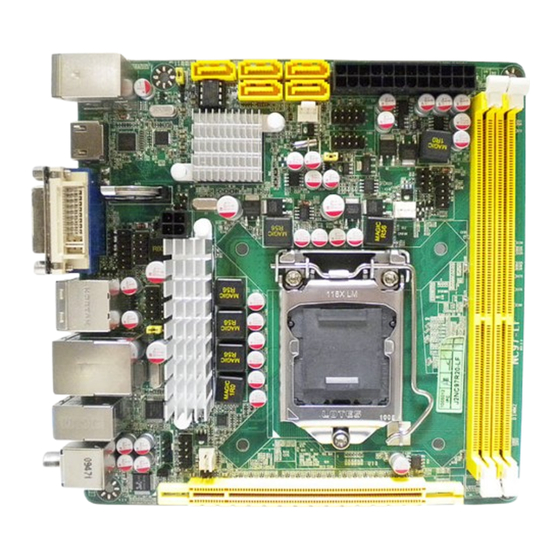

Intel H55 / H57 Express Chipset
Based
Mini-ITX M/B for LGA 1156 Processors
NO.G03-NC97-F
Revision: 1.0
Release date: July, 2010
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Advertisement
Table of Contents
Related Manuals for JETWAY NC97
Summary of Contents for JETWAY NC97
- Page 1 TECHNICAL MANUAL Intel H55 / H57 Express Chipset Based Mini-ITX M/B for LGA 1156 Processors NO.G03-NC97-F Revision: 1.0 Release date: July, 2010 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
- Page 2 Environmental Protection Announcement Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.
-
Page 3: Table Of Contents
TABLE OF CONTENT ENVIRONMENTAL SAFETY INSTRUCTION................iii USER’S NOTICE ........................iv MANUAL REVISION INFORMATION ..................iv ITEM CHECKLIST ........................iv CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD FEATURE OF MOTHERBOARD................1 SPECIFICATION ......................2 LAYOUT DIAGRAM....................3 CHAPTER 2 HARDWARE INSTALLATION JUMPER SETTING ..................... -
Page 4: Environmental Safety Instruction
3-14 SAVE CHAGNES AND EXIT /DISCARD CHANGES AND EXIT ......36 Environmental Safety Instruction Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet. 0 to 60 centigrade is the suitable temperature. (The figure comes from the request of the main chipset) Generally speaking, dramatic changes in temperature may lead to contact malfunction and crackles due to constant thermal expansion and contraction from... -
Page 5: User's Notice
USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER. -
Page 6: Chapter 1 Introduction Of The Motherboard Feature Of Motherboard
Chapter 1 Introduction of the Motherboard Feature of motherboard Intel H55/H57 express chipset Support Intel® Core™ i7-800 processor series, Intel® Core™ i5 processors, and Intel® Core™ i3 processors, with low power consumption never denies high performance. Support Front Side Bus 533 MHz. Support DDRIII DIMM 1066-1333 up to 8GB and dual channel function Onboard Realtek RTL 8111DL Gigabit Ethernet LAN. -
Page 7: Specification
1-2 Specification Spec Description Design Mini-ITX form factor 6 layers ; PCB size: 17.0x17.0cm Intel H55 Express Chipset (for NC97-LF model) Chipset Intel H57 Express Chipset (for NC97R-LF model) Support Intel® Core™ i7-800 processor series, Intel® LGA 1156 Socket Core™ i5 processors, and Intel® Core™ i3 processors... -
Page 8: Layout Diagram
LPC header x 1 Serial port header x1 CIR header x1 GPIO header x1 Layout Diagram RJ-45 LAN Connector E-SATA PS/2 Keyboard Line-IN Connector Connector Coaxial SPDIF_OUT Line-OUT USB Ports Optical SPDIF_OUT MIC-IN HDMI USB Ports Connector Connector... - Page 9 SATAII Connector (1, 2, 3, 4,5) ATX Power connector Keyboard Port over USB Ports HDMI Connector Intel H55/H57 USB Headers Express SYS FAN1 Speaker1 Header Header JBAT1 Front Panel ATX 12V Power LPC1 DVI Connector over Header Header Connector VGA Connector CPUFAN Header Serial Port Header...
- Page 10 Jumper Jumper Name Description JBAT1 CMOS RAM Clear Function Setting 2-pin Block KB/MS/ USB Power On Function Setting 3-pin Block USB Power On Function Setting 3-pin Block USB 1/2 Power On Function Setting 3-pin Block Connectors Connector Name Description ATXPWR1 ATX Power Connector 24-pin Block ATX12V1...
- Page 11 Headers Header Name Description FP_AUDIO1 Front panel audio Headers 9-pin block CDIN1 CD Audio-In Header 4-pin Block HDMI-SPDIF1 SPDIF-Out header 2-pin Block COM1 Serial Port Header 9-pin Block USB1/USB4 USB Header 9- pin Block GPIO_CON1 GPIO header 10-pin Block SPEAK1 Speaker Header 4-pin Block PWR LED1...
-
Page 12: Jumper Setting
Chapter 2 Hardware Installation 2-1 Jumper Setting (1) Clear CMOS (2-pin): JBAT1 JBAT1 1-2 Open： Normal 1-2 Short： Clear CMOS CMOS Clear Setting (2) KB/MS/USB Power On Function Setting: JP1 1-2 Closed: KB/MS/USB Power-on Disabled(Default) 2-3 closed: KB/MS/USB Power-on Enabled... - Page 13 (3) USB Power On Function Setting: JP4 1-2 closed : USB Power-on Disacled(Default) 2-3 closed: USB Power-on Enabled (4) USB 1/2 Power On Function Setting: JP3 1-2 closed : USB 1/4 Power-on Disacled(Default) 2-3 closed: USB 1/4 Power-on Enabled...
-
Page 14: Connectors And Headers
Connectors and Headers 2-2-1 Connectors (1) Rear Panel Connectors RJ-45 LAN Connector E-SATA PS/2 Keyboard Line-OUT Connector Connector Coaxial SPDIF OUT Line-IN USB Ports Optical SPDIF_OUT MIC-IN HDMI USB Ports Connector Connector (2) Serial-ATAII Port connector: SATA1/SATA2/SATA3/SATA4/SATA5 These connectors support the provided Serial ATA and Serial ATA2 IDE hard disk cable to connect the motherboard and serial ATA2 hard disk drives. -
Page 15: Headers
2-2-2 Headers (1) Line-Out, MIC-In Header (9-pin): FP_AUDIO1 This header connects to Front Panel Line-out, MIC-In connector with cable. FP_AUDIO1 Pin 1 Line-Out, MI C Headers (2) CD AUDIO-In Headers (4-pin): CDIN1 CDIN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM CD-Audio output connector. - Page 16 HDMI_SPDIF_OUT1 HDMI_SPDIF Header (4) Serial Port Connectors (9-Pin female): COM1 Pin6 Pin1 Pin1 Pin1 Pin5 Serial COM Port 9-pin Block (5) USB Port Headers (9-pin): USB1/USB4 Pin 1 USB Port Header...
- Page 17 (6) Speaker Header: SPEAK1 This 4-pin header connects to the case-mounted speaker. See the figure below. (7) Power LED: PWR LED1 The Power LED is light on while the system power is on. Connect the Power LED from the system case to this pin. SPEAK1 Pin 1 PWRLED1...
- Page 18 Pin3: Fan Speed SYSFAN1 CPUFAN SYSFAN2 (10) GPIO Header (10-pin): GPIO_CON1 GPIO_CON1 Pin 1 GPIO_14 GPIO_10 GPIO_15 GPIO_11 GPIO_12 GPIO_16 GPIO_13 GPIO_17 GPIO_CON1 Header...
- Page 19 (11) CIR Header: CIR1 Pin 1 5VSB CIR_RX CIR LED CIR1 Header (12) LPC Connector (12-pin): LPC_CON1 Pin 1 LPC1 Connector...
-
Page 20: Chapter 3 Introducing Bios
Chapter 3 Introducing BIOS Notice! The BIOS options in this manual are for reference only. Different configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website. -
Page 21: Enterning Setup
Entering Setup Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. - Page 22 Figure 3-1 Standard BIOS Features Use this Menu for basic system configurations. Advanced BIOS Features Use this menu to set the Advanced Features available on your system. Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize your system’s performance.
-
Page 23: Standard Bios Features
This entry shows your PC health status. Miscellaneous Control Use this menu to specify your settings for Miscellaneous Control. Load Optimal Defaults Use this menu to load the BIOS default values these are setting for optimal performances system operations for performance use. Load Standard Defaults Use this menu to load the BIOS default values for the minimal/stable performance system operation... - Page 24 Date The date format is <day><month><date><year>. Day of the week is from Sun to Sat, determined by BIOS. Read-only. Month The month is from Jan. through Dec. Date The date from 1 to 31 can be keyed by numeric function keys. Year The year depends on the year of the BIOS.
- Page 25 Auto: enables LBA Mode if the devices support it and the device is not already formatted with LBA Mode disabled. Block (Multi-Sector Transfer): The optional settings are: Disabled and Auto. Disabled: The Data transfer from and to the device occurs one sector at a time. Auto: The Data transfer from and to the device occurs multiple sectors at a time if the device supports it.
-
Page 26: Advanced Bios Features
3-5 Advanced BIOS Features Boot Sector Virus Protection The selection Allow you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep. Disabled (default) No warning message to appear when anything attempts to access the boot sector or hard disk partition table. -
Page 27: Cpu Feature
Boot Devices Specify the boot sequence from the available devices. A device enclosed in parenthesis has been disabled in corresponding type menu. Boot Up NumLock Status The default value is On. On (default) Keypad is numeric keys. Keypad is arrow keys. MPS Version This option is only valid for multiprocessor motherboards as it specifies the version of The Multiprocessor Specification (MPS) that the motherboard will use. - Page 28 Hardware Prefetcher For UP platform, leave it as Enabled. For DP/MP servers, it may use to tune performance to the specific application. The optional settings are: Enabled; Disabled. Adjacent Cache Line Prefetch For UP platform, leave it as Enabled. For DP/MP servers, it may use to tune performance to the specific application.
-
Page 29: Advanced Chipset Features
Use this item to enable or disable turbo ratio mode programming. Intel(R) C-STATE tech CState: CPU idle is set to C2/C3/C4. 3-6 Advanced Chipset Features The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer. Configure DRAM Timing by SPD The optional setting is: Disabled;... -
Page 30: Integrated Peripherals
3-7 Integrated Peripherals Initiate Graphics Adapter Select which graphics controller to use as the primary boot device. The optional settings are: IGD; PEG/IGD. -
Page 31: Onboard Vga Function
3-7-1 Onboard VGA Function IGD Graphics Mode Select Use this item to select the amount of system memory used by the internal graphics device. The optional setting: Enable, 32MB; Enable, 64MB; Enable, 128MB. DVMT/FIXED Memory The optional settings are: 128MB; 256MMB; Maximum DVMT. PEG Port The optional settings are: Auto;... -
Page 32: Onboard Sata Function
3-7-2 Onboard SATA Function Configure SATA as Press Enter to select the SATA type. The optional settings are: IDE; AHCI and Disabled. SATA#1 IDE Configuration The optional settings are: Compatible and Enhanced. SATA#2 IDE Configuration The optional settings are: Disabled and Enhanced. -
Page 33: Onboard Device Function
3-7-3 Onboard Device Function HDA Controller The optional setting are: Enabled; Disabled. Onboard PCIE Lan Controller Use this item to enable or disable onboard PCIE Lan controller. Onboard PCIE Lan BootROM The optional settings are: Disabled; Enabled. USB Functions The optional settings are: Disabled; Enabled. USB 2.0 Operation Mode The settings are: FullSpeed;... -
Page 34: Onboard Super Io Function
3-7-4 Onboard Super IO Function Onboard CIR Port Use this item to enable or disable CIR port. Serial Port 1 Address The optional settings are ： Disabled, 3F8/IRQ4, , 2F8/IRQ3,3E8/IRQ4, 2E8/IRQ3. This item allows BIOS to select Serial Port1 Base Addresses. WatchDog Timer Control Use this item to enable or disable WatchDog Timer Control. -
Page 35: Power Management Setup
Power Management Setup The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use. Suspend Mode Select the ACPI states used for system suspend. The optional settings are: S1 (POS); S3 (STR). -
Page 36: Pnp/Pci Configurations
To generate a wake event by the above devices. The optional settings are: Enabled; Disabled. High Performance Event Timer The optional settings are: Enabled; Disabled. ASSC Support The optional settings are: Disabled; Auto. Resume On RTC Alarm Use this item to disable or enable RTC to generate a wake event. 3-9 PnP/PCI Configurations IRQ Resources Names the interrupt request (IRQ) line assigned to the USB on your system. -
Page 37: Pc Health Status
3-10 PC Health Status This section shows the Status of your CPU, Fan, and Warning for overall system status. This is only available if there is Hardware Monitor onboard. Smart Fan Configuration Press Enter to set certain values for the following three items: CPUFAN Smart Mode; SYSFAN1 Smart Mode;... -
Page 38: Smart Fan Configurations
3-10-1 Smart FAN Configurations CPU/ SYSFAN1/SYSFAN2 Full-Speed Temp The optional range is 20~70. Fan will run in full speed mode when above the temperature set in these items. CPU/ SFAN1/SYSFAN2 Idle Temp The optional range is 20~50. Fan will low speed when below this temperature. CPU/ SFAN1/SYSFAN2 Idle-Speed Fan duty control. -
Page 39: Miscellaneous Control
3-11 Miscellaneous Control Spread Spectrum The optional settings are: Enabled; Disabled. CPU Diff AMP The optional settings are: 700 mV; 800 mV;900 mV;1000 mV. DRAM Clock at Next Boot This item allows you to set DRAM clock. The optional settings are: Auto; 800MHz; 1066MHz;... -
Page 40: Password Setting
CPU Ratio Use this item to set CPU ratio. This setting will only take effect when SpeedStep-tech is set as Disabled. CPU Vcore-7 Shift Use this item to set value in CPU Vcore 7-Shift function. Optional settings are: Normal; +50mV to 350mV. CPU AGX Voltage Select The optional settings are: Normal;... -
Page 41: Load Optimal /Standard Defaults
Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security option. - Page 42 Pressing <OK> save the values you made previously and exit BIOS setup. Discard and Exit When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Pressing <OK> to leave BIOS setting without saving previously set values. Notice! The BIOS options in this manual are for reference only.
