NC7A Series User Manual
NO. G03-NC7A-F
Revision: 1.0
Release date: July 31, 2017
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Advertisement

Table of Contents
loading

Related Manuals for JETWAY NC7A Series

Summary of Contents for JETWAY NC7A Series

  • Page 1 NC7A Series User Manual NO. G03-NC7A-F Revision: 1.0 Release date: July 31, 2017 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
  • Page 2 Environmental Protection Announcement Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.

  • Page 3: Table Of Contents

    TABLE OF CONTENT ENVIRONMENTAL SAFETY INSTRUCTION ................iii USER’S NOTICE ........................iv MANUAL REVISION INFORMATION ..................iv ITEM CHECKLIST ........................iv CHAPTER 1 INTRODUCTION PRODUCT FEATURES ....................1 SPECIFICATION ......................2 MAIN BOARD DIAGRAM ................... 3 CHAPTER 2 HARDWARE INSTALLATION LOCATION OF INTERNAL JUMPER AND CONNECTOR ........

  • Page 4: Environmental Safety Instruction

    Environmental Safety Instruction  Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet.  0 to 60 centigrade is the suitable temperature. (The figure comes from the request of the main chipset) ...

  • Page 5: User's Notice

    USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.

  • Page 6: Chapter 1 Introduction

    Chapter 1: Introduction Product Features  Intel® Celeron™ J1900 (2.0 GHz) quad-core processor  Support DirectX 11 3D Graphics Acceleration  Onboard SAMSUNG 4G/1333MHz DDR3L Memory  Support up to 2 Displays, LVDS,EDP, VGA  1 x SATA3 6Gb/s Port ...

  • Page 7: Specification

    1-2 Specification Spec Description ®  Intel Celeron™ J1900 (2.0 GHz) quad-core processor  Onboard SAMSUNG 4G/1333MHz DDR3L up to 8GB Memory  1* Full-size Mini PCIe slot  1* M.2 (2242/2260/2280) Expansion Slot  1* SIM Card Holder  1* SATA III 6G/s Connector Storage ...

  • Page 8: Main Board Diagram

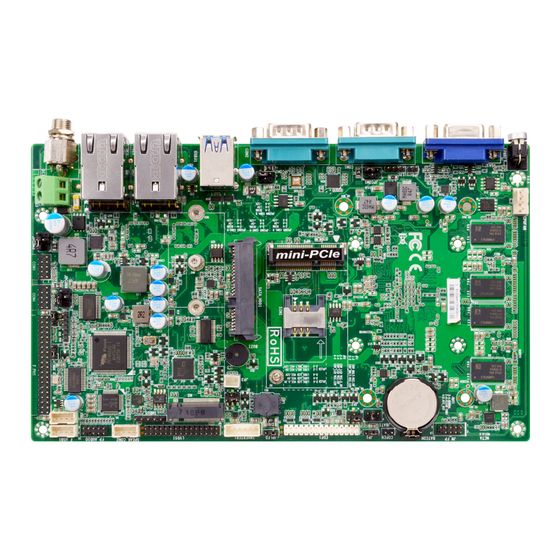

    1-3 Main Board Diagram: Front CPUFAN Header Power Button JW_FP Header COM1 EDP1 Header Mini PCIe Connector COM2 SIM Card Socket INVERTER1 Header SATA3 Connector USB3.0 Ports JP3 Header Top: RJ-45 M.2 Connector LAN Port1 LVDS1 Header Middle/Bottom: SMBUS Header USB2.0 Port Top: SPEAK_CON2 Header...
  • Page 9 Main Board Diagram: Back Intel CPU...

  • Page 10: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation 2-1 Location of Internal Jumper and Connector CPUFAN Header Power Button JW_FP Header COPEN COM1 JBAT1 JPCOM1 EDP1 Header Mini PCIe Connector COM2 JPLED SIM Card Socket JPCOM2 JPLCD INVERTER1 Header USB3.0 Ports SATA3 Connector Top: JP3 Header RJ-45 LVDS1 Header...

  • Page 11: Internal Jumper And Connector Setting

    2-2 Internal Jumper and Connector Setting (1) JP1 (3-pin): eDP Backlight VCC 5V /12V Select 1-2 Closed: 2-3 Closed: 5V (Default); 12V. (2) JP2 (4-pin): eDP LCD VCC 3.3V / 5V /12V Select 2-4 Closed: 3-4 Closed: 4-6 Closed: 3.3V (Default); 12V.
  • Page 12 (3) JBAT1 (4-pin): Clear CMOS Setting 3-4 Closed: 2-4 Closed: 4-6 Closed: (Default); CLEAR CMOS; RTC_RST. (4) JPLED (3-pin): LVDS Backlight VCC 5V / 12V Select 1-2 Closed: 2-3 Closed: 5V (Default); 12V.
  • Page 13 (5) JPLCD (4-pin): LVDS LCD VCC 3.3V / 5V /12V Select 2-4 Closed: 3-4 Closed: 4-6 Closed: 3.3V (Default); 12V. (6) AT_Mode (3-pin): AT/ATX Mode Function Select Pin1 1-2 Closed: 2-3 Closed: ATX Mode (default); AT Mode. *ATX Mode Selected: Press power button to power on after power input ready; AT Mode Selected: Directly power on as power input ready.
  • Page 14 (8) JPCOM1/2/3/4 (4-pin): COM1/COM2/COM3/COM4 5V /12V Select 2-4 Closed: 3-4 Closed: 4-6 Closed: RING (Default); 12V. 2-4 Closed: 3-4 Closed: 4-6 Closed: RING (Default); 12V.

  • Page 15: Connectors

    2-2-1 Connectors (1) Rear I/O Connectors RJ-45 RJ-45 LAN1 Port LAN2 Port Power Button COM1 COM2 USB 3.0 Port USB 2.0 Port DC-in Icon Name Function Press to turn on/off the system. Power Button connect display device that support VGA Port specification.

  • Page 16: Headers

    2-2-2 Headers (1) CPUFAN (4-pin): CPUFAN Header (2) JW_FP (9-pin): Front Panel Header PIN 1 HLED+ PWRLED HLED- VSB_LED FP_SPSW FP_RST-...
  • Page 17 (3) COPEN (2-PIN): Case Open Message Display Function COPEN- Pin 1-2 Close: When Case open function pin short to GND, the Case open function was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’ function. In this case if your case is removed, next time when you restart your computer, a message will be displayed on screen to inform you of this.
  • Page 18 Pin NO. Pin Define Pin NO. Pin Define Pin 1 BKLT_PW Pin 2 EDP_INVCC Pin 3 BKLT_PW Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 EDP_LCD_VCC Pin 10 Pin 11 EDP_LCD_VCC Pin 12 EDP_BKLTCTL Pin 13 Pin 14 Pin 15 EDP_BKLTEN...
  • Page 19 (6) JP3 (2-Pin): Brightness Setting Header BRTNSS_UP BRTNSS_DN (7) LVDS1 (30-Pin): 24-bit dual channel LVDS Header Pin 1 Pin 2 Pin NO. Pin Define Pin NO. Pin Define Pin 1 LVD_VCC Pin 2 LVD_VCC Pin 3 LVD_VCC Pin 4 LVDS_PRSNT# Pin 5 Pin 6 Pin 7...
  • Page 20 Pin 9 LVDSA_DATAN1 Pin 10 LVDSA_DATAP1 Pin 11 LVDSA_DATAN2 Pin 12 LVDSA_DATAP2 Pin 13 Pin 14 Pin 15 LVDSA_CLKN Pin 16 LVDSA_CLKP Pin 17 LVDSA_DATAN3 Pin 18 LVDSA_DATAP3 Pin 19 LVDSB_DATAN0 Pin 20 LVDSB_DATAP0 Pin 21 LVDSB_DATAN1 Pin 22 LVDSB_DATAP1 Pin 23 LVDSB_DATAN2 Pin 24...
  • Page 21 (10) FP_AUDIO (9-pin): Line-Out, MIC-In Header This header connects to Front Panel Line-out, MIC-In connector with cable. Pin 1 MIC2-L MIC2-R F_AUDIO_DET- LINE2-R MIC2_RTU SENSE B LINE2-L LINE2_RTU (11) F_USB1/2 (4-pin): USB 2.0 Port Header (12) F_PH1 (40-pin): COM Port Expansion Header & GPIO Header Pin 1...
  • Page 22 Pin NO. Pin Define Pin NO. Pin Define Pin 1 Pin 2 Pin 3 GL850_USBN3_A Pin 4 GL850_USBN4_A Pin 5 GL850_USBP3_A Pin 6 GL850_USBP4_A Pin 7 Pin 8 Pin 9 Pin 10 Pin 11 DCD5- Pin 12 DSR5- Pin 13 SIN5 Pin 14 RTS5-...
  • Page 23 (14) COM3/4 (9-pin): COM3 / COM4 Header Pin 1 (15) DCIN3 (2-pin block): DC input Header...

  • Page 24: Chapter 3 Introducing Bios

    Chapter 3 Introducing BIOS Notice! The BIOS options in this manual are for reference only. Different configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard.

  • Page 25: Bios Menu Screen

    BIOS Menu Screen The following diagram show a general BIOS menu screen: BIOS Menu Screen Menu General Help Items Current Setting Value Menu Items Function Keys Function Keys In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: ...

  • Page 26: Getting Help

     Press <+>/<–> keys when you want to modify the BIOS parameters for the active option.  [F1]: General help.  [F2]: Previous values.  [F3]: Optimized defaults.  [F4]: Save & Exit.  Press <Esc> to quit the BIOS Setup. Getting Help Main Menu The on-line description of the highlighted setup function is displayed at the top right...
  • Page 27 System Date Set the date. Please use [Tab] to switch between date elements. System Time Set the time. Please use [Tab] to switch between time elements.

  • Page 28: Advanced Menu

    3-7 Advanced Menu OS Selection Use this item to select OS. The optional settings are: [Windows 8.X]; [Linux/Android]; [Windows 7].  Trusted Computing Press [Enter] to make settings for the following sub-item: Security Device Support Use this item to enable or disable BIOS support for security device. OS will not show Security Device.
  • Page 29  ACPI Settings Press [Enter] to make settings for the following sub-item: ACPI Sleep State Use this item to select ACPI sleep state the system will enter when the suspend button is pressed. The optional settings are: [Suspend Disabled]; [S3 only (Suspend to RAM)]. ►...
  • Page 30 [IO=3E8h; IRQ=10;]; [IO=2E8h; IRQ=10;]; [IO=2F0h; IRQ=10;]; [IO=2E0h; IRQ=10;]. Serial Port FIFO Mode U se this item to select an optimal setting for FIFO Mode. The optional settings are: [16-Byte FIFO]; [32-Byte FIFO]; [64-Byte FIFO]; [128Byte FIFO]. OS Select for Serial Port Serial port supports for Windows or Linux.
  • Page 31 User can set a value in the range of [10] to [4095] seconds when‘WatchDog Wake-up Timer Unit’ set as [Sec.], or in the range of [1] to [4095] minutes when ‘WatchDog Wake-up Timer Unit’ set as [Min.]. WatchDog Wake-up Timer Unit The optional settings are: [Sec.];...
  • Page 32 Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard settings is 1 stop bit. Communication with slow devices may require more than 1 stop bit. The optional settings: [1]; [2]. Flow Control Flow control can prevent data loss from buffer overflow.
  • Page 33  Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Press [Enter] to make settings for the following items: Terminal Type The optional settings: [VT100];...
  • Page 34 CPUFAN Full-Speed Duty Use this item to set CPUFAN full speed duty. Fan will run at full speed when above the pre-set duty. CPUFAN Idle-Speed Temperature Use this item to set CPUFAN idle speed temperature. Fan will run at idle speed when below the pre-set temperature.
  • Page 35 The optional settings: [Disabled]; [Enabled]. Max CPU C-State This item controls Max C-state that the processor will support. The optional settings: [C7]; [C6]; [C1]. S0ix Use this item to enable or disable CPU S0ix state. The optional settings: [Disabled]; [Enabled]. ...
  • Page 36 Use this item to enable Ipv6 PXE Boot Support. When set as [Disabled], Ipv6 boot optional will not be created. PXE Boot Wait Time Use this item to set wait time to press [ESC] key to abort the PXE boot. ...
  • Page 37  USB1 Wake-up from S3 Use this item to enable or disable USB wake-up. It is affected by ERP function in S4. Please disable ERP before activating this function in S4. The optional settings: [Disabled]; [Enabled].  USB Configuration Legacy USB Support The optional settings are: [Enabled];...

  • Page 38: Chipset Menu

    The delay range is from [1] to [40] seconds, in one second increments. 3-8 Chipset Menu  North Bridge Press [Enter] to view current using memory information and make settings for the following sub-items: PAVC Use this item to enable or disable Protected Audio Video Control. The optional settings are: [Disabled];...
  • Page 39 The optional settings are: [128M]; [256M]; [512MB]. GTT Size The optional settings are: [1M]; [2M]. Primary IGFX Boot Display Use this item to select the video device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection.

  • Page 40: Security Menu

    The optional settings are: [Enabled]; [Disabled]. Audio Controller Use this item to control the detection of the Azalia HD Audio device. The optional settings are: [Disabled]; [Enabled]. [Disabled]: Azalia will be unconditionally disabled; [Enabled]: Azalia will be unconditionally enabled;  USB Configuration USB 3.0 Support The optional settings are: [Enabled];...

  • Page 41: Boot Menu

    Security menu allow users to change administrator password and user password settings. 3-10 Boot Menu Boot Configuration ► Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. ► Bootup Numlock State Use this item to select keyboard NumLock state. The optional settings are: [On];...

  • Page 42: Save & Exit Menu

    3-11 Save & Exit Menu  Save Changes and Reset This item allows user to reset the system after saving the changes.  Discard Changes and Reset This item allows user to reset the system without saving any changes.  Restore Defaults Use this item to restore /load default values for all the setup options.
