Instrukcja obsługi i instalacji
Εγχειρίδιο Λειτουργίας & Εγκατάστασης
CD/MP3/WMA RECEIVER
LECTEUR CD/MP3/WMA
CD/MP3/WMA-RECEIVER
SINTOLETTORE CD/MP3/WMA
CD/MP3/WMA-ONTVANGER
RECEPTOR CD/MP3/WMA
CD/MP3/WMA-RECEIVER
ODTWARZACZ CD/MP3/WMA
z interfejsem
CD/MP3/WMA ΔΕΚΤΗΣ
Downloaded from Caradio-Manual.com Manuals
Advertisement
Chapters
Table of Contents
Related Manuals for Clarion CZ100E
Summary of Contents for Clarion CZ100E
- Page 1 Instrukcja obsługi i instalacji Εγχειρίδιο Λειτουργίας & Εγκατάστασης CD/MP3/WMA RECEIVER LECTEUR CD/MP3/WMA CD/MP3/WMA-RECEIVER SINTOLETTORE CD/MP3/WMA CD/MP3/WMA-ONTVANGER RECEPTOR CD/MP3/WMA CD/MP3/WMA-RECEIVER ODTWARZACZ CD/MP3/WMA z interfejsem CD/MP3/WMA ΔΕΚΤΗΣ Downloaded from Caradio-Manual.com Manuals...
-
Page 2: Table Of Contents
Contents Thank you for purchasing this Clarion product. • Please fully read this owner’s manual before operating this equipment. • Check the contents of the enclosed warranty card and store it in a safe place with this manual. 1. FEATURES ........................2 2. -
Page 3: Features
1. FEATURES MP3/WMA compatible with ID3-TAG display Front-panel auxiliary input & 4ch RCA output "BEAT-EQ" with 3 Band Parametric Equalizer & "MAGNA BASS EX" dynamic bass enhancement Expanding Systems Expanding audio features 4-Channel Amplifier Note: Portable Player The items listed outside of the frames are the (Connect by AUX IN Jack) commercial products generally sold. -
Page 4: Precautions
2. PRECAUTIONS WARNING For your safety, the driver should not operate the controls while driving. Also, while driving, keep the volume to a level at which external sounds can be heard. 1. When the inside of the car is very cold and the player is used soon after switching on the heater, moisture may form on the disc or the optical parts of the player and... -
Page 5: Front Panel / Generalities
Front Panel / Generalities For a longer service life, be sure to read the following cautions. • Do not allow any liquids on the set from drinks, umbrellas, etc. Doing so may damage the internal circuitry. • Do not disassemble or modify the set in any way. -
Page 6: Remove The Dcp
Remove the DCP The control panel can be detached to prevent theft. When detaching the control panel, store it in the DCP (DETACHABLE CONTROL PANEL) case to prevent scratches. We recommend taking the DCP with you when leaving the car. 1. -
Page 7: Controls

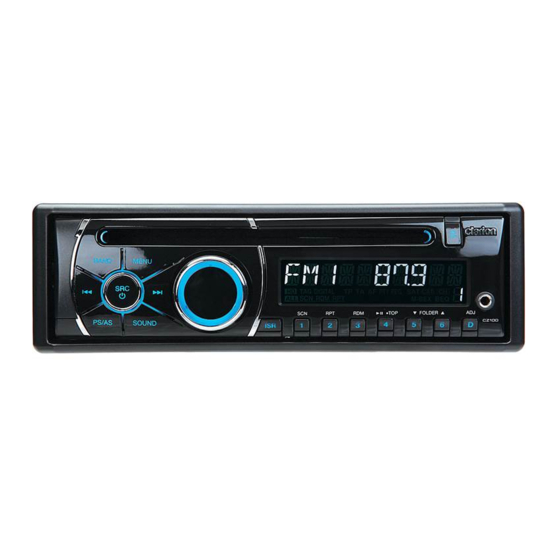

3. CONTROLS Operational Panel [BAND] [MENU] Disc Slot [PS/AS] [SOUND] [TA] [1~6] AUX Jack [OPEN] [POWER/SRC] [VOLUME] [ADJ] Names of Buttons / SRC] Key [VOLUME] Key • Power / Toggle the audio source • Adjust volume level / Confirm [BAND] Key [TA] Key •... -
Page 8: Cautions On Handling
4. CAUTIONS ON HANDLING Handling Discs Handling Storage • New discs may have some roughness • Do not expose discs to direct sunlight or around the edges. If such discs are used, any heat source. the player may not work or the sound •... -
Page 9: Operations
5. OPERATIONS Basic Operations Note: Volume adjustment • Be sure to read this chapter referring to the Turn the volume knob on the front panel. chapter “3. CONTROLS” The adjustable range of volume is 0 to 40. CAUTION CAUTION When the unit is turned on, starting and stopping the engine with its volume While driving, keep the volume level at raised to the maximum level may harm... -
Page 10: Radio Operations
2. The unit has 5 bands, such as FM1, FM2, stations. FM3, MW, LW. FM3 and MW, LW can store by AS function. Each bands can store 6 stations, CZ100E can store 30 stations in total. Downloaded from Caradio-Manual.com Manuals... -
Page 11: Radio Data System Operations
Radio Data System Operations Radio Data System is ON and the REG function is OFF. This unit has a built-in “Radio Data System” Note: decoder system that supports broadcast • T his function can be used when a regional stations transmitting “Radio Data System” broadcast of the same network is received. data. When using the “Radio Data System”... -
Page 12: Cd/Mp3/Wma Operations
CD/MP3/WMA Operations This unit can play back MP3/WMA * When VBR files are played, the play time files display may differ the play location. * When MP3/WMA files are played, a little Notes: no sound part is caused between tunes. • I f you play a file with DRM (Digital Rights Management) for WMA remaining ON, no Logical format (File system) -
Page 13: Selecting A Track
CD/MP3/WMA Operations Eject function MP3/WMA disc Track > Folder > File title > Album > Title > Just pressing the [ ] button, ejects the disc. Artist > Track ... Notes: • I f y o u f o r c e a C D i n t o b e f o r e a u t o Notes: reloading, this can damage the CD. -
Page 14: Aux Operations
CD/MP3/WMA Operations Top function 1. Press the [RPT] button once or more until “RPT ON” appears on the LCD to perform The top function resets the CD player to the repeat play. first track of the disc. Press and hold the [TOP] 2. -
Page 15: Audio Setup
Audio Setup Press the [SOUND] key to enter sound effect BALANCE -> FADER -> M-B EX -> LPF(low setting mode. First Press shows current EQ. pass filter) -> SUBW VOL, rotate the volume Rotate the volume knob to changes BEAT knob to select a value. -
Page 16: Trouble Shooting
6. TROUBLE SHOOTING GENERAL Problem Cause Measure Unit fuse blown. Install new fuse with correct rating. Unit can not power on Car battery fuse blown. Install new fuse with correct rating. Turn off the power and open the operation panel. Unit can not Press the reset button with a thin rod. -
Page 17: Error Display
DISC Player Problem Cause Measure Eject the disc before loading the new Another disc is already loaded. one. Disc cannot be loaded. There is a foreign matter already Eject the foreign matter forcibly. in place. Compact disc is dirty. Clean the compact disc with a soft cloth. Sound skips or is Compact disc is heavily scratched Replace with a compact disc with no... -
Page 18: Specifications
8. SPECIFICATIONS FM Tuner General Frequency range: 87.5-108.0MHz Power supply voltage: Usable sensitivity: 8dBμ 14.4VDC (10.8 to 15.6V allowable), Frequency response: 30Hz-15kHz negative ground Stereo separation: 30dB(1kHz) Pre-Amp output voltage: Signal/noise ratio: >55dB 2.0V (CD play mode: 1kHz, 0dB, 10k load) Fuse: 15A Dimensions of the Main Unit:... -
Page 19: Installation / Wire Connection Guide
For tough dirt, installation, consult your dealer or an apply a little cold or warm water to a authorized Clarion service center. soft cloth and wipe off the dirt gently. Downloaded from Caradio-Manual.com Manuals... -
Page 20: Cautions On Installation
4. Take care of the top and bottom of the outer escutcheon and mount it so that all the hooks are locked. Notes: 1. Some car models require special mounting kits for proper installation. Consult your Clarion dealer for details. 2. Fasten the front stopper securely to prevent the source unit from coming loose. • Console opening dimensions 7-3/16"... -
Page 21: Unit Installation
Notes of installation positive pole first and then the negative pole. 1. Before installation, please make sure 7. DO NOT block the cooling fan exit to proper connections are conducted and ensure sufficient heating dissipation of this the unit operates normally. Improper unit, or it may result in damage to this unit. -
Page 22: Removing The Source Unit
Method B 6) Removing the Source Unit Disassemble trim ring 1. Push the trim ring to right and pull out the right part. 2. Push the trim ring to left and pull out the left part. 1. Insert this unit directly to the opening of the Disassemble the unit dashboard. -
Page 23: Wiring And Connections
7) Wiring and Connections White Black Rear audio output (Left) Subwoofer output 1 Black Rear audio output (Right) Subwoofer output 2 White Left Front audio output terminal Right Gray Black Black Steering wheel control terminal 4 Channel Amplifier Fuse 15A ANTENNA (Black) Refer to next page. -
Page 24: Connecting The Accessories
Rear right - Front right - Front left + Rear left + AMP Remote ACC + Ground Rear right + Front right + Front left - Rear left - Illumination Phone Mute Battery + Phone Mute / Brown Rear right (+) / Purple Rear right (-) / Purple with black stripe Front right (+) / Grey Front right (-) / Grey with black stripe... - Page 25 0092830 date 28/12/2009 Clarion Europe S.A.S. Z.I. du Pré à Varois, Route de Pompey, 54670 Custines, FRANCE (Γαλλία) Clarion Co., Ltd. Με επιφύλαξη κάθε δικαιώματος. Copyright © 2009: Clarion Co., Ltd. Printed in China / Imprimé en Chine / Gedruckt in China...
